CDM 520 полуавтоматическая двойная спиральная проволочная связывающая машина с пресс формой для проволочных книг

Product Overview

Description

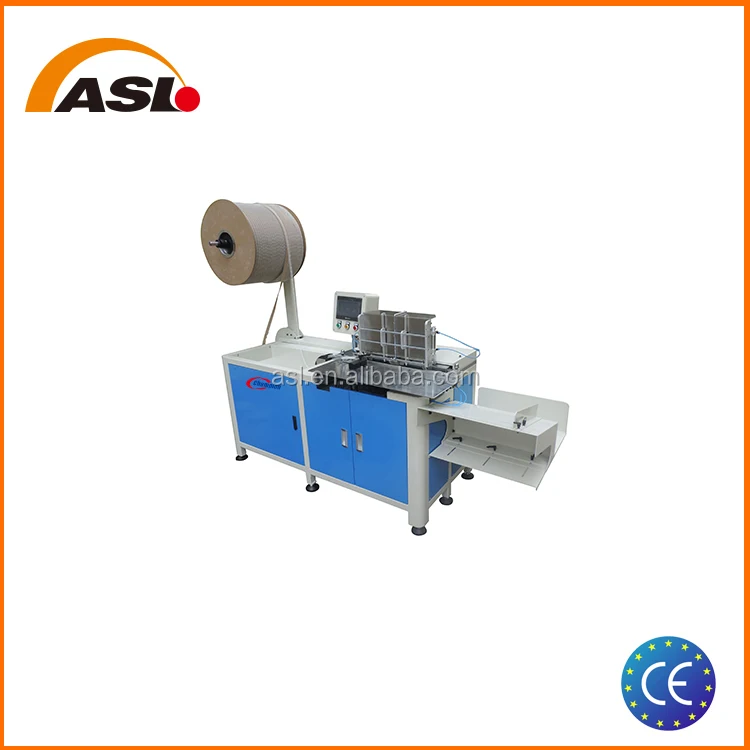

CDM-520 Semi-Automatic Double Wire Binding Machine



 Features:

The semi automatic double coil binder is equipped with automatic computation mentions, the automatic partition, automatically puts on the book and automatically press fits takes shape .it might greatly save the manpower and reduce the double coil waste, widely will be suitable for the books, the notebook, records events thinly, product the and also used on calendar, calendar loose leaf binds. The machine is with Touches screen, PLC control, and all the important parts used Siemens brand.

Hanger attachment as optional



Specifications:

Feeding mode	Manual
Handling of double wire	Automatic cutting, insertion and closing
Wire specification	Diameter :1/4”-3/4” Pitch : 3:1, 2:1
Books thickness	3/16”-9/16”
Max paper length	520mm
Max. binding width	507mm
Min paper length	75mm
Working speed (books/hour)	1000-1200
Size of worktable (L*W)	600*300mm
Power supply	220v/1ph/50hz
Air compressor(not included)	1.5kw
Air pressure	6-8bar
Machine dimensions	1030*770*1200mm
