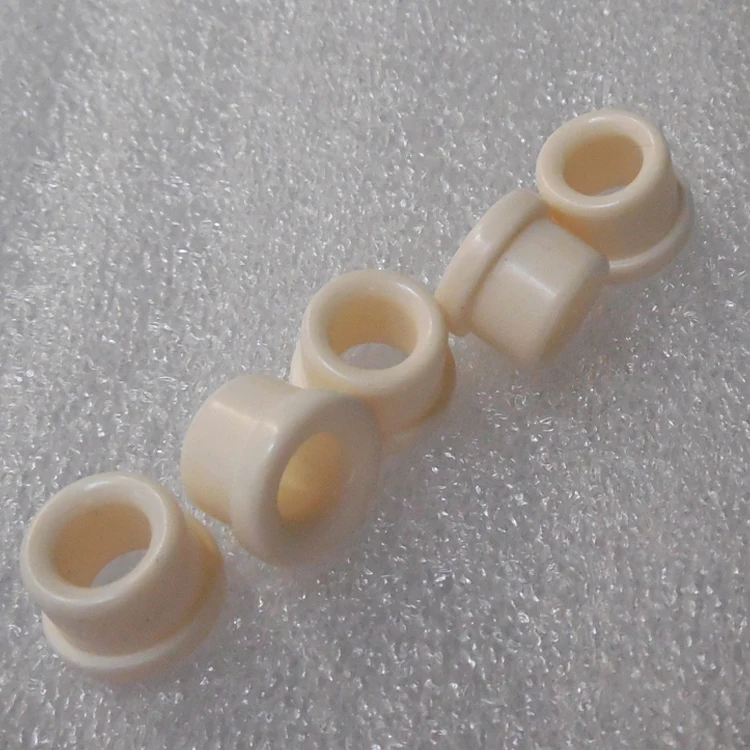

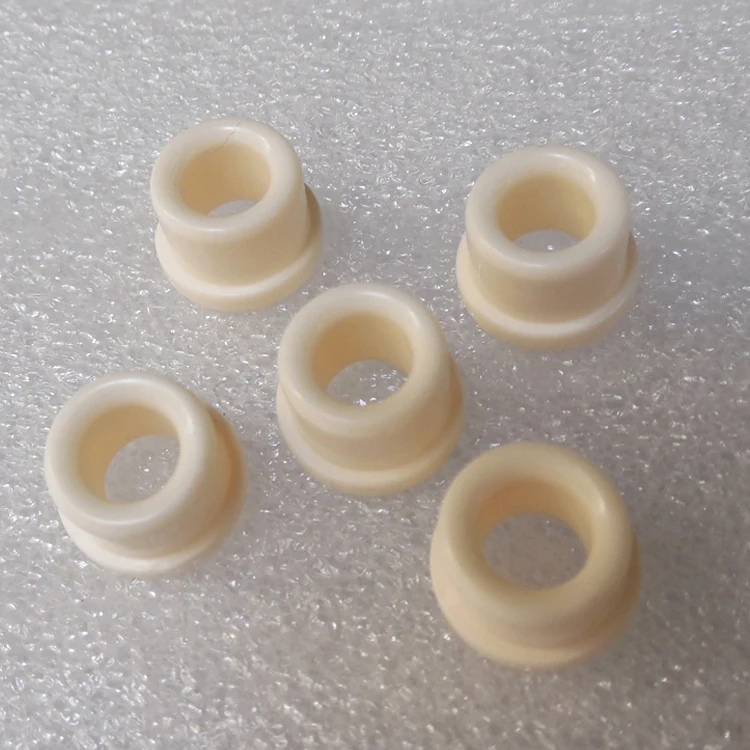

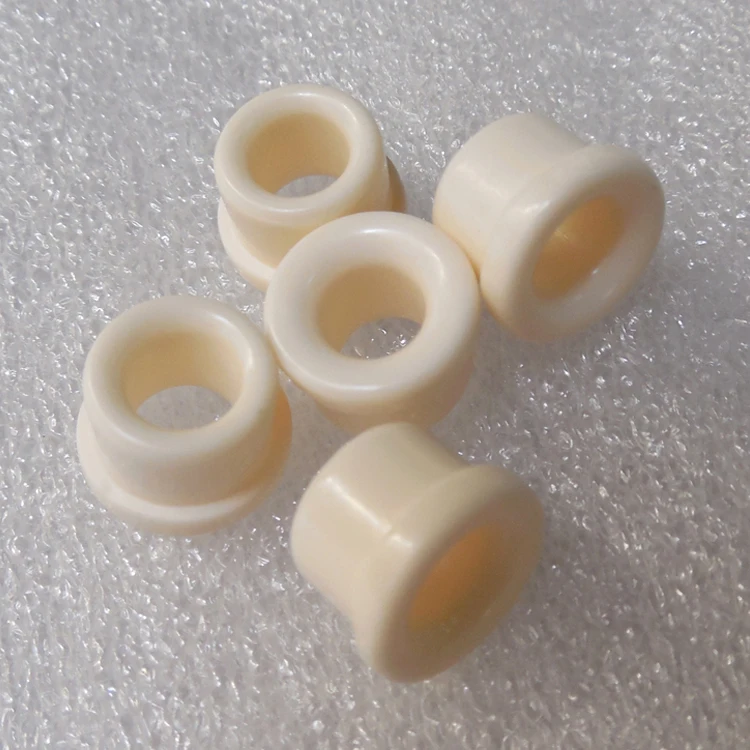

Textile 99# Alumina Ceramic Eyelet Textile Alumina Ceramic Thread Guide

Type: Ceramic Parts
Application: Structure Ceramic
Material: Alumina Ceramic
compressive strenght: 2200-3000
Density: 3.6-3.9
Thermal shock resistance: 200-250
Maximum use Temperature: More than 1500
Volume Resistivity: more than 10^14
Application: textile eyelet
Advantage: Resistant high temperatures
water absorption: 0
Material: Alumina ceramic
Color: white

Description of ceramic eyelet(ceramic ring) :

The ceramic eyelet(ceramic ring) is the most commonly used component for the

wire passing, and it is used in the wire passing position of the coil winding machine

and the textile machinery. Normally it is used for less demanding occasions. The

shape, finish and the hardness of materials must be improved in order to reduce

the friction because of the wire sliding in the surface of the ceramic rings. According

to the requirements, the polish degree of porcelain eye can be regarded as

roughness polishing, precision polishing and ultra-precision polishing.

Features of ceramic eyelet(ceramic ring) :

1.The inside surface polish degree   : Ra0.2~0.8.

2.The material : 99% AI2O3 with density of 3.85.

3.The hardness : HRa88.

Materail : alumina ceramic  (95 /99 alumina ceramic , steatite ceramics  , zirconia ceramics  are optional )

Excellent  abrasion performance

long working life.

Exact surface finish can reach to 0.2 .

Thread is not damaged easily in the process of sliding .

We are a manufacture , we produce professional textile ceramic .

We have compelet products .

Super quality and competitive price.

We meet RoHs certification .

About us:

1)    Our Company has a team of experienced technical personnel with over 8 years working experience in producing various wire guide pulley,steel ring, roller . We can provide you with first-class design, precision product, packing, delivery and otherservices like pre-sales, sale and after-sale services.

 2) Our product type is diversified, covering nearly all kinds of wire industry, cable industry, wire drawing pulley,ceramic pullley,roller etc used in deiiferent industries. Our main product are various ceramic coated pulley and cone pulley,tungsten carbide coated pulley and cone puley,ceramic and tungsten carbide roller,steel ring, etc.

 3) We equipped with advanced production equipment(like Supersonic equipment(HVOF),flame powder spray equipment ) and advanced technical experience, which gives us good production capability.

FAQ:

1 Can we get some samples?Any charge?

    Yes,you can get available samples,Free for ceramic samples,but freight cost.

    Other metal products need sample cost.

2 How can we get the quote?

    Of course,First send the detailed drawing to my customer service Email.

     If no drawing,please  supply the specification of products,such as material,size,shape,  quantity,            surface finish,etc.

3 If i have no drawing,Can you help with the design?

   Yes,we have professional designer to help your design.

4 What is the trade terms and payment terms?

   30% or 50% of the total value to be paid before producing,the rest of depoist to be paid before shippment.

   Accept T/T .west union,money gram,L/C,paypal,Cash,other can be negotiated

5  What about the lead time?

   It depends on products,Normally 10-15 days after comfirmation of drawing and payment.

6 How Can i know if Our product have been shipped?

  Detaileds photos of every process will be sent to you durning the production,we will supply track      No,once shipped.

7 What shipping method can i choose?How about the shipping time of each option?

   DHL,UPS,FEDEX,TNT,CHINA POST ,etc. 3 to 5 working days of express delivery.

8 How do you computer the shipping charges?

  We will supply shipping charges according to estimated G.W,when quote.

9 Do you have MOQ?

  Yes,the Minimum order quantity depends on the specifications of products you need.

Notice:First send the detailed drawing to my customer service Email.

        If no drawing,please supply the specification of products,such as material,size,shape,   quantity,  surface finish,etc.

        then send  quotation list to you within 24 hours.
