waste plastic recycling machine shredder

Product Overview

Description

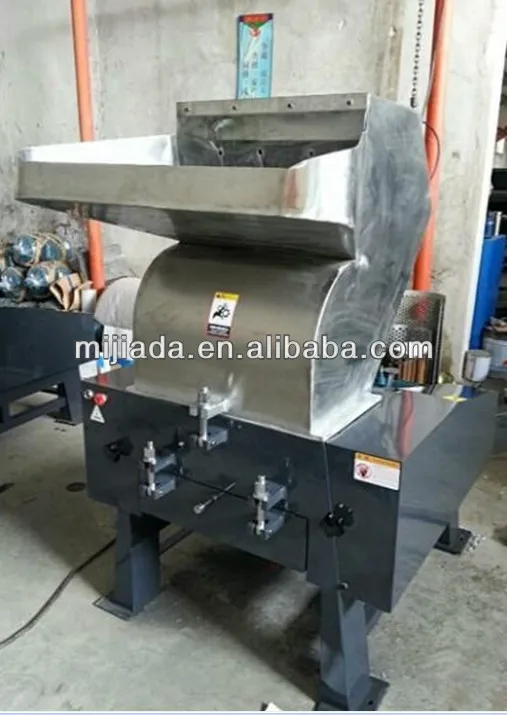

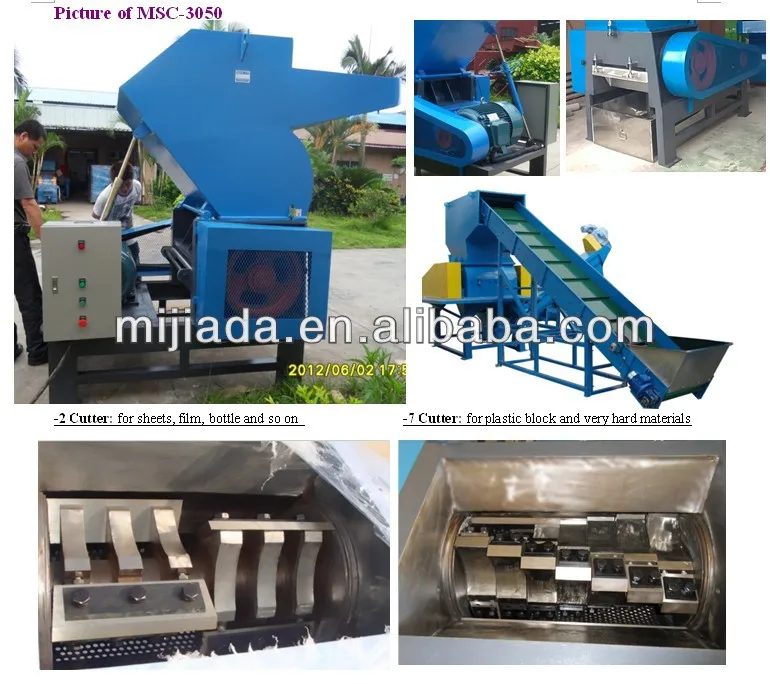

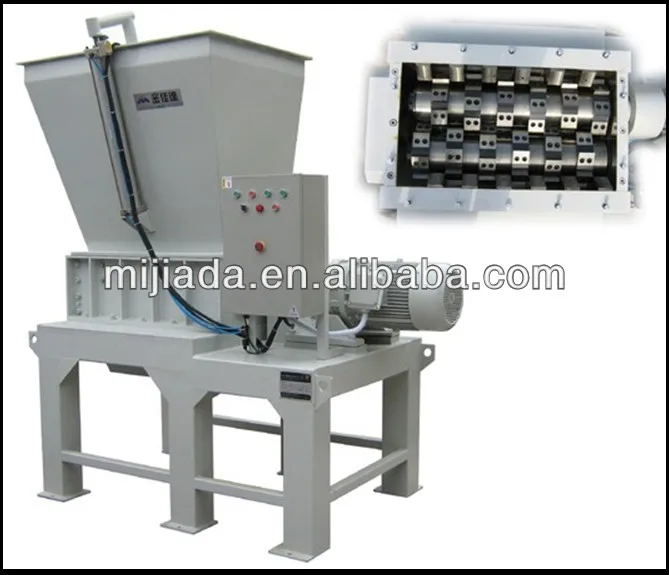

 Single/Double Shaft Industril Plastic Shredder

















Features of strong granulators(claw cutter):

Suitable for recycle and restore of all kinds of plastics, particularly for various hard plastics, e.g. blow molded products and shoe last.

1. Easy to operate, low electricity consumption & durable.

2. Uses  high quality steel material especially for making cutter of the crushers,.

3. The blades can be grinded for many times and can be used repeatedly

4. Easy to clean and maintain; The hopper, crusher room, blades and screen can be removed and installed easily.

5. Brand Motor and Over-loading protection

6. Double wall hoopper designed, low noise.



Configuration of plastic crusher :



1. Electrical appliance: Taiwan (GuanHua)motor, and Chint and SchneiderElectric.



2. Depending on the material matching the different tool materials: 9SiCr(alloy steel), SKD-11, chromium molybdenum vanadium.



3. Mesh material: High carbon steel plate thickness of 5mm(diameter4-8mm). 4. Bearing: NSK bearings imported from Japan.



Specification:



Specifications:

Model	Power (HP)	Crushing Dimension (mm)	Crushing ability (kg/hr)	Rotary Cutter(Pcs)	Stationary Cutter(Pcs)	Dimension(mm)	Total Dimension (CBM)	Net Weight (kg)
MSC-0305	5HP	250×210	150-300kg/hr	3/15PCS	2PCS	950×630×1100	0.9	290
MSC-0575	7.5HP	300×210	160-320kg/hr	9/15PCS	2PCS	1000×700×1260	1.2	330
MSC-7510	10HP	380×250	180-360kg/hr	6/18PCS	2PCS	1080×820×1330	1.6	520
MSC-7515	15HP	500×250	200-550kg/hr	6/24PCS	2PCS	930×1280×1400	2	750
MSC-1520	20HP	500×320	360-720kg/hr	6/21PCS	2PCS	1700×1350×1760	4.9	1000
MSC-2030	30HP	630×320	600-120kg/hr	6/27PCS	2PCS	1700×1480×1760	5.3	1250
MSC-3050	50HP	700×480	800-1600kg/hr	6/27PCS	2PCS	2000×1600×2000	7.5	1600
MSC-5075	75HP	800×650	900-1800kg/hr	6/27PCS	2PCS	1600×2100×2620	10.5	2500
MSC-75100	100HP	1000×800	1000-2000kg/hr	6/27PCS	2PCS	1800×2100×3150	13.6	4000
