High quality 698 2700mhz 3dB directional Hybrid Coupler
- Category: >>>
- Supplier: Guangzhou G-Antetech Telecom Antenna Factory
Share on (1766303851):
Product Overview
Description

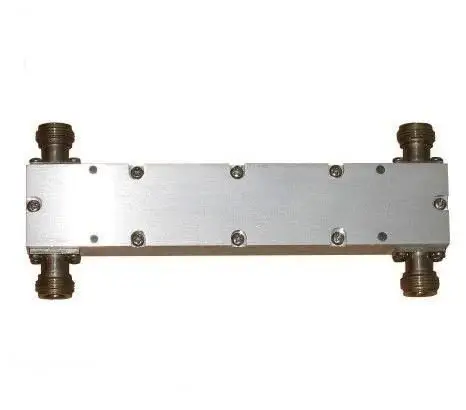

High quality 698-2700mhz 3dB Hybrid Coupler
HC-6970-3 3dB Hybrid coupler is usually used for combining two wireless carrier frequencies for
use in one antenna or indoor coverage system. If only one of the output is to join with a 50Ω load and
then there will be a 3dB loss after joining the signal circuit. For indoor coverage two outputs are often
produced simultaneously and therefore it is not necessary to add the 50Ω load and as a result of this
the 3dB signal loss can be avoided. The antenna features high isolation, low VSWR, smallest RF
input reduction, high reliability, small fluctuating area and high power capabilities.
use in one antenna or indoor coverage system. If only one of the output is to join with a 50Ω load and
then there will be a 3dB loss after joining the signal circuit. For indoor coverage two outputs are often
produced simultaneously and therefore it is not necessary to add the 50Ω load and as a result of this
the 3dB signal loss can be avoided. The antenna features high isolation, low VSWR, smallest RF
input reduction, high reliability, small fluctuating area and high power capabilities.
Specifications
Model HC-6970-3
Freq. Range -MHz 698~2700
Insertion Loss -dB <3.5
Isolation -dB >20
VSWR ≤1.3
Nominal Impedance -Ω 50
Max. Power -W 200
Intermodulation -dBm -140
Connector Type N Female
Dimension -mm 168×69×22
Weight -g 400
Model HC-6970-3
Freq. Range -MHz 698~2700
Insertion Loss -dB <3.5
Isolation -dB >20
VSWR ≤1.3
Nominal Impedance -Ω 50
Max. Power -W 200
Intermodulation -dBm -140
Connector Type N Female
Dimension -mm 168×69×22
Weight -g 400
