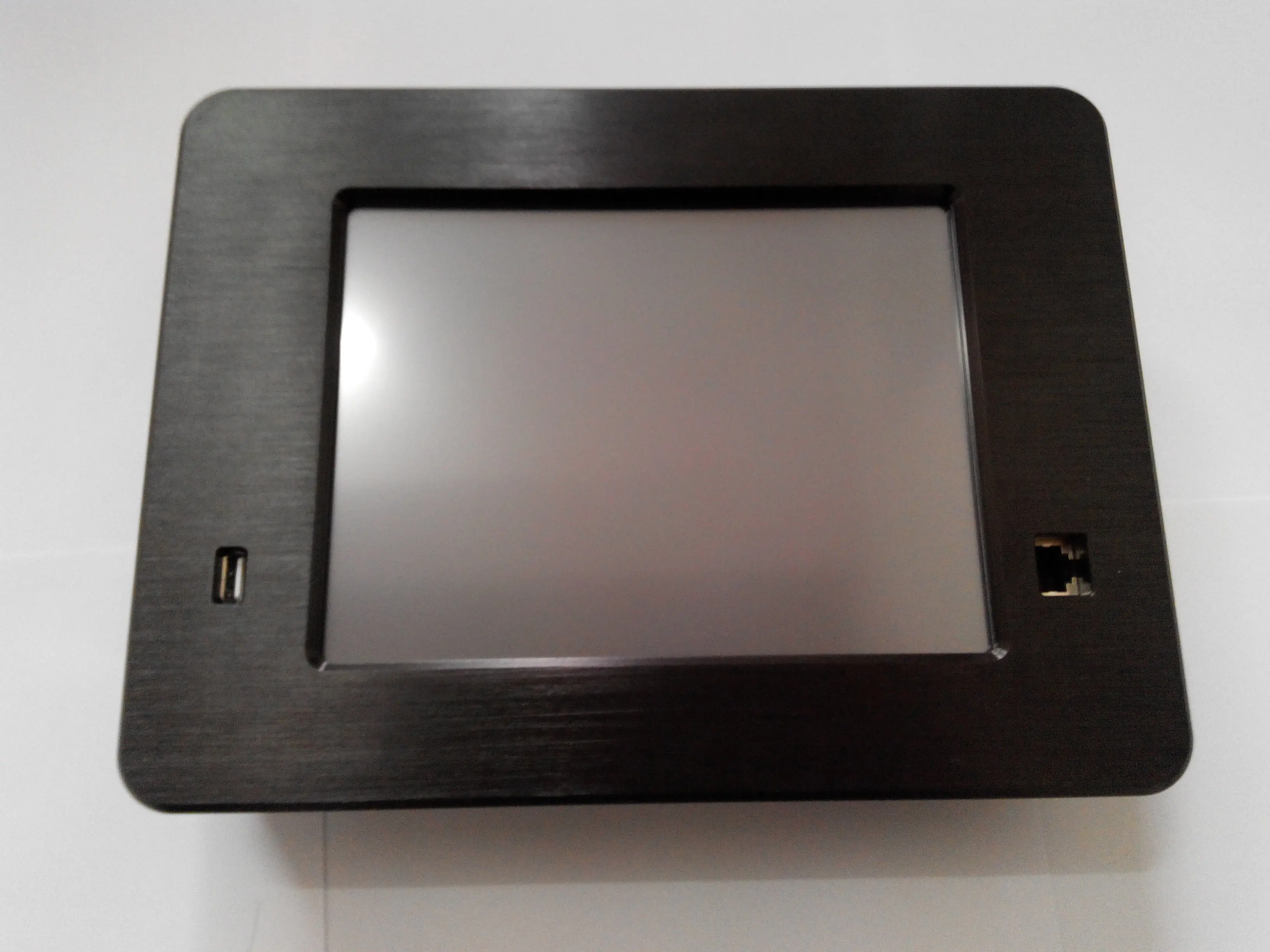

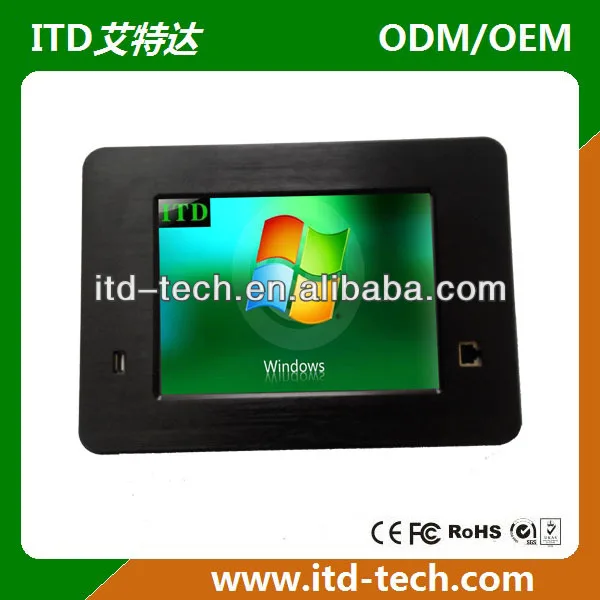

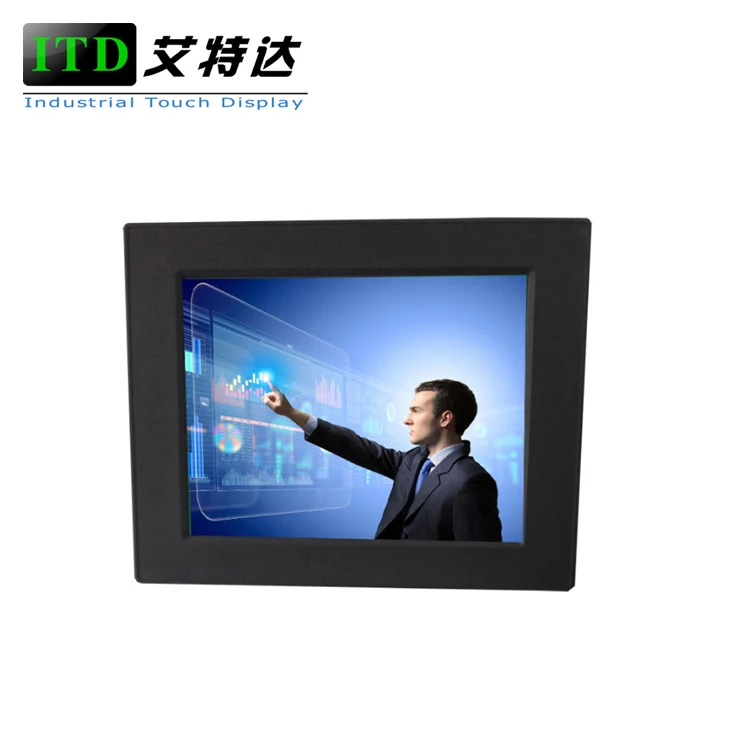

8.4"lcd touch screen for embedded system brightness control over 0~100% IP65 front

Product Overview

Description

8.4"lcd touch screen for embedded system brightness control over 0~100% IP65 front



DESCRIPTION

ITD industrial monitor LCD displays are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design. ITD industrial display monitors provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. ITD industrial IP65/ NEMA 4 touch display monitors are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. ITD full-range selection is provided in screen sizes from 5” to 82”.



BENEFITS

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3.Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

10.CE, FCC, RoHS, ISO9001:2008 compliance.

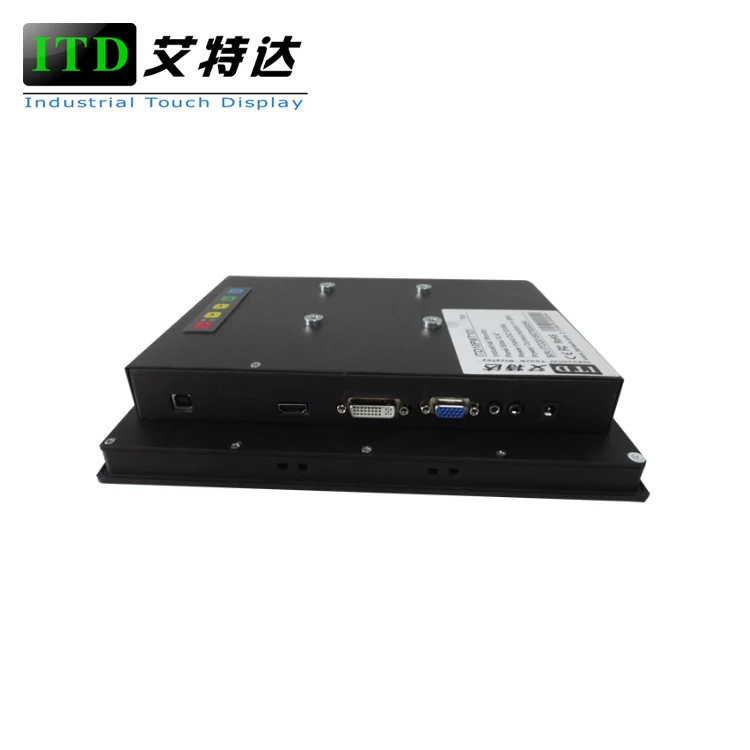

11. VGA, DVI, AV, S-Video, BNC etc multiple inputs/outputs optional

12. Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running



SPECIFICATION

Panel	Cell Type/Glass Surface	TFT
	Aspect Ratio/Size	8.4” 4:3
	Active Area/Pixel Pitch	170.4mm(W)×127.8mm(H)/0.213(H)×0.213(V)
	Native Resolution/Colors	800 x 600 /262K
	Brightness/Contrast	250nits/500:1
	Response Time	10ms
	Viewing Angle(Typical)	140(H) /120(V)
	Light Source	LED backlight
Synchronization Range_Horizontal/Vertical	31.5~37.5KHz/60~75Hz

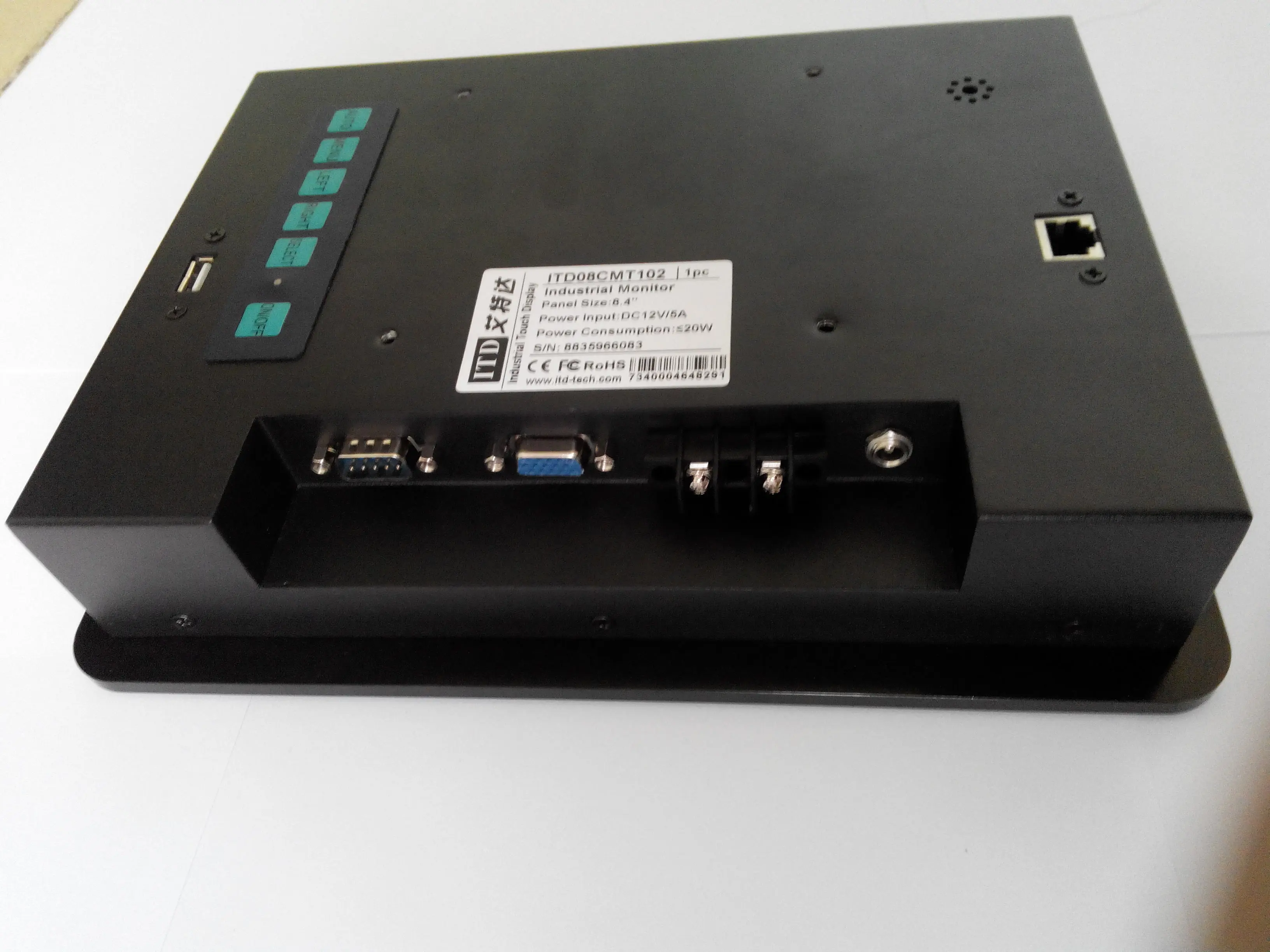

Input signals	VGA, buzzer
Convenient Features	Backlight adjustment, Plug&Play, OSD Multi-Languages
Power	External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption	Operation/Power Saving	Below 15W
Touch Panel	Resistive Touch Screen
Touch Interface	USB or RS232

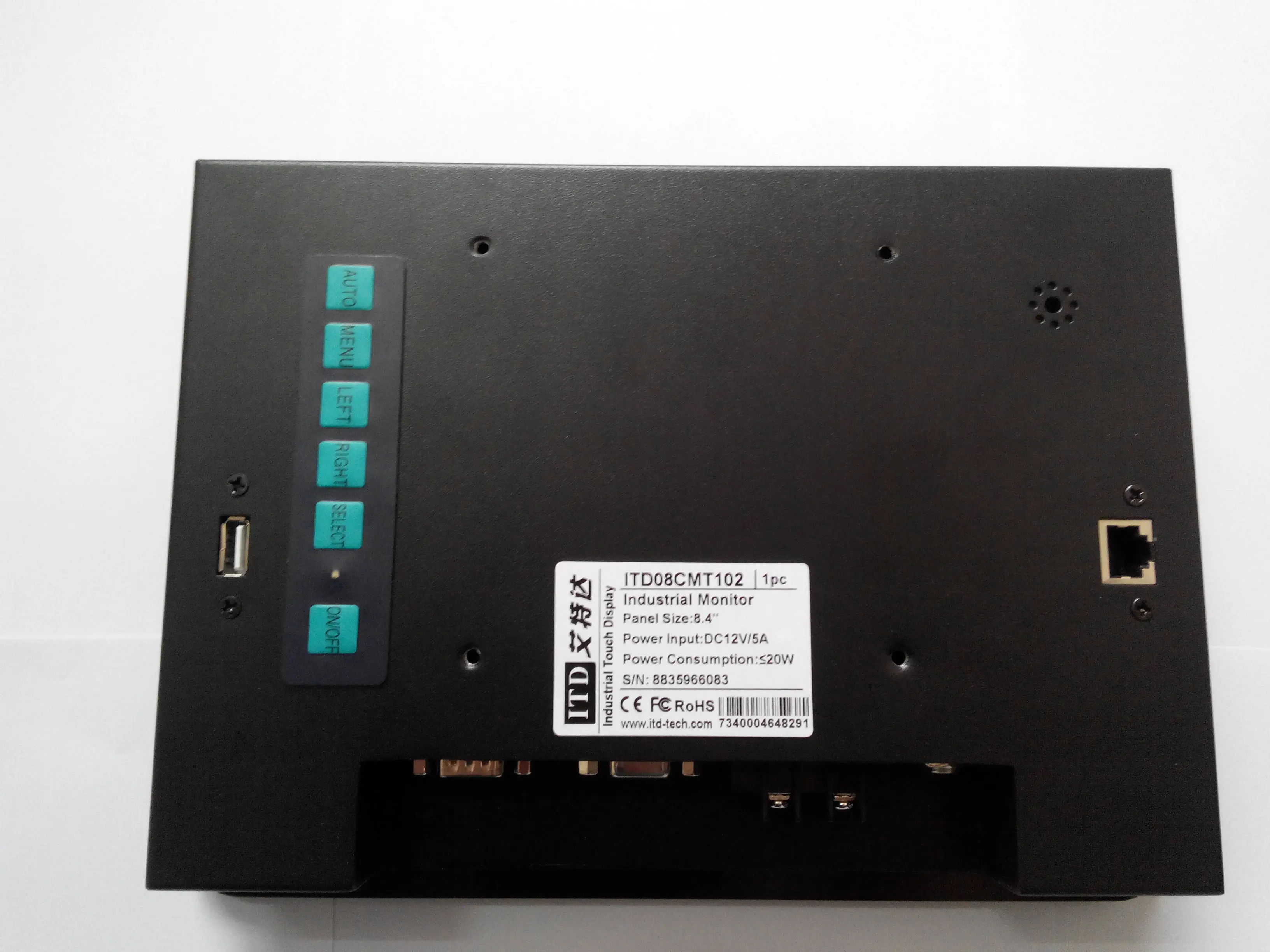

Key Control	Power on/off with LED, Menu, Select, Adjustment(Right/Left)
Order Information	8.4”Panel Mount Monitor with PCT touch/ITDO8PMT503
	8.4”Panel Mount Monitor without touch/ITD08PMN103





PACKAGING&SHIPPING

Firm, safe, standard cartons with foams

Wooden Shelf or Boxes for big sizes and big quanity

OUR SERVICE

Professional&reliable Pre-sales service

1-3 years’ warranty with DOA, RMA and Paid Service
