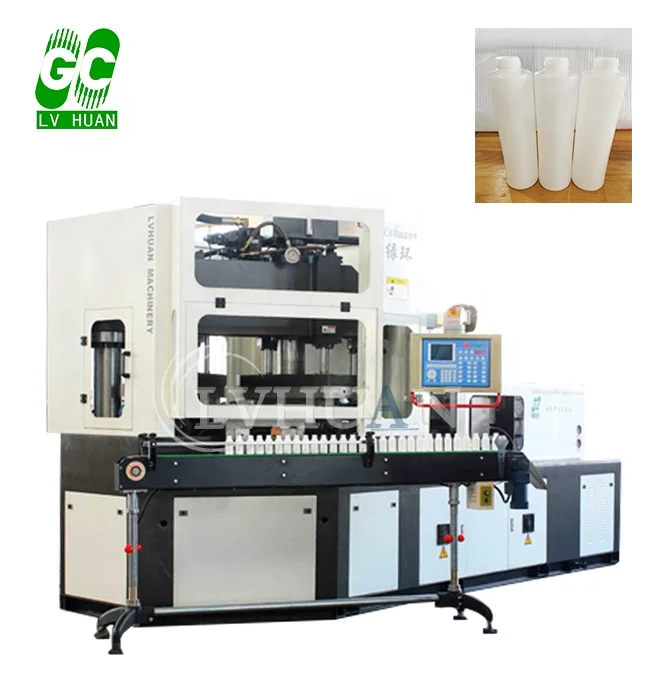

IB45 Automatic Injection Blow Molding Machine for plastic bottles

Product Overview

Description

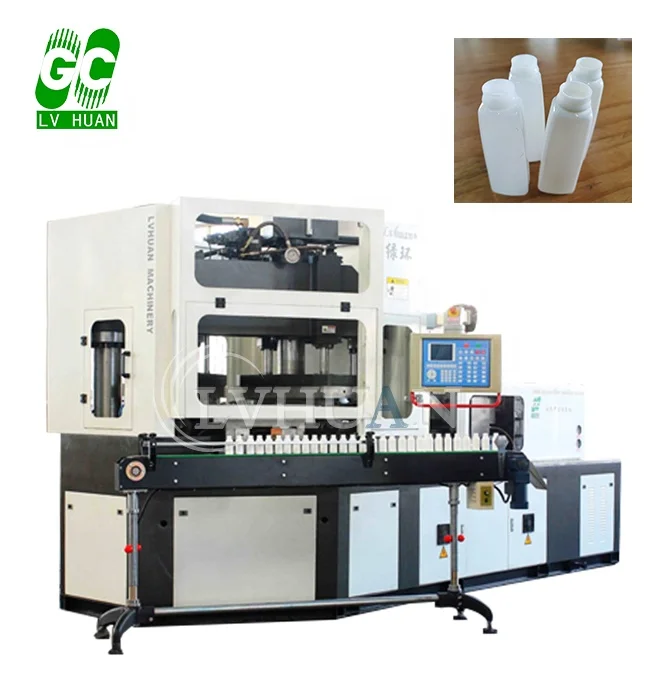

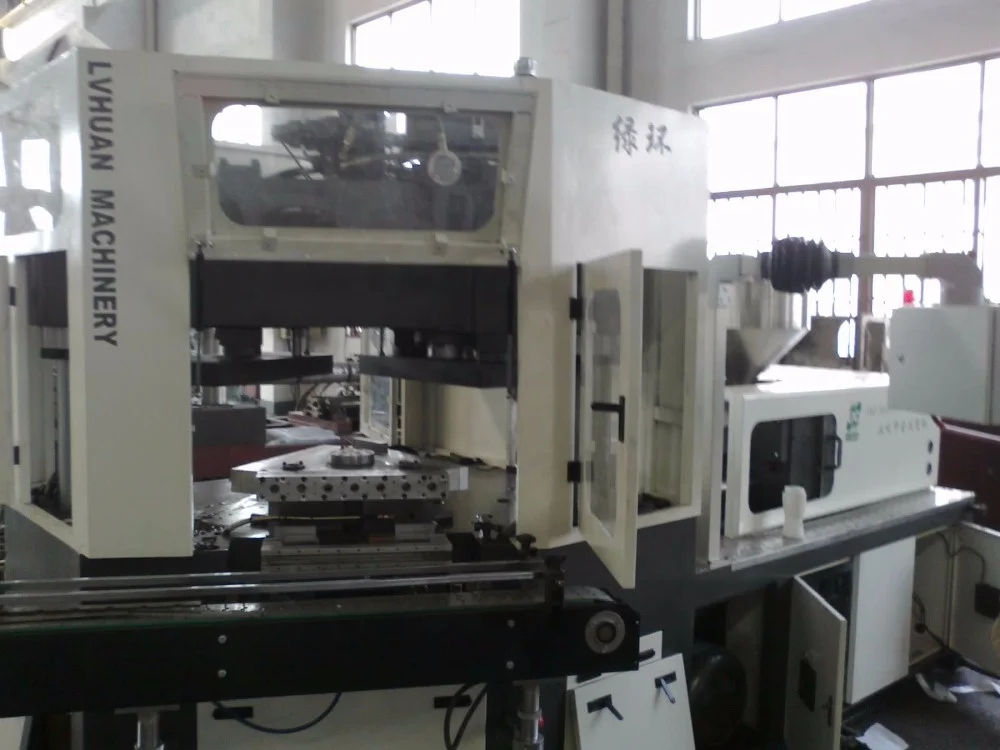

Plastic bottle making machine

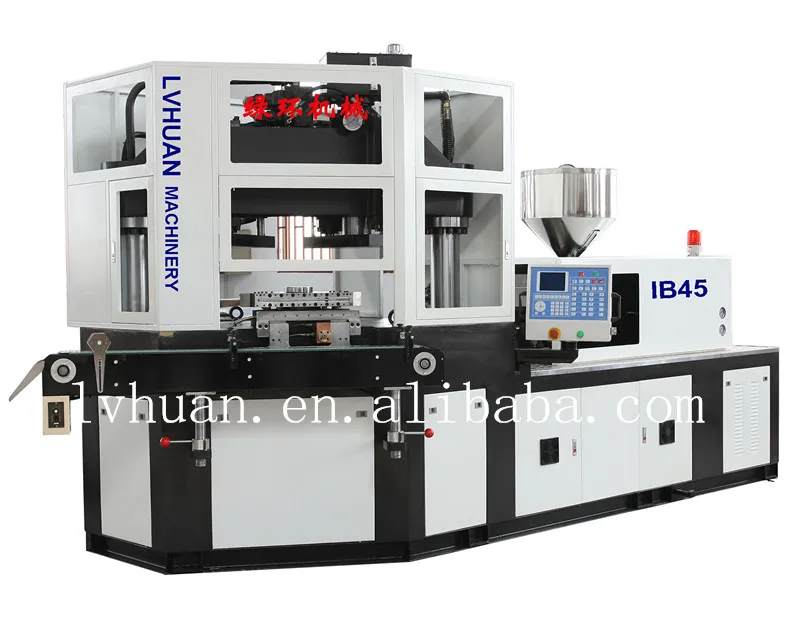

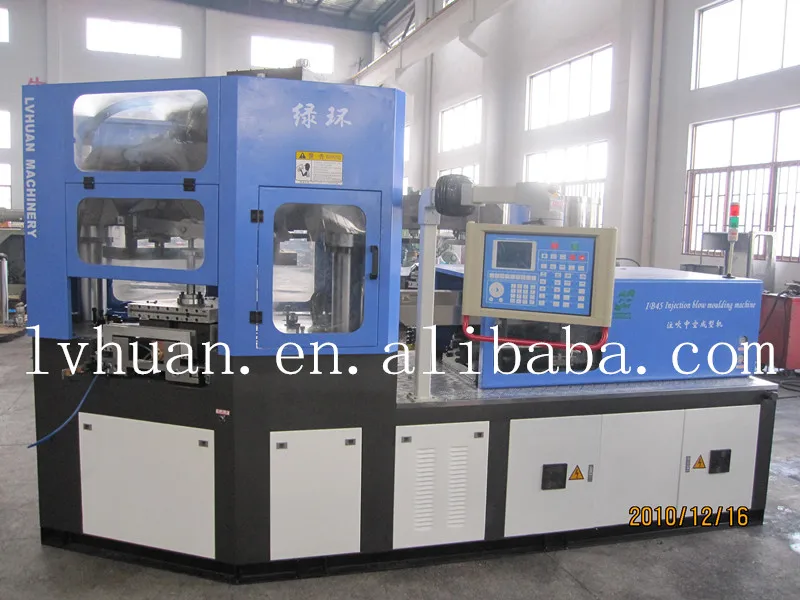

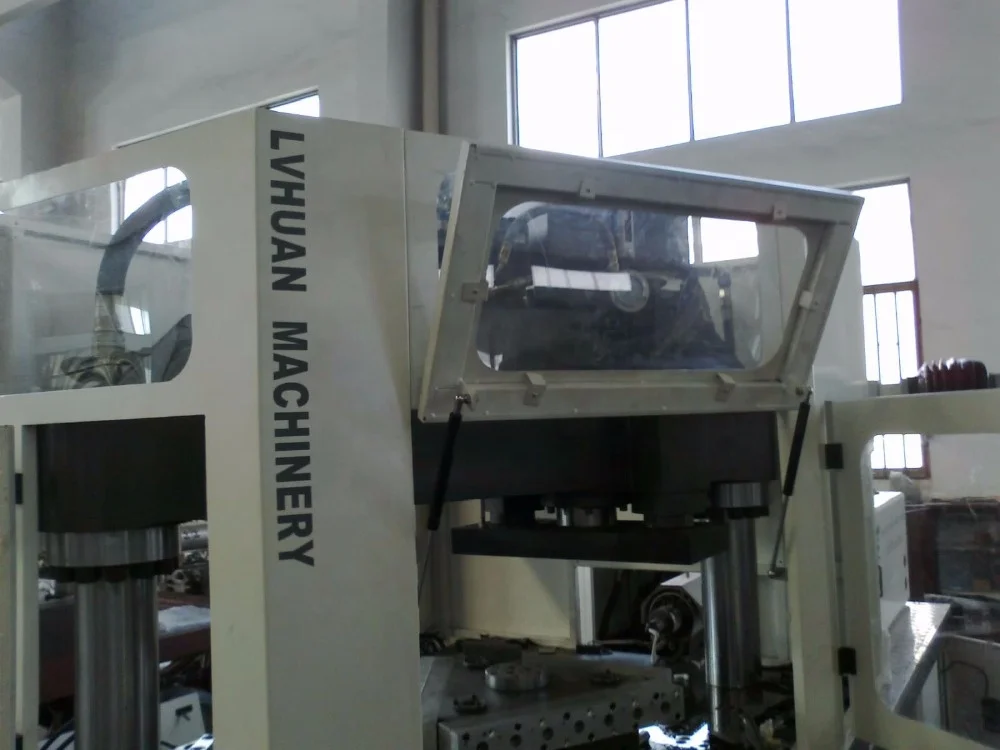

Fully automatic One-step injection blow molding machine



Model:IB45











Main technical parameters:

NO	Item	Data
1	Dia.of screw	45mm
2	Screw L/D ratio	22
3	Max.theoretical capacity	254m3
4	Clamping force of injection mould	450kn
5	Clamping force of blowing mould	70kn
6	Opening distance of blowing mould	120mm
7	High of ejection frame	200mm
8	Lifting height of rotary table	60mm
9	Mould thickness	240mm
10	Idle time	4s
11	Pressure of Hydraulic system	16Mpa
12	Max.Pressure of compressing air	1Mpa
13	Wastage of compressing air	»0.5m3 /Min
14	Wastage of cooling air	5m3/h
15	Max Moulld Size(L*W)	590mm*390mm
16	Range of formablity product	5-800ml
17	Height of formablity product	«200mm
18	Dia.of formablity product	«100mm
19	Total power for cylinder-heating	10kw
20	Main motor power	22kw
21	Die-heating power	4kw
22	Total power	36kw
23	Overall size(L*W*H)	3750mm*13000mm*2300mm
24	Machine weight	6T



1. The Injection blow moulding machine features:

1).The clamping framework adopts single-crossbeam, double pillars, which enlarges the space of setting mould, will be easier to install mould.

2).Adoption of tie-bar protection makes open / clamping mould work while transfer table rise / fall, so the production efficiency improve obviously.

3).Available variable pump get further power consumption saving in system.

4).Injection clamping adopts the structure of three oil vats and small supply-oil case, hence the speed of open / clamping will be quicker and the bearing pressure of mould will be more equally.

5).Adopt six-pole motor, lower noise, lower energy consumption.

6).Special thickness of working platform is made of QT material, excellent mechanics function, difficult to transform.



2.Product Features

1).Excellent mechanical strength, impact resisting and non-cracking.

2). Bottle mouth and thread are of precise measurement, enabling100% close match with the bottle cap.

3).The weight of the product can be pre-set.

4).The measurement and thickness of the product can meet the requirement of the design without any deviation.

5).The surface of the bottle mouth and the body is bright and smoothness.

6).No deflashing and trimming, save the material.

7).There is no joint seam at the bottom, and the bottle strength is improved accordingly.

8).The joint seam on the bottle body is smooth.

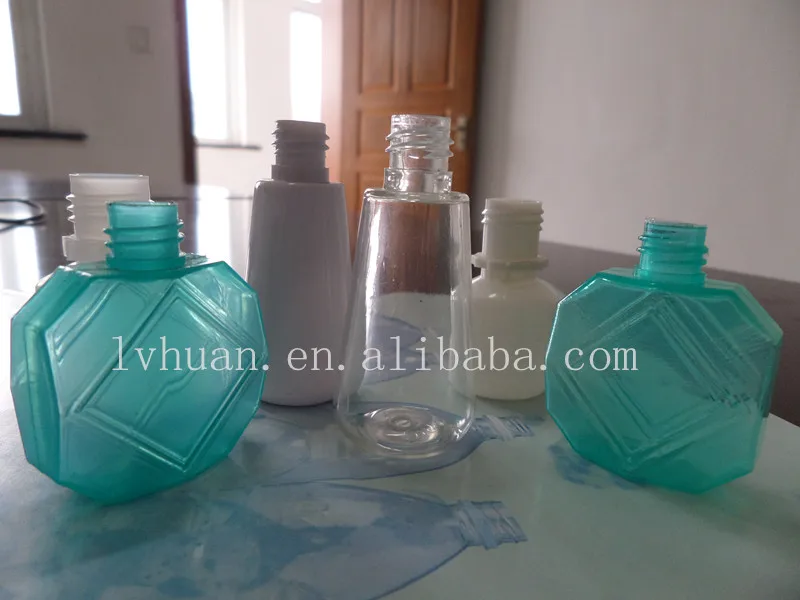

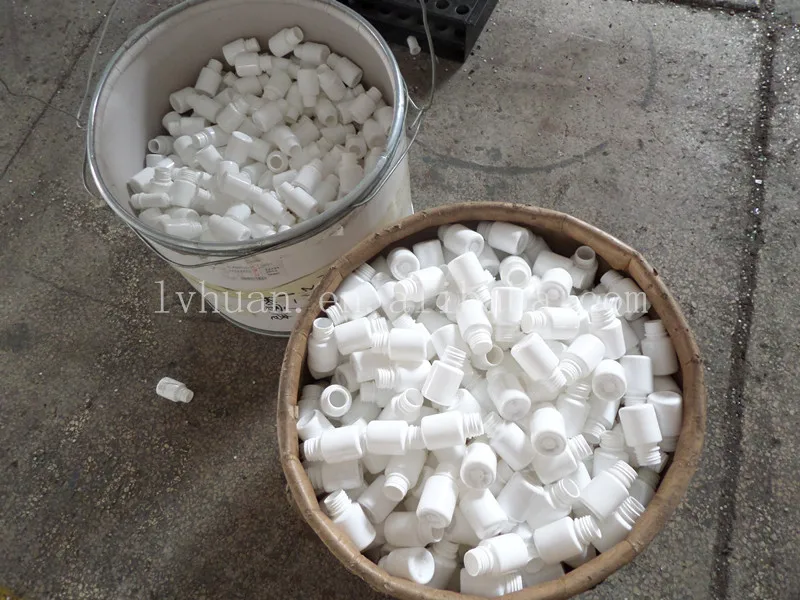

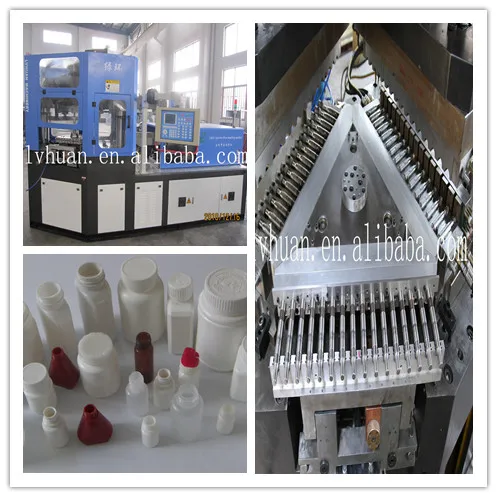

Some bottle samples blowed by our machine:









Cavity number of one mould corresponding to product volume.(For reference)

Diameter(D)(mm)	20	25	30	35	38	43	50	65	80	85
Height(H)(mm)	40	50	5	60	65	75	90	100	100	150
Centraldistance(mm)	30	35	40	45	50	55	65	80	100	100
Number	12	11	10	9	8	7	6	5	4	3



Certificates:

Payment term:

30% T/T of the whole payment in advance anf the balance 70% will be transfered by T/T before shipment.



Welcome to inquiry our machines at any time!

Contact person:ASTON CHANG

Tel:+86-512-58433638

Fax:+86-512-58433438

Website://www.lvhuanjx.com

WECHAT/mob/WHATSAPP: +86 137 731 72025
