BS 85 TTMC CE Approved Band Saw Machinery Wood Cutting Saw
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1767936632):
Product Overview
Description
Product Overview

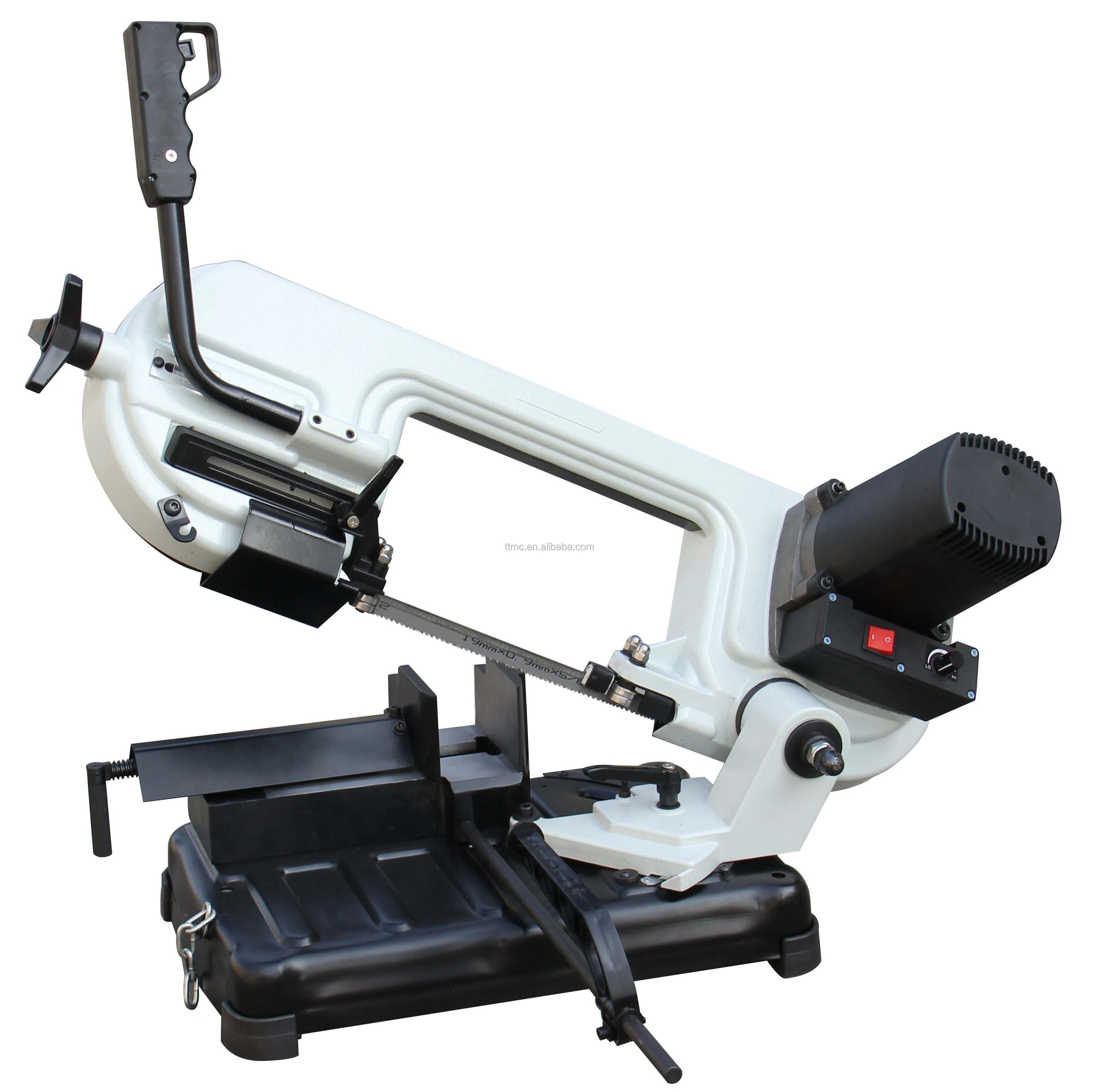

TTMC Mini Metal Cutting Bandsaw BS-85
The BS-85 portable metal cutting band saw runs on single phase power. You can use it almost anywhere. We designed this manual, variable-speed model for small shops and hobbyists.
FEATURES AT A GLANCE
Cut 85mm round at 90 degrees
Swivel head of 45 degrees
Variable cutting speed
Electronic trigger handle lets you easily turn the saw on and off
Stop rod makes sure that your material will stop at the same length every time to deliver repeatable results
PRODUCT SPECIFICATIONS
Item No. | 388000 | 388001 | 388101 |
Model | BS-85 | BS-100 | BS-150 |
Cut circular @90° | 85mm (3.3") | 100mm (4") | 150mm |
Cut rectangular@90° | 85x105mm (3.3"x4.1") | 100x150mm (4"x6") | 150x140 mm |
Cut circular @60° | - | - | 50mm |
Cut rectangular@60° | - | - | 50x100mm |
Cut circular @45° | 70mm (2.7") | 60mm (2.4") | 90mm |
Cut rectangular@45 | 65x75mm (2.5"x2.9") | 60x100mm (2.4"x4") | 90x100mm |
Blade speed @50HZ | 40-88 MPM | 45 MPM | 66-85 MPM |
Blade speed @60HZ | 40-88 MPM | 54 MPM | 66-85 MPM |
Blade size | 13x0.65x1325 mm | 13x0.65x1470 mm | 20x0.9x1735 mm |
Motor Power | 1000W | 375W | 2000W |
Drive | Gear | Gear | Gear |
Packing size | 72x37x46 cm | 72x37x47 cm | 98x42x53 cm |
N.W./G.W. | 19/21 kg | 26/29 kg | 34/38 kg |
