The First Permanent Magnetic Alternator(PMA) integrated Inverter in the world.



High Efficiency :90%.save 20%fuel comsumption. THD less than 1%,digital inverter



Rated power : 1200W      Matched with standard engine





Reliable quality, 100% warranty, variable speed but stable frequancy and voltage



Simple structure and easy installation





ModelW2600IDMarks
Rated output1.2KWDriven by 3500RPM,156 Gasoline engine.
Rated voltage230 V
Rated frequency50/60HZ
Brush/Brushlessbrushless
Phase NO.single phase
Efficiency90%
Voltage rate0.50%
THD≤1.5%
Output wavepure sine wave
Frequency rate0.50%
Insulation Class IP21
Packing Dimension187*197*213(mm)
Net weight6.3Kg
Pole NO.14 poles
The electronic controldigital inverter
InstallationSimple

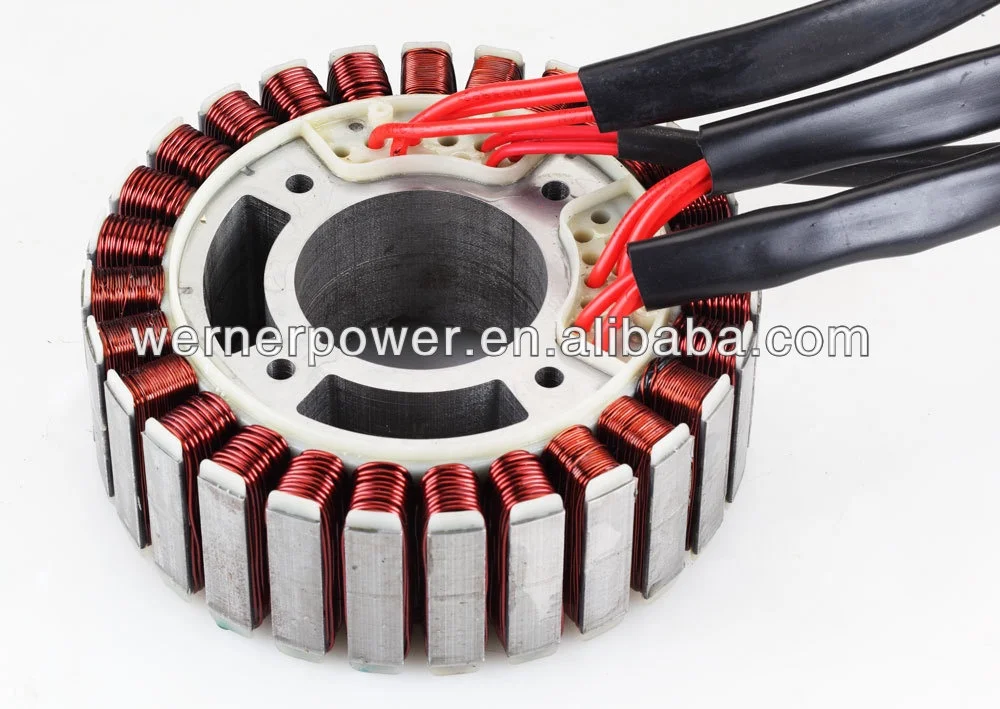

100% copper winding



Digital inverter
