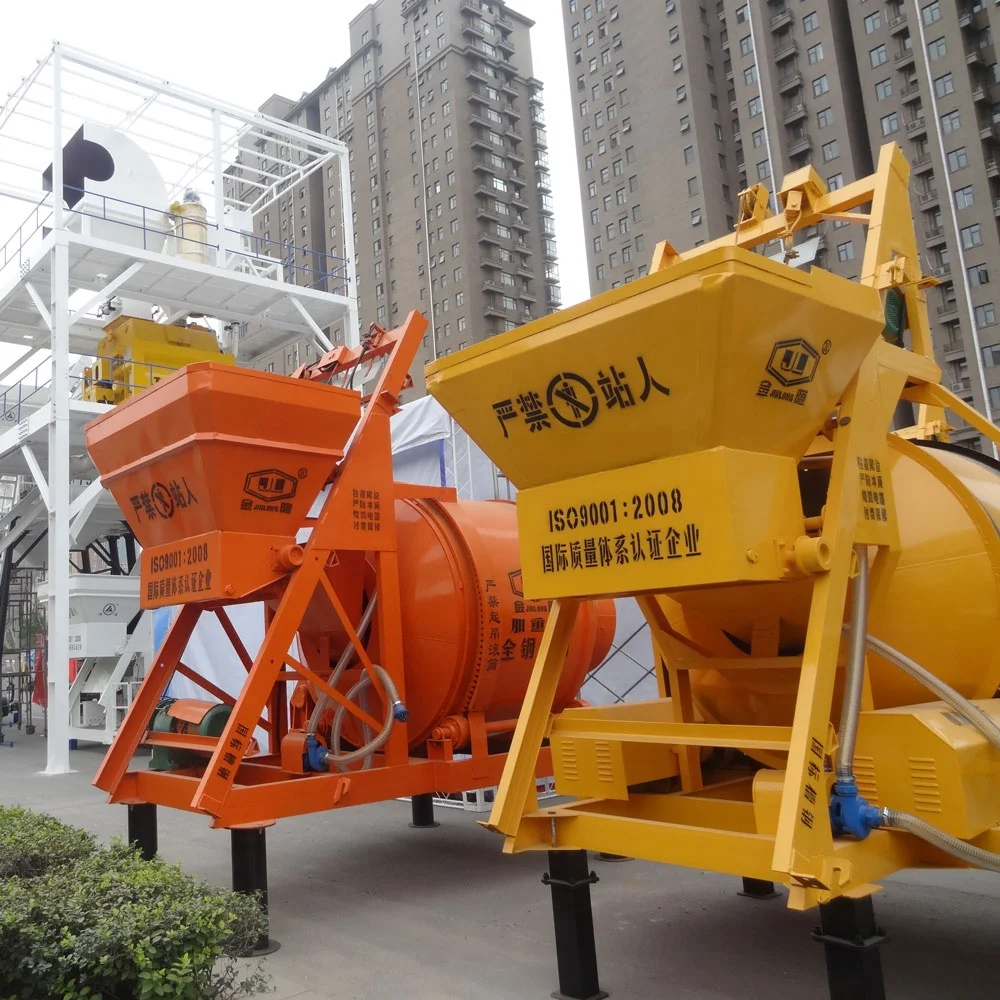

Stationary Teka Mixer 25 30m3/h bhs twin shaft concrete mixer

Product Overview

Description

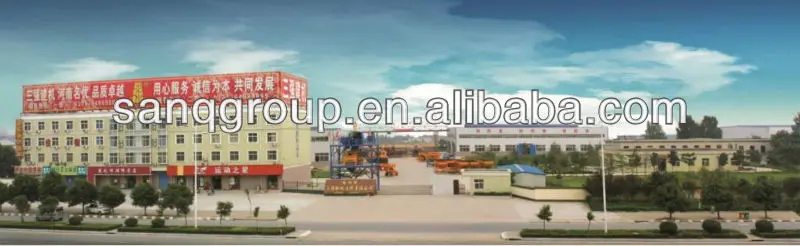

SANQ Group has thirty years' experience in designing and manufacturing concrete mixers for customers all over the world.



SANQ products were widely used in building, highway, bridge, airports, dams, tunnels, concrete pipe pile, precast concrete factory, water conservancy, electric power and other projects.

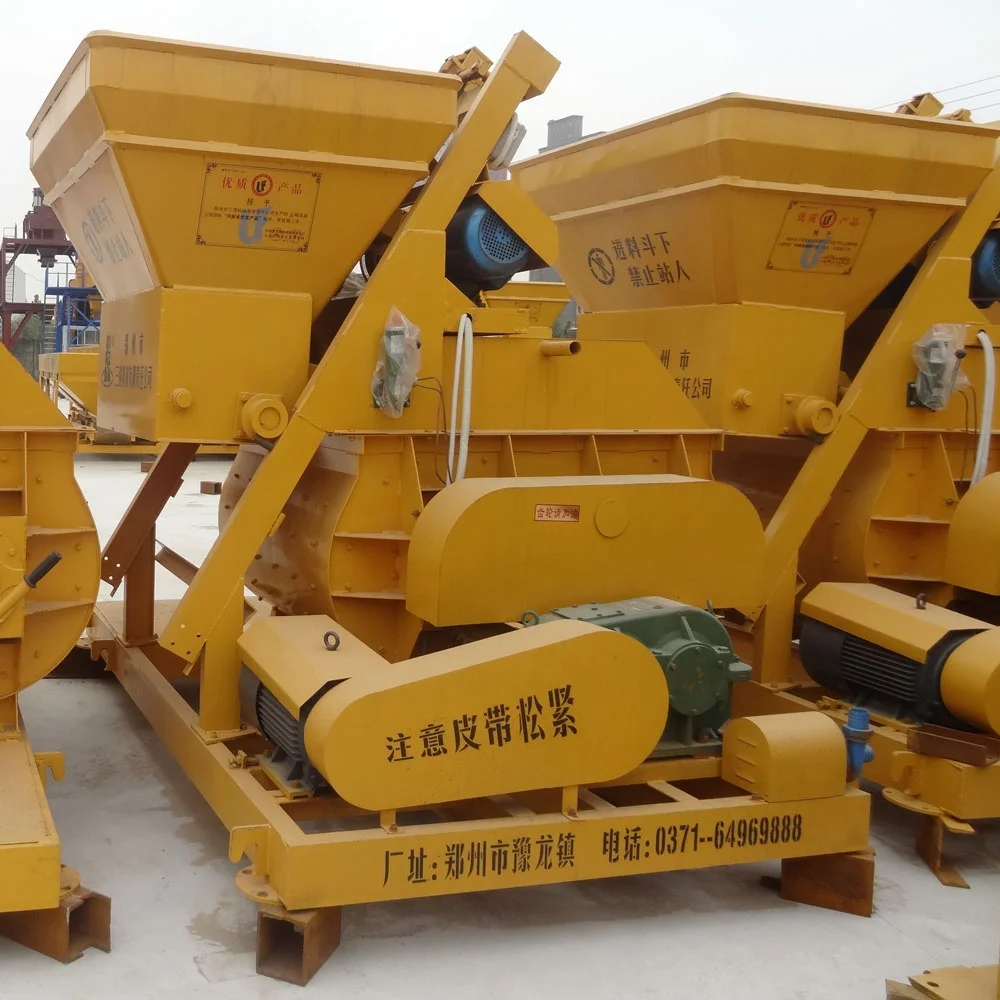

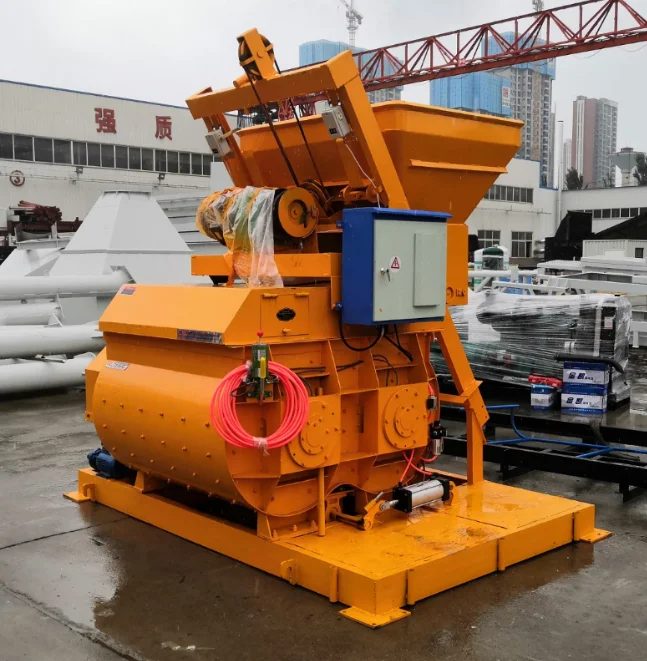

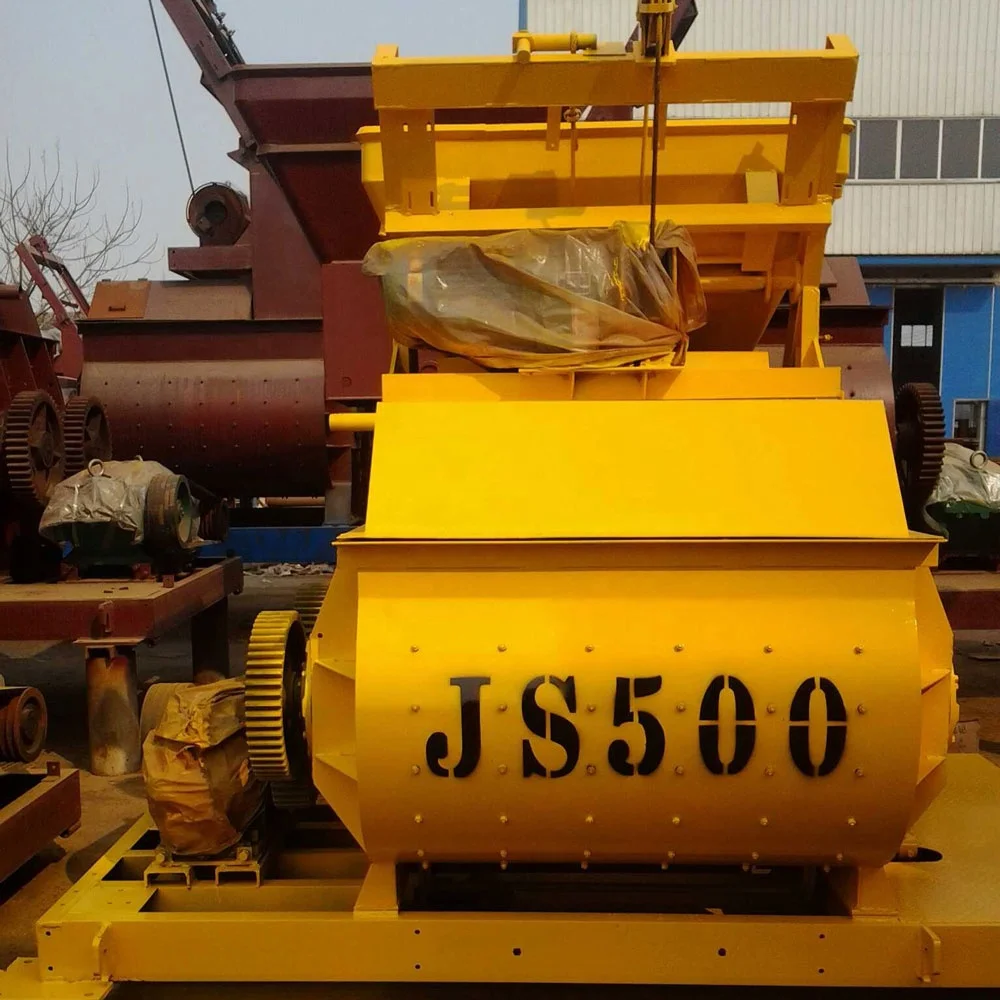

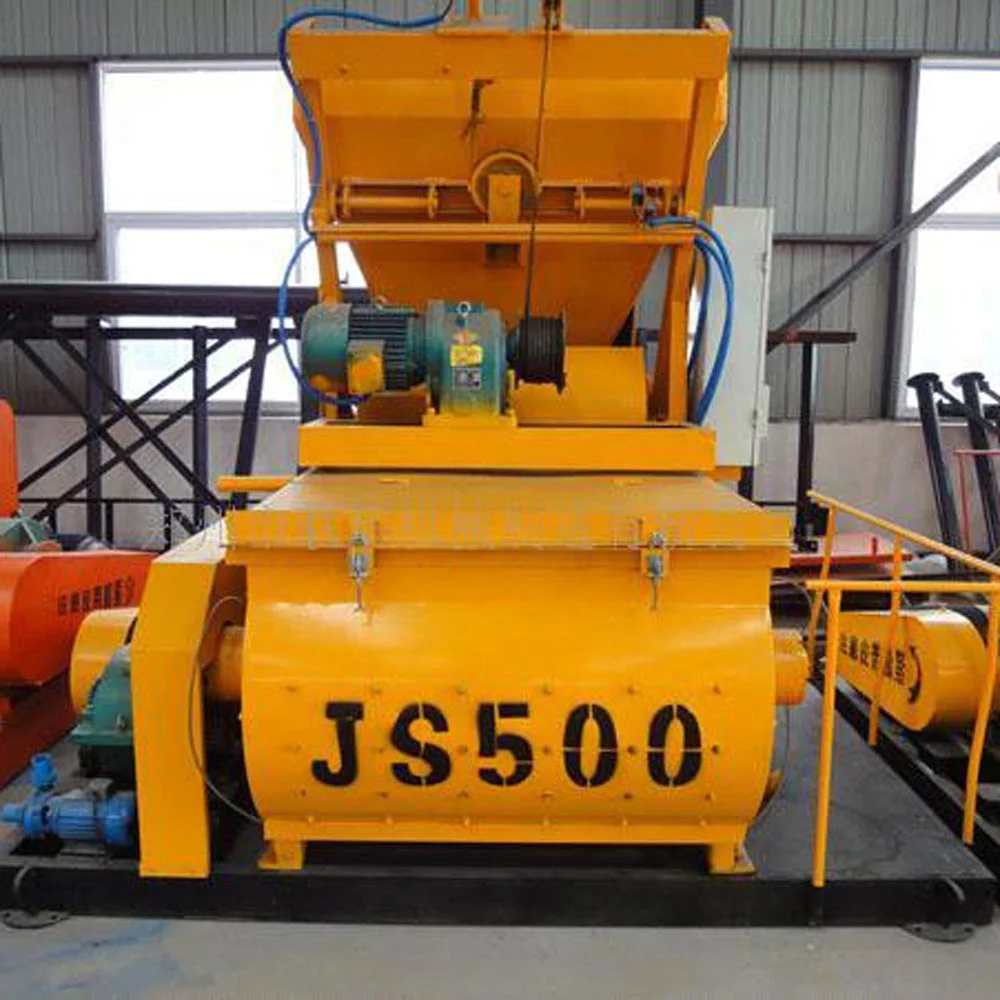

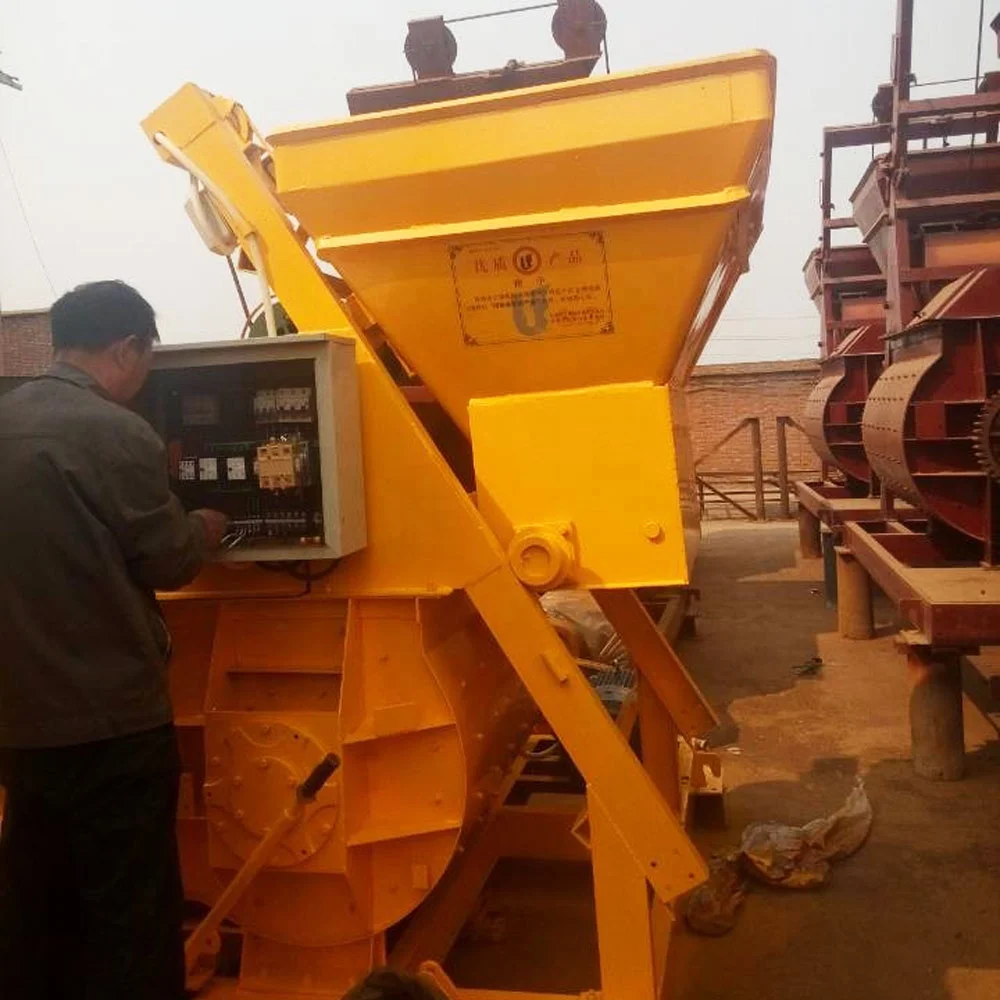

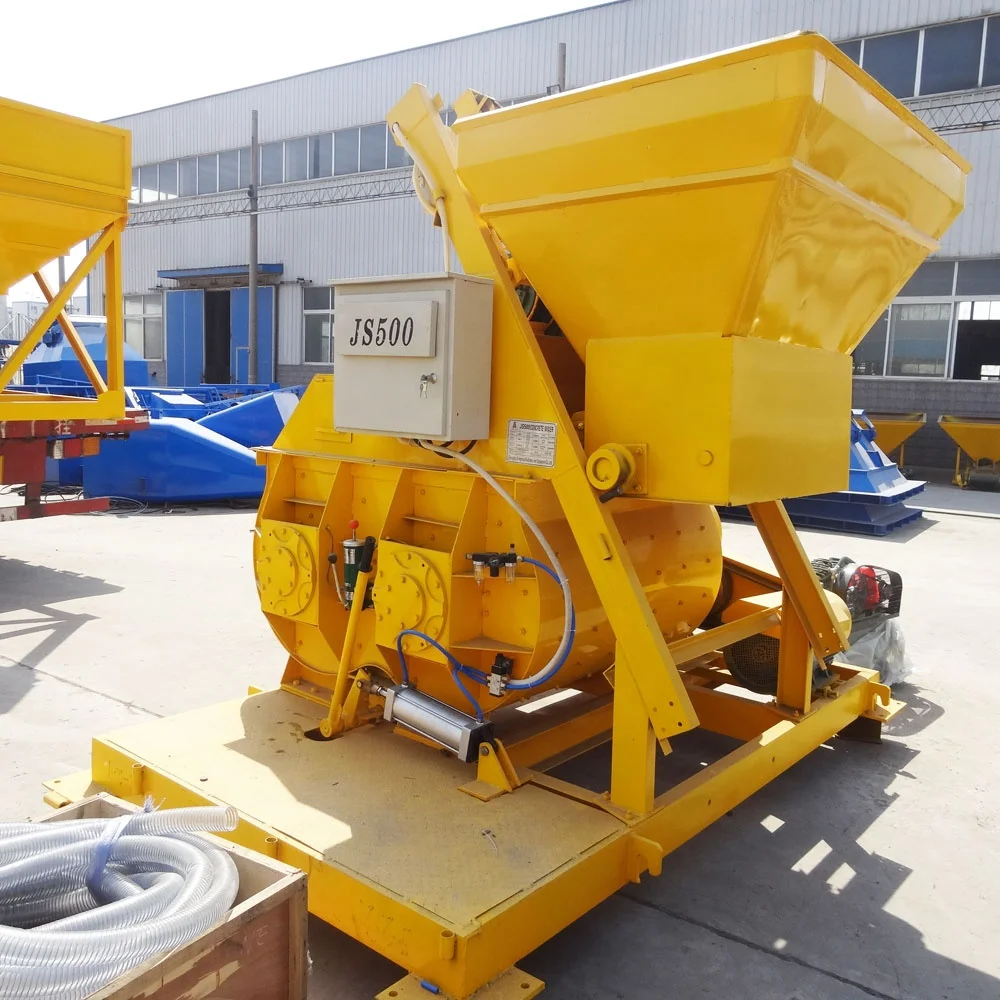

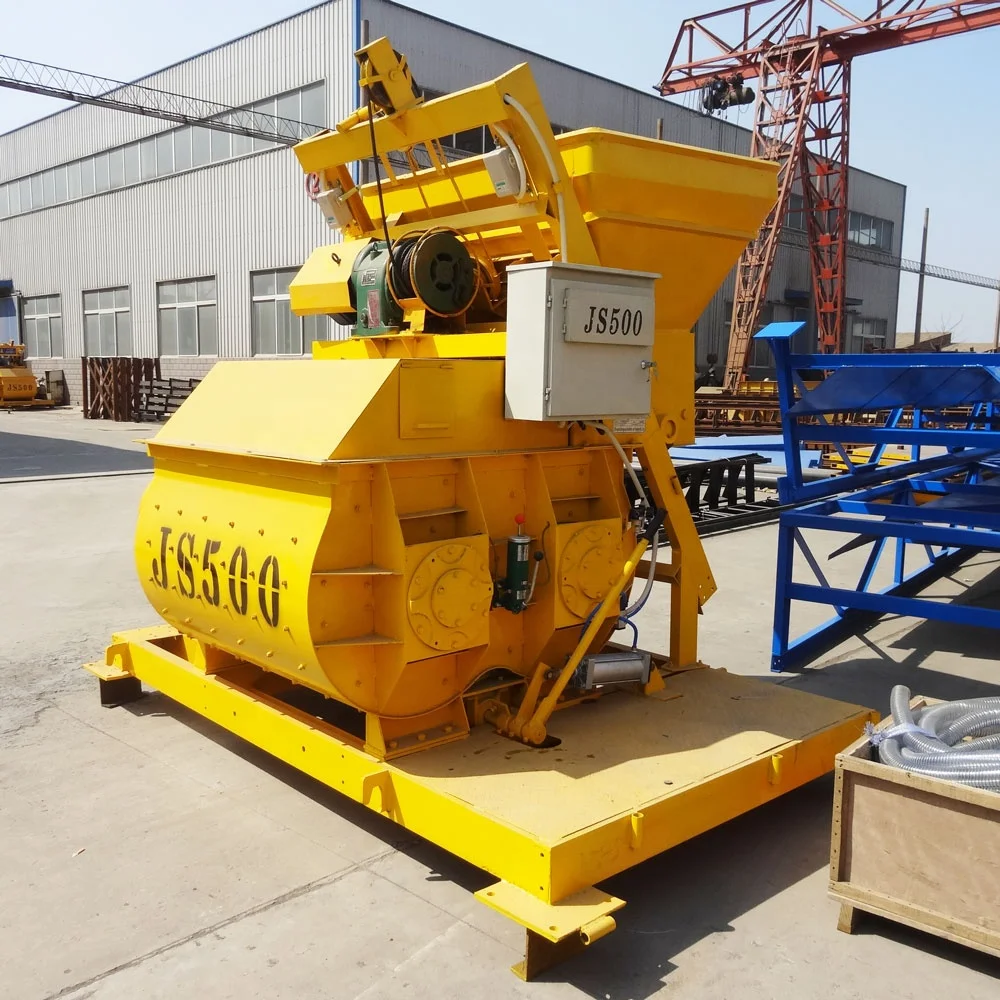

JS500 Concrete Mixer is twin shaft compulsory concrete mixer.



Which can mix dry-hard concrete, half-dry concrete, plasticity concrete, light-aggregate concrete and variety of mortar.



JS series twin-shaft concrete mixer can be working independently, which also be the best choice for old concrete batching plant replacement.



Specifications

MODEL	JS500
Capacity	25-30m³/h
Discharge Volume	500L
Charge Volume	800L
Mixing blade speed	35.5r/min
Number of mixing blade	6×2
Mixer motor power	18.5kw

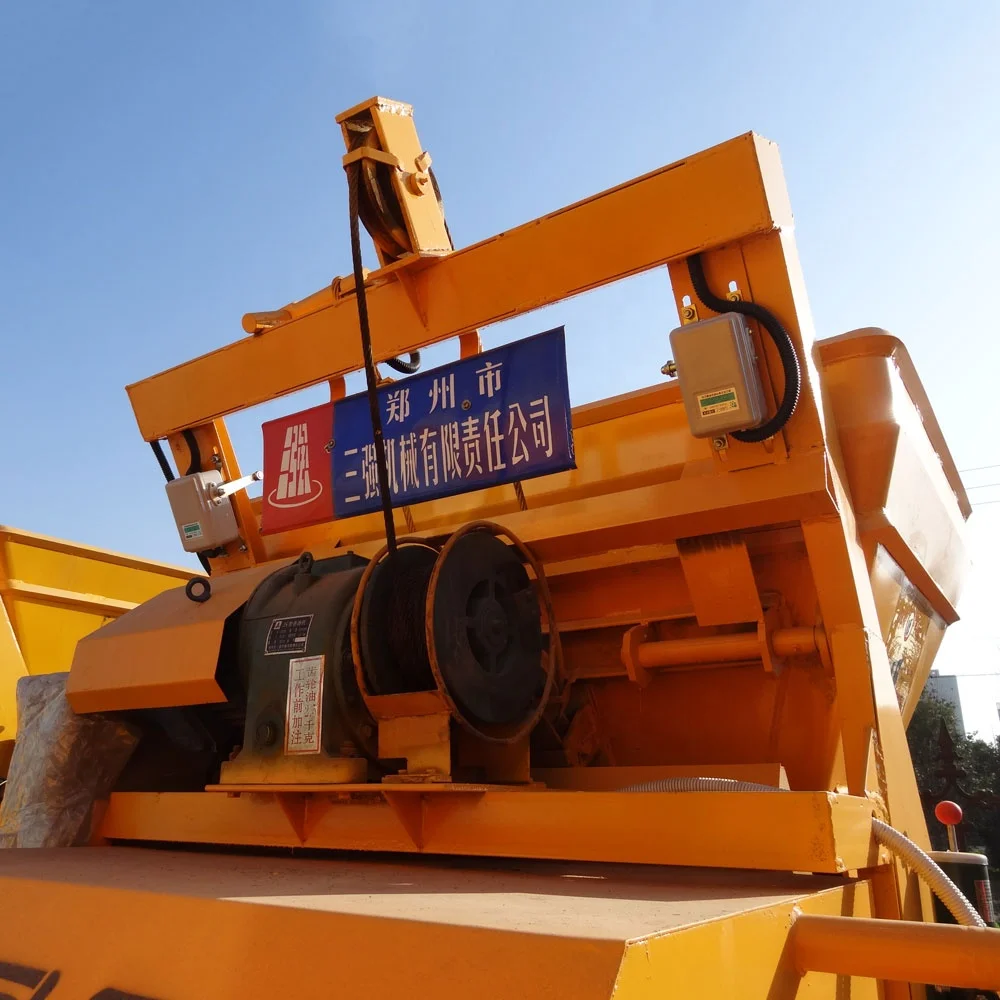

Hoist Electromotor power	5.5kw
Water pump power	0.75kw
Lifting speed of hopper	18m/min
Max aggregate size	60mm
Discharge height	1500mm
Total weight	4070Kg
Overall dimension (L*W * H)	2900*2150*2580mm





Features:

• Very low maintenance.


• have a compact design.


• can be transported easily.


• Heavy duty machined shafts.


• High output from large discharge door.


• fits easily into stationary or mobile plants.

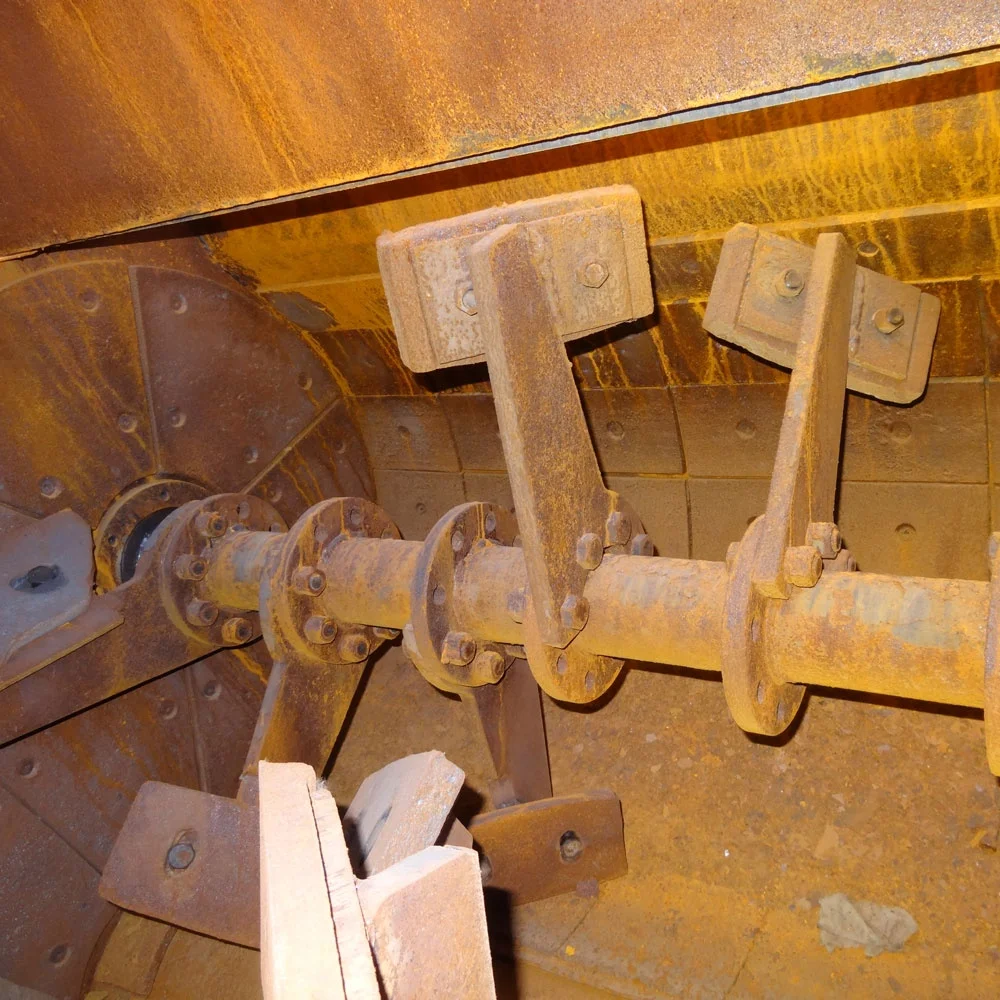

• Arms and wear resistant iron blades and high robustness.


• Manual lubrication of bearings and bearing (optional automatic).



JS500 Concrete Mixer
