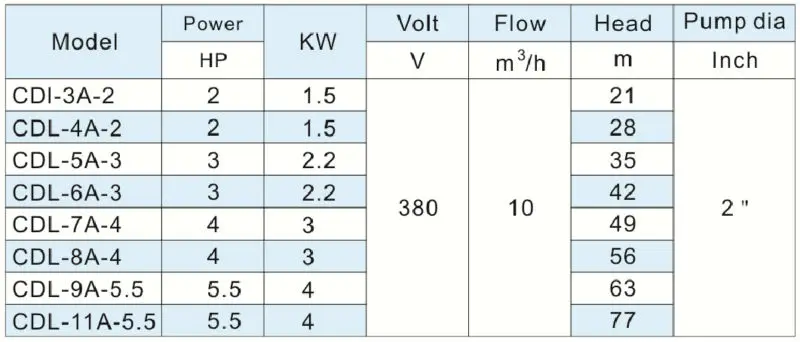

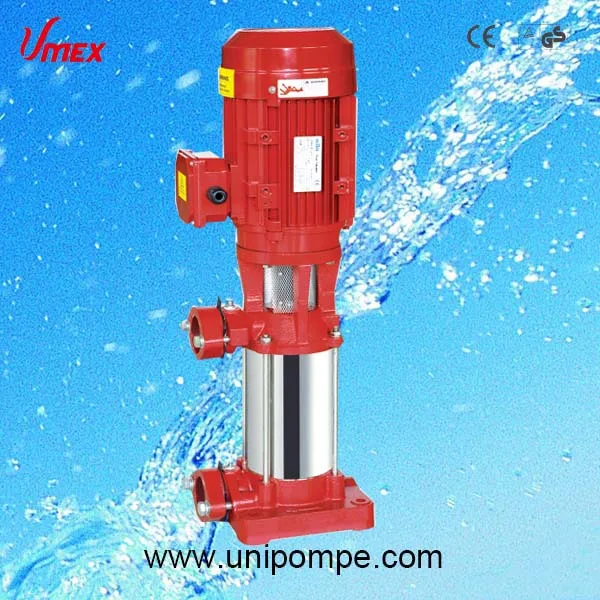

Water Pressure Booster /Jockey Pump with PPO impeller,New Arrival

1.Full-enclosed air-blast two-pole standard motor.
2.Protection class: IP55
3.Insulation class: F
4. Standard voltage:

50Hz

    1 x 220-230 / 240V
   3 x 200-220 / 346-380V
   3 x 220-240 / 380-415V
   3 x 380-415V

60Hz:

  3x200-230/346-400V
  3x220-255/380-440V
  3x220-227/380-480V

1,Low energy consumption

   pumps have an extra-high efficiency obtained by the most up to data technical       designs,moulding and accurate set up

2,Steady operation

   A steep flow curve allows large head changes with minimal rate of flow changes

3,Noiseless operation

  Material used,low tip speed of the rotating parts and its ample supports,insure noise and vibration free running

  Easy to do,without pump removal;Just remove the electric motor and coumpling

4,Safety

  A coupling safety screen avoid accidents

5,Cost-effective

   PPO impeller

Water or liquid pumped must be chemically and mechanically non-aggresive.

Maximum temperature of pumped liquids:60°c(140°F)

Maximum running time with close delivery outlet:2 min

Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system
Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, swimming pool, separator
Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

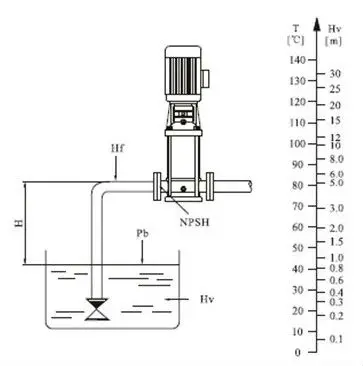

Minimum inlet pressure NPSH

In case that the pressure in pump is lower than the steam pressure used to convey liquid, the cavitations will occur. To avoid cavitations, a minimum pressure at the inlet side of the pump shall be guaranteed. The maximum suction stroke can be calulated with following formula: H=Pb x 10.2-NPSH-Hf-Hs

Pb=atmosphere pressure [bar] (can be set as 1bar)

In a closed system, Pb means system pressure [bar]

NPSH=Nct positive suction head [m]

(It can be read out from the point of possible max. flow rate shown on NPSH curve)

Hf=Pipeline loss at the inlet [m]

Hv= Steam pressure [m]

Hs= Safety margin=Minimum 0.5m delivery head

If the calculated result H is positive, the pump may run under the max. Suction stroke H.

In case the calculated result H is negative, a delivery head of min.Inlet pressure is necessary.

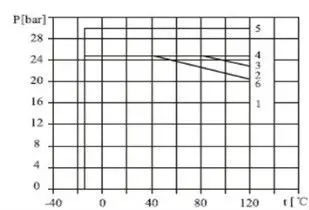

The following figure shows the limitation of pressure and temperature, which shall be in the scope as shown in the figure.

Q1.What will you do for after sale?

A: We will follow up and await your feedback after we delivery the goods to you.

Q2.Why did you choose us?

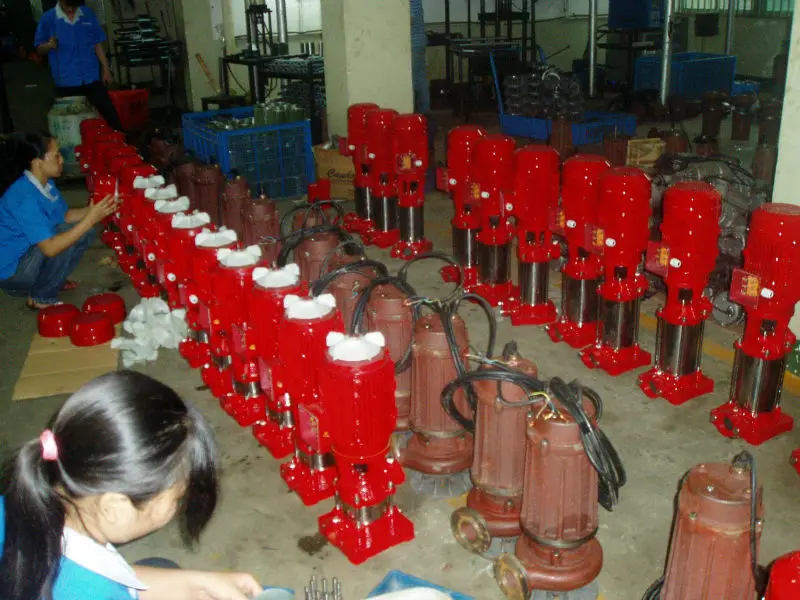

 A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your  purchasing quantity and production season.
