Natural Thermostats electronic Demex dmo 1140 /dms 1141
- Category: >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (1768918409):
Product Overview
Description
Product Description
> Large setting range
> Small size
> Simple to mount
> High switching performance

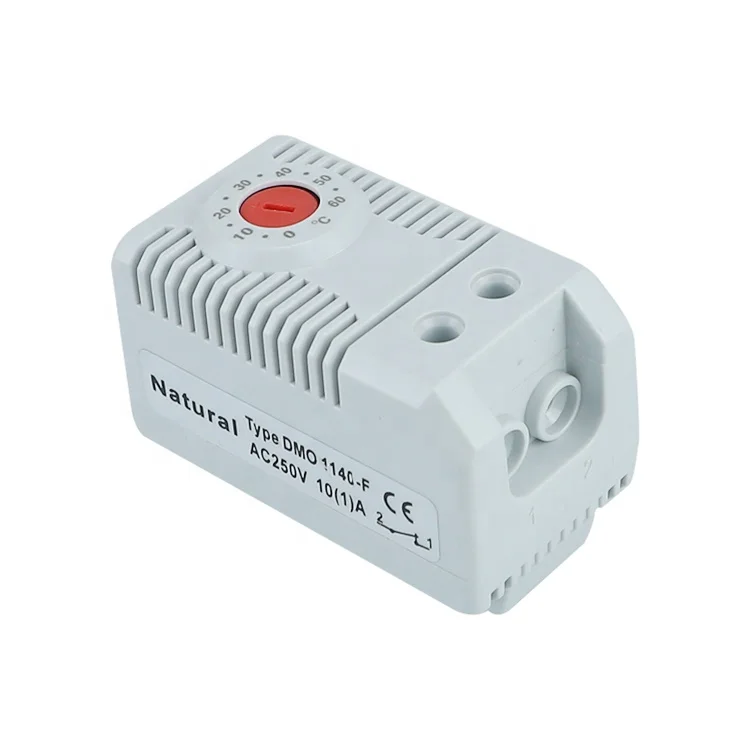

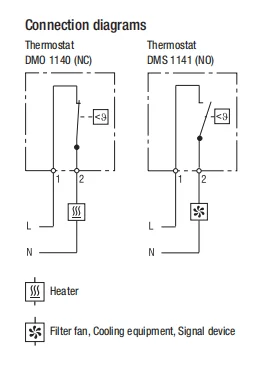

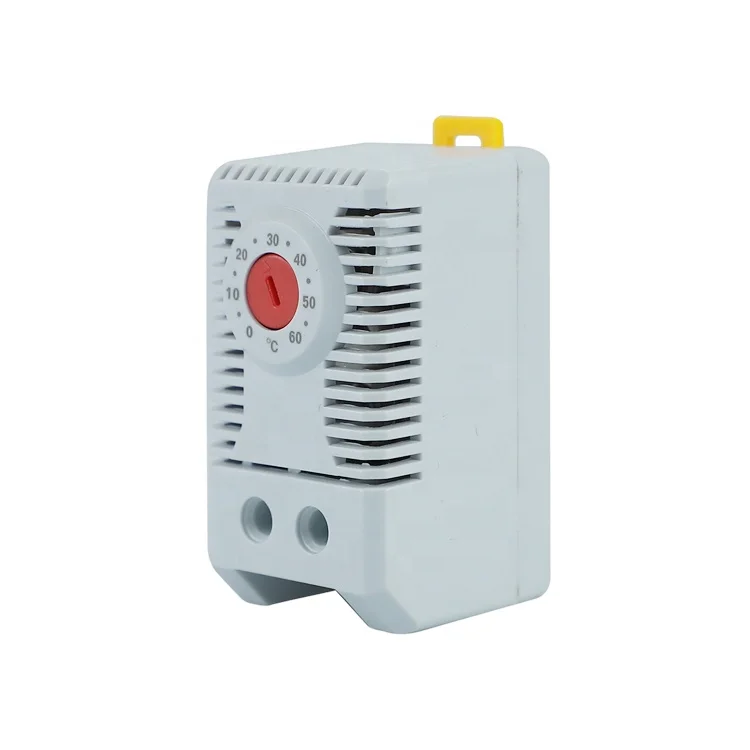

DMO 1140: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature
is rising
.

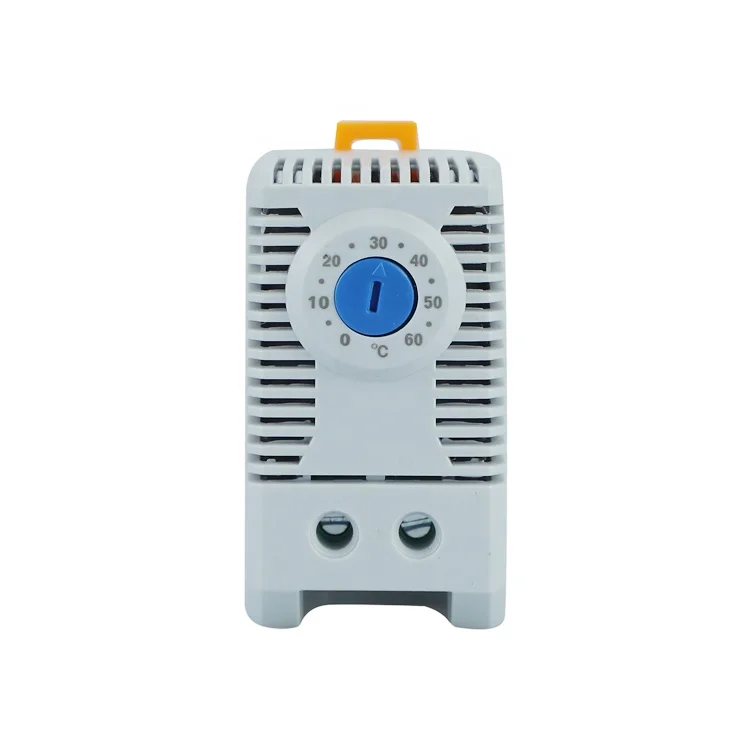

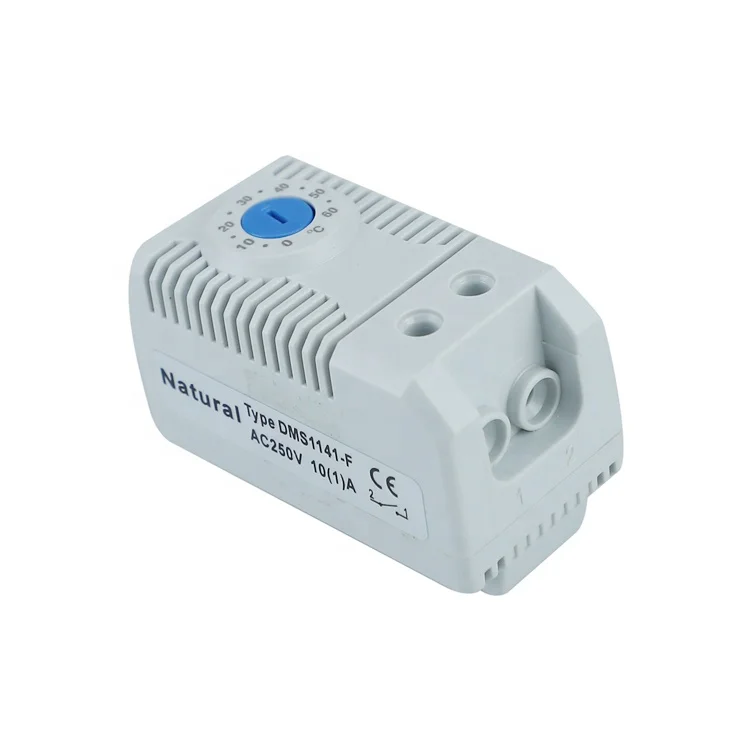

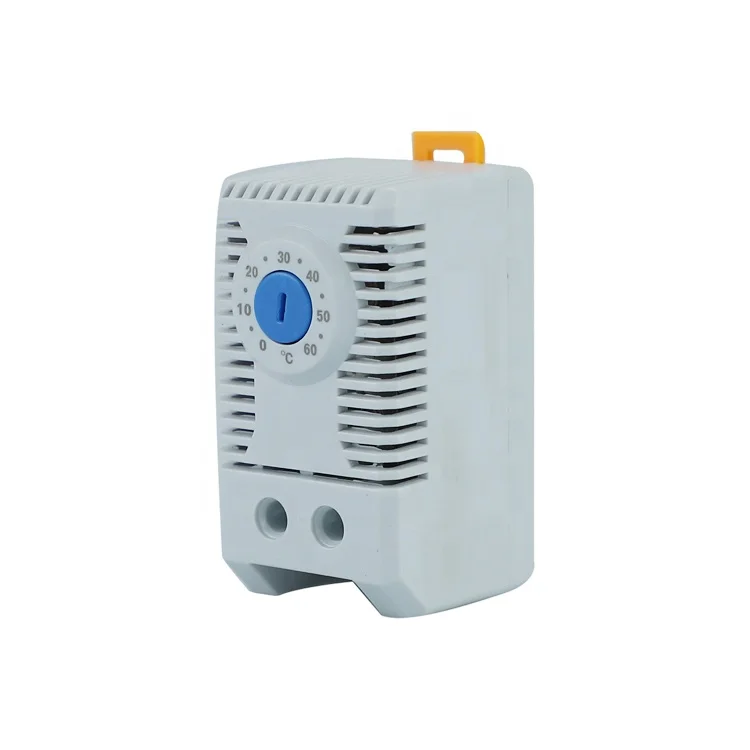

DMS 1141: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching
signal devises when temperature limit has been exceeded. The contact closes when temperature is rising
.
DMO 1140 / DMS 1141 | |
Switch temperature difference | +/-5°C |
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Service life | > 100,000 cycles |
Max. switching capacity | 250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC |
Max. inrush current | AC 16A for 10 sec. |

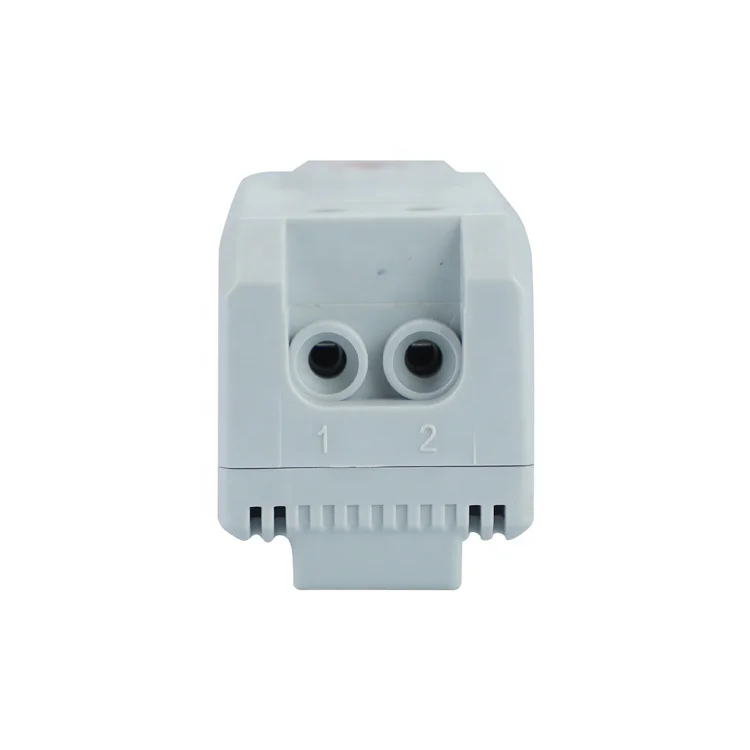

Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)stranded wire¹ 1.5mm² (AWG 16) |

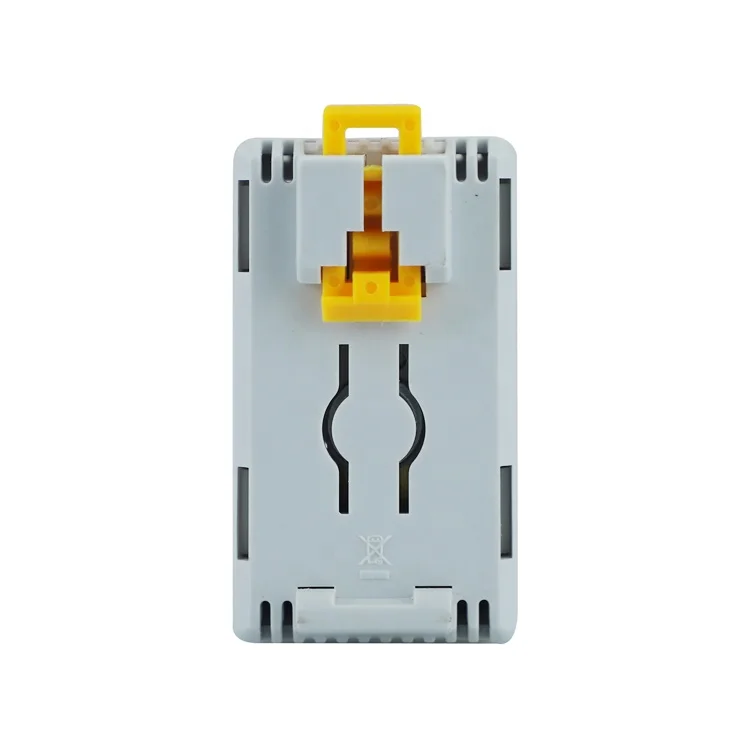

Mounting | clip for 35mm DIN rail, EN 60715 |
Casing | plastic according to UL94 V-0, light grey |

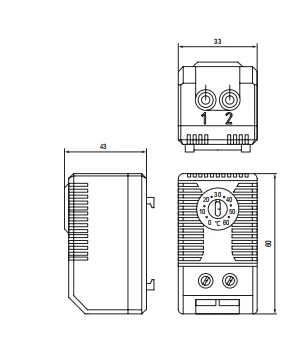

Dimensions | 60 x 33 x 43mm |
Weight | approx. 40g |
Fitting position | variable |
Operating/Storage temperature | -45 to +80°C (-49 to +176°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type | IP20 |
¹When connecting with wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact
resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
