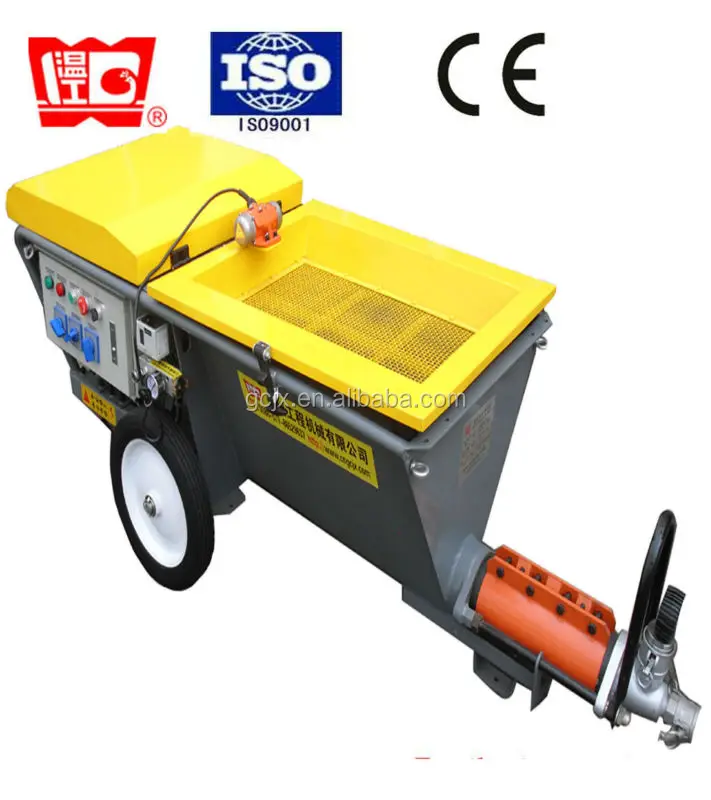

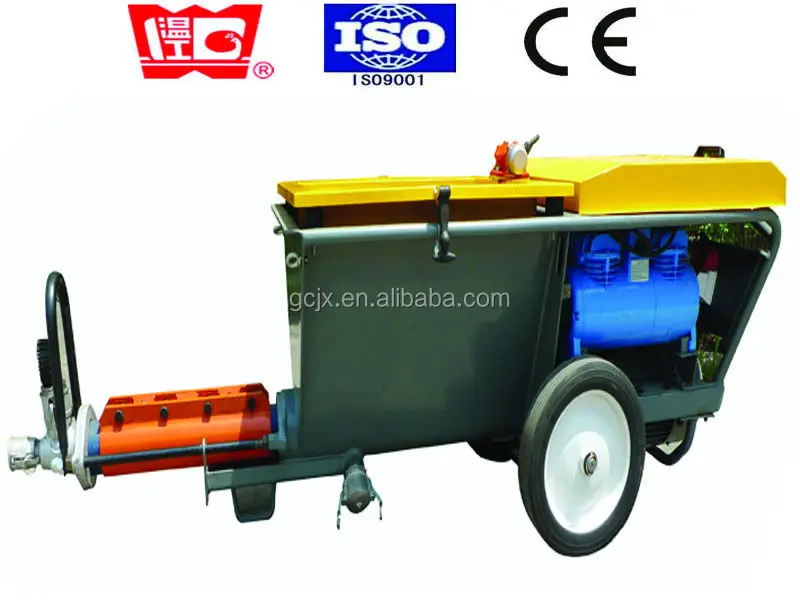

1. JP60-P plastering machine is multi-functional large output plastering machine introduced Italian technology.
2. JP60-P plastering machine has the combined functions of pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction.
3. With modular structure, it's easy to move, dissemble and operate.
4.With variable speed regulation, JP70-P plastering machine can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.
Technical parameters of JP60-P Mortar plastering machine
Model
—
JP60-P
JP60-S
Supply power
—
400V 50Hz
400V 50Hz
Motor power
kw
4.0/5.1
4.0/5.1
Compressor power
kw
2
—
Maximum grain size
mm
6
6
Output
l/min
40
40
Delivery pressure
bar
30
30
Horizontal delivery distance
m
60
60
Vertical delivery distance
m
40
40
Hopper volume
L
100
100
Net weight
kg
280
210
Dimension (L×W×H)
mm
2290×680×660
2290×680×660
1. JP60-P plastering machine is installed air compressor and motor, the motor is imported from Germany. The quality you can be no worried too much.

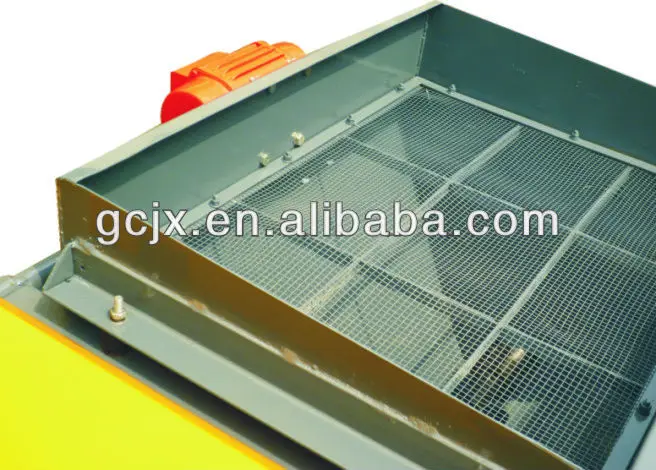

2. The vibrating sieve screen matches vibrating motor and the vibrating sieve is 10x10mm( or 8x8mm) to slecet the bigger size material out to protect stator and rotor of plastering machine.

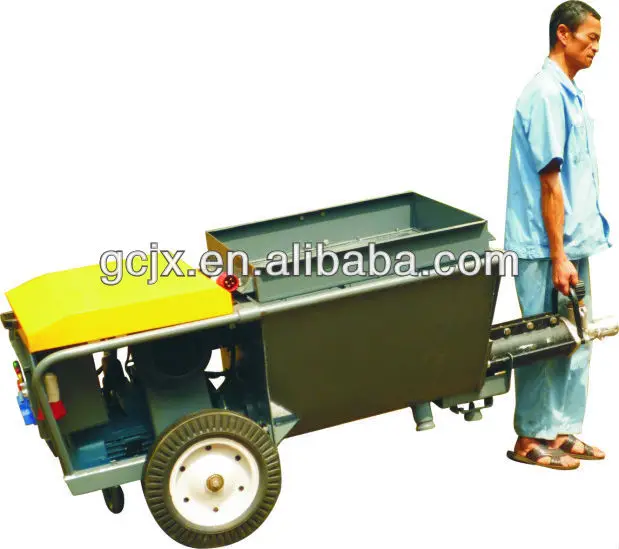

3. JP60-P is easy to move for plastering work, it's one of ideal plastering machine for pleaster choice!
4. you can see the plastering effect with fast speed about 800-1200m2 per 7hours.
5. ISO9001 certificate
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Function&Application
Infinite number of possible applications

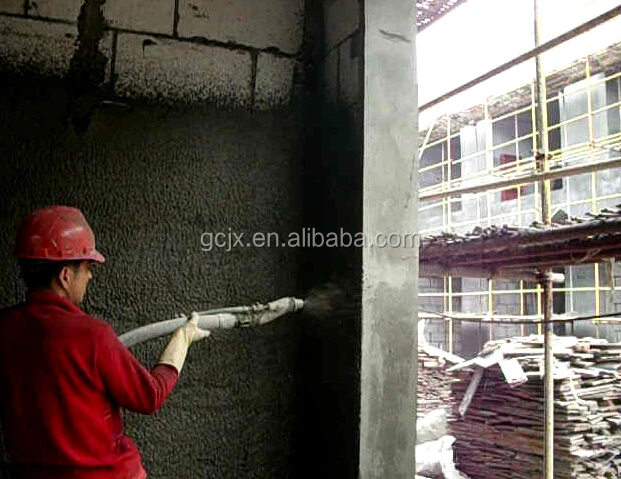

**Base coat plaster (interior and exterior) **Scraped and floating render **Sprayed and textured render **Rough trowel finish render and **bonding layers **Masonry mortar **Fire proofing
**Sealing slurry **Injection mortar and filling mortar **Dispersion plaster **Glass-fibre-reinforced concrete **Cementitious adhesive **Repair mortar and Insulating plaster **Loam rendering **and much more
