RCCB Residual Current Circuit Breaker /Circuit Breaker 2P 40A
- Category: >>>
- Supplier: Zhejiang Aowei Electric Appliance Co. Ltd. [Zhejiang China]Zhejiang
Share on (1770438702):
Product Overview
Description

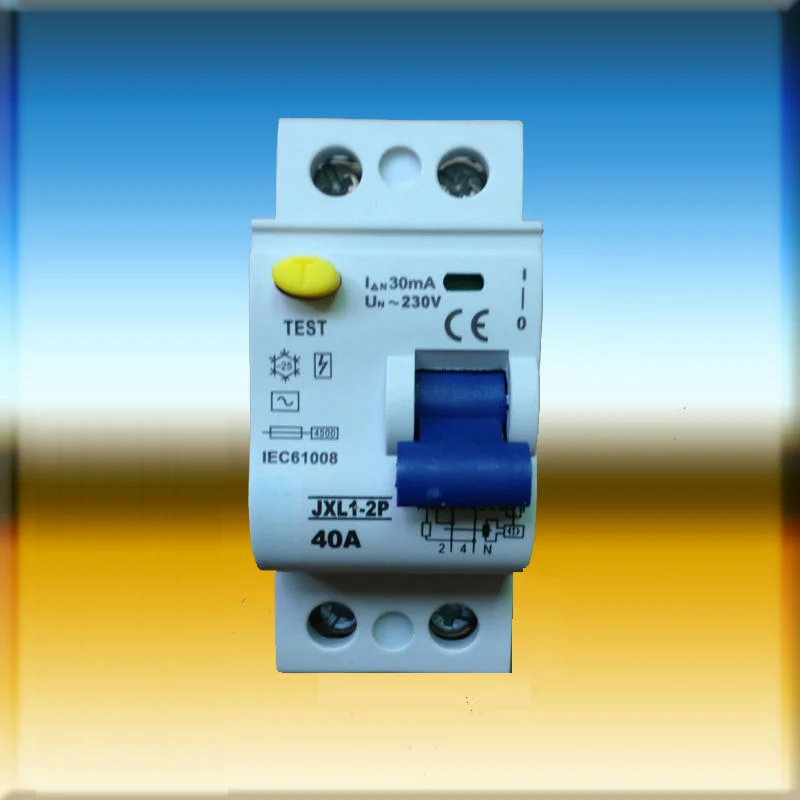

RCCB Residual Current Circuit Breaker 2P 40A
|
Mode |
Electro-magnetic type |
|
Residual current characteristics |
A, AC |
|
Pole No. |
2, 4 |
|
Rated making and breaking capacity |
630A |
|
Rated current(A) |
16 25, 40, 63,80 |
|
Rated voltage |
240/415V AC |
|
Rated frequency |
50/60Hz |
|
Rated residual operating current IΔn(mA) |
10, 30, 100, 300, 500 |
|
Rated residual non operating current IΔno |
0.5IΔn |
|
Rated conditional breaking current Inc |
6000A |
|
Rated conditional residual breaking current IΔc |
6000A |
|
Tripping duration |
Instantaneous tripping≤0.1s |
|
Residual tripping current range |
0.5IΔn~IΔn |
|
Electro-mechanical endurance |
4000 cycles |
|
Connection capacity |
Rigid conductor up to 25mm2 |
|
Connection terminal |
Screw terminal |
|
Pillar terminal with clamp |
|
|
Fastening torque |
2.0 Nm |
|
Installation |
On symmetrical DIN rail 35mm |
|
Panel mounting |
Sample:
1.Free charge sample: Could provide,freight collect.
2.Samples time: Need 3-15 days to preparing the samples after receiving the payment.
3.Samples payment term: T/T.
Quality Guarantee:
Strictly quality control before leave factory.
Advantage:
1.Low MOQ: 50~100PCS.
2.New design Accepted: As your requirement.
3.Good Service: Customer as.
4.Good Quality: Strict quality control and good reputation.
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract).
Order Guide:
|
1.Inquiry-Professional quotation. |
|
2.Confirm the price, lead time, packing requirement, payment term etc. |
|
3.sales send the Proforma Invoice with seal. |
|
4.Customer make the payment and send us Bank receipt. |
|
5.Will inform client that we have got the payment, arrange the production & inform the estimated time. |
|
6.After delivery will inform the tracking number and check the status for clients. |
|
7.Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |

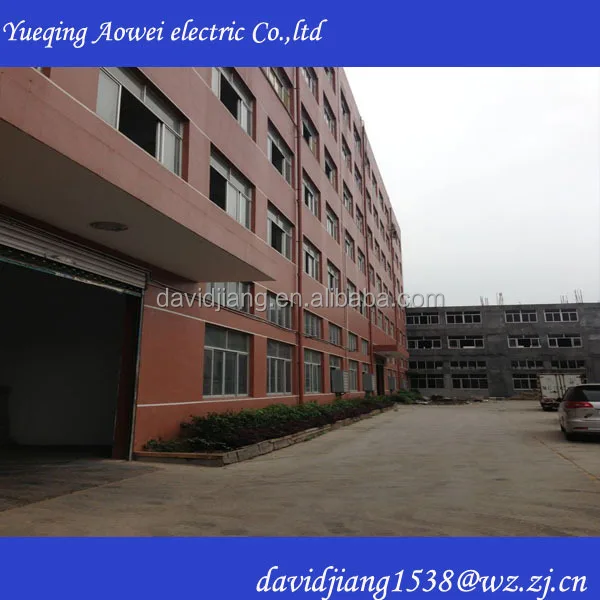

Company image:
