Solar water heater with feeding tank

Product Overview

Description

1, Photos :







2, Material:



<1>  Imported SUS304-2B food-level stainless steel,thickness:0.31~0.5mm

<2>  Outer tank: High quality galvanized steel,thickness:0.31~0.5mm

<3>  Insulation: 50~55mm polyurethane foam

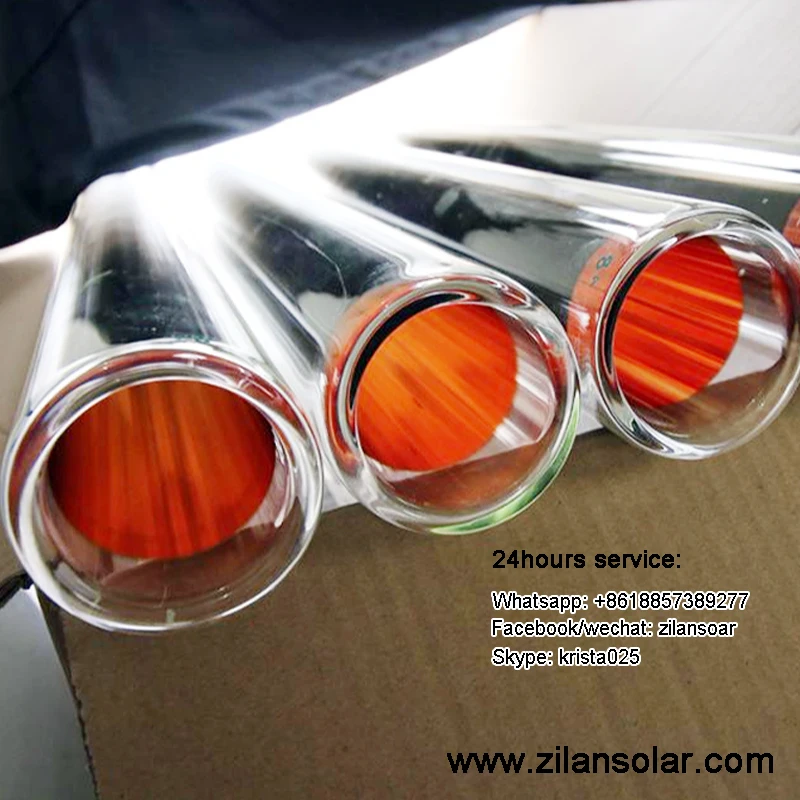

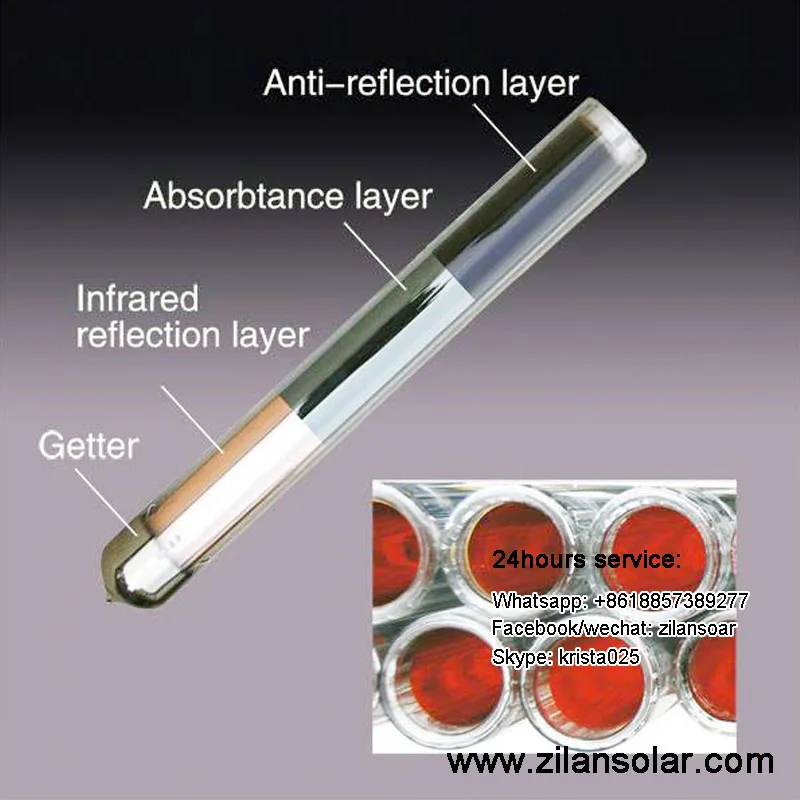

<4>  Vacuum tube: CU/SS-AL/N red tube

<5>  Frame: Galvanized steel/Aluminum alloy,thickness:1.2~2mm

<6>  Feeding tank: 3L/5L galvanized steel

<7>  Reflector: Stainless steel/Aluminum alloy as option

<8>  Available accessories: Feeding tank,solar controller,electric heater, Mag rod,thermostatic mixing valve



3, Size range:



ITEM.NO	SPECIFICATION				EFFECTIVE LIGHT AREA	TANK'S CAPACITY	APPLICATION PEOPLE	CBM
	DIAMETER OF WATER TANK	QTY OF TUBE	DIAMETER OF TUBE	LENGTH OF TUBE
Z-NCF5810	460mm	10pcs	58mm	1.8m	1.04	100L	4	0.38
Z-NCF5812	460mm	12pcs	58mm	1.8m	1.25	120L	4-5	0.45
Z-NCF5815	460mm	15pcs	58mm	1.8m	1.56	150L	6	0.57
Z-NCF5818	460mm	18pcs	58mm	1.8m	1.87	180L	7-8	0.65
Z-NCF5820	460mm	20pcs	58mm	1.8m	2.08	200L	8	0.71
Z-NCF5825	460mm	25pcs	58mm	1.8m	2.61	250L	10	0.9
Z-NCF5830	460mm	30pcs	58mm	1.8m	3.13	300L	12	1.01
Z-NCF5836	460mm	36pcs	58mm	1.8m	3.75	360L	14-15	1.31
Z-NCF5840	460mm	40pcs	58mm	1.8m	4.17	400L	16	1.41
Z-NCF5845	460mm	45pcs	58mm	1.8m	4.69	450L	18	1.61



4, Payment



<1> T/T(wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against B/L copy



5, Certificate







6, Our advantages:



<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy

<2> 15 QC control the quality, just make sure all is right

<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!

<4> Our professional salesmen always online for your questions

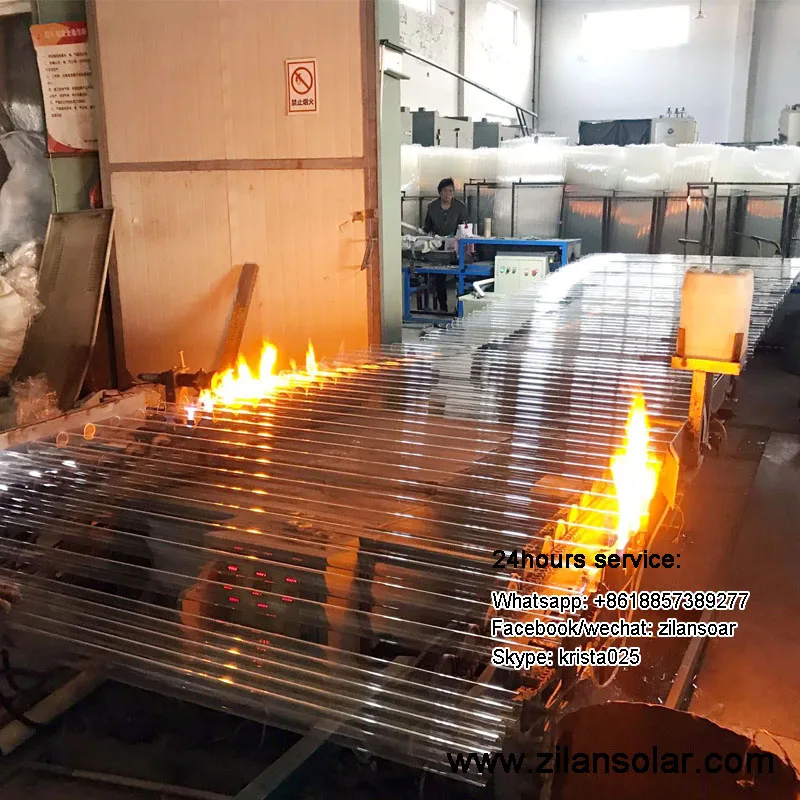

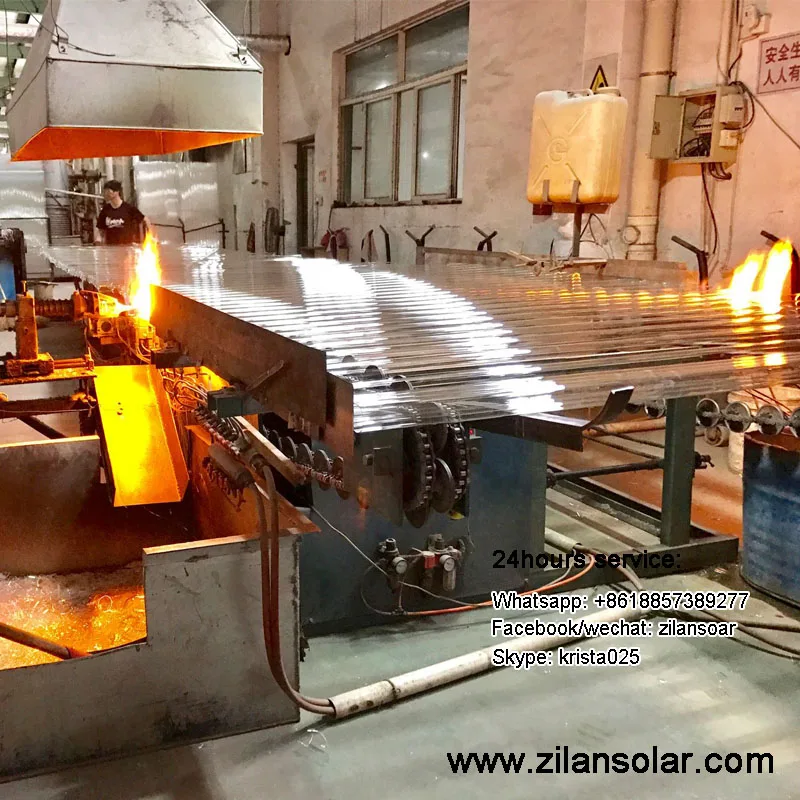

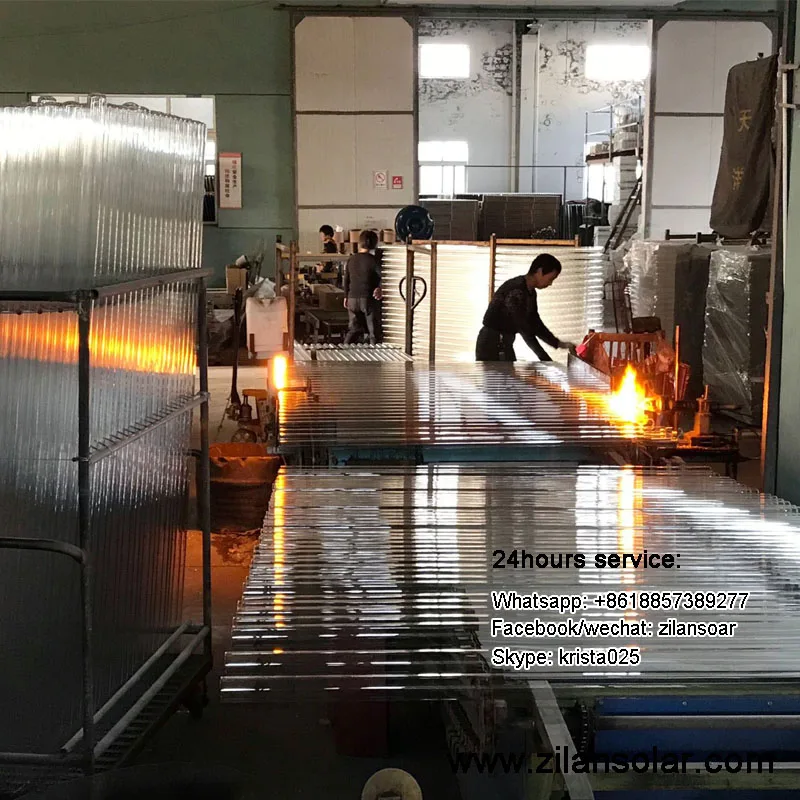

7, Factory photos:
