NH 90S Underwear Machinery Hot Melt Fusing Machine

Product Overview

Description

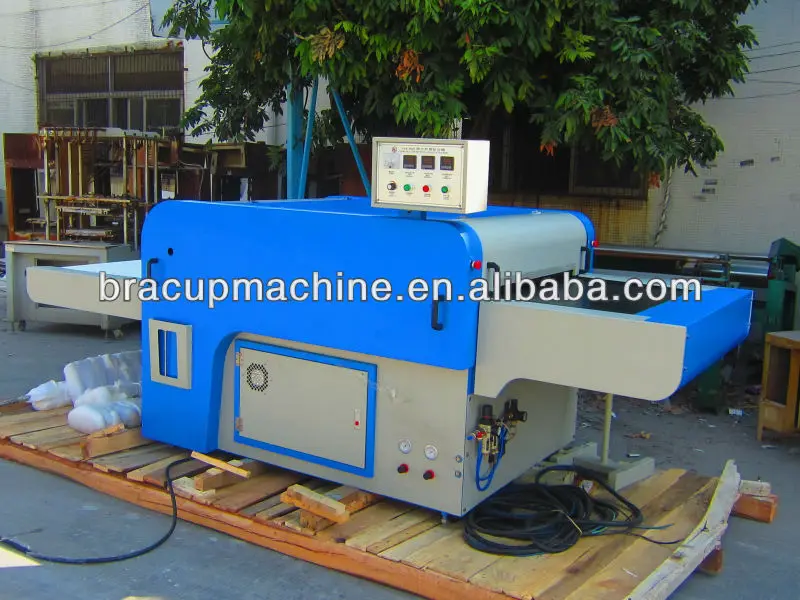

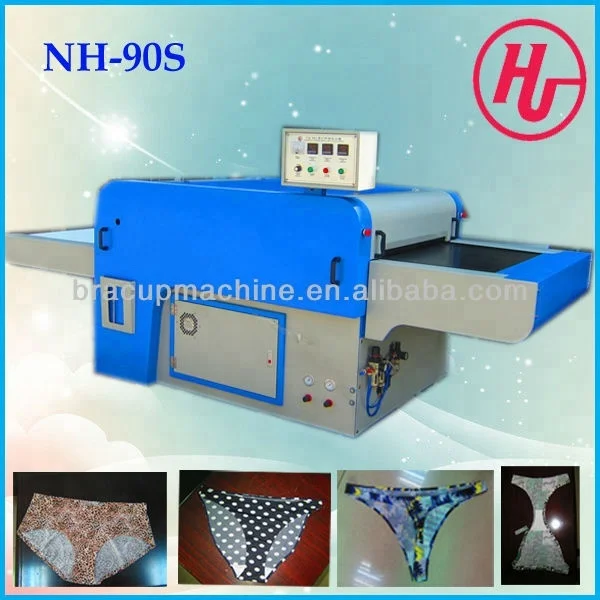

NH-90S Hot Melt Fusing Machine



Function: It is an essential ideal machine used for fuse bonding the lining and fabrics in garments industry. It is the latest fusing machine for bonding the lingerie, shirt collar, suits and etc via high temperature and high pressure and rapid bonding.



Features:

1. Specially-made independent pressing way on both ends, pressure roller adopts silica gel to wrap the cylinder to keep the pressure steady and uniformly spread in the roller so as to make sure the best bonding effect.



2. Independent three-phrase heating system controlled by the electronic temperature controller, it makes the heating plates running for long time to reach the ideal effect.



3. It adopts the special monitoring system, which can monitor if the heating, the pressure and the machine runs normally or not and makes the maintenance to be easy and handy.



4. Super ventilation cooling system makes the fabrics to be formed after the fuse bonding in a short time.



5. It adopts the advanced belt correction system and belt cleaning system. Compared with adjusting bias by force, it makes the service life to be prolonged around 30% running time. The cleaning system insures the belt working in the best cleanliness rather than affecting the fabric surface.



6. Suitable for fusing press & bonding the linings and fabrics with high-temperature.



Technical Specifications:

Model	NH-90S
Voltage	380V/220V/50HZ
Motor Power	212W
Heater Power	24KW
Max Pressure	5KG/cm²
Pre-set Temp	0~200°C
Bonding Width	900mm
Bonding Time	6~35 seconds
Dimension(L*W*H)	3200mm×1550mm×1300mm
Weight	900KG







We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.

1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
