best selling! Weichai Deutz 226B Marine Generators made in weifang city

Product Overview

Description

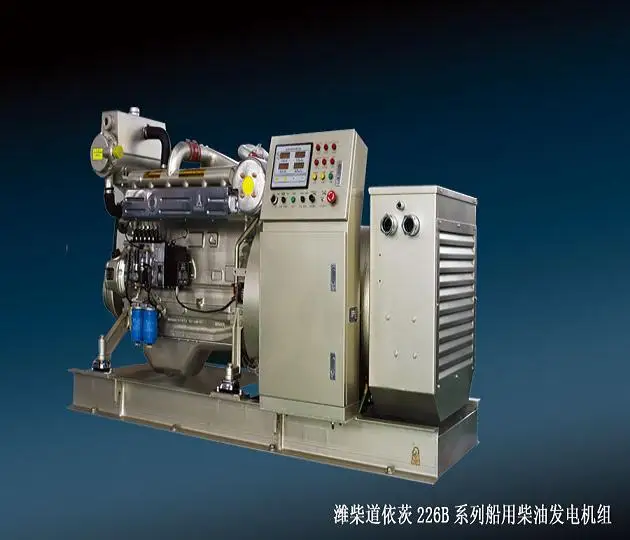

Weichai Deutz 226B Series Marine Diesel  Generators

    are powered by 226B series diesel engines which are produced by the joint wenture company of Weichai and Deutz Company, Germany, and fitted up with renowned generators. The power output range is 24-120kW, CSS and ZY, BV certification can be supplied.

GB/T13032-1991 Standard is applied for the manufacture and inspection of the generating sets.

Main components of the generator

Generator:  Marathon, Stanford and Lanzhou generator with F or H insulation grade.It is also available for load to be transferred between gen-sets at normal running.

Parallel connection:  Two and more normal marine generating sets can transfer loading without stopping, and can realize parallel.

Model List of 226B Series Marine Generators





Genet Model	Continuous output (kW)	Voltagey (V)	currency(A)	loading fuel consump (kg/h)	226B Series Diesel Engine			Alternator
					Engine model	Max output(kW)	speed (r/min)
CCFJ24J-WJ	24	400/230	43.5	5.5	D226B-3CD	30	1500	Marathon
CCFJ30J-WJ	30	400/230	54	6.9	TD226B-3CD	40
CCFJ40J-WJ	40	400/230	72	9.1	WP4CD60-15	60
CCFJ50J-WJ	50	400/230	90	11.2	WP4CD60-15	60
CCFJ64J-WJ	64	400/230	115	14.5	WP4CD75-15	75
CCFJ75J-WJ	75	400/230	135	17	WP6CD90-15	90
CCFJ90J-WJ	90	400/230	163	20.5	WP6CD120-15	120
CCFJ100J-WJ	100	400/230	181	22.5	WP6CD120-15	120
CCFJ120J-WJ	120	400/230	217	27.8	WP6CD152E200	138





Technical Parameters of 226B Series Marine Generator





Type Water cooling, in-line, 4 stroke, humid cylinder liner Cylinder numbers 3/4/6 Displacement(L) 3.12/4.16/6.23 Intake method Natural aspirated, turbocharged or turbocharged inter cooled Bore/stroke(mm) 105/120 Oil consumption(g/kW.h) ≤1.36 Min fuel consumption(g/kW.h) ≤196 Stable governing rate ≤5% Starting method By electric Noise dB(A) ≤97 Smoke(Rb) ≤1.0 Lubricating method Forced Lubricating Cooling method Forced dual-circulation water cooling

 Weichai marine generators
