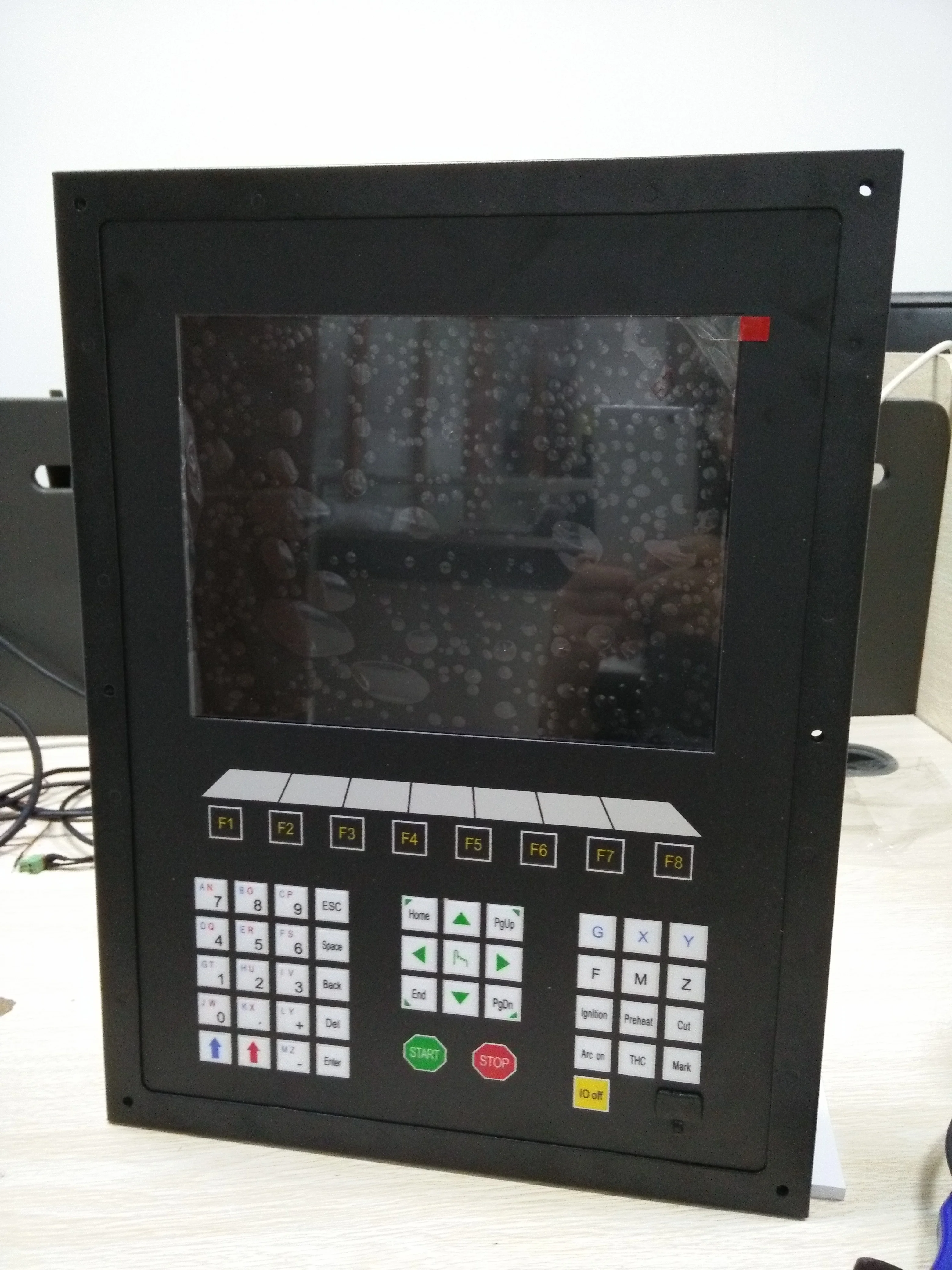

CNC controller system for plasma and gas cutter cnc control system F2300B
- Category: CNC Controller >>>
- Supplier: Shenzhen HYD CNC Technology Co. Ltd.
Share on (1773299023):
Product Overview
Description
CNC controller system for plasma and gas cutter cnc control system F2300B
About HYD THC/CNC
1996 made first capacitive torch height controller (Analog circuit);
1998 made first arc voltage torch height controller (Analog circuit);
2003 designed SCM based PTHC (Ontime);
2004 set up HYD.CNC Tech Co, stopped developing of immature Ontime THC, and returned to Analog Circuit design, developed XPTHC-100, CHC-200D, and simplified XPTHC-II
2006 made XPTHC-100II, CHC-200DII, and XPTHC-III;
2007 made HYD cnc controller and universal operation console,
2008 made capacitive CHC-300 for YAG laser cutting;
2009 started to co-design THC with Messer China, and developed XPTHC-200; Koike started to use CHC-200DII
2010 made XPTHC-100III
2011 made new generation THC, XPTHC-300, and CHC-200E.
2012 designed DC version cap THC for Zinser, and new laser CHC-300.
2013 designed PTHC-200DC and XPTHC-Portable300,
2014 designed XPTHC-4 stand alone THC for low cost plasma torch height control.
2015 fully automatic cap THC will come soon, new auto focus system for high speed laser cutting is ready, new PC based cnc controller for plasma/flame/waterjet/laser cutting is already under testing....
Shenzhen HongYuDa(HYD) CNC Technology Co.,ltd is a professional industrial automation design company founded in 2007, but the founder Xiao Chunming designed his first THC in 1998.
We have developed XPTHC series THCs for plasma cutting, CHC series THCs for flame and laser cutting, HYD series CNC controllers for plasma/flame cutting control....all enjoying great reputation in this field, widely used by OEM manufacturers in and out of China, including big names like Messer,Zinser ,Koike, Hans Laser AMG, Boda, DNE laser...
Our core of design is High Quality with Affordable Cost.
XPTHC series and CHC series THCs support DC motor, which made stand alone THC affordable to most users, while the accuracy and stability of THC are still industrial level. Because HYD THCs are suitable for application from entry-level to industrial-level, we have the biggest sale of THCs on market, over 5000 sets per year.
In 2015, we just developed THC with brushless motor for higher control accuracy and save cost at the same time.
In 2016, our servo based torch height control for high speed(laser cutting) application is ready to go to market. We can design any kind of torch height control for your specific application!
HYD motion control card will come in 2016 too. We will bring China CNC controller to a new level. Currently China market is full of ARM controller, which is cheap but not user-friendly and reliable. We will supply PC based CNC controller at similar cost level as ARM controller.
Not just work on our own CNC controller, we also design operation console for Hypertherm's EDGE series, FastCut, Burny controller... to standardize CNC cutting machine production for China OEM machine manufacturers.
We have professional R&D team capable to make different kinds of product solution.
We are not just aiming to make some best-seller products, but also make our name on the history of China industrial evolution.
Please contact us for more details and final price confirmation.
CNC Controller system + Samrt Nest software
Key features as follow,
1)10.4 inches 1024*768 dots color LCD, USB interface.
Man-Machine-Dialog software and Professional Hot Key design for easy cutting operation, user-friendly as Hypertherm’s EDGE controller.
2)Multi-language file system and menu, and the menu can be switched only by one key.
3)DSP core can control the machine move in high speed accurately, stably and in low noise.
4) Long-distance remote control can control the machine to move forward ,backward, left, right and cutting start, stop and so on (optional configuration).
5) Support the EIA code (G code) and various FastCAM,FreeNest,SmartNest,IBE softwares.
6) compact keyboard design and easy to input files.
7) Operations such as Proportion Zoom, Rotate, Mirror, Array display, Steel plate angle adjust…..all available and have professional solution in the CNC controller.
8) Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.
9) All input and output port type and the number can be customized (normally open or normally closed)
10) System Self-diagnosis for easy trouble-shooting.
11) all functions and techniques can upgrade online
12) Import and export files by single or all files.
13) Support the Flame, Plasma, Dusting draw and Demonstration four kinds of mode.
14) Flame and Plasma are separated in the control IO ports.
15) Support THC, two level preheat, three level pierce in flame mode.
16) Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.
17) Support edge cutting. It can save the preheat time for the thick steel plate.
18) Movement speed can be real-time acceleration, deceleration.
19) According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.
20)Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.
21)Automatically memorize the working situation and the last cutting point when power off.
22) "Cutting offset" function can avoid waste the steel plate when the nesting of the plate is calculated wrong.
23)set up different administration authority and the corresponding password to safeguard the interests of managers
