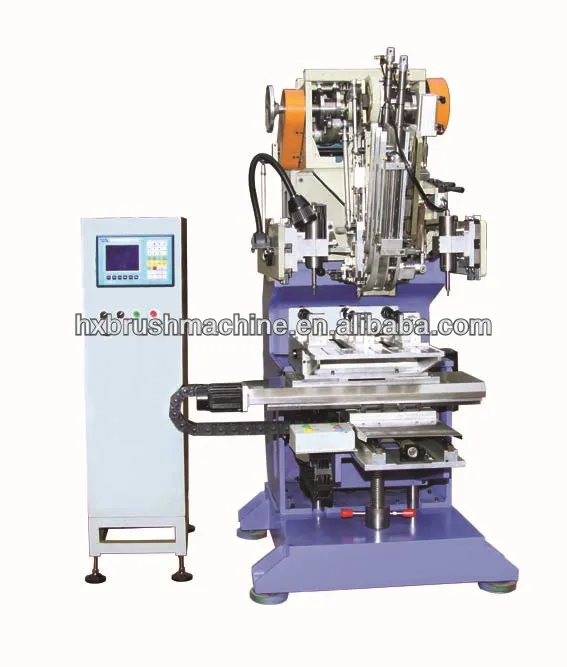

High Speed Flat Wire 3 Axis Plastic Hair Comb Making Machine (drilling and tufting)

Product Overview

Description

High Speed Flat Wire 3 Axis Plastic Hair Comb Brush Making Machine / Hair Brush Making Machine



Product Features

1.This machine is suitable for all kinds brush of the diameter from 2.2mm to 4mm and within the height of bristle is 40mm for drilling and tufting.

2.Bored with two drilling head and one planting head, high-speed processing, high-volume, cost-effective.

3.Panel Control Syestem of man-machine, Chinese and English display, simple to understand.

4.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence;

5.Hair by:oblate style

6.laegesr wool length:40mm

7.Models can be stored:20(expandable)

8.Input methods:handheld encoder or keyboard input



Technical parameters:



Description	Parameter
Max Speed	≤600 holes/min
Hole diameter	Φ2.2-Φ4mm
Spindle quantity	2-4piece
Journey X axis	500mm
Journey Y axis	400mm
Maximum program quantity	100
Air pressure	6 mpa
Power voltage, frequency	380V, 50Hz
Machine power	2kw
Contour size	1100×1150×1830mm
Weight	950kgs

Control system	CNC Conroller
Disturbance Display	Emglish edition
Safety Protection	Overload, short circuit protection
Lubrication	Auto Lubrication System
Main speed control	Frequency Inverter
Fiber Box	Frequency Inverter

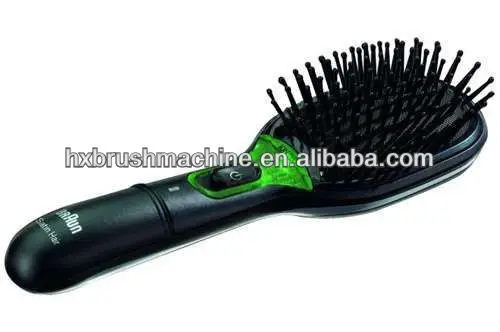

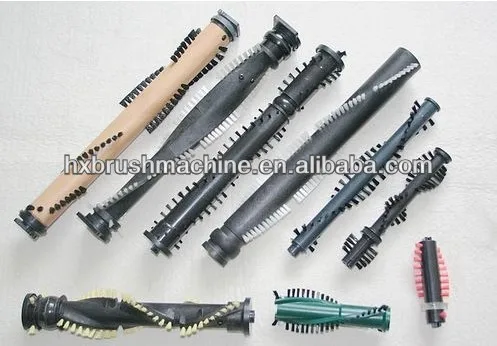

This machine can make shoe brushes, roller brushes, hair brushes.
