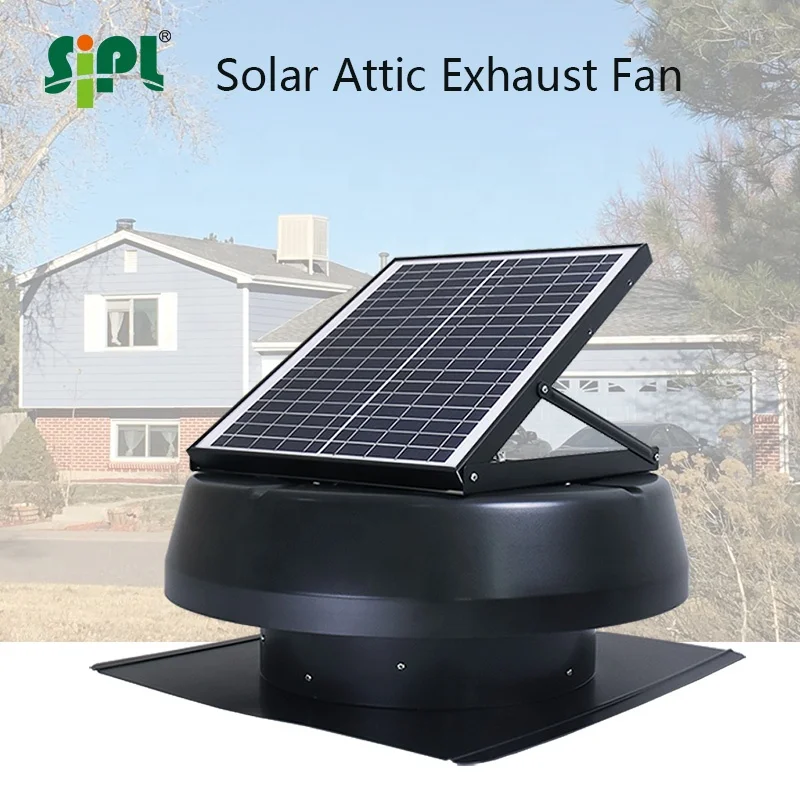

Wiring free no electric roof vent fan 20W 14' solar brushless motor driven attic air ventilating heat removing for home/factory
- Category: Other Fans >>>
- Supplier: Jiangmen Sunny Photoelectricity Technology Limited
Share on (1774750070):
Product Overview
Description
Product Info
Product Description
A fully assembled wiring free solar roof mounted fan for ventilation, with automatic operation powered by solar panel at no electric cost. High efficinecy, No noise as well as Easy to installed, and also with flexible optional accessories to control the fan operation as per need. Come as better choice for your attic ventilation, SIPL solar roof ventilator does well in avoiding overheat build-up at attic space, preventing mold, mildew, musty odors, etc... lowering the cooling utility bills, reduce the load on HVAC system in summer, and prevent ice-dam in winter...
Solar roof ventilator-- Specification
Power | 20W |
Solar Panel | Polycrystalline solar module ( 365*410*25mm ) |
Solar Fan Size | 14 inch fan blade ( air duct dia. 368mm) |
Fan Host Size | 530x530x255mm |
Case Material | Galvanization steel with nice powder coating |
Fan Blades | Nylon-fiberglass fan blades, 7 pcs |
Fan Motor | Brushless DC motor, waterproof reaching IP68 |
Work Time | Sunny daytime running |
Coverage Area | Up to 1350cfm for 2000 sq. / ft. attic space |
Optional Solar Fan Accessory | a. Backup solar battery b. AC/ DC dual power adapter c. Protective metal fan guard d. Snap action thermostat / settable thermostat e. Manual switch |
More Solar Fan Details show the quality SIPL make

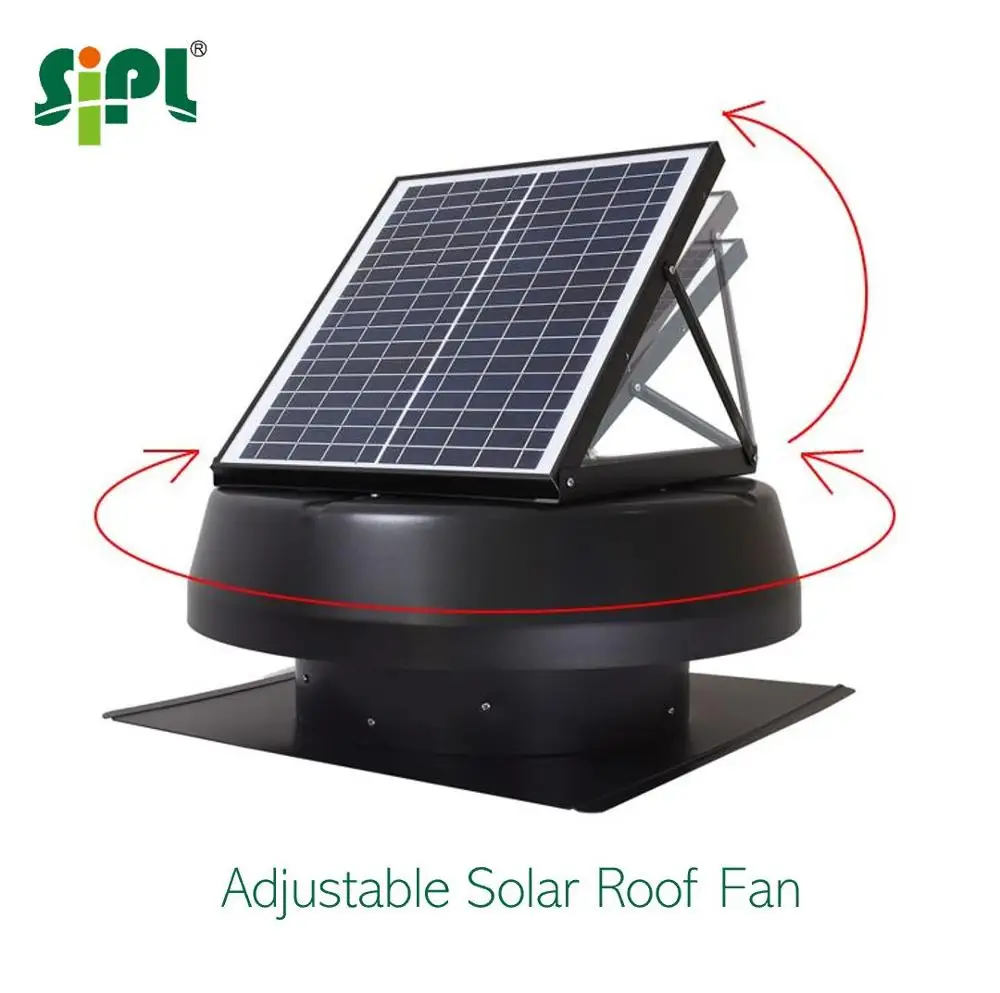

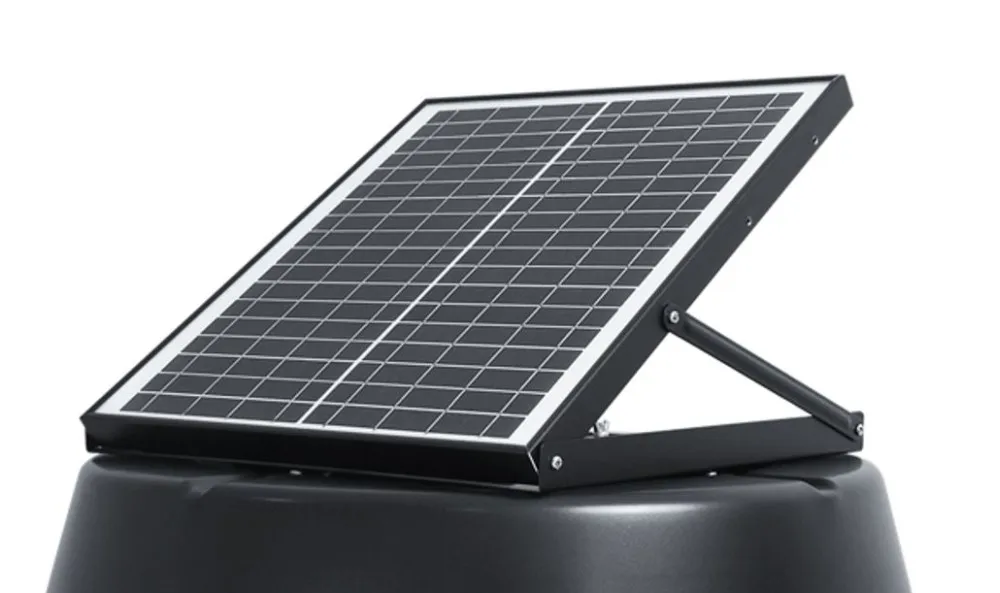

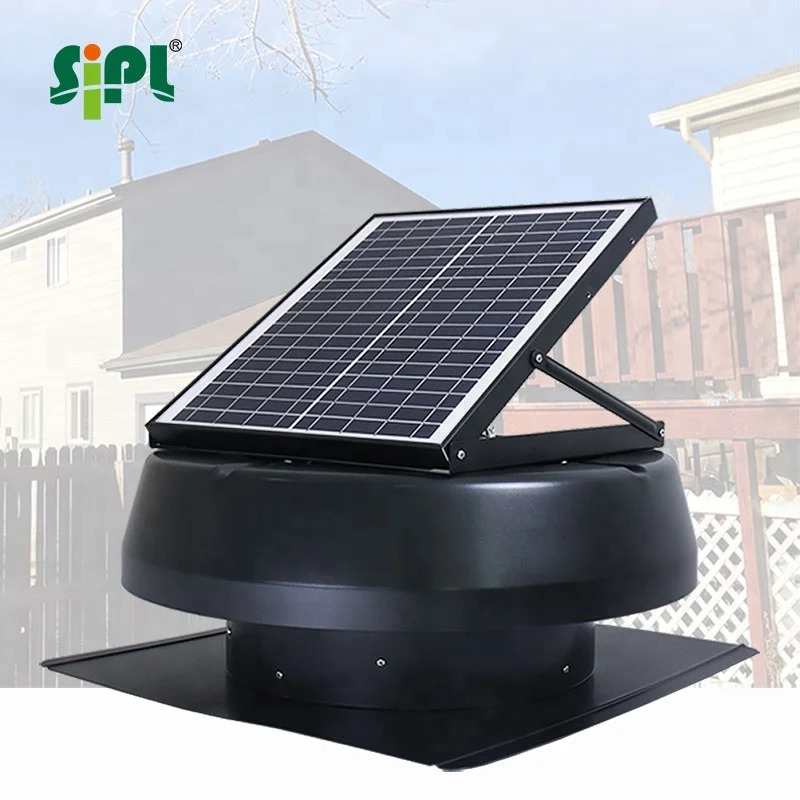

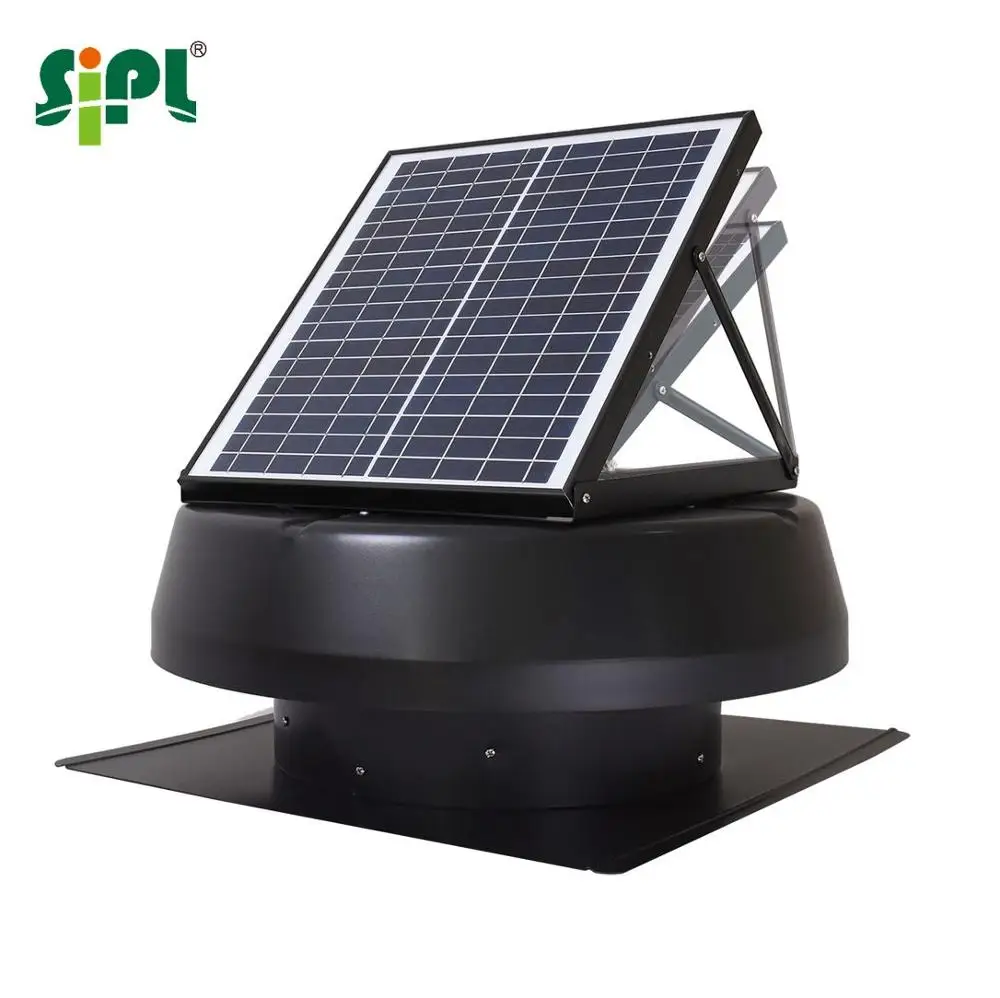

Adjustable Solar Panel
Fan host fully assembled with solar panel, compact design all in one unit; Polycrystalline solar panel in high conversion efficiency, adjustable solar panel to better capture daily sunlight, for optimal solar exposure.
Durable Fan Body
Unibody fan case in strong galvanization steel, square flashing seamlessly connected with air duct; fan housing is rust-proof and finished with anti-UV powder coating, for both practical in use and generous on appearance.

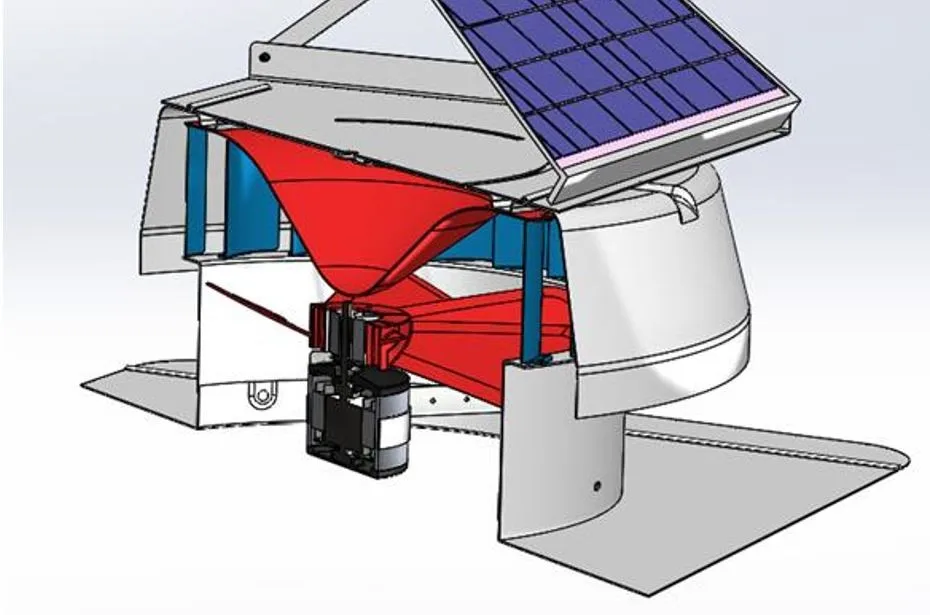

SIPL Patented Air Draft Design
Following a 360-degree swirl ventilation mode, SIPL patented air draft --- wind guide cone with 24pcs turbine wind guide blades, comes for higher efficiency, less drag, faster exhaust, not letting any exterior air going in and preventing the rains or wind from flowing backward.

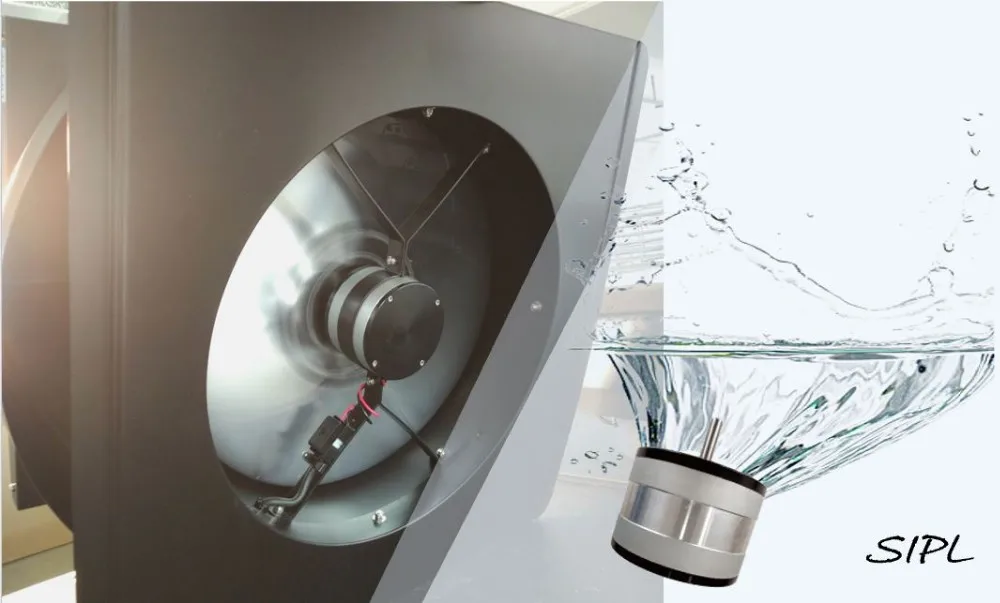

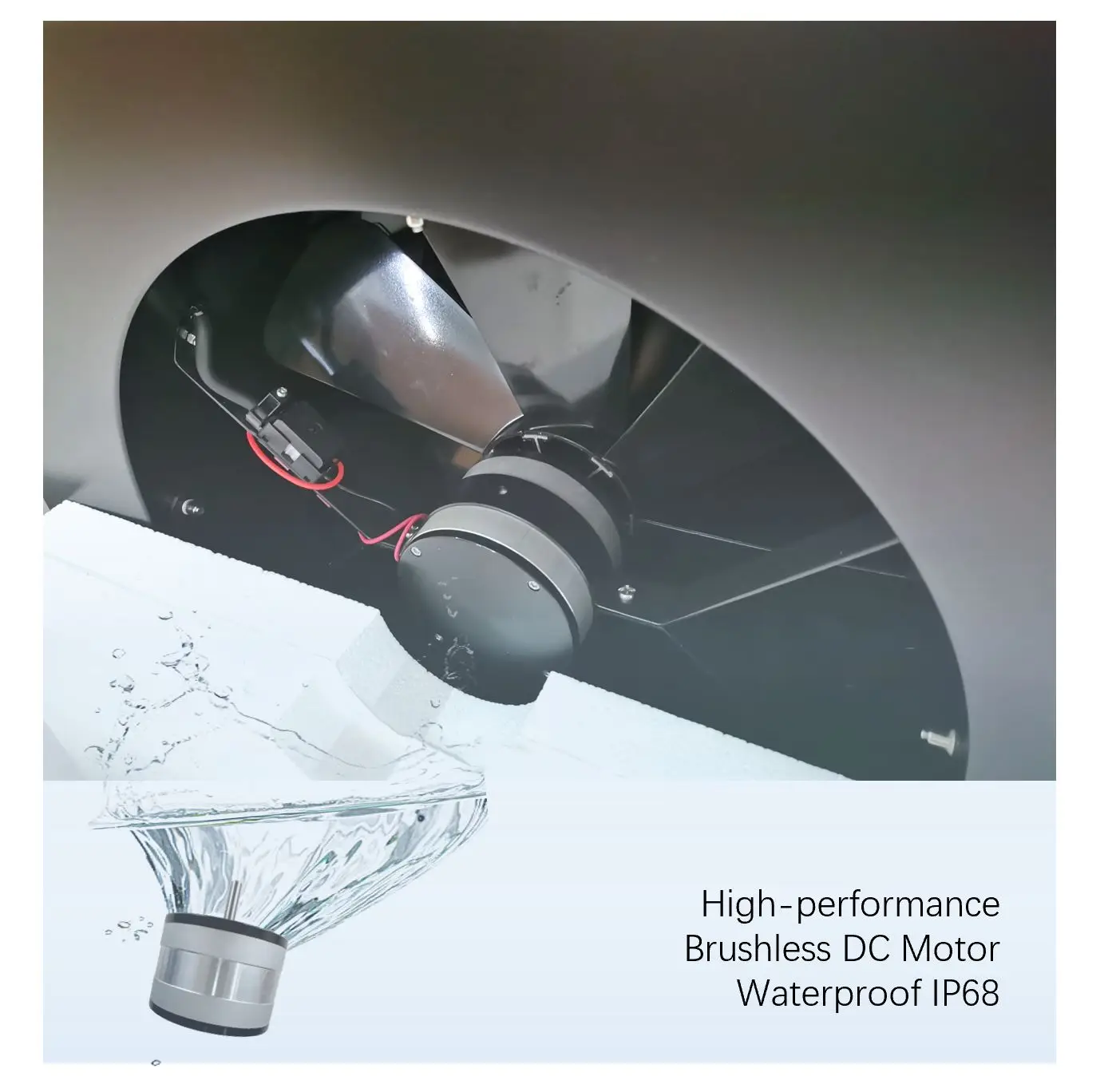

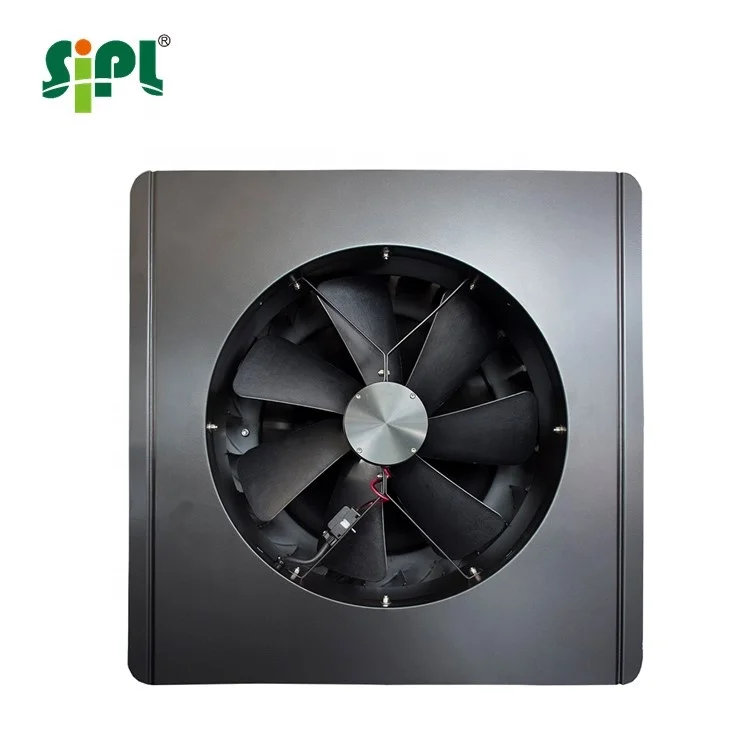

Top Grade Motor & Fan Blades
Brushless DC motor in high quality, no carbon brush, no mechanical commutation, no operation dissipation, ensure higher efficiency; Waterproofing grade reaching IP68, better performance without noise and longer lifespan.

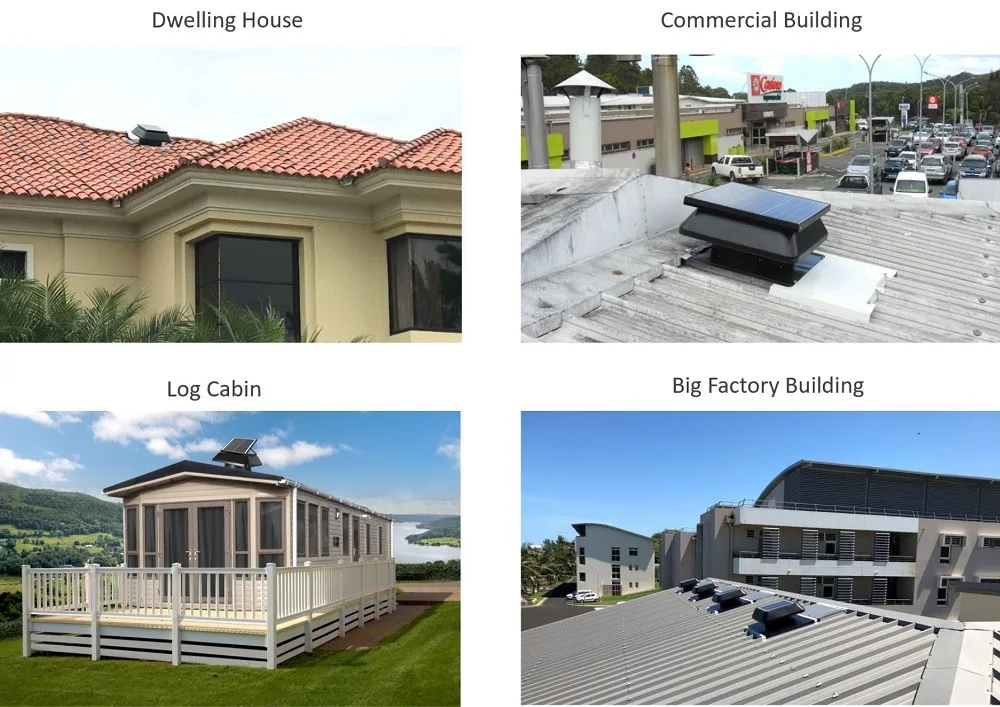

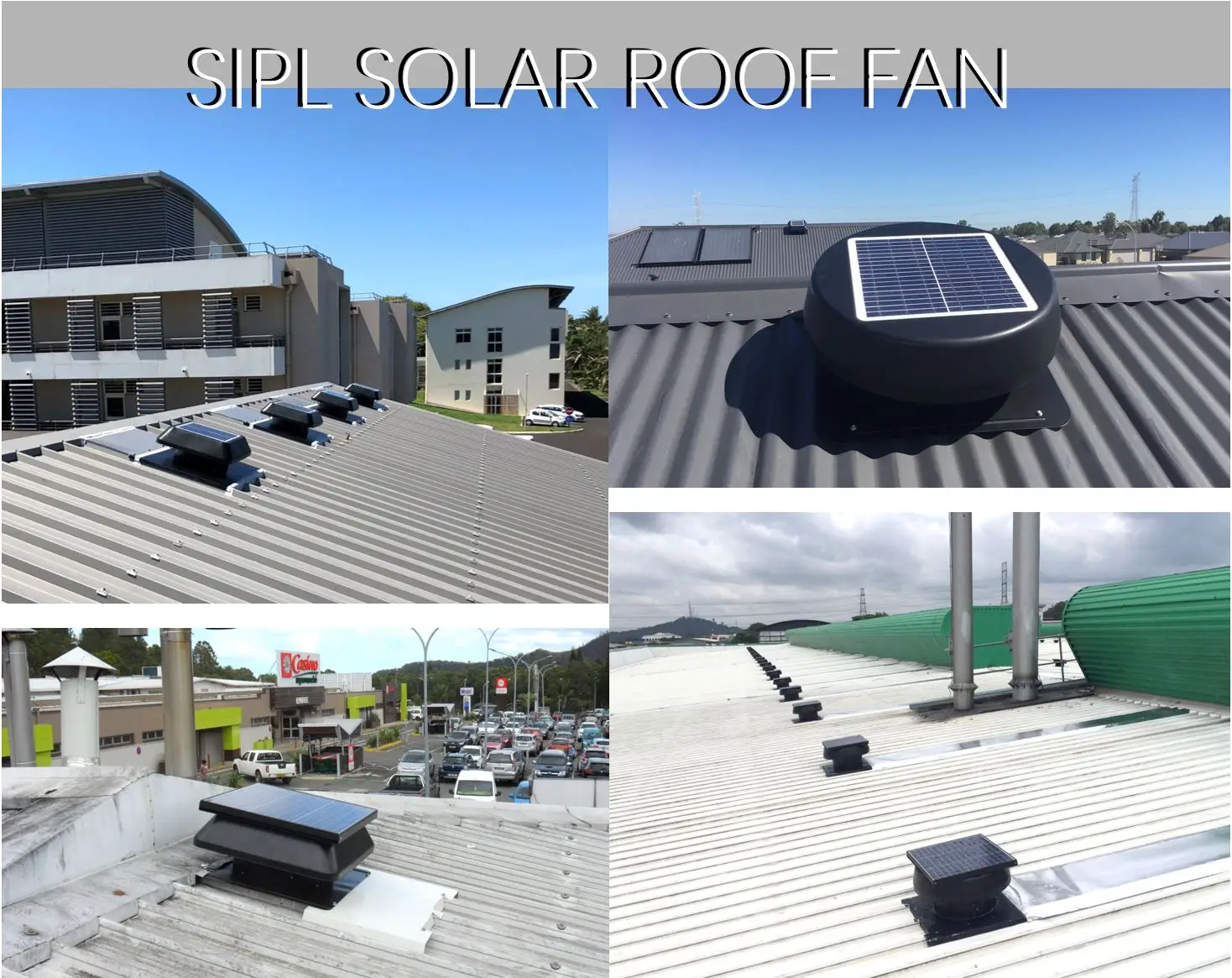

Applications
SIPL solar roof ventilation series vary from 15W to 50W, for domestic use, industrial use, as well as public use.
Recommended application area like attic space, basement, workshop, factory, modern tent house, motor home, loft, portable/mobile toilet, greenhouse, winter garden, living container, prefab house, granny flat, animal feeding shed, shack, barn, storage pod, basement, cottage, garage, warehouse, coop, stable, cattle shed, cow house, cow shed, horse float, livestock pin, temporary sites so on.
Warranty
We have a long-term commitment to quality, providing a reliable warranty.
Solar Fan Part | Desided Lifespan | Warranty |
Metal Casing | 20 Years | 15 Years |
Solar Panel | 25 Years | 15 Years |
Fan Motor | > 10 Years | 5 Years |
Solar Battery | 8 Years | 2 Years |
