Hotsale Automatic Stainless Steel Spice Powder Crushing Machine

Product Overview

Description





Popular Multifunctional Spice Powder Making Machine



Breif Introduction of Spice Powder Making Machine:

This hotsale automatic stainless steel spice powder crushing machine is an efficient mill for food, spices, grains, etc., Crushing and grading of split materials installed on the same machine body, and independent operation. The machine has a full-featured , compact structure , stable technical performance , power consumption province , a wide range of application , fineness adjustable , easy maintenance, and other characteristics , all the process after feeding to the finished product is carried out in the same closed system , with the dust removal processing , no pollution to environmental, it is an ideal machine for food industry and GMP standards.



Application of BMC Spice Crushing/Grinidng MachineWorking Principle:

Food: sesame seed, walnut, rice, black rice, beans, mung beans, peanuts, lotus seed, corn, barley, buckwheat, sugar, coffee, cocoa beans, etc.

Spices: pepper, chili, sesame, Chinese prickly ash, star anise, cinnamon, etc.
It can also used to grind the root, stem, leaf, flower, fruit, tree bark, and dehydrated vegetables, etc.

Dried herbs: almonds, poria cocos, red jujube, gordon euryale seed, medlar, hawthorn, radix polygoni multiflori, red beans, donkey-hide gelatin, frankincense, dodder, angelica, dangshen, astragalus, membranaceus, etc.

This hotsale automatic stainless steel spice powder crushing machine includes: main and auxillary machine, dust remover, electric controll box., can grind  spicy and oily material which grease content reach 15%-45%, the powder size is contolled by sieve. The process can continuous operate under normal temperature, this machine also can be widely used in crush food, pharmacy and chemical industry.

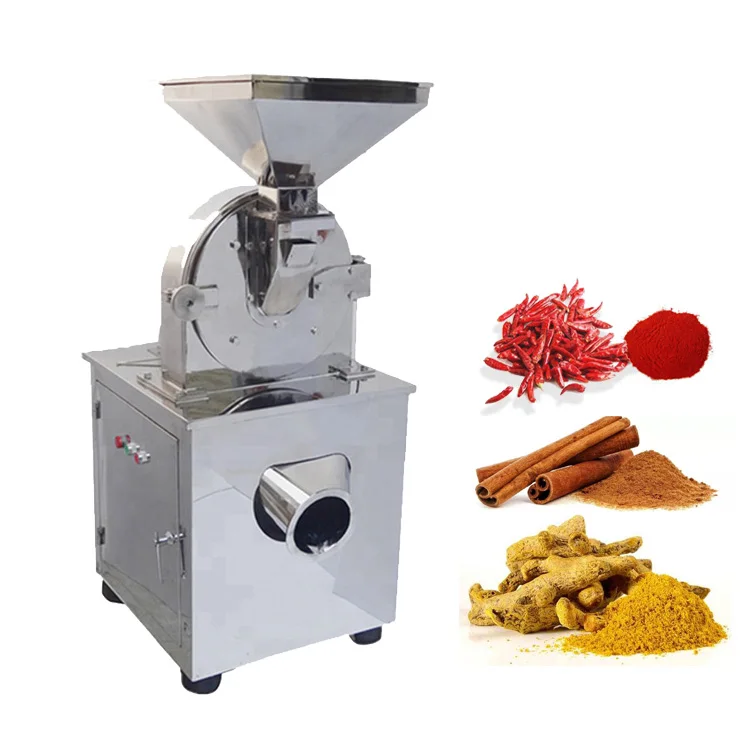

Grinding Effect of BMC Spice Grinding Machine:





Working Principle of Spice Grinding Machine:

The machines use relatively high-speed operation of the activity gear and fixed gear, the crushed material by chainring impact, friction and materials between the collisions crushed. The crushed material can be directly discharged from the grinding chamber through the discharge port

out .Generally material after crushing to go through a cotton bag to collect the crushed materials collected in the bag , the small hole of air from the bag out and powder will not out , and thus play no waste , not the effectof pollution . The particlesize is determined by changing to a differentmesh sieve



Specifications of Spice Powder Making Machine:



Model	Capacity	Noise	Fineness	Voltage	Power	RPM	Dimension(mm)	Weight
	(kg/h)	(db)	(mesh)	(V/3P)	(KW/HP)			(kg)
BMC180	10-50	< 85	10-120	380	2.2/3HP	5500	500x500x1050	85
BMC 200	30-120	< 85	10-120	380	4/5HP	5000	600x600x1200	130
BMC 300	60-200	< 85	10-120	380	5.5/7HP	4500	750x650x1350	180
BMC 400	80-300	< 85	10-120	380	7.5/10HP	4200	750x700x1400	270
BMC 500	100-500	< 85	10-120	380	11/15HP	4000	800x850x1500	350
BMC 600	300-1000	< 85	10-120	380	18.5/25HP	3500	1000x1000x1900	550

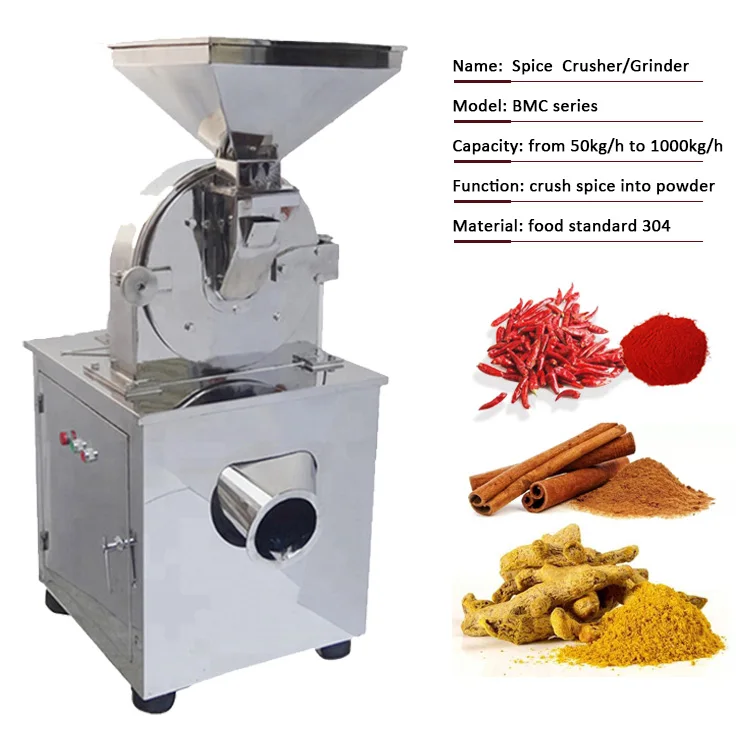

Details of  Spice Powder Making Machine BMC Model:





 Delivery of BMC Series Powder Making MachinePowder Making Machine:







Any question about spice grinding machine, welcome to contact us by following table.
