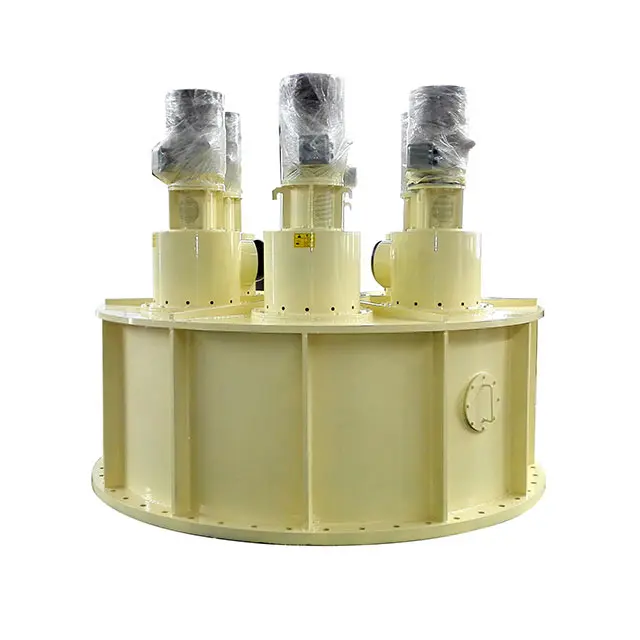

Hot Sale Multi-Wheel High-Precision Powder Air Classifier
FEATURES AND ADVANTAGES
* Available D50:2-45μm
* Suitable for precise classifying of dry micron material.
* Classifying efficiency (extraction ratio) can be 60%～90%.
* The linear velocity of horizontally installed classifying wheels is up to 70m/s.
* Speed of wheel is controlled by inverter, particle size can be adjusted freely.
* System equipped with muffler operating under negative pressure, meet environmental requirements,noise <76dB(A).
* The inner lining is made of alumina, no metal pollution, meeting the requirements of high purity materials.
* Grinding is in closed system, little dust, low noise in a clean and environmentally friendly process.
* PLC control system, easy operation.

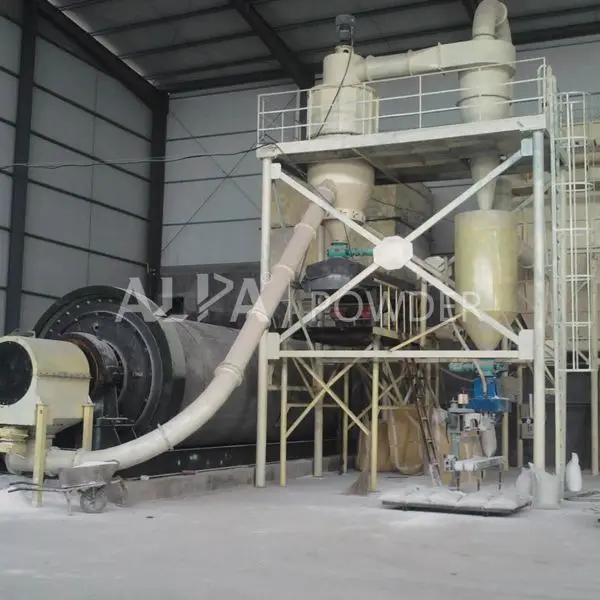

* In conjunction with ball mill, table roller mill and Raymond mill to form closed circulation.
* The motor can be connected with a belt, which is stable and reliable, realizes high speed and increases the speed, and breaks through the problem that the well-known motor brand does not have a high-speed motor.
* Optional explosion-proof design, can also be upgraded to a nitrogen circulation system to meet the processing needs of
flammable and explosive oxide materials.
* Suitable for precise classifying of dry micron material.
* Classifying efficiency (extraction ratio) can be 60%～90%.
* The linear velocity of horizontally installed classifying wheels is up to 70m/s.
* Speed of wheel is controlled by inverter, particle size can be adjusted freely.
* System equipped with muffler operating under negative pressure, meet environmental requirements,noise <76dB(A).
* The inner lining is made of alumina, no metal pollution, meeting the requirements of high purity materials.
* Grinding is in closed system, little dust, low noise in a clean and environmentally friendly process.
* PLC control system, easy operation.
* In conjunction with ball mill, table roller mill and Raymond mill to form closed circulation.
* The motor can be connected with a belt, which is stable and reliable, realizes high speed and increases the speed, and breaks through the problem that the well-known motor brand does not have a high-speed motor.
* Optional explosion-proof design, can also be upgraded to a nitrogen circulation system to meet the processing needs of
flammable and explosive oxide materials.
Woking principle
WORKING PRINCIPLE

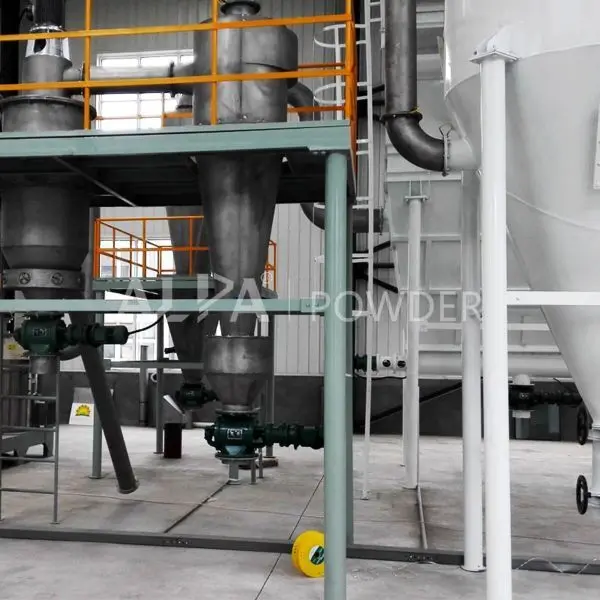

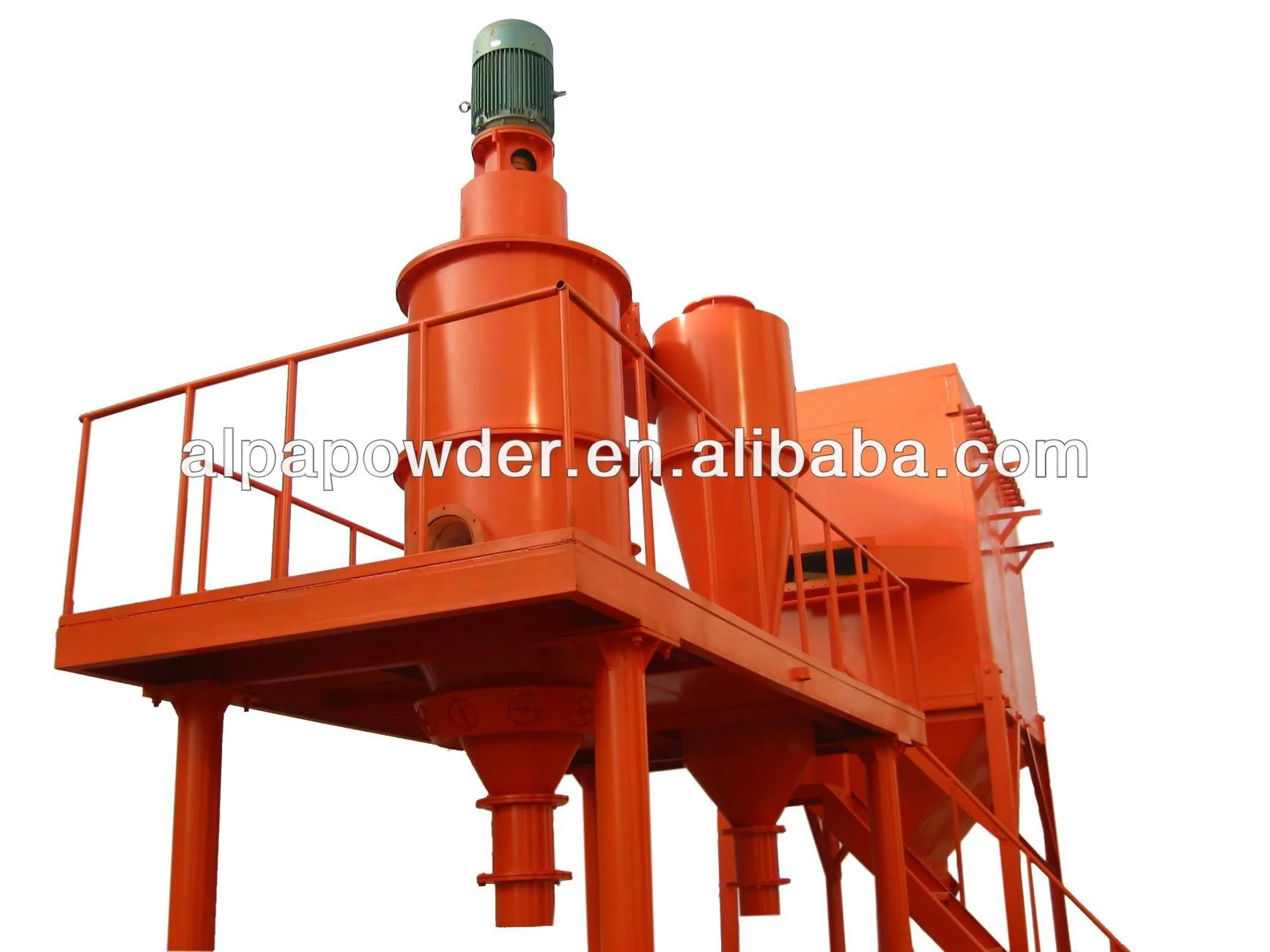

The classifier and cyclone separator, dust collector and induced draft fan form a classifying system.
Under the action of fan suction, the material is moved from the lower inlet of the classifier to the classifying zone with the
ascending airflow.
Under the strong centrifugal force generated by the high-speed rotating turbine, the materials are separated and the fine
particles which meet size requirements through the classifier impeller gap into the cyclone separator or the dust collector,
The coarse particles entrained part of the fine particles collided with the wall and the velocity disappeared, descending along the cylinder wall to the secondary air outlet, and the coarse and fine particles were separated by the strong washing action of the secondary air.
The fine particles rise to the classification zone for secondary classifying, and the coarse particles are lowered to the
discharge port for discharging.
Under the action of fan suction, the material is moved from the lower inlet of the classifier to the classifying zone with the
ascending airflow.
Under the strong centrifugal force generated by the high-speed rotating turbine, the materials are separated and the fine
particles which meet size requirements through the classifier impeller gap into the cyclone separator or the dust collector,
The coarse particles entrained part of the fine particles collided with the wall and the velocity disappeared, descending along the cylinder wall to the secondary air outlet, and the coarse and fine particles were separated by the strong washing action of the secondary air.
The fine particles rise to the classification zone for secondary classifying, and the coarse particles are lowered to the
discharge port for discharging.
Product Paramenters
TECHNICAL PARAMETERS
Parameters/ specifications | FL300 | FL360 | FL450 | FL550 | ITC-4 | ITC-5 | ITC-6 |
Production Capacity(kg/h) | 20～1000 | 300～2000 | 1000～3000 | 3000～5000 | 8000～15000 | 15000～20000 | 20000～30000 |
Product Size(d97:um) | 6～150 | 5～150 | 5～150 | 8～150 | 10～150 | 15～150 | 20～150 |
Classifying efficiency(%) | 60～90 | 60～90 | 60～90 | 60～90 | 60～90 | 60～90 | 60～90 |
Installed Power(kw) | 11.5～42.5 | 18～60 | 63.5～105 | 77～120 | 120～160 | 90～200 | 170～310 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Related Engineering Case
Related Engineering Cases
Mexico a chemical factory
corn starch powder classifying, annual output 7000T, particle size D95:45μm, 2 sets of Air Classifier Production Line.
Russia a mineral factory
quartz powder classifying, annual output 50000T, particle size D97:45μm, 2 sets of Air Classifier Production Line.
