Product Overview
Description

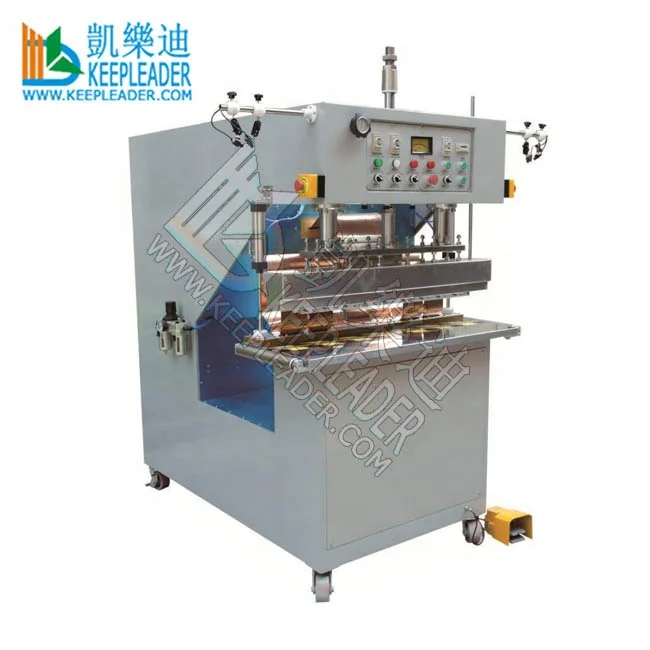

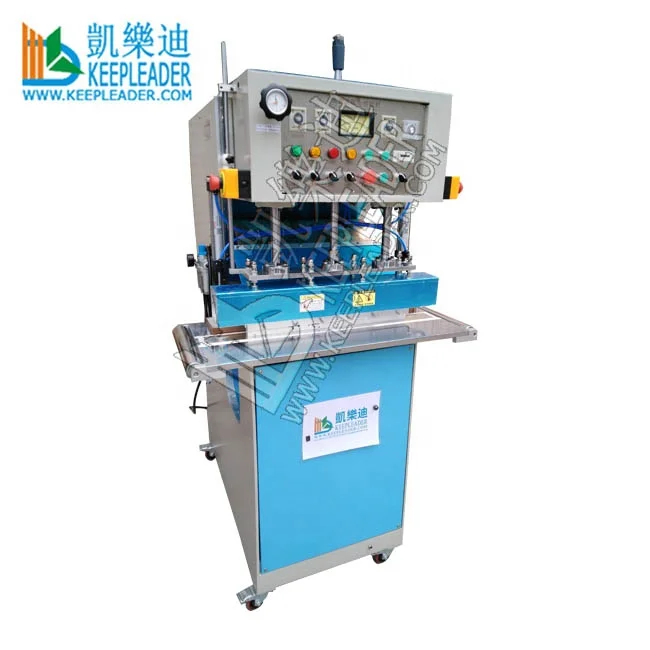

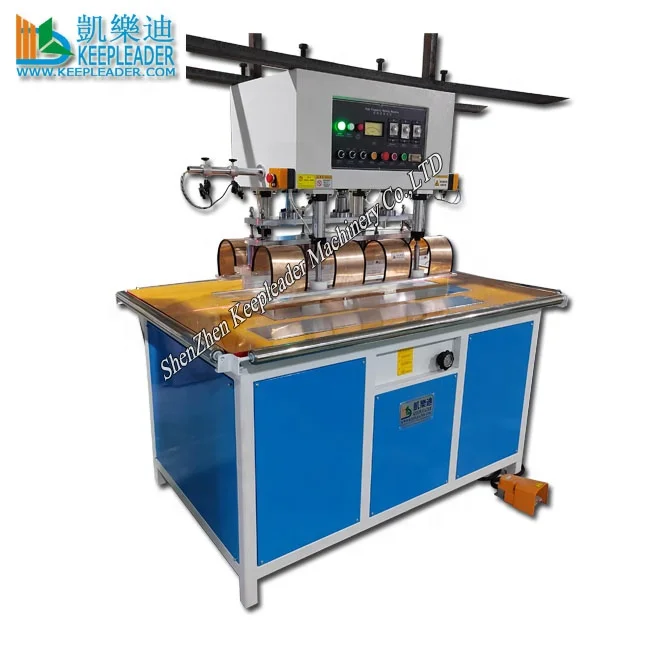

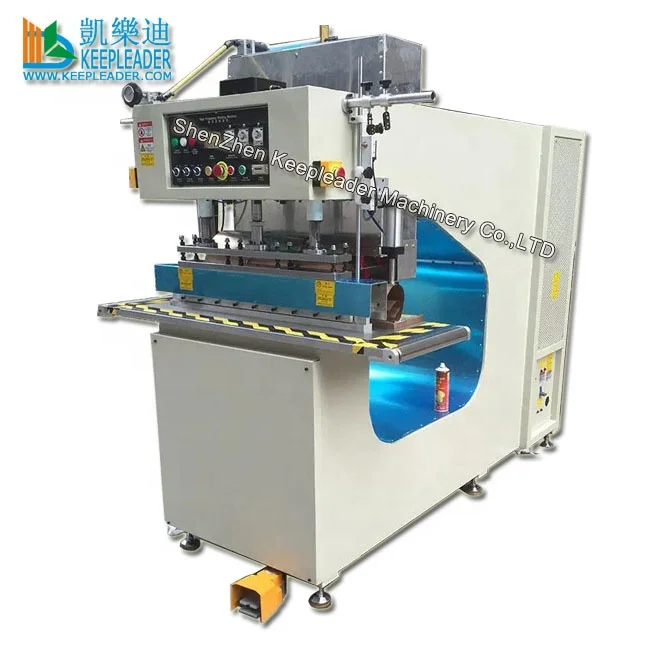

PVC Tent High Frequency Welding Machine
PVC Tent High Frequency Welding Machine has optional ranges of power output: 5kw~25kw depending on welding material and size, this free-standing model of 5kw has maximum length of electroded bar in a circle welding:600mm
Product Description
PVC Tent High Frequency Welding Machine
PVC Tent High Frequency Welding Machine | |
Mainly application | |

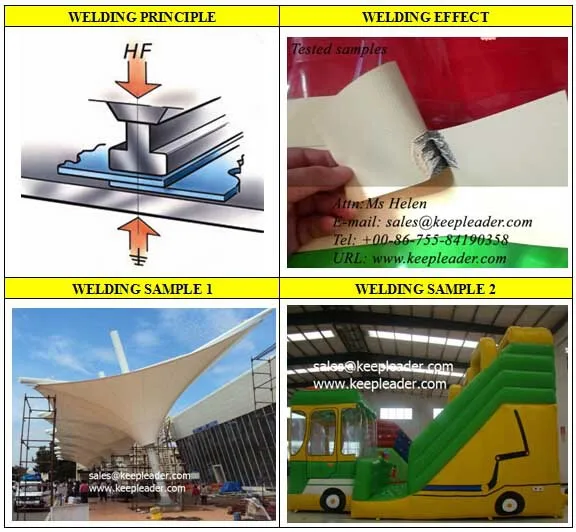

PVC Tent High Frequency Welding Machine Applied for tarpaulin, sun shading canvas, painting canvas, film curtain, canopy,awning, truck cover,Billboard,car tent and other around of this kind of membrane structure material welding or sealing | |
Character | |
High Q value oscillation tube the welding length is optional, maximum length:2000*25mm for 25kw The machine is G shape, have longer throat to hold the material High sensitive anti-sparkle device NL5557 to avoid damaging the mould. High quality imported apparatus European-model high frequency vibration box, more reliable and stable in output Laser position device for precision counterpoint Have boosting roller at two side for easy feeding materail Mounted five caster with four brakes Automatic thermostat to keep the temperature at best performance in welding High precision high frequency knob for visible control Low voltage control panel for safty purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Foot pedal control and button control is optional Over current protection circuit to avoid burning the oscillation tube Power ranges 4kw up to 25kw for various welding length | |
Technique specifications | |
Name | PVC Tent High Frequency Welding Machine |
Model | KLR-5KW-SN |
Power | 5000W |
Power supply | 220V/380V 50/60HZ |
Frequency | 27.12MHZ |
Input power | 8KVA |
Rectifier | SILICON DIODE |
Oscillation tube | 7T85RB |
Max pressure | 350kg |
Gap of electrodes | 100MM |
Moving distance of active horn | 100MM |
Size of upper electrode | 600*30MM |
Size of down electrode | 1000*300MM |
Welding time | 0~10S Adjustable |
Net weight | 600KG |
Overall dimension | Customized |
MFR: KEEPLEADER™ have modified and designed PVC Tent High Frequency Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
PVC Tent High Frequency Welding Machine
Standard equipment:
Name | Origin | Brand |
Air driven components | Taiwan | Airtac |
AC contactor | Korean | LG |
Relay | Japan | Omron |
Electron Tube | Japan | Toshiba |
Time controller | Taiwan | CKC |
PVC Tent High Frequency Welding Machine also accepts customized configuratrions
Detailed Images

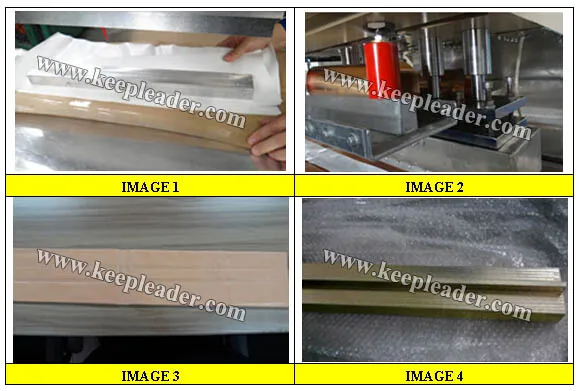

PVC Tent High Frequency Welding Machine has sailent features of #1: customized dimensional material-trough #2: Optional in single and dobule bonding line #3: adjustable welding width if two lines required #4: sliding assited rolls at two sides of working plate
Size

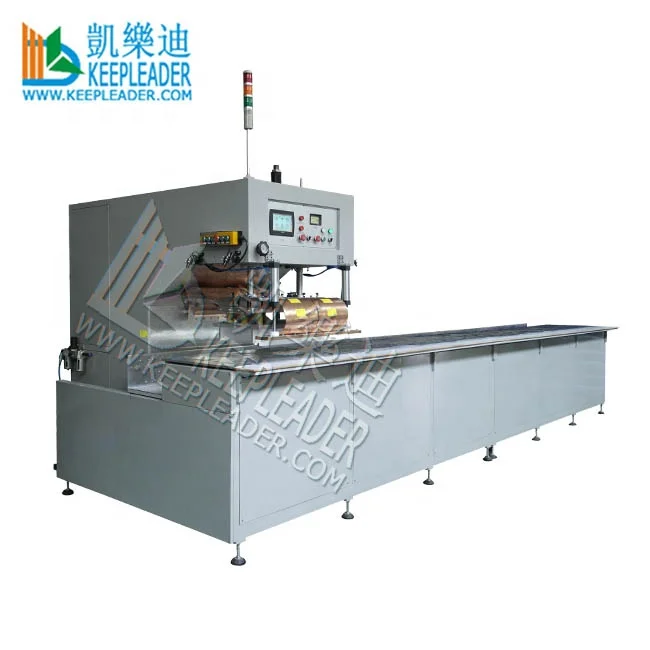

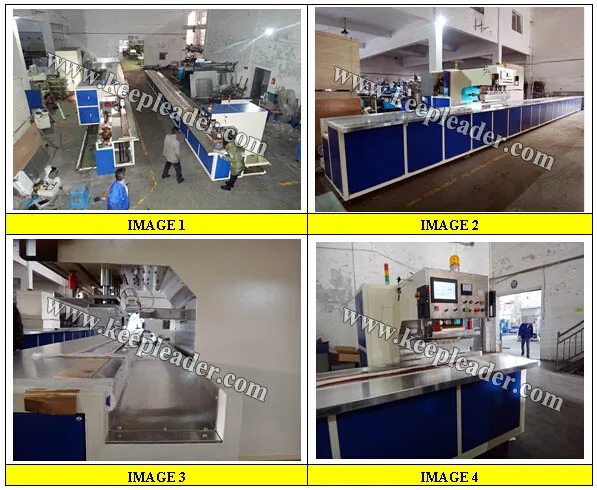

PVC Tent High Frequency Welding Machine contructs deep material-trough used for going through accumulated material in welding large-scale tent, its dimension can made to order
Finished Products

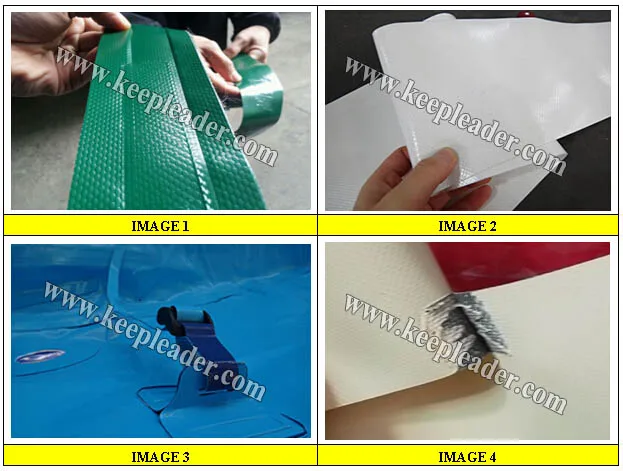

PVC Tent High Frequency Welding Machine is available for seam sealing of PVC 20% more Fabric tent in fabricating Canvas, tarpaulin, membrane structure, stretched ceiling, truck cover, army, billboards, signs, military tents
Our Services
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
Service process at KEEPLEADER™
the clients offer information of the workpieces being welded (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the welding test, if can be welded, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
PVC Tent High Frequency Welding Machine has User manual and tutorial video
