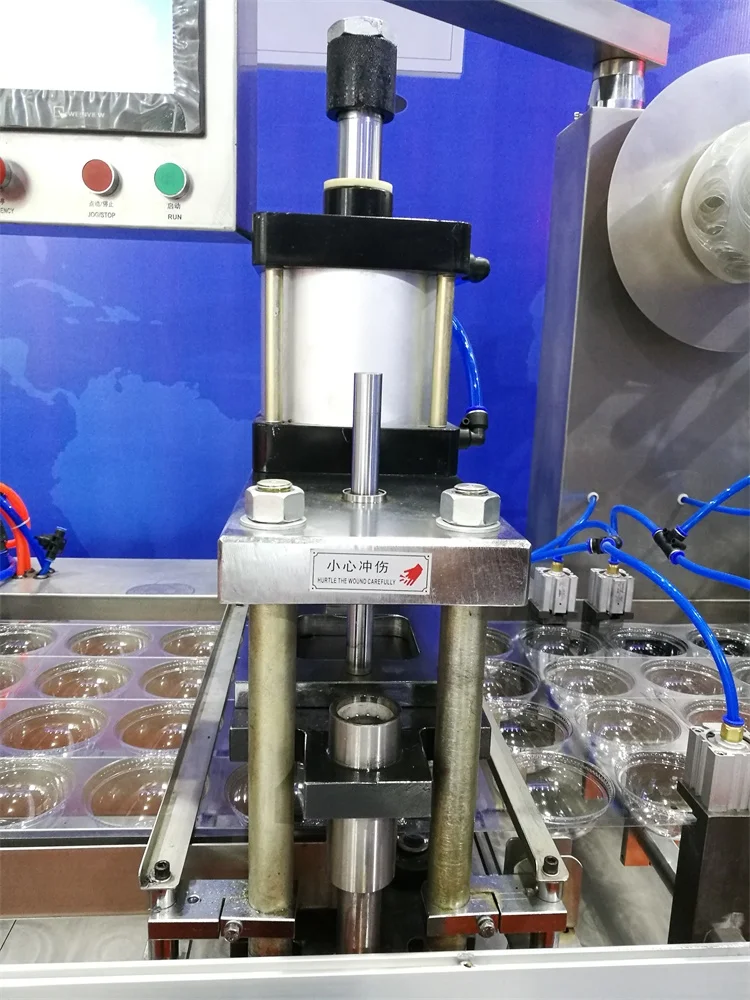

Aluminum Foil Cup Lid Punching Machine / Container With Lid Making Machine
Product Description
Machine Introduction

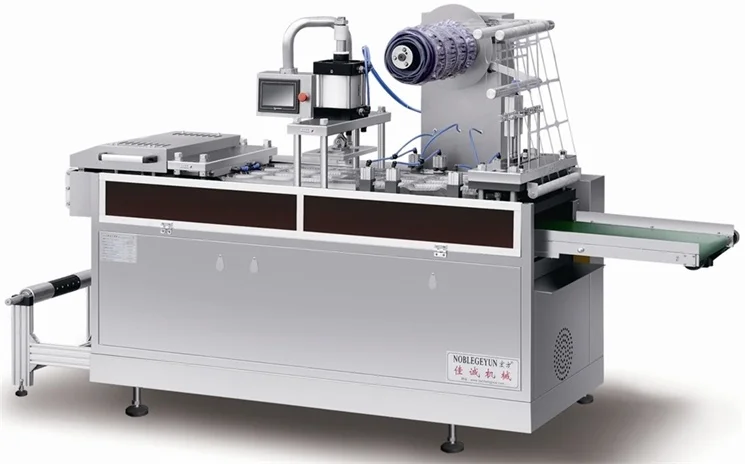

JC-500B Automatic Plastic Lid&Cover Forming Machine is developed by our research and development personnel according to the demand of packing market. This machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. Machine adopts a fully automatic flow covering blow molding or plastic sucking molding, punching and diet cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. therefore, the quality requirement is secured during the production.
Machine Features
1. Sensor controls are adopted in pneumatic system.

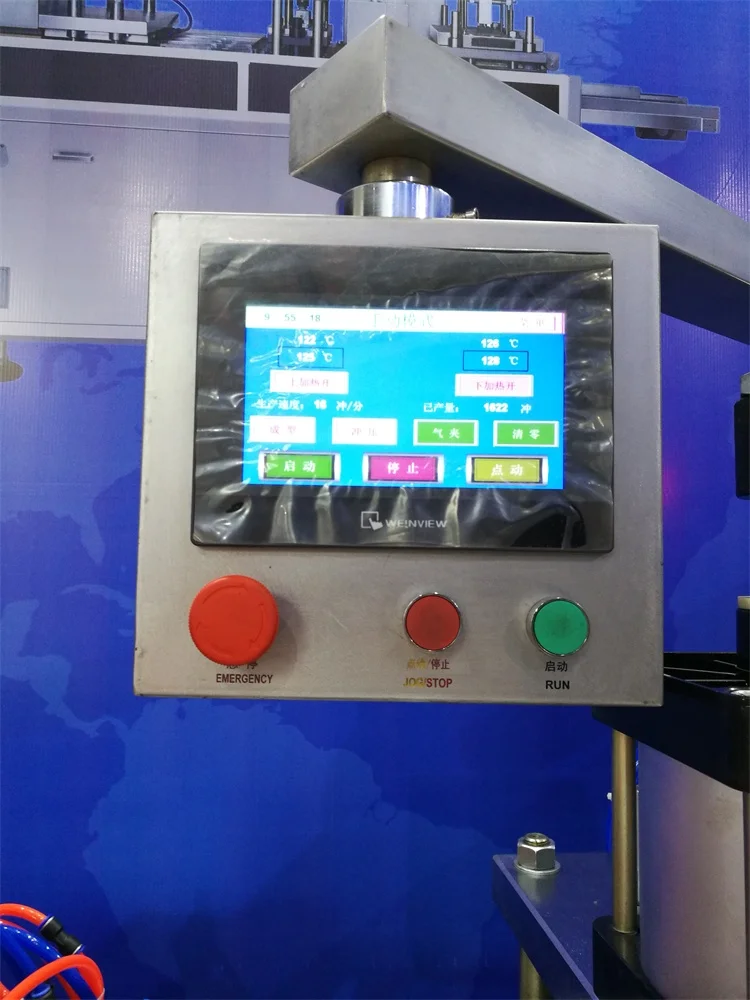

2. Automatic, equipped with PLC touch screen.
3. JC-500B support frequency conversion, and can adjust the length of stroke easily. It is simple and convenient to change the mold.

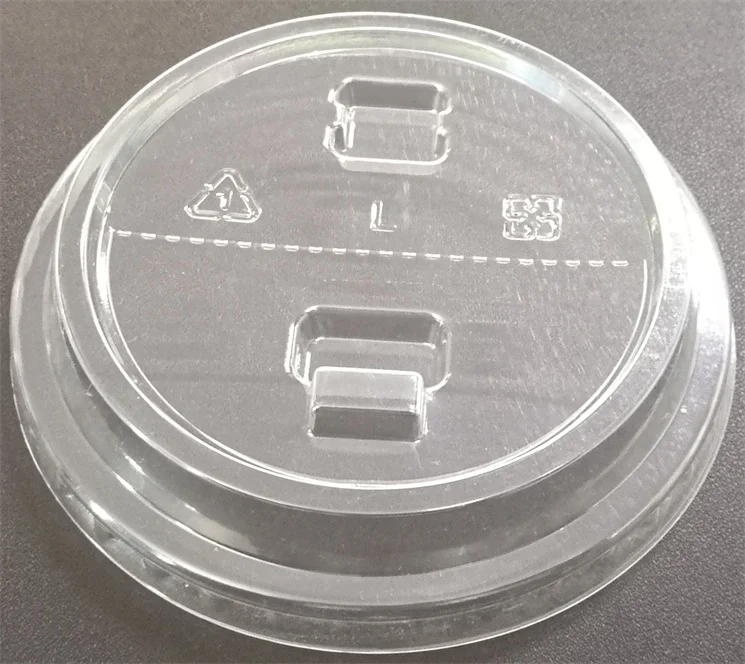

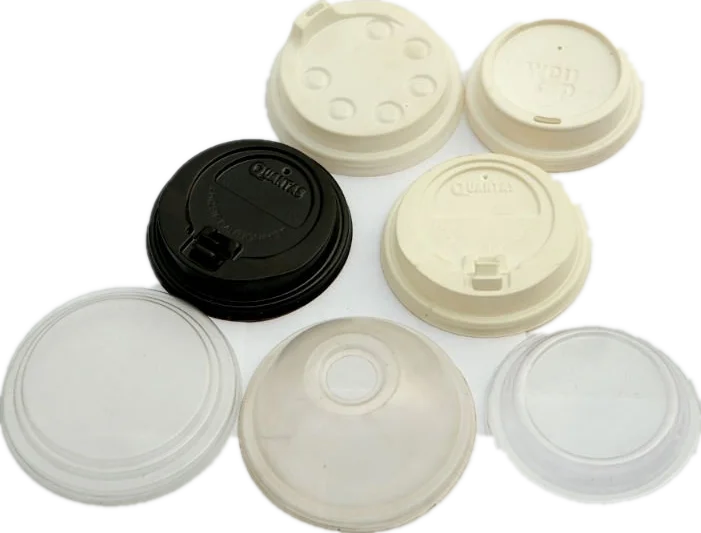

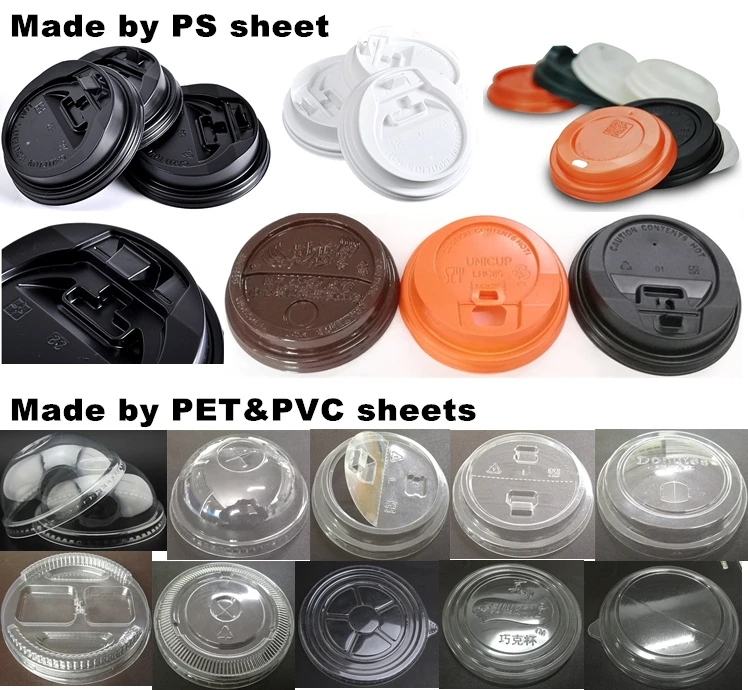

Samples
Main Technical Parameters
Punch speed
10-45(Times/min)
Max.Forming area
470mm×225mm
Max.Forming depth
47mm
Stroke
60-230mm
Packing Material
PVC,PET,PS Hard pieces0.15-0.6*500mm, Rolls 70-76mm
Total power
10.5kW(380V)
Compressed air(Mpa)
0.6-0.8Mpa
Mold cooling
60L/H tap water/recycle water
Overall dimension
3500×1000×1800mm
Weight
2300kg
Product Application
It is applicable to the plastic ware such as PVC, PET, PS, can produce plastic cup lid, cover, tray, container, box, plate. Just need to change the mold can be achieve!!
Easy to operation and maintenance.
Advantage
1)The stainless steel fuselage protects the internal structure of the machine.
2)The outer parts of the machine have a protective cover that not only protects the machine
components, but the most important purpose is to protect the operators from safe production.
3)The inside of the fuselage is a H-shaped structure with reasonable layout and easy cleaning and
maintenance. The most important function is to greatly increase the load capacity, so that the
machine can run smoothly.
4)We are specialized in the manufacture of automatic plastic lids forming machine over ten years
experience.The earliest manufacturer of cup lid machine in China.
Certifications

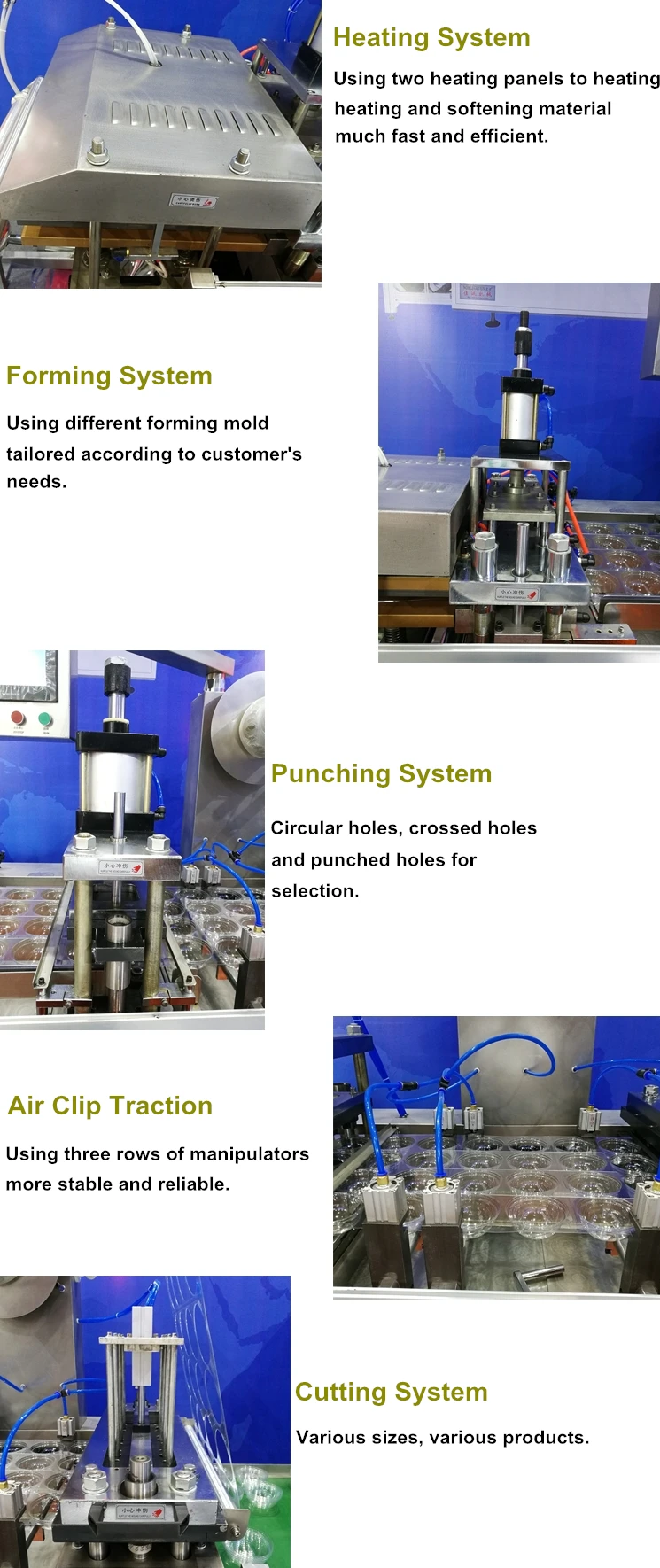

Machine Details

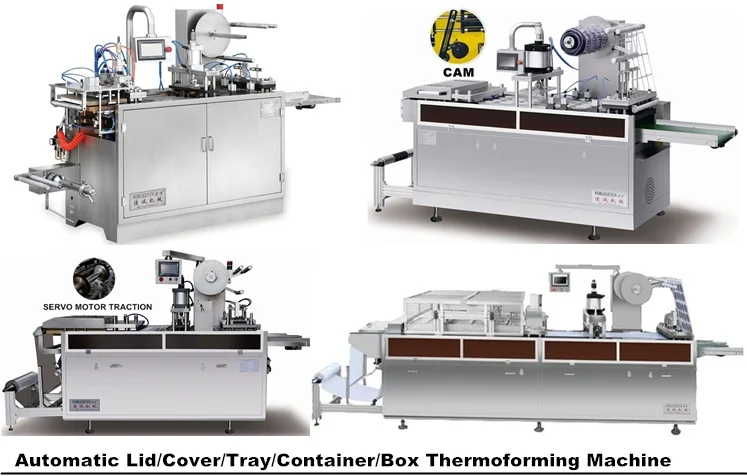

Related Machines
Over 9 years in Alibaba with Gold Supplier

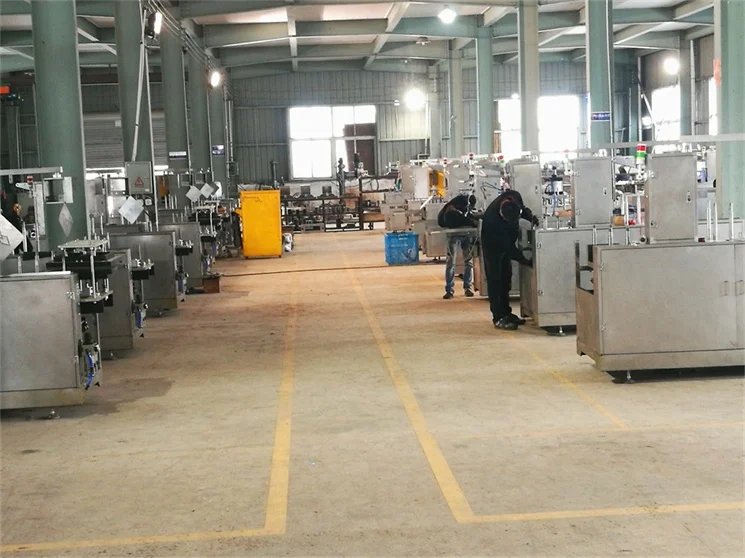

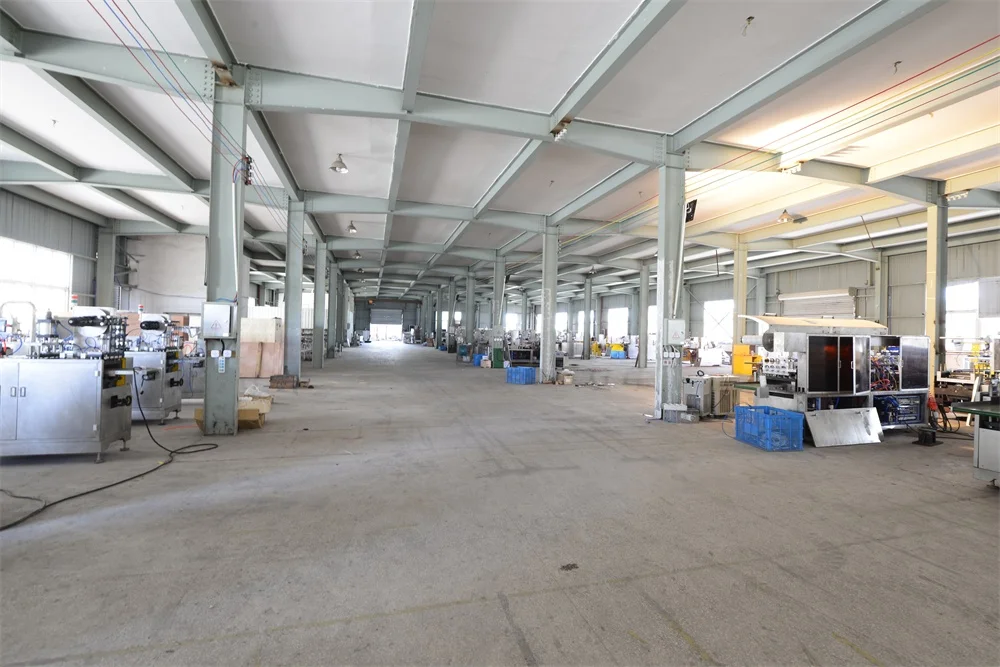

Company Information
THE HERITAGE OF 20 YEARS PACKAGING PROFESSIONAL KNOWLEDGE

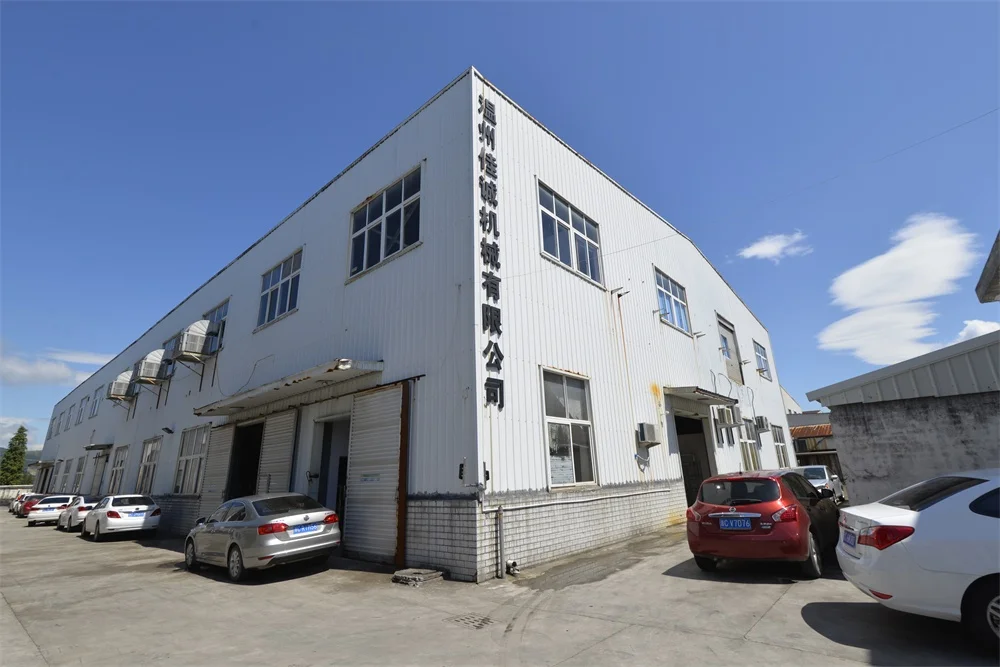

Wenzhou Jiacheng Machinery Co., Ltd. is located in Wenzhou city. This is a professional company engaged in various packaging machinery, pharmaceuticals, mechanical design, development, production and marketing of integrates joint-stock enterprises. We have certain technical force and advanced production technique; with a modern system of scientific and technological management and perfect service system, also a crack team with youthful vigor.
Since its establishment, the company all along adhere "good faith-based, development study, innovation" spirit of enterprise. Based on " human technology, and customer-oriented service, develop the market with integrity and high-quality and establish the corporate culture system with the unique features. Company has passed the 9001 quality system certification and CE certification in 2010.
Our Service
What JC Can Do For Customers
1.JC supplies standard products to customers.
2.JC supplies standard products under customers’ brands and packaging, etc.
3.JC R&D department develops any new products together with the customers.
Service
1 . One year guarantee for whole machine.
2 . 24 hours technical support by e-mail.
3 . Engineer available machinery oversea service, door to door .
4 . Use-friendly English software, user manual and detailed Videos/ CD.
Installation & Commissioning
1. We can offer you English manual for install and commissioning.
2. We can send our engineers to customers’ factory to teach customers how to install and commissioning the machine.
