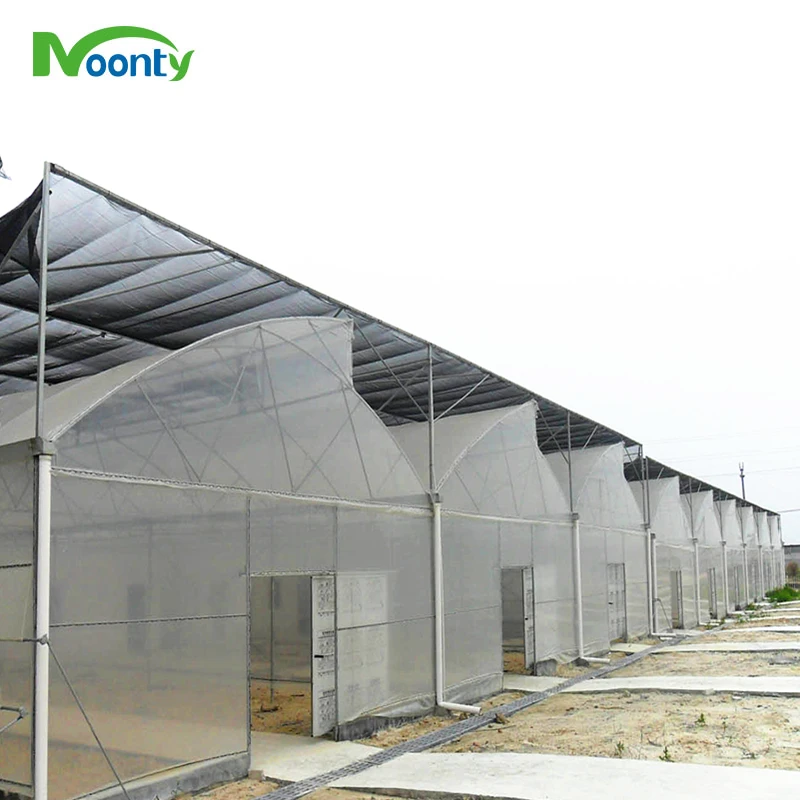

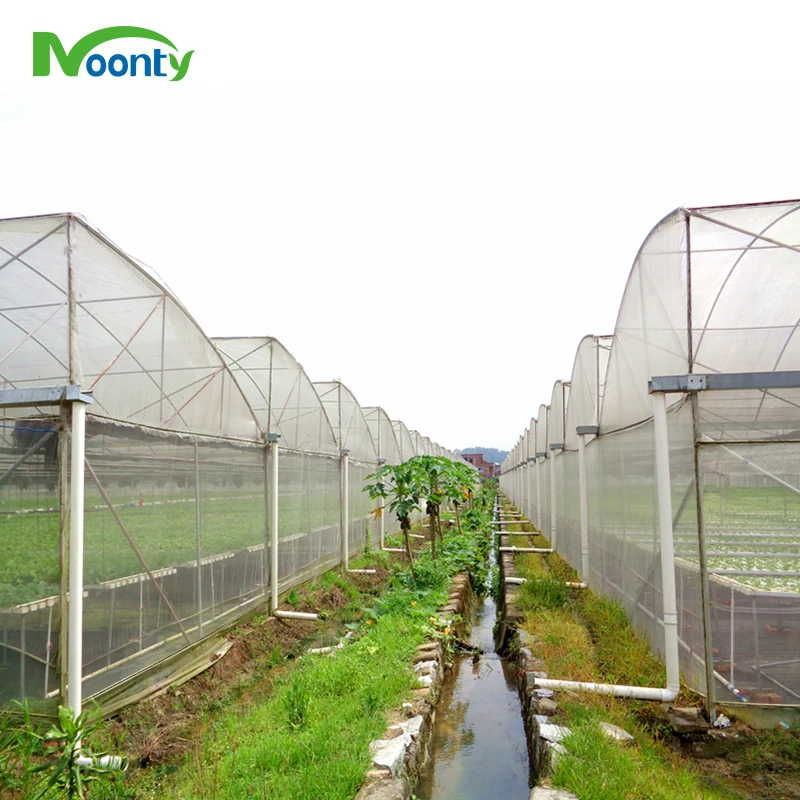

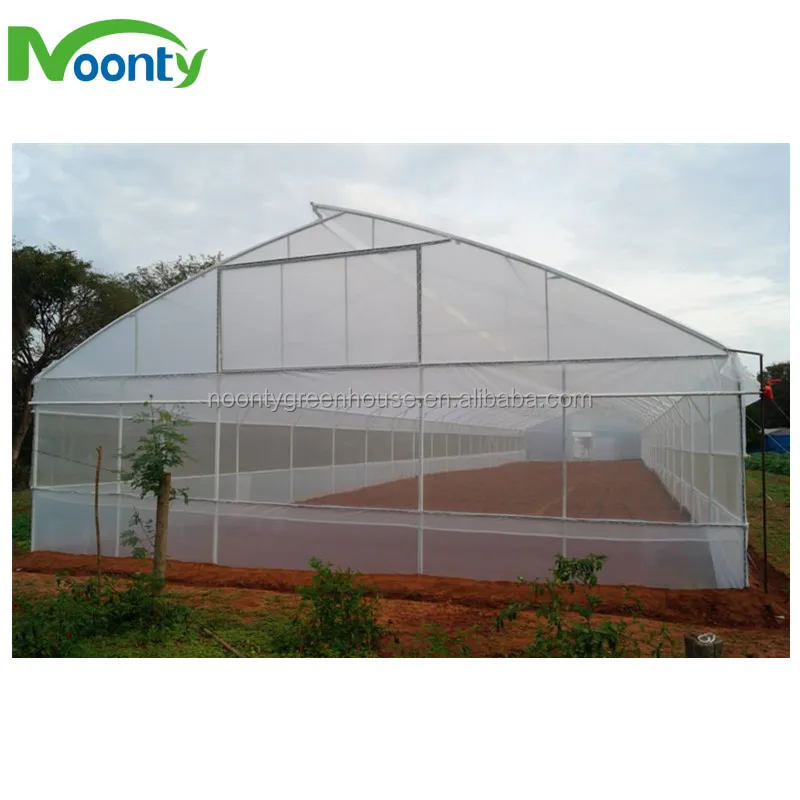

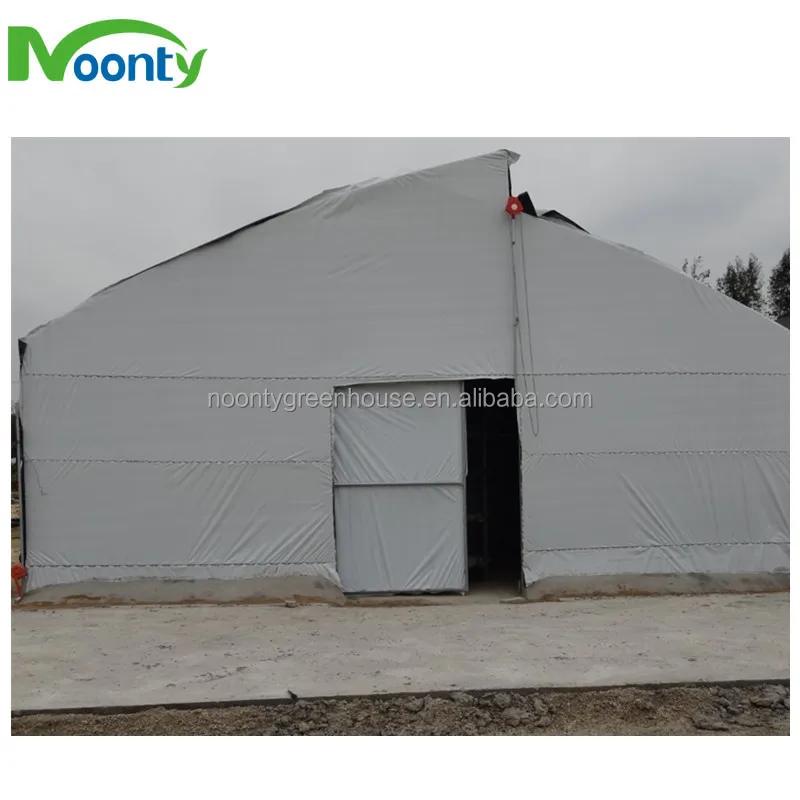

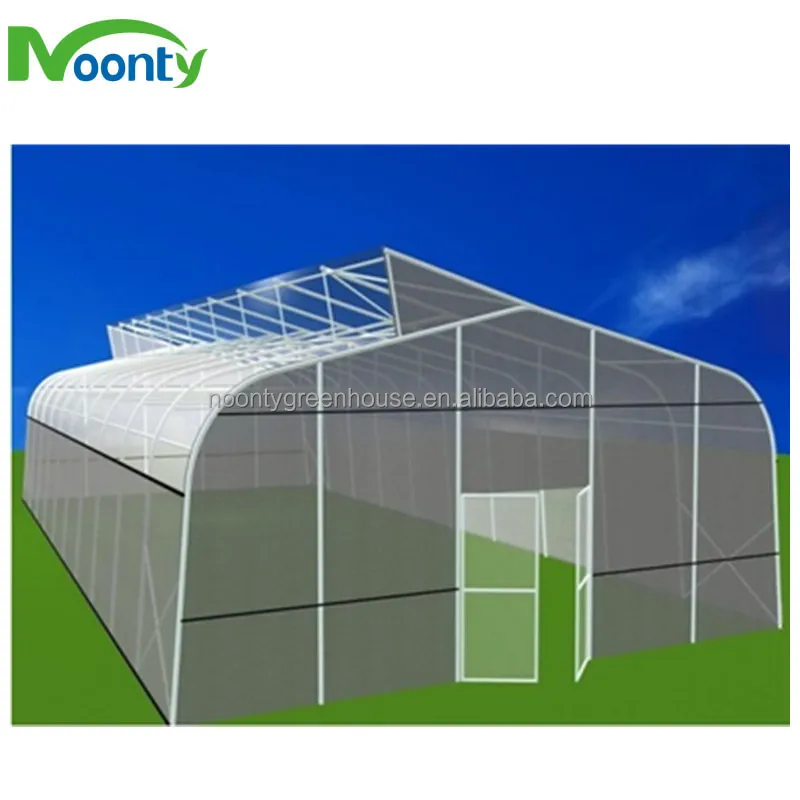

Agricultural Commercial Tropical Greenhouse For Vegetable/Crops/Cucumber/Tomato/Cherry/Pepper Growing
- Category: >>>
- Supplier: Xiamen Heseng Agricultural Technology Co. Ltd
Share on (1780079991):
Product Overview
Description
Details Images
GREENHOUSE SPECIFICATIONS
Width | 6 meters/8 meters/9 meters/10 meters or Customized |
Arch Spacing | 0.8 meters to 2.5 meters or Customized |
Length | 20 meters to 100 meters |
Roof Height | 2.5 meters to 6.5 meters |
Wind Load | 0.3 KN/M2 to 0.5 KN/M2 |
Snow Load | 0.3 KN/M2 to 0.5 KN/M2 |
Crop Load | Max 20KG/M2 |
Voltage | 220V, 1 Phase, 50HZ/ 380V, 3 Phase, 50HZ/Customized based on local |

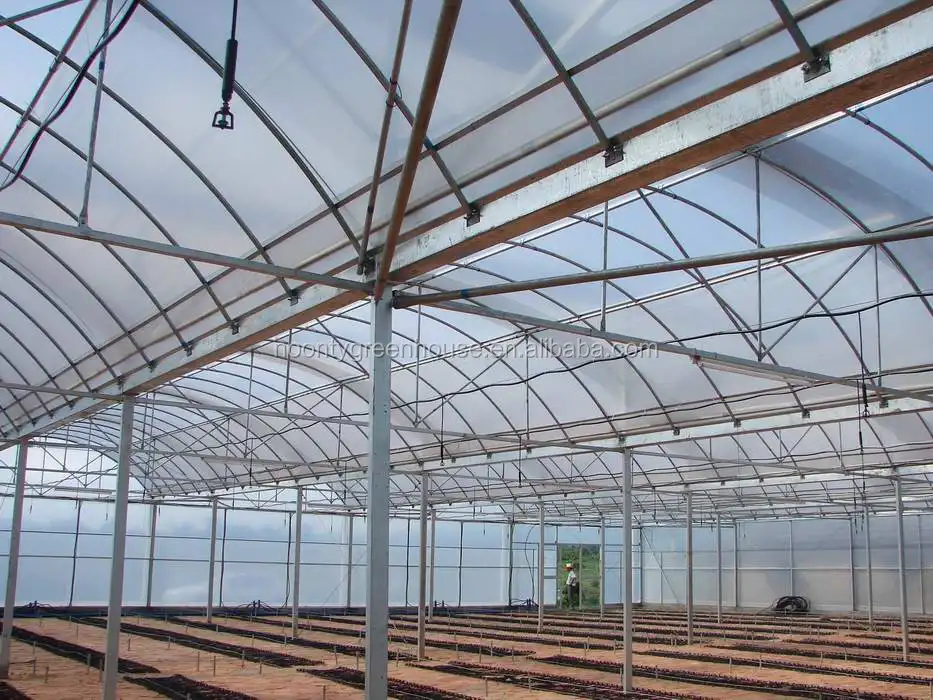

Frame system of Agricultural Greenhouse:
1-Hot dip galvanized steel framework, 275/m2,15 year warranty;
2-Stable and Strong Structure.
3-Fully fabricated in factory, no welding.
4-Excellent anti-corrosion effectiveness.
5-Customized design is available.
6-Suitable to loading snow and water drainage.

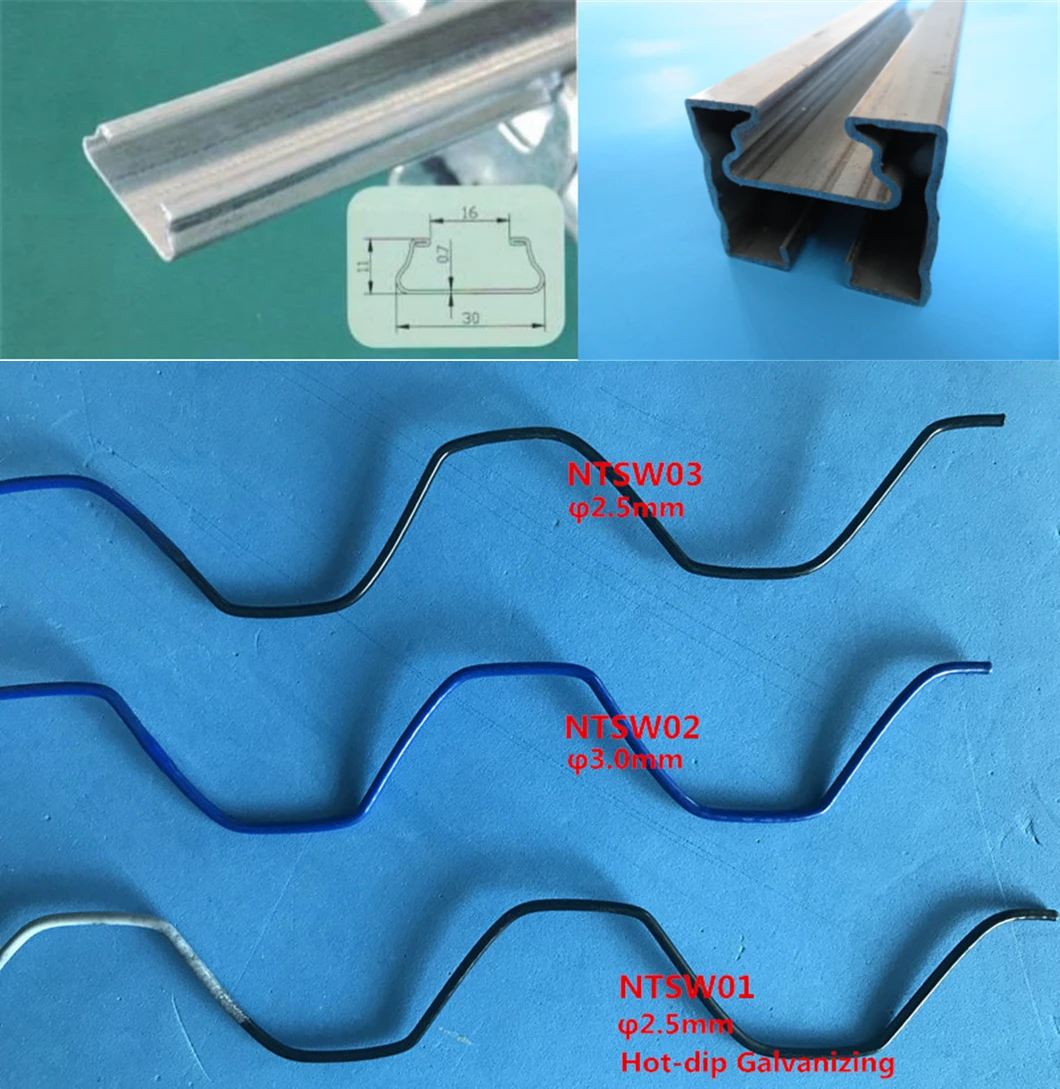

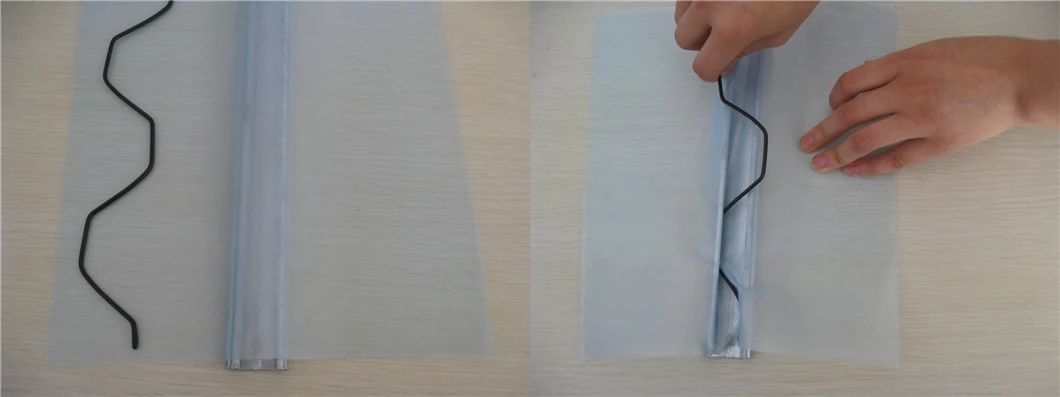

Covering Material & Fixture of Greenhouse
Name | PE/PO Plastic Film | Film Lock Channel / Groove | Film Lock Spring Wire |
Specifications | 150micron,180micron,200micron | 0.7mm tickness | φ2.0/2.5/3.0 mm steel wire |
Material | Anti-drip, Anti Fog,UV Treated, Transparent ,white,etc. for optional | Hot dig galvanized steel, Galvanized≥80g/m2 | 65Mn Steel, Hot-dig Plastic Coated |
Ventilation of Agricultural Greenhouse:
1- On 2 sides,gable end or roof;
2- By manual or electric;
3- Insect screen will be under the ventilation.

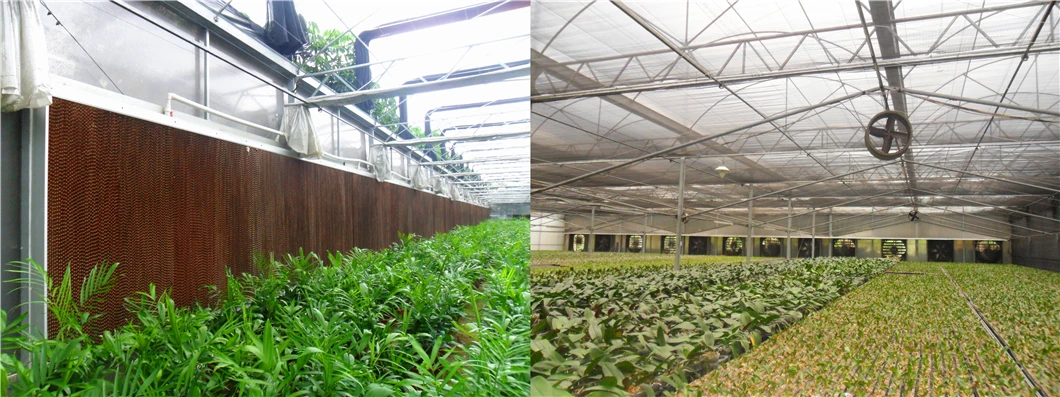

Cooling Pad&Fan System of Agricultural Greenhouse:
1-Cooling fans and cooling pads are popular for cooling;
2- Humidity rate is increased and temperature is down by 5-10℃;
3-The cooling fans is on one wall while the cooling pad in the opposite.
4-Circulation fan is optional;

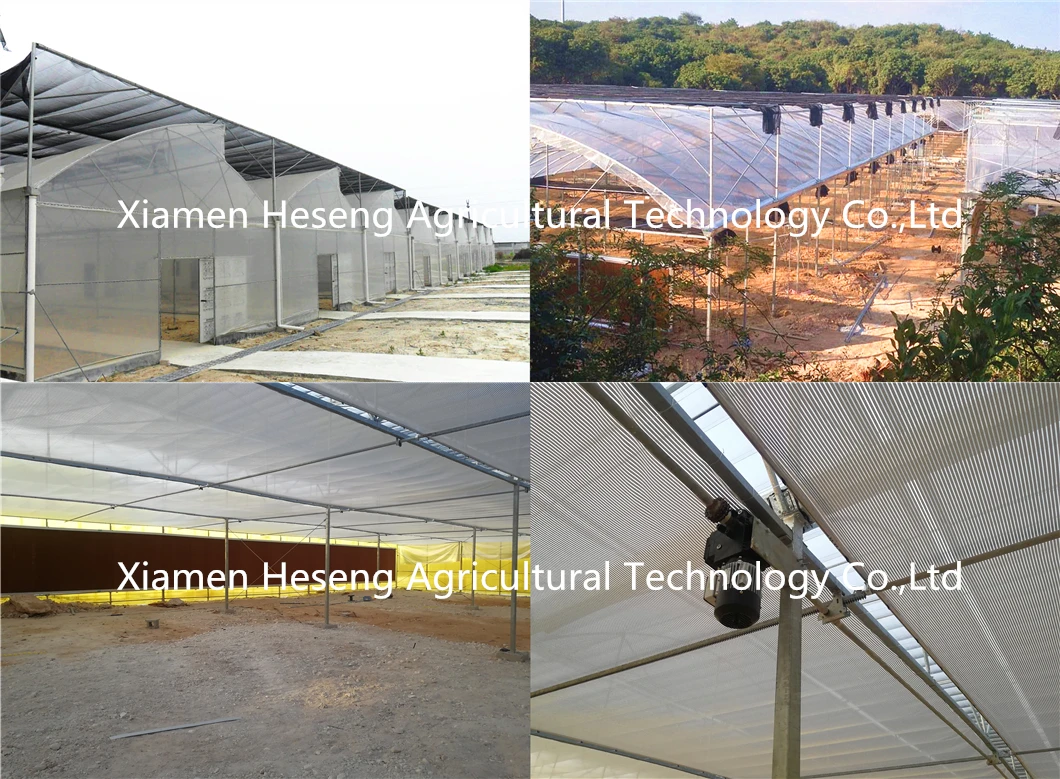

Inside and Outside Shading System
1- Outside shading system;
2- Inside shading system;
3- Pinion&Rack System,Auto controlling system.
Environment Controlling

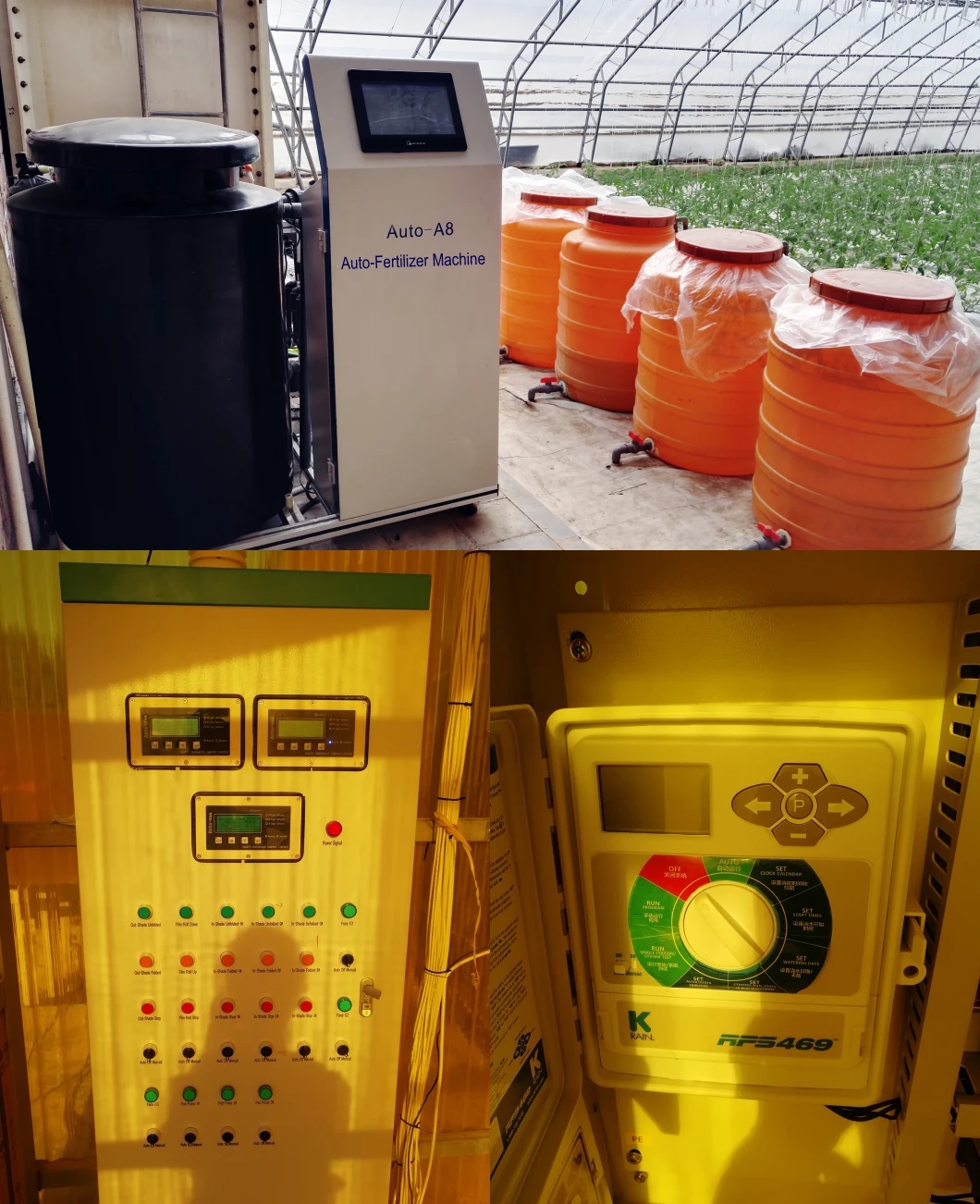

Intelligent Fertilizer Controlling System
1- Fully automatically controlled;
2- Four nutrition tanks;
3- Controlled based on PH,EC,Timer,etc.
4- For large scale growing and professional growers.
Auto Control System
1- The weather station outside greenhouse collects weather data and send to computer;
2- Sensors in house test the data and send to computer;
3- User sets suitable procedure on computer based on weather condition and house environment data;
4- Computer commands the controller to turn on or off machine to reach target data based on the procedure.

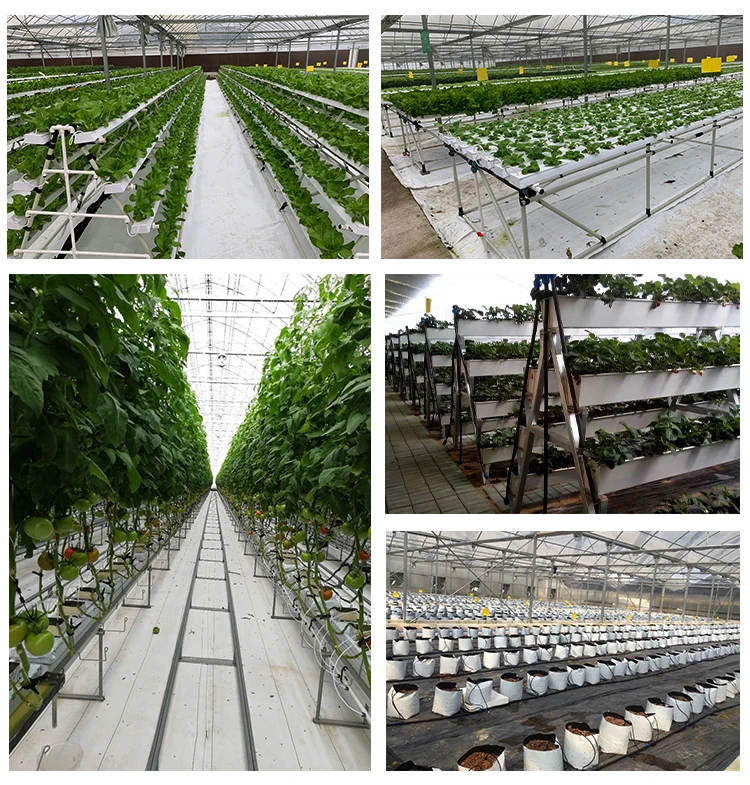

Hydroponics Growing System:
1-Different hydroponics system is optional;
2-DFT,NFT,Medium,etc is optional;
3-For tomatoes,cucumber,chilly, lettuces,herbs,etc;
4-Efficient,Healthy,eco-friendly.
Company Profile
Is the Mother Company of Noonty Greenhouse Company Limited, which is specialized in greenhouse and hydroponics industry.
Greenhouse types we offer include Single Tunnels, Gothic Multi-span Plastic Film Greenhouses, Double-layer Warm-keeping Greenhouses, Saw-tooth greenhouse, Venlo Polycarbonate,Venlo Glass Greenhouse, Light Deprivation Greenhouse, etc.
Our Advantages
Team Appearance
Customer Photos
Product packaging
FAQ
Q: How could we get the quotation?
A: Agriculture Greenhouse is customized based on detailed climate condition, land area prepared for the greenhouse,etc.
Q: How could we assemble the greenhouse?
A: Greenhouse is prefabricated and no welding is required. Detailed drawing and assembly manual will be offered for each order.
Q: Is engineer supervision available for greenhouse assembly?
A: Yes,engineer supervision is available to send to the project within customers requirement.Two-way tickets,local accommodation and salary is arranged by customer.
Q: What is the delivery time?
A:Usually about 25days to 60days based on greenhouse design and size.
