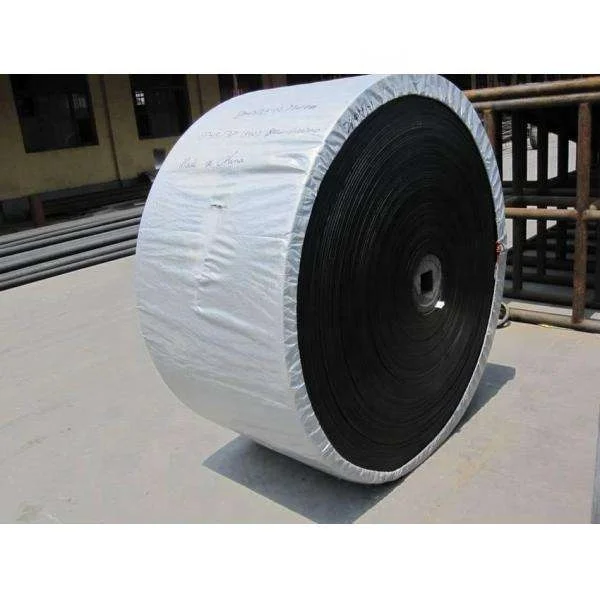

Good price CC56 TC70 rubber conveyor belt for coal mining port industry

Product Overview

Description

Good price CC56 TC70 rubber conveyor belt for coal mining port industry:

1. Cotton canvas is woven by cotton fibers both in warp and in weft,its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.
2. Cotton conveyor belt has relatively small deformation under high temperature conditions, suitable for short-distance and light-load transportation of materials.
3. Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt, and its tension resistant body is woven by polyester cotton fibers in warp and cotton fibers in weft.
4. Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and lighter, the belt has better shock resistance and thus the belt has better use function and can reduce energy and material consumption for users.it is the ideal selection for medium, short-distance and medium-load transportation of materials.



Specification Availability:

Belt type	Fabric type	Single Fabric strength (N/mm)	Rubber cover thickness (mm)		Ply	Belt width (mm)
			Top rubber	Bottom rubber
Cotton Canvas (CC) conveyor belt	CC-56	56	3-18	1.5-10	2-10	300-2500
Nylon (NN)/Polyester(EP) conveyor belt	NN/EP-80	80
	NN/EP-100	100
	NN/EP-125	125
	NN/EP-150	150
	NN/EP-200	200
	NN/EP-250	250
	NN/EP-300	300
	NN/EP-400	400
	NN/EP-500	500
	NN/EP-600	600

Rubber Cover Grade & Standard No:

Standard No		Cover rubber
		Tensile strength MPa	Elongation at break %	Abrasion mm3
DIN22102	Z	15	350	250
	W	18	400	90
	Y	20	400	150
	X	25	450	120
AS1332	N17	17	400	200
	N24	24	450	125
RMA	I	17	400
	II	14	400
SANS1173	A	18	400	70
	C	20	400	150
	M	25	450	120
	N	17	400	150

Classfication by use:

Type	Rubber Cover Type	Tensile strength at break(N/mm2)	Elongation at break %	Abrasion mm3
Abrasion Resistant	RCB-AR-M	24	450	120
	RCB-AR-Y	20	400	150
	RCB-AR-W	18	400	90
	RCB-AR-N18	18	450	200
	RCB-AR-N	17	400	200
	RCB-AR-A	17	400	70
	RCB-AR-Z	15	400	250
	RCB-AR-II	14	350	280
	RCB-AR-L	10	350	300
Oil Resistant	RCB-FOR	12	300	300
	RCB-MOR	15	450	250
	RCB-LOR	17	450	200
Heat Resistant	RCB-HR-T1-100oC	17	400	250
	RCB-HR-T2-125oC	15	350	250
	RCB-HR-T3-150oC	13	350	250
	RCB-HR-T4-180oC	11	350	280
	RCB-HR-T5-300oC	10	350	300
FR/AR/AS Resistant	RCB-ARAS	18	450	200
	RCB-FRAS	14	400	250
	RCB-FR	12	350	300
Cold Resistant	RCB-CR-T1-- -30oC	17	350	300
	RCB-CR-T2-- -50oC	14	300	300
Chemicl Resistant	RCB-ANTI-ACID	14	400	250
	RCB-ANTI-ALKALI	14	400	250







Packaging Detail:

wooden core cover with pp-cloth or according to the customers' needs.



Shipment

a. By express/air: small quantity order.

b. By sea: container load.



Delivery Detail:

about 20 working days from order.



Loading port



Ningbo/ Shanghai.







Gold Camel Industrial Co.,Ltd.



Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009.



Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.



1.Payment terms

T/T/ Western Union/ MoneyGram/ Paypal/L/C at sight/ Alipay/ D/A/ D/P: 30% in advance, balance before loading the goods. Other payment terms can be negotiated.



2.Prices

PRICE just for reference. The final prices (FOB, CIF, CNR) prices are according to order quantity, payment terms, delivery time, packaging, etc.



FAQ:

1.Is OEM available?

Yes, OEM is available. We have professional designer to help your brand promotion.



2.Is the sample available?

Yes, samples are available for you to test the quality.If we have samples in warehouse,freight can be paid by your side.



3.Are the products tested before shipping?

Yes, all of our tire and tube was qualified before shipping. We test every batch every day.



4.What’s benefit will you bring?

Your client satisfied on the quality.

Your client continued orders.

Your can get good reputation from your market and obtain more orders.
