Electric water pump motor price

Product Overview

Description



ZE MODEL CENTRIFUGAL PUMP.











ZE MODEL PULP PUMP Is our company’s updated roduct by digestiong and assimilating foreign advanced technilogy, summarize the experienceof our company working in the pump of paper making field,cooperate and do reserch together with the university, this products adopt the advanced hydraulic model,full open impeller.light weight, small axial force,and with long life characters. It’s easy to be repaired ,lower bolcking. It accords with technological requirements’of pumping, paper-making, chiefly used for transporting the pulp of concentration below 6%







PERFORMANCE RANGE:



Pump Capacity: 25-2000m³/H



Pump Head : 10-70m



Temperature: ≤120°C



Turning: Counter Clockwise Rotation seeing from the inlet of the pump.



Speed: 2900rpm;1500rpm,1000rpm,750rpm/min.



SHAFT SEAL TYPE:



Single Mechanical Seal (S) ;  Double Mechanical Seal (D) ; Packing Seal (P)





Configuration of the material



Name component	Comment material (G)	Wear-resistant Material	Super-wear resistant material	Stainless steel
Pump body	HT200	QT500-7	Abrasion-resistant Steel	304
Pump cover	HT200	QT500-7	Abrasion-resistant Steel	304
Impeller	304	Two-phase stainless steel	Two-phase stainless steel	Two-phase stainless steel
Front ,behind lining board	Abrasion-resistant Steel	Abrasion-resistant Steel	Abrasion-resistant Steel	Two-phase Stainless steel
Bearing body	HT250	HT250	HT250	HT250
Shaft	3Cr13	3Cr13	3Cr13	3Cr13
Axie sleeve	2Cr13	2Cr13	2Cr13	304

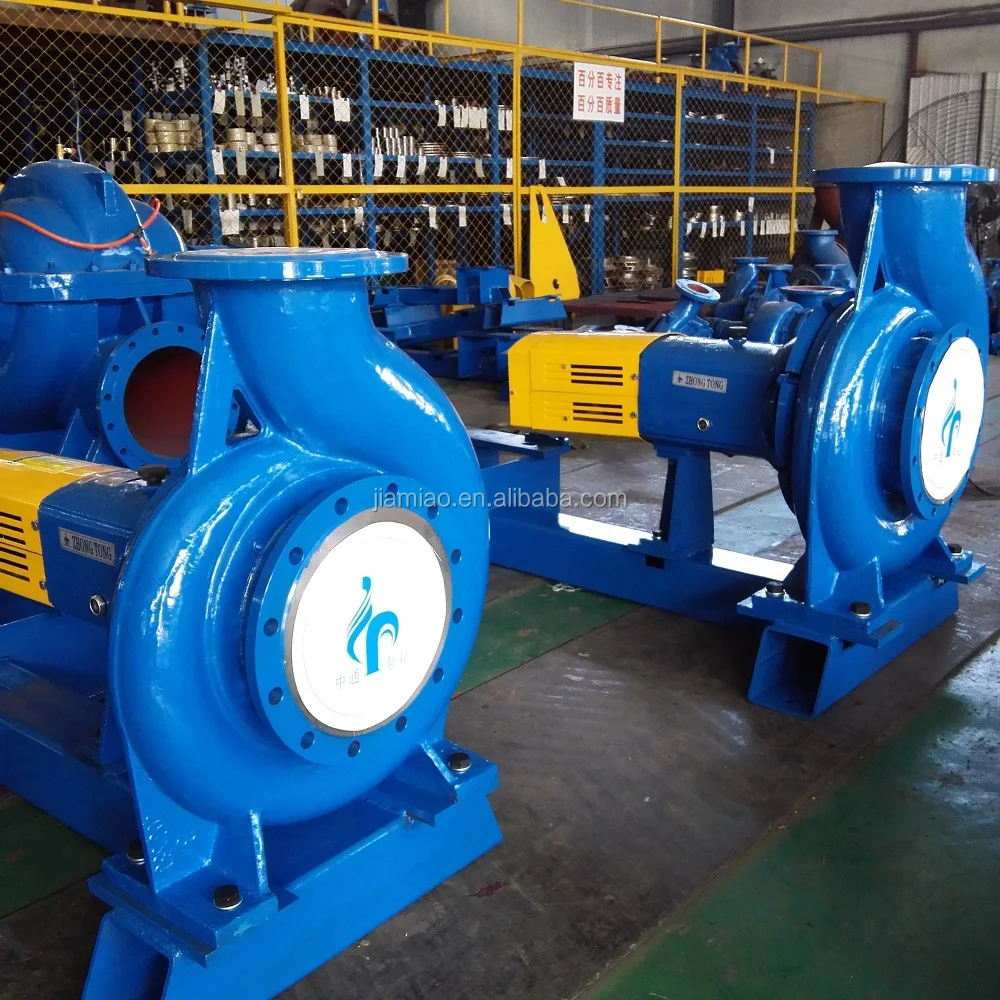

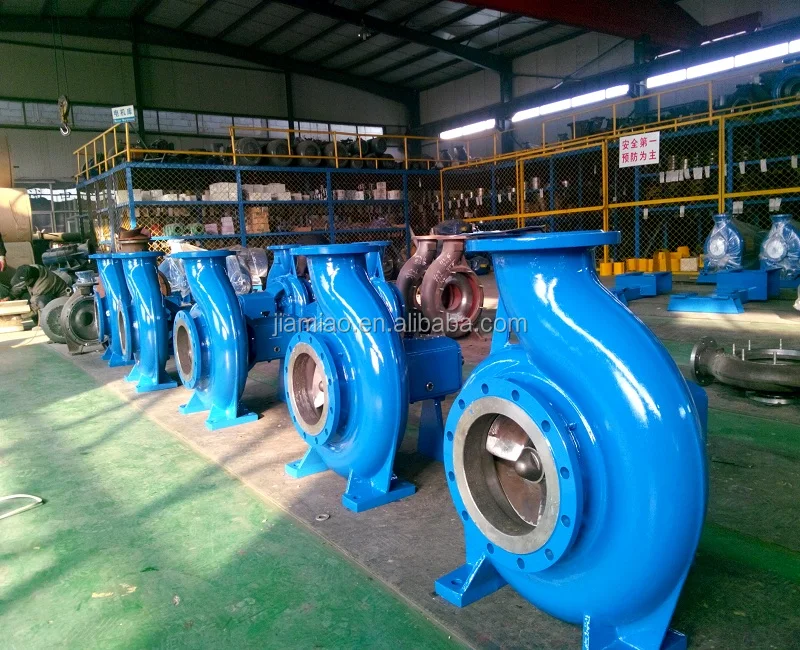

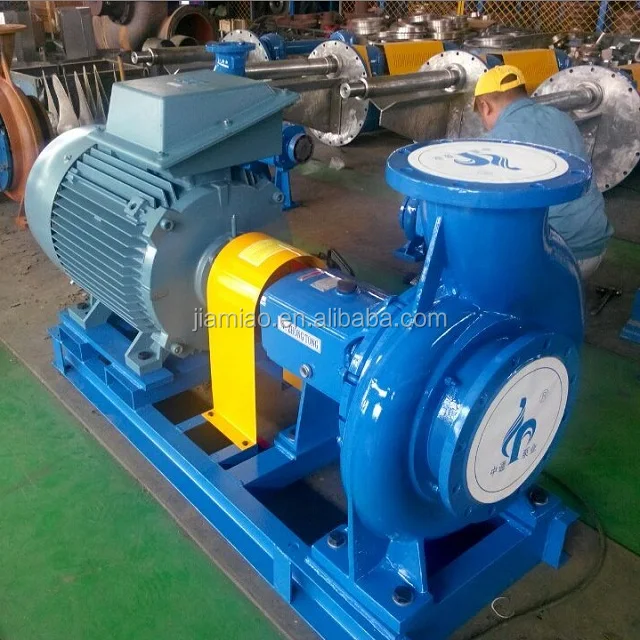

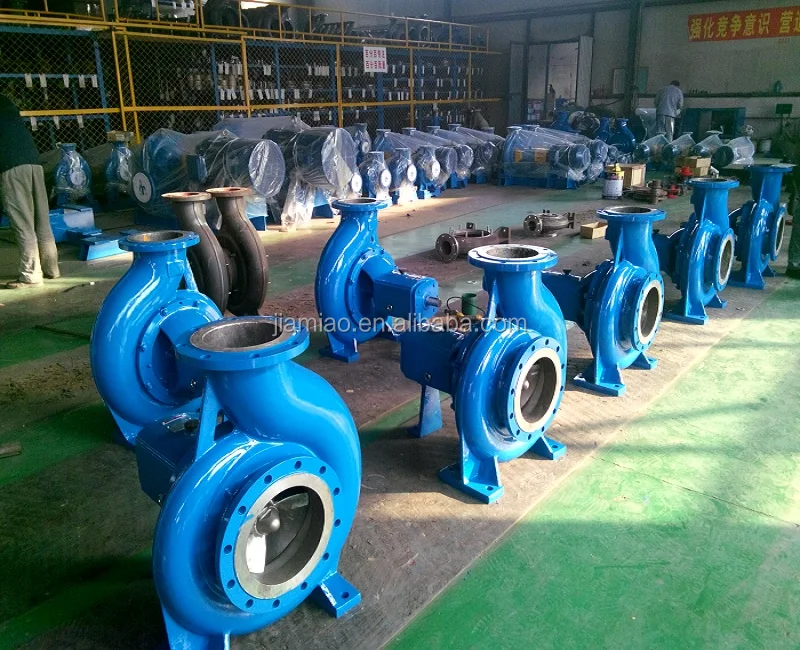

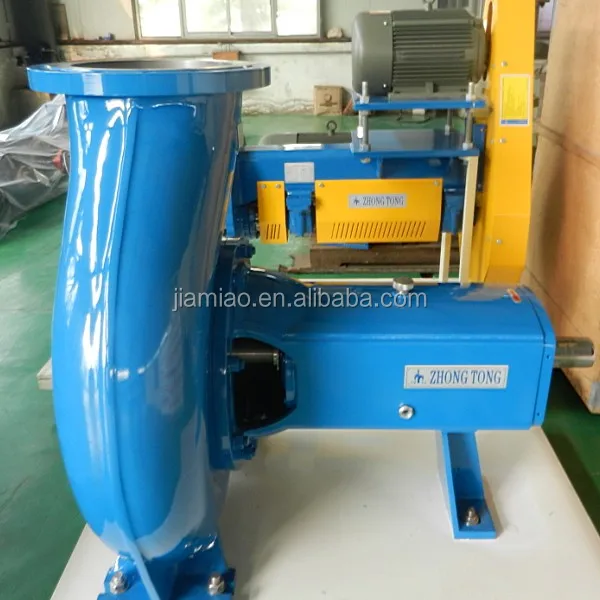

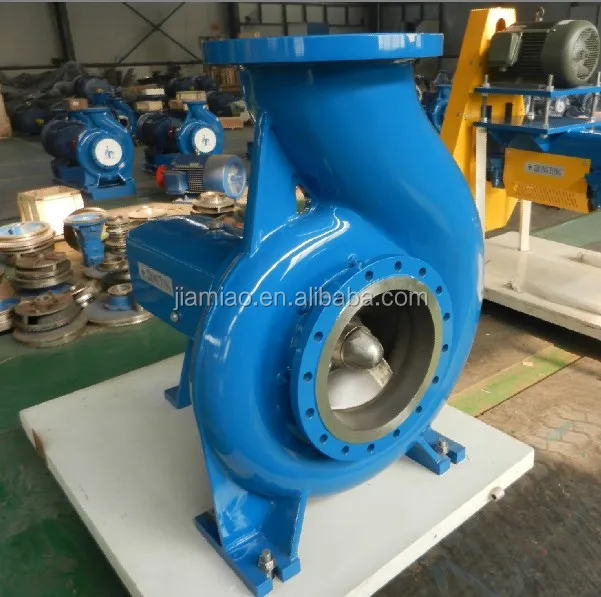

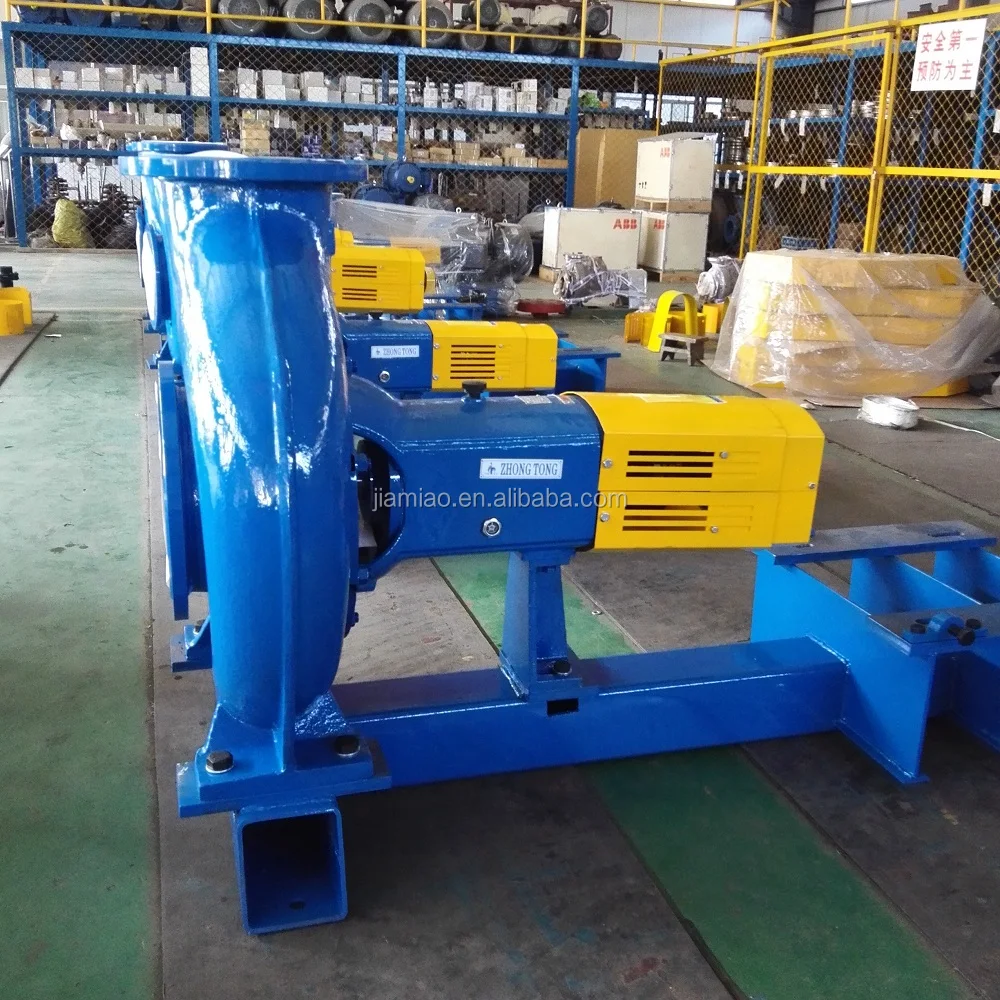

  PRODUCT PICTURE:
