CD6241 High precision universal lathe machine price
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (1781440481):
Product Overview
Description
CD6241 High precision universal lathe machine price
Product Description
1.1500mm D.B.C AVAILABLE
2.WIDER BED WIDTH 250
3.BIG SPINDLE BORE 52
4.CE,ISO9001
CD6241 High precision universal lathe machine

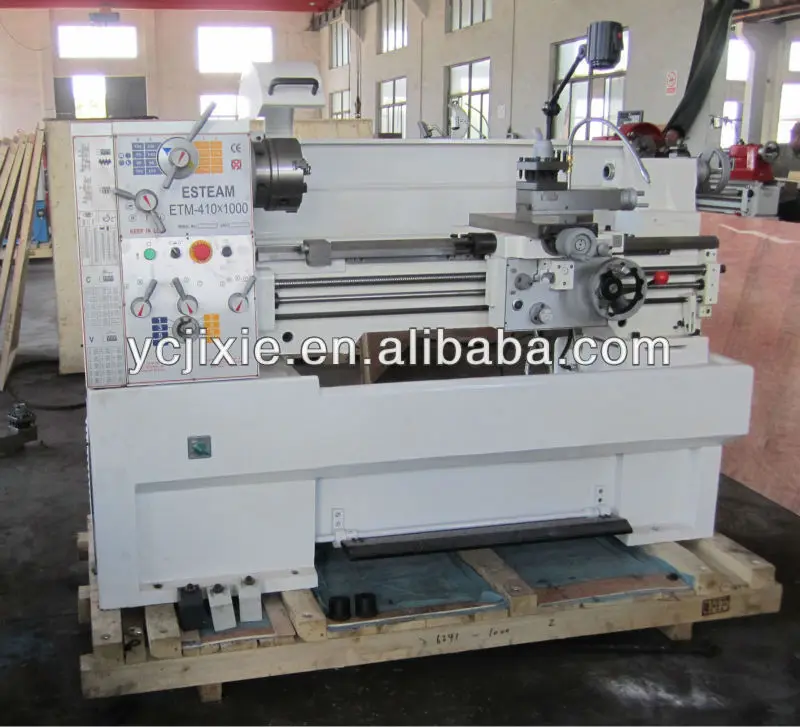

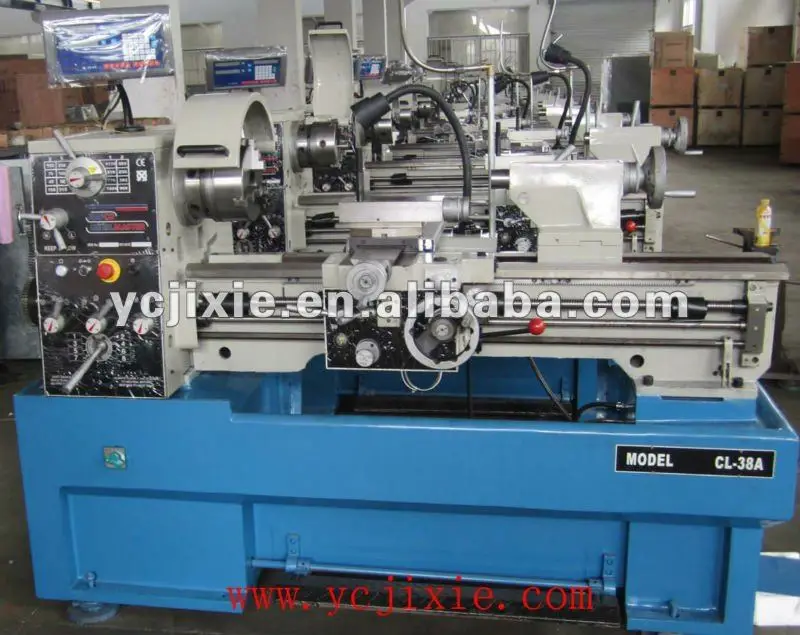

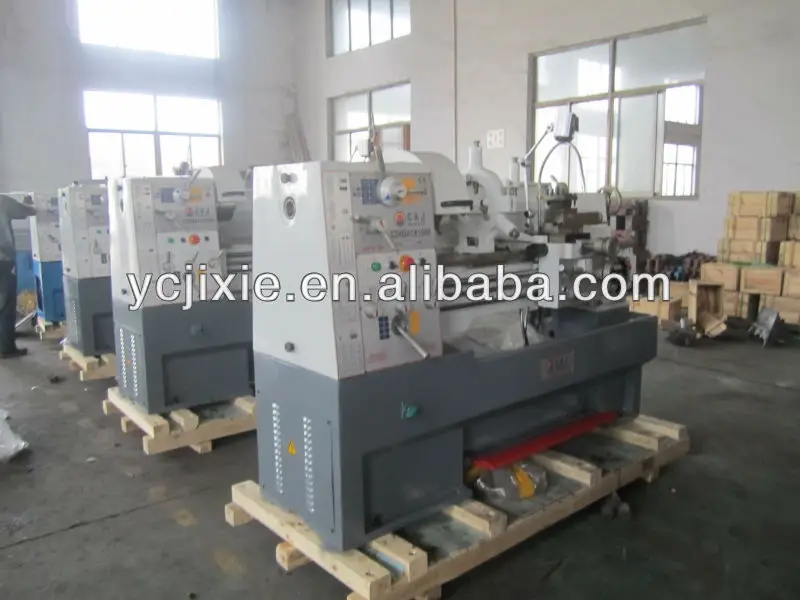

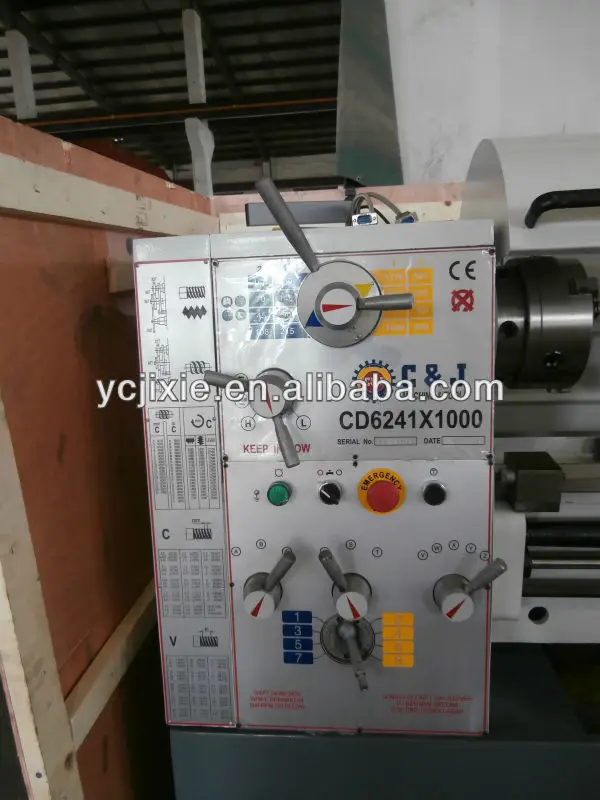

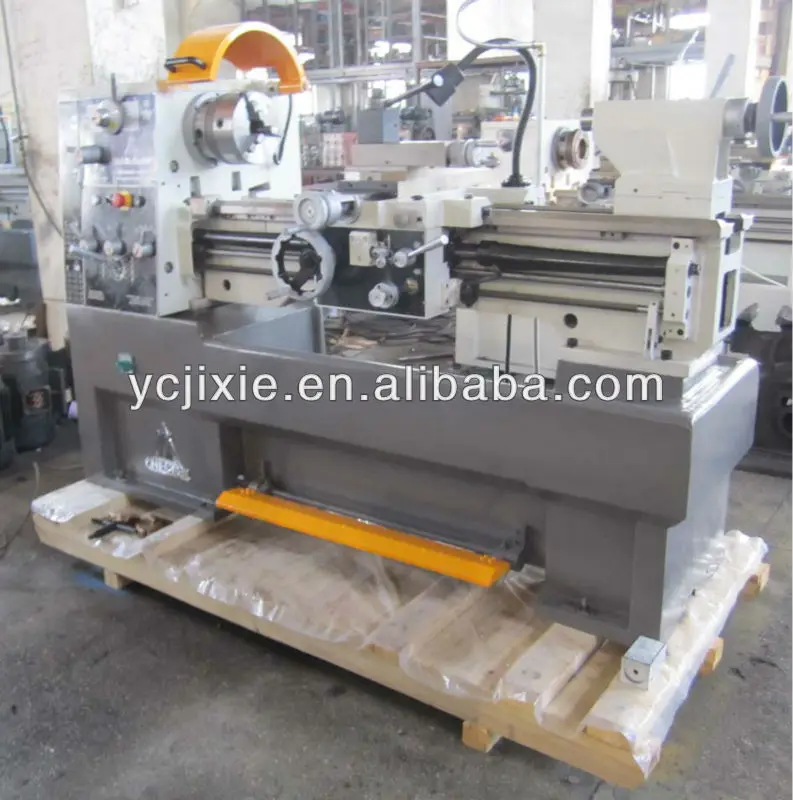

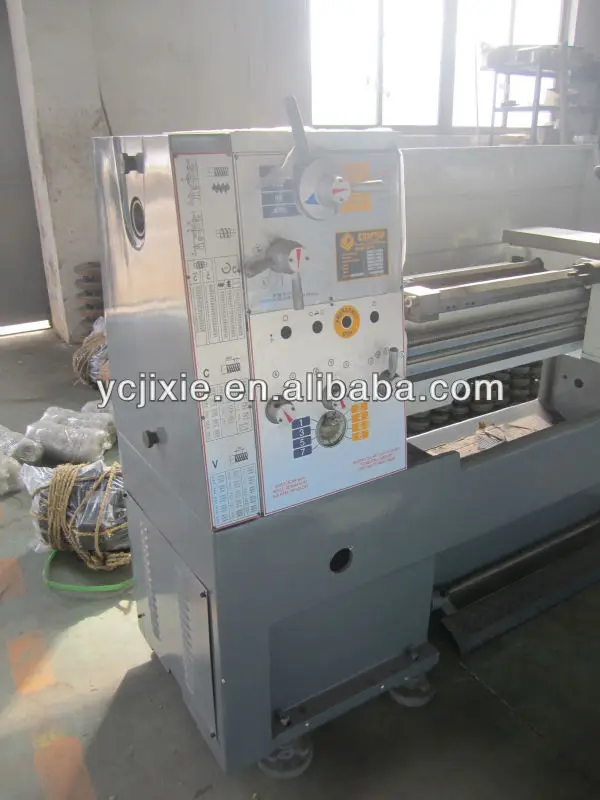

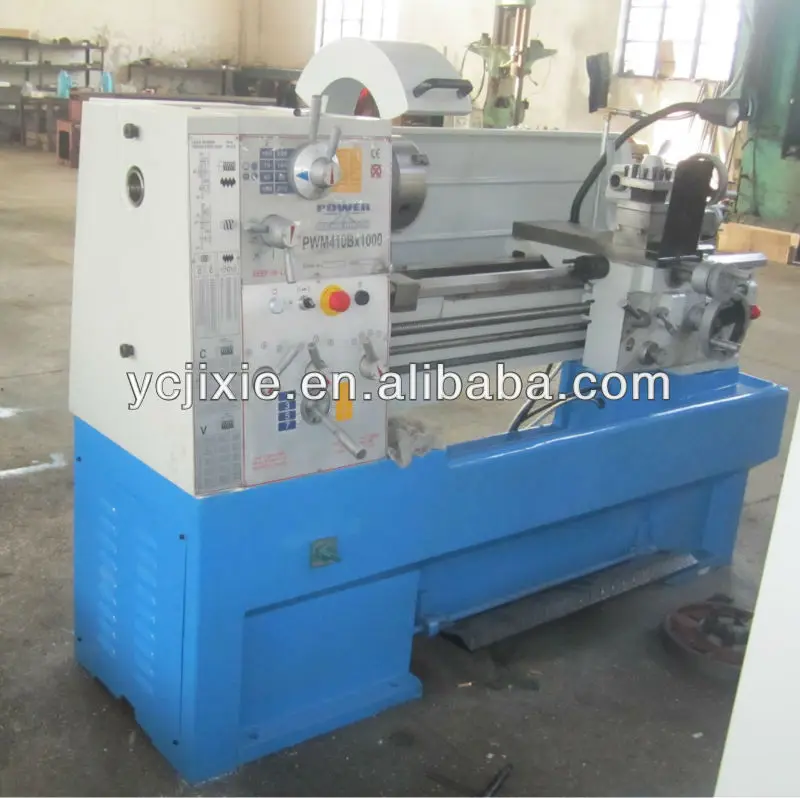

Detailed Images

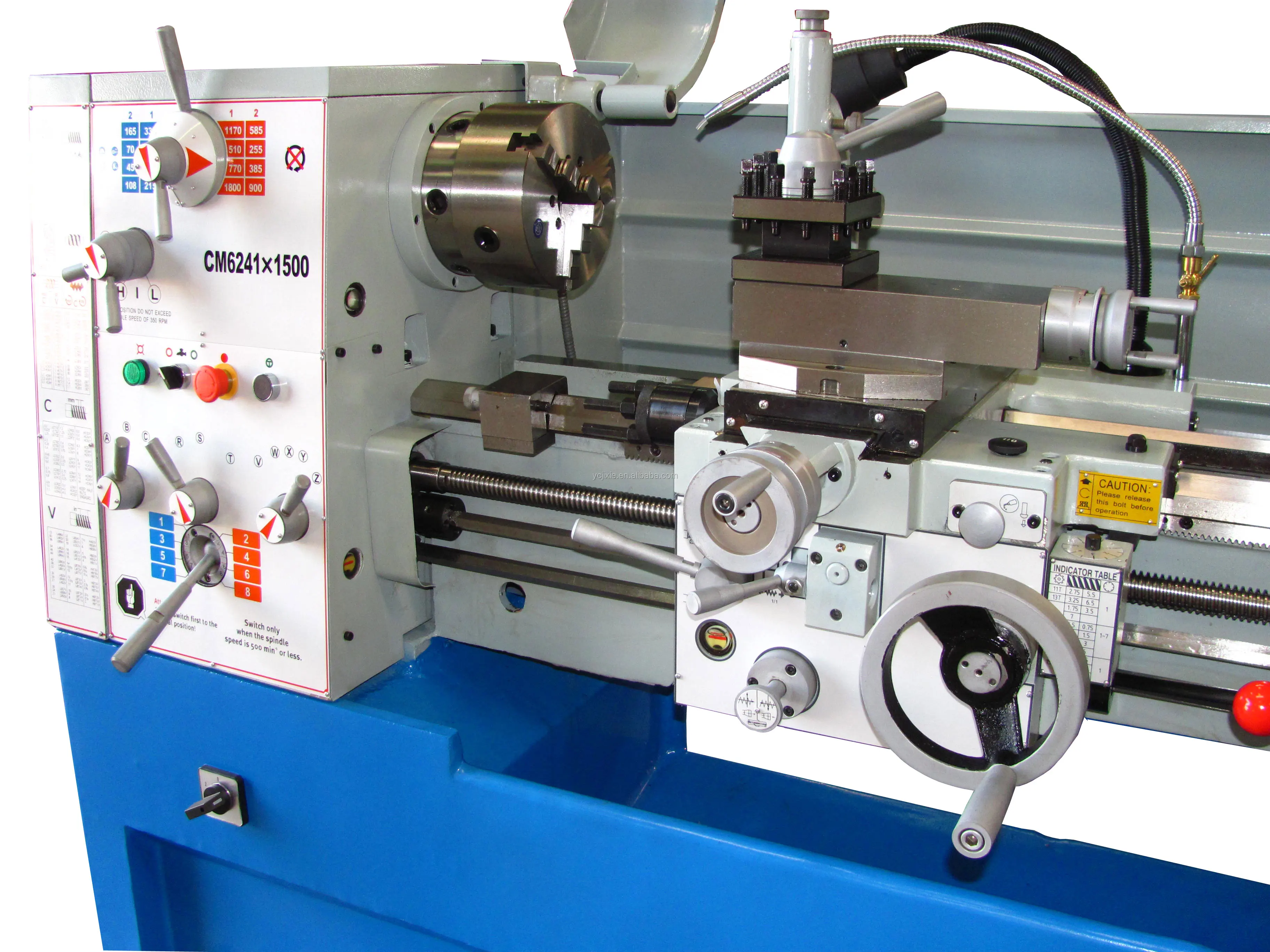

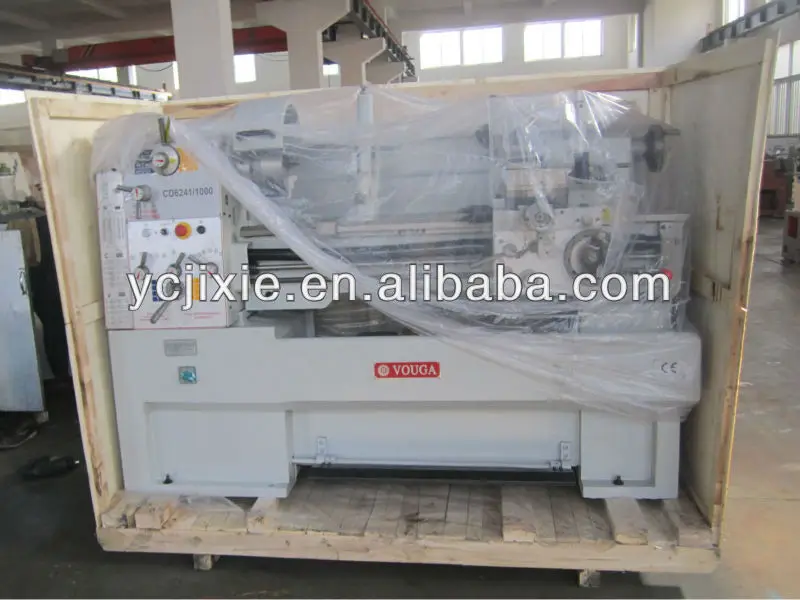

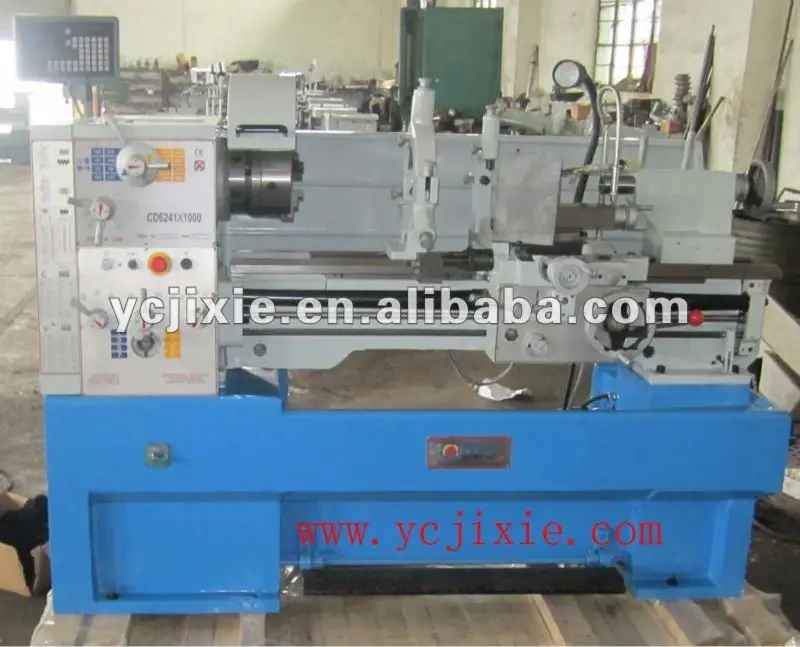

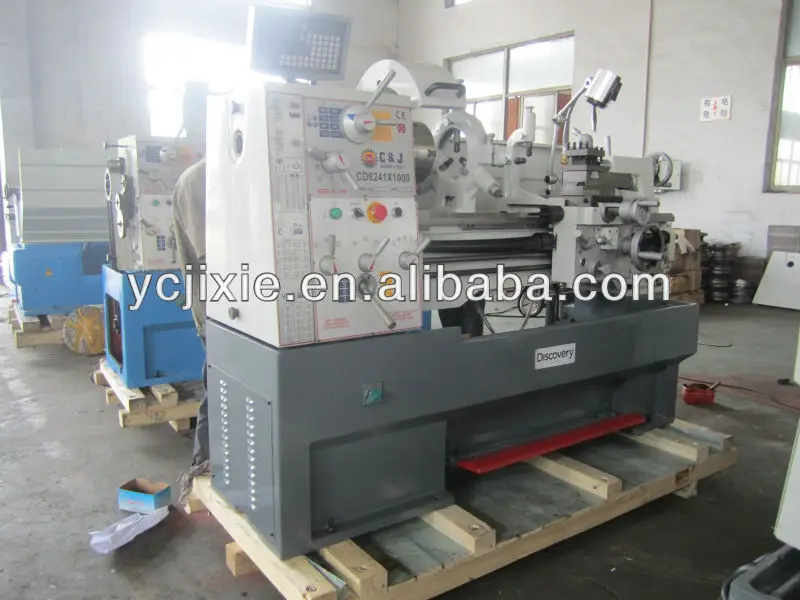

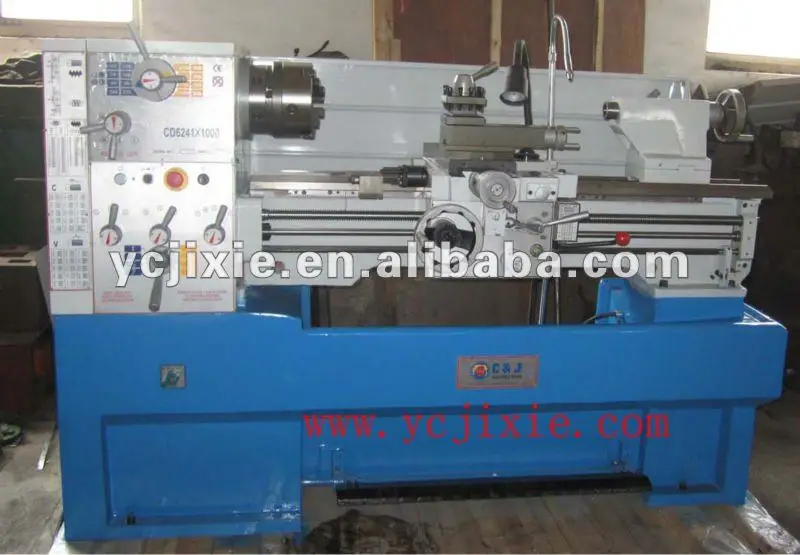

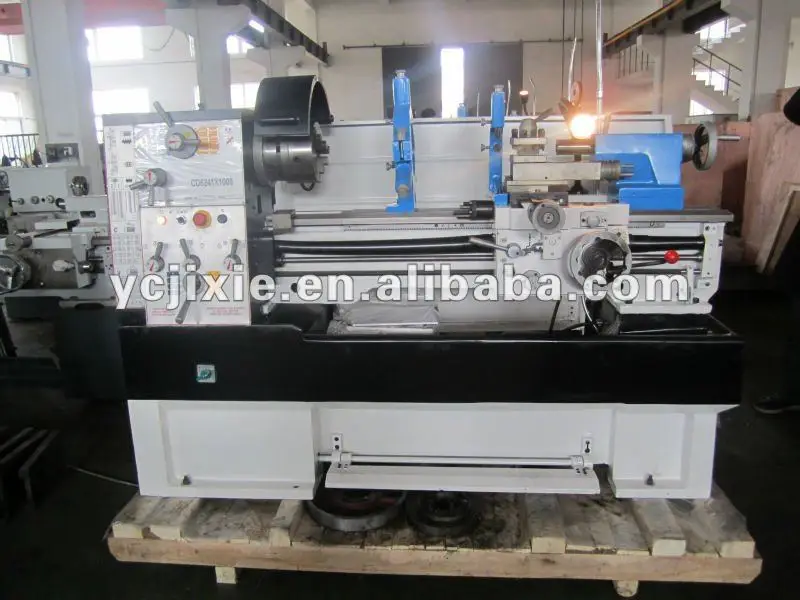

CD6241 High precision universal lathe machine price MACHINE DETAILS
Main specification
CD6241 High precision universal lathe machine | ||
| Model | CD6241×1000 | CD6241×1500 |
| Max.swing over bed | Φ410mm(16") | |
| Max.swing over cross slide | Φ255mm(10") | |
| Max. swing over gap | Φ580mm(23") | |
| Center height | 205mm(8") | |
| Distance between centers | 1000mm(40")/1500mm(60") | |
| Width of bed | 250mm(10") | |
| Max.section of tool | 20mm×20mm(3/4"×3/4") | |
| Max.travel of cross slide | 210mm(8 1/2") | |
| Max.travel of compound rese | 140mm(5 1/2") | |
| Spindle bore | Φ52mm(2") | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes25-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.(NO. 45) | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm(2") | |
| Travel of tailstock sleeve | 120mm(4 3/4") | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw(optional 3/5.5kw) | |
| Power of coolant pump | 4P,3PH 90W | |
| Overall diamension(L*W*H) | 1940mm×850mm×1320mm | |
| Packing size(L*W*H) | 2070mm×940mm×1600mm | |
| N.W/G.W | 1550kg/1760kg | |
| precision universal lathe machine Standard Accessories: | precision universal lathe machine Optional Accessories: |
| 3 Jaw Chuck | Taper Turning Attachment |
| Change Gears Set | Live Center |
| Chasing Dial Indicator | Work Light |
| Reduction Sleeve | Leadscrew Guard |
| Dead Centers | Digital Readout |
| Full Length Splash Guard | Quick Change Tool Post |
| Coolant System | Chuck Guard |
| Brake System | Digital Readout(2 Axis) |
| 4 Jaw Chuck | Drill Chuck+Drill Arbor |
| Face Plate | |
| Steady Rest | |
| Follow Rest | |
| Tool Box&Tools |
