Polyurethane injection pump for concrete cracks

Product Overview

Description

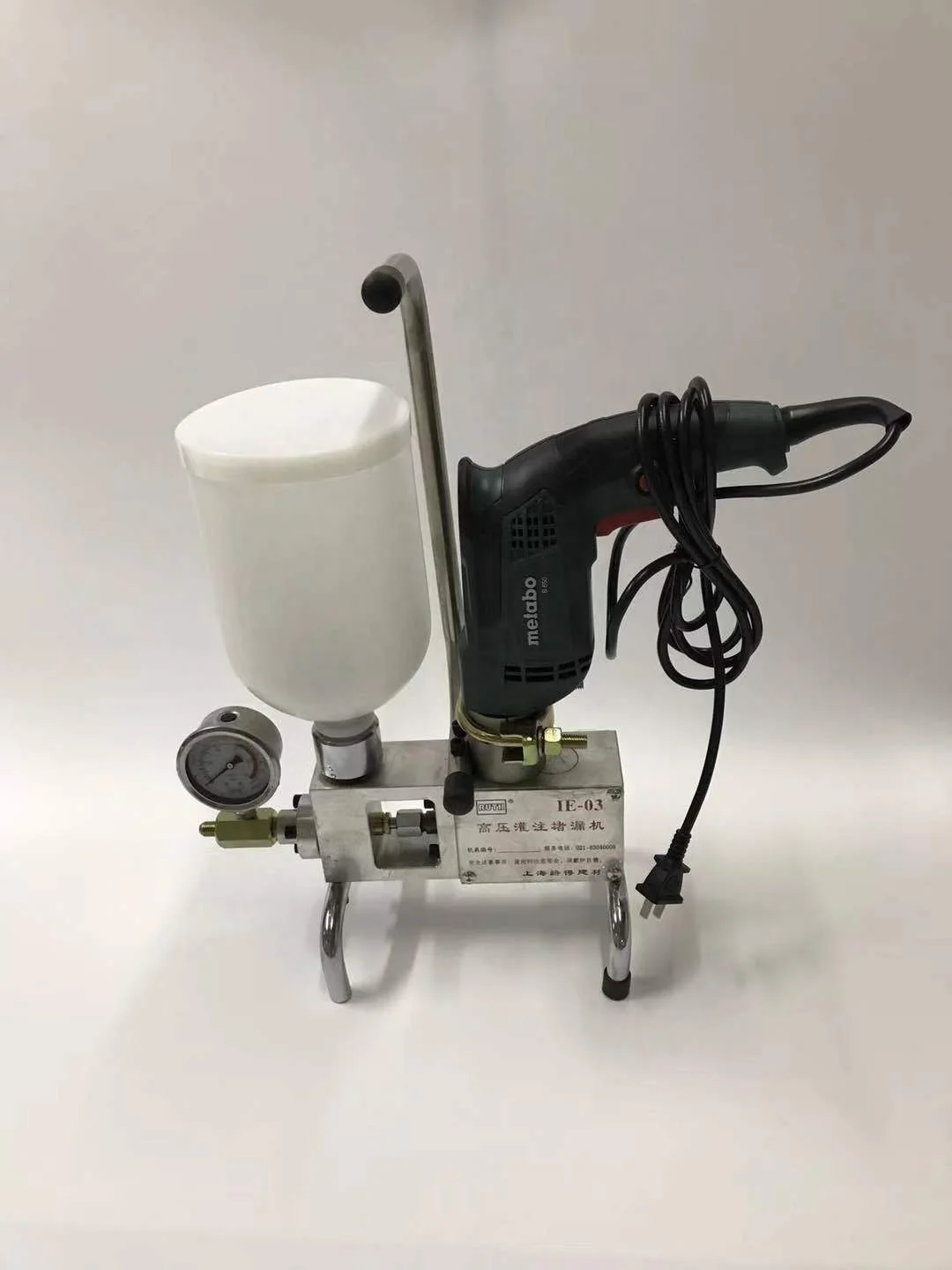

RUTH IE-03 High Pressure Concrete Crack Injection systems



Product Description

1. Item: IE-03


2. Weighing 8.5 KGS, portable, easy to carry & maintain, maximum output pressure up to 70MPa.


3. Injection pressure:0-70Mpa(8000-10000Lb)


4.  one ways of material feed-in: pour


5. The Drill is Matabo or Ruth. The power consumption:560W/220V or 110V



Material of application

WPU and OPU foam stop leakage agent, Epoxy resin.

Application Field

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.

Specification

Weight	9 kg
Maximum output pressure	70MPa
Pressure of restarting	less than 20 MPa
Safe range of high-pressure hose	less than 70 MPa
Safe range of switch valve	less than 50 MPa

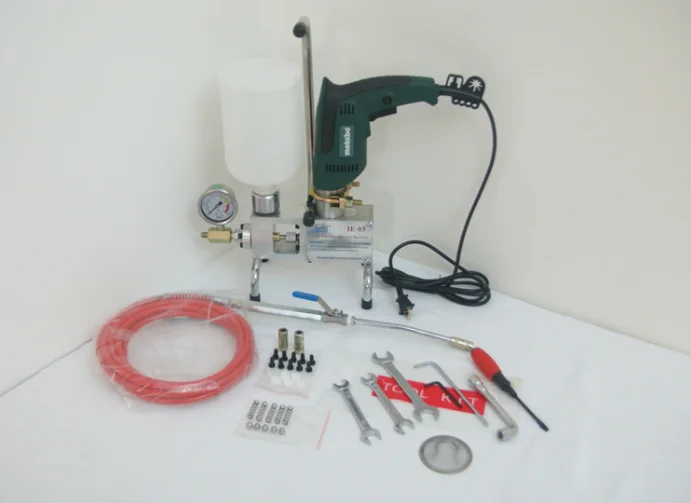

Full set of machine include:

1. The machine


2. Accessories, including high pressure hose (4.5m), on &off valve, grease head.


3. Standby tools
