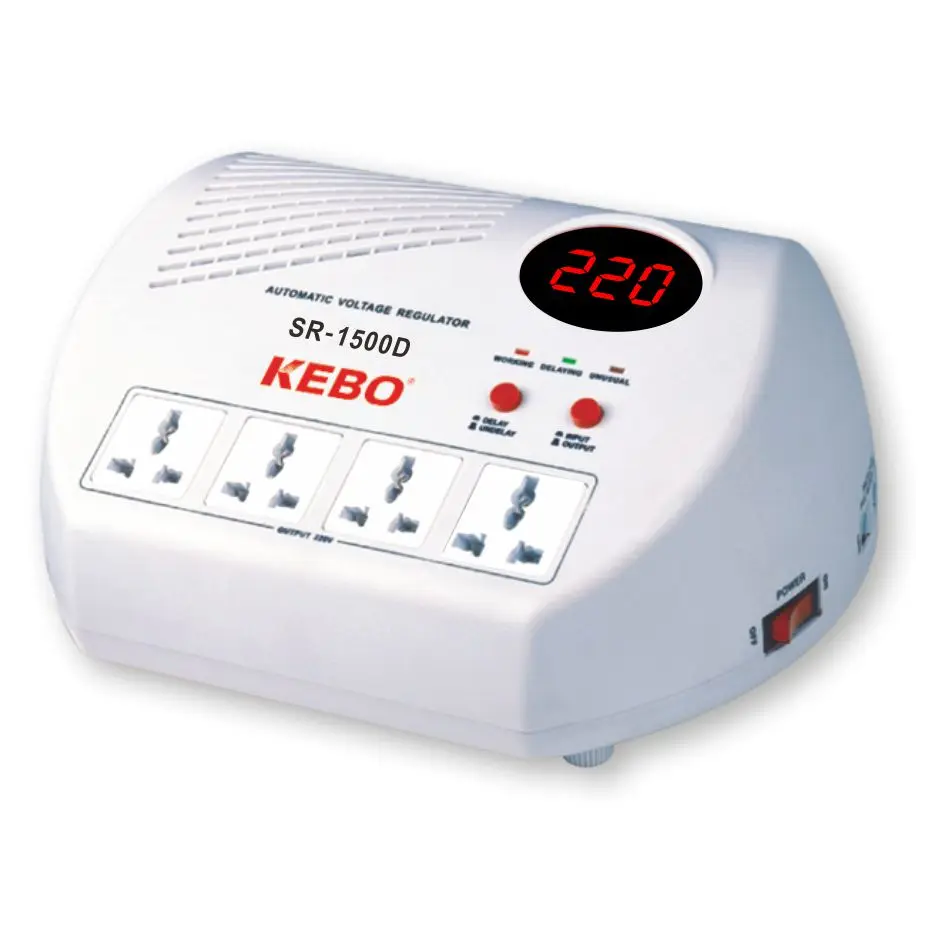

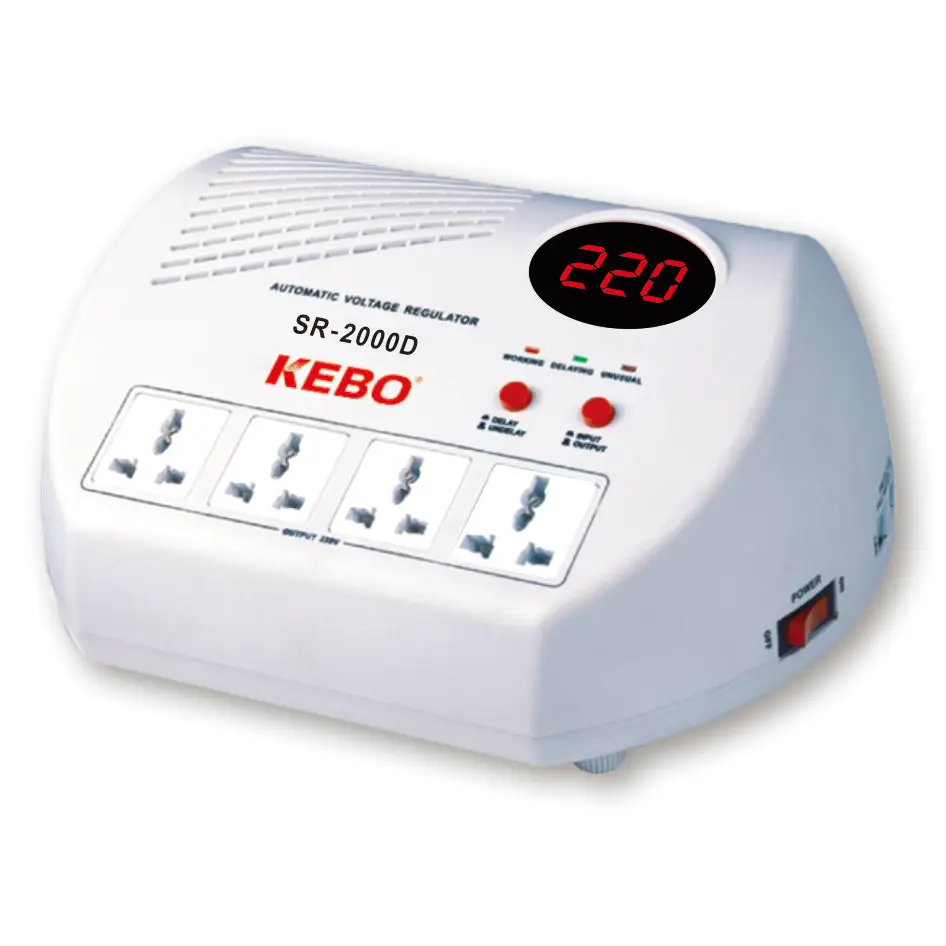

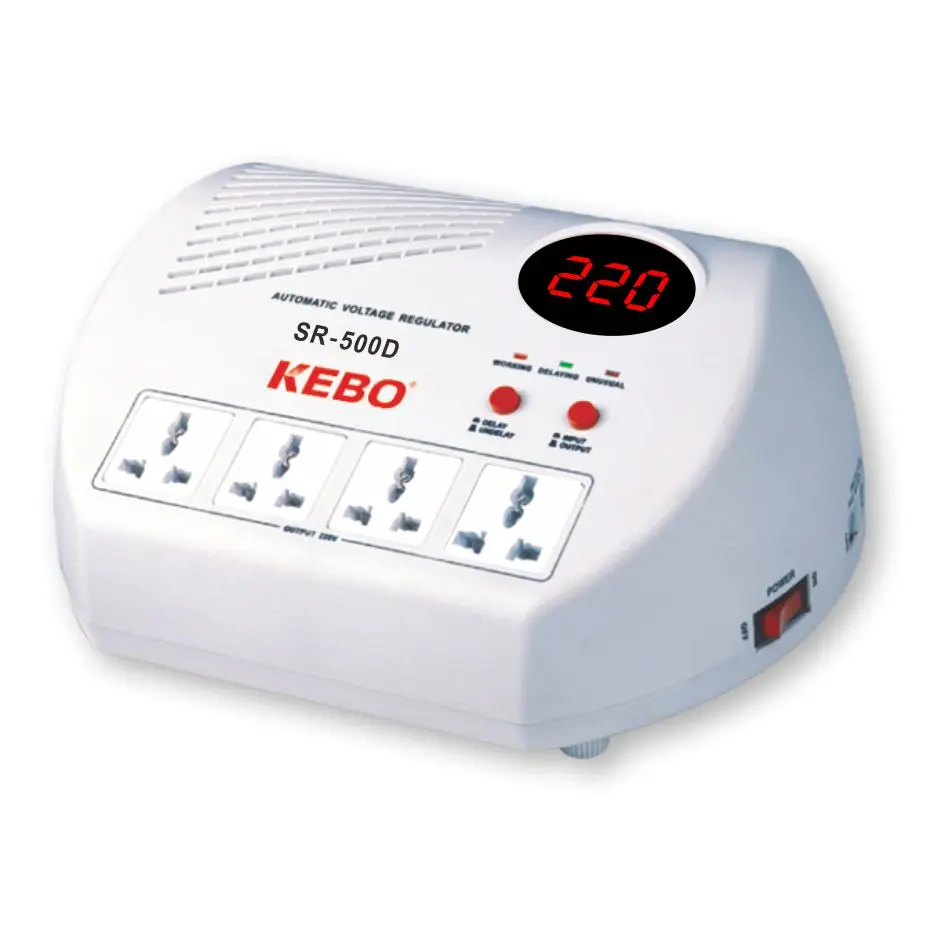

Name | Automatic Voltage Regulator SR -D Series (Relay Type) | ||||||
Model | SR-500D | SR-1000D | SR-1500D | SR-2000D | |||
Power | 500VA/300W | 1000VA/600W | 1500VA/900W | 2000VA/1200W | |||
Technology | Zero Cross Switching Technology & Digital CPU Control & Delay Countdown System & Plastic Cabinet | ||||||
Transformer | Toroidal Transformer | ||||||
Input Voltage | 140-260Vac, 50/60Hz | ||||||
Output Voltage | 220/230Vac, ±10% or 8% | ||||||
Efficiency | >98% | ||||||
Phase | Single Phase | ||||||
Display | LED Digital Display + 3*LED Indicators | ||||||
Protection | High Voltage / Low Voltage (Optional) / Overheat / Overload / Short Circuit / 6s or 180s Output Delay | ||||||
Cooling System | Air Exhaust Hole | ||||||
Safety Standard | CE (LVD + EMC) | ||||||
Operating Condition | 0~45℃, Non Condensing | ||||||
Unit Weight / N.W. | 2.0 kgs | 2.7 kgs | 3.5 kgs | 4.3 kgs | |||
Giftbox Size (mm) | 257*185*105 | 280*220*125 | 315*245*150 | 315*245*150 | |||
Carton Size (mm) | 570*270*350 (9) | 680*295*275 (6) | 525*325*315 (4) | 525*325*315 (4) | |||
