pe pp film two stage granulation line/plastic granulation machines/plastic recycling granulator

Product Overview

Description

PE PP Film Two-stage Granulation Line





PE PP film two-stage granulation line:

1.Raw material: PE PP film

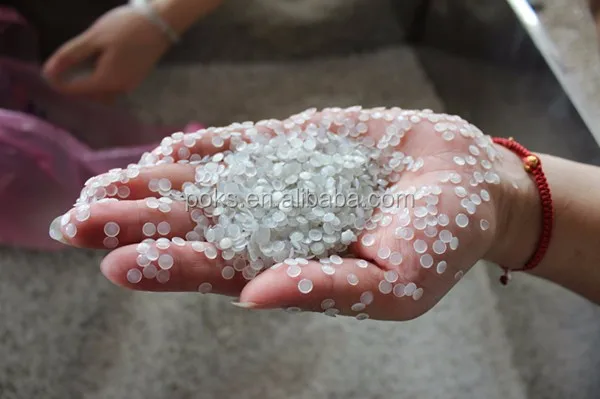

2.Final product: PE PP granules

3.Hydraulic screen changer

4.Special vacuum degassing system

5.Output:100-800kg/h(according to customer requirements

6.Cutting type of PE PP film two-stage granulation line :water ring or water cooling strand



Application raw materials:

PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags, etc.



Flow chat PE PP film two-stage granulation line:

Water ring pelletizing

Conveyor→Film compactor →Single screw extruder→ Die head and hydraulic screen changer →Water ring pelletizing→Water tank → Dewatering machine→Vibration sieve→Air blower

→Storage silo



Features PE PP film two-stage granulation line:

²High efficiency force-feeder ensures high capacity feeding ,low energy consumption.

² Extruder of PE PP two-stage granulation line :double stage pelletizing.

²Single screw extruder, equipped with specially designed screw & barrel, venting system, has avery good output capacity.

²Pelletizing style: water-ring and water cooling strand cutting with extrusion mould,even cutting

ensures good shape.



Main parameters PE PP film two-stage granulation line:

Extruder	SJ85	SJ100	SJ130	SJ160
Screw diameter	85mm	100mm	130mm	160mm
Main motor	55kw	90kw	132kw	160kw
Compactor power	37kw	55kw	75kw	90kw
Capacity	100-150 kg/h	200-300 kg/h	300-400 kg/h	500-600 kg/h

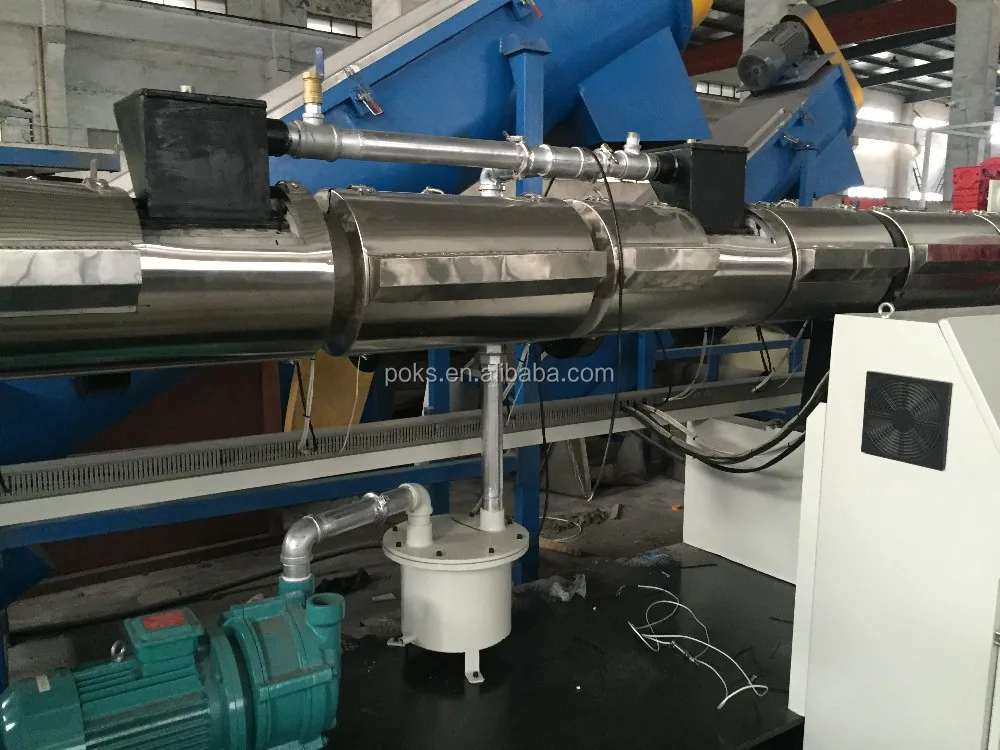

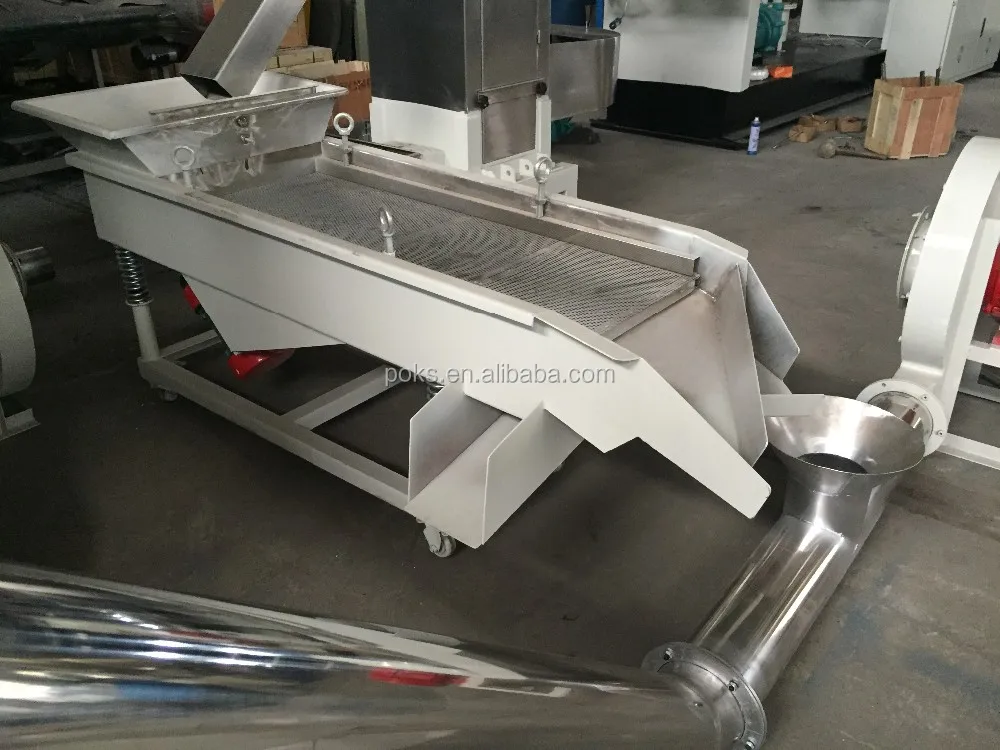

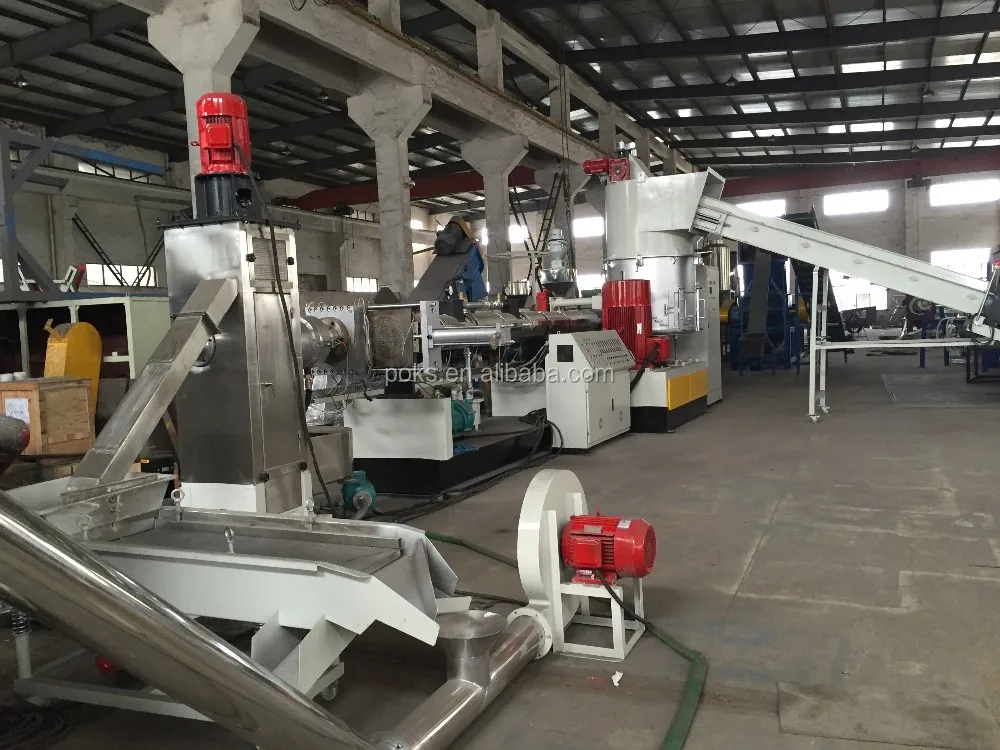

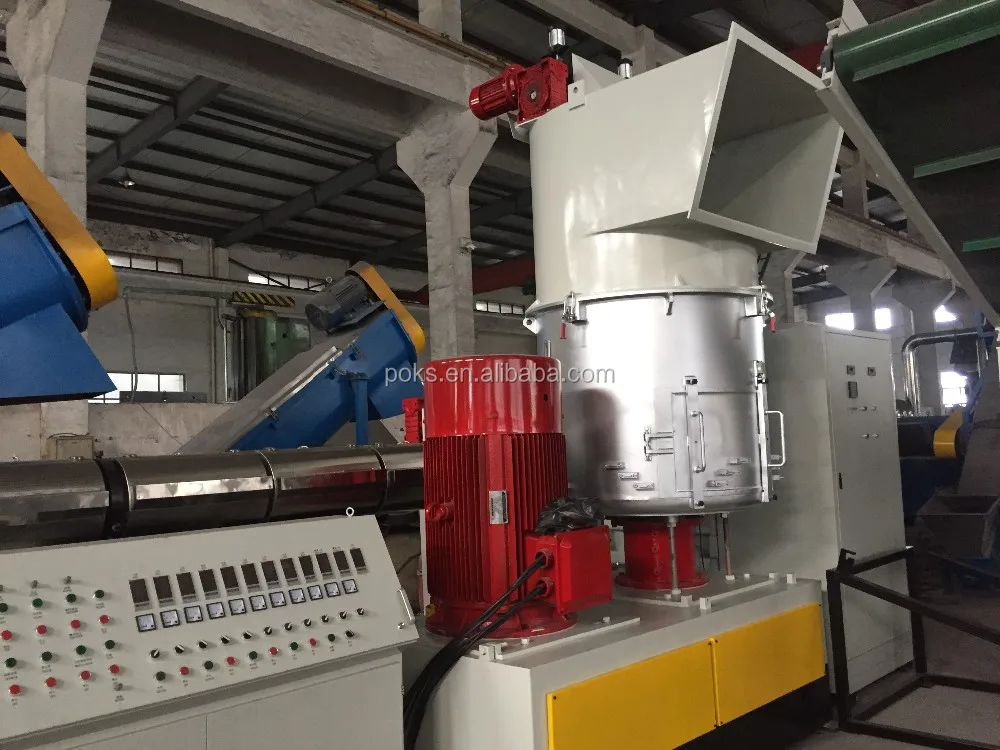

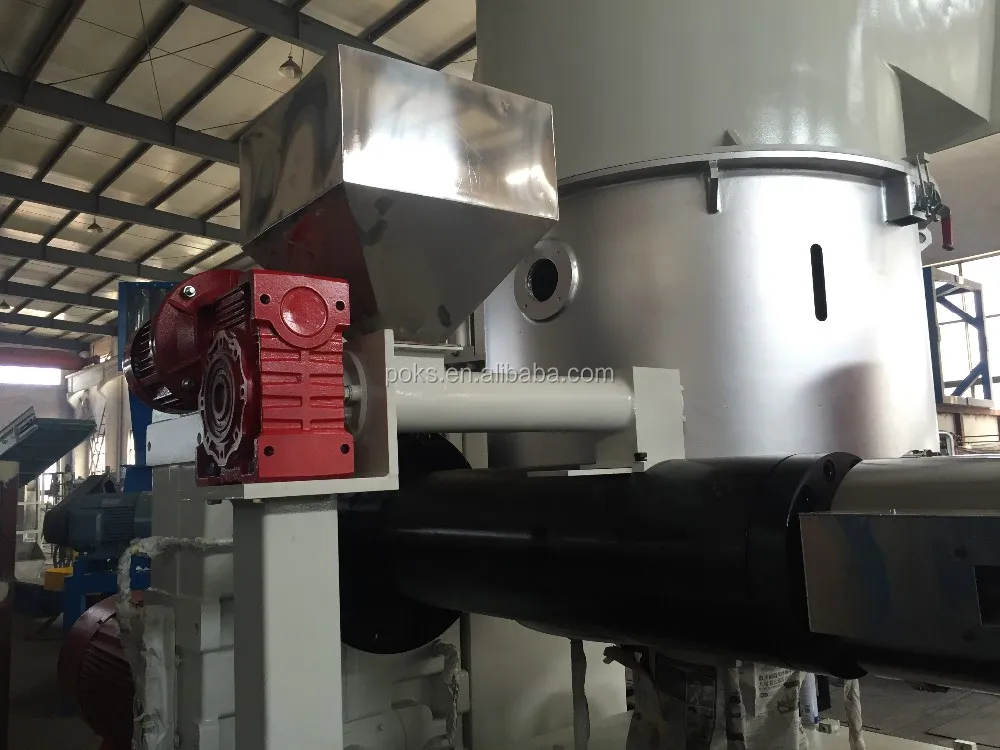

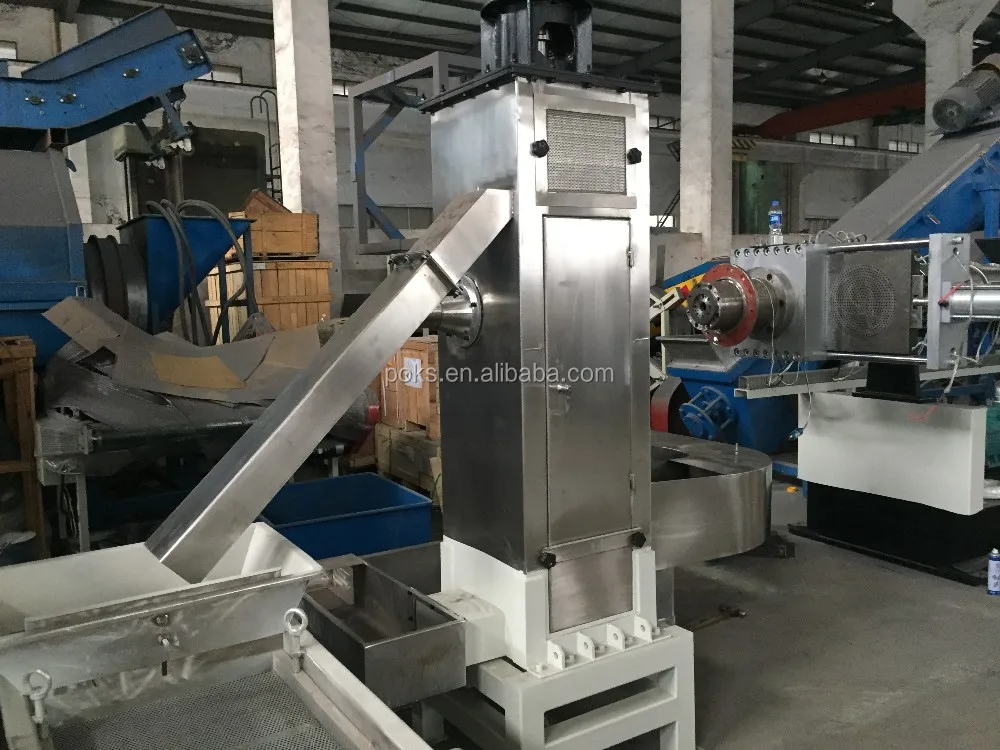

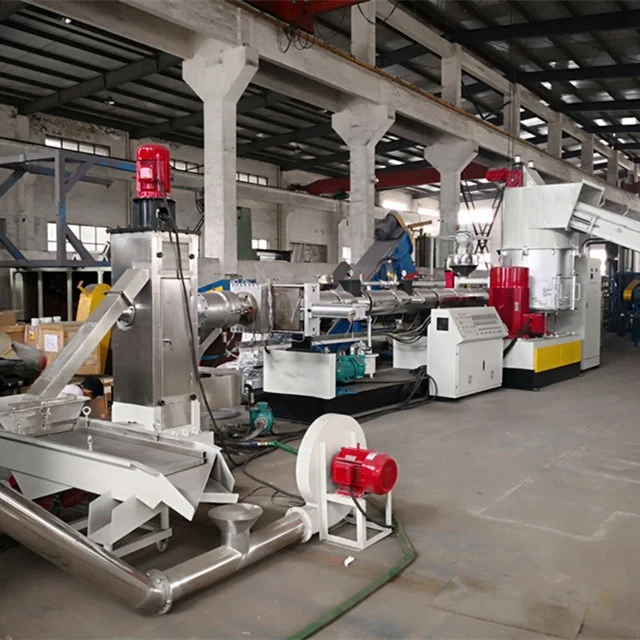

Pictures PE PP film two-stage granulation line:





Certificate and machine loading picture:

If you want to learn more about PE PP film two-stage granulation line , pls feel free to contact us !

We will give you good quality and factory price.

Hope to receive your inquiry ! Thanks !
