660B Automatic Cam Plastic Cup Thermoforming Machine is mainly used to from PP/HIPS/PET/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter and the feeding length can be set through touch screen. We could adopt servomotor to control sheet feeding if customer required.
3) It adopts two pillars to fix the mould.
4) The up mould is fixed and the mould plate movement is driven by cam system. 5) The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) The machines is controlled by switches and buttons.
III. Main Technical Parameter:
Model
SPC-660B
Max. Forming Area
660 x 220 mm
Running Speed
15-32 cycles/min(according to sheet thickness, material used and product shape)
Approx. Sheet width for feeding
500 – 660 mm in rolls
Mode of Cutting Arrangement
In mould automatic
Sheet Thickness Range
0.20 – 2.0 mm
Required Material
PP, PS, HIPS, PET, PVC
Max. Forming Depth
120 mm
Gearbox Motor Power
7.5KW
Max. Sheet Reel Dia.
800 mm
Heating System
Top + bottom
Heating with IR Ceramic Heater
Temperature Control Method
Temperature Controller and Temperature Control Module
Type of Mould
1 - 4 Rows
Water Consumption
0.5-1.0m3/h(recycled)
Air Consumption
1.3-1.6m3/min, 0.6-0.8Mpa
Sheet Feeding Method
2.2KW Motor
Plug Stretching Method
Air cylinder
Approx. Dimension
3500×1500×2500mm
Approx. Weight
3500Kg

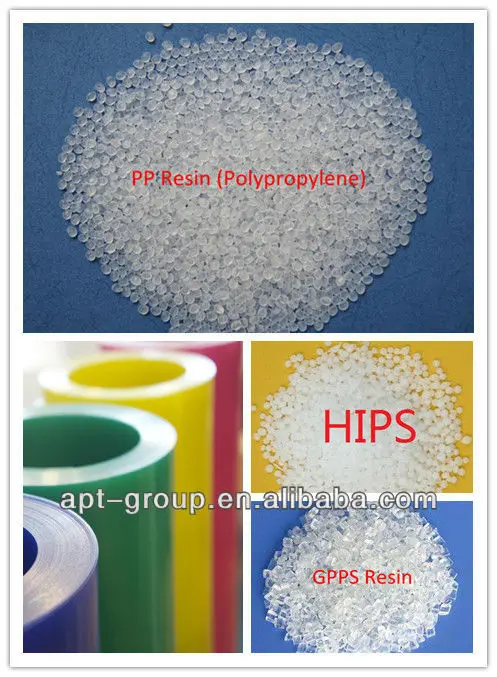

Raw Material (PP, PS Resin) & PP PS Sheet Samples:

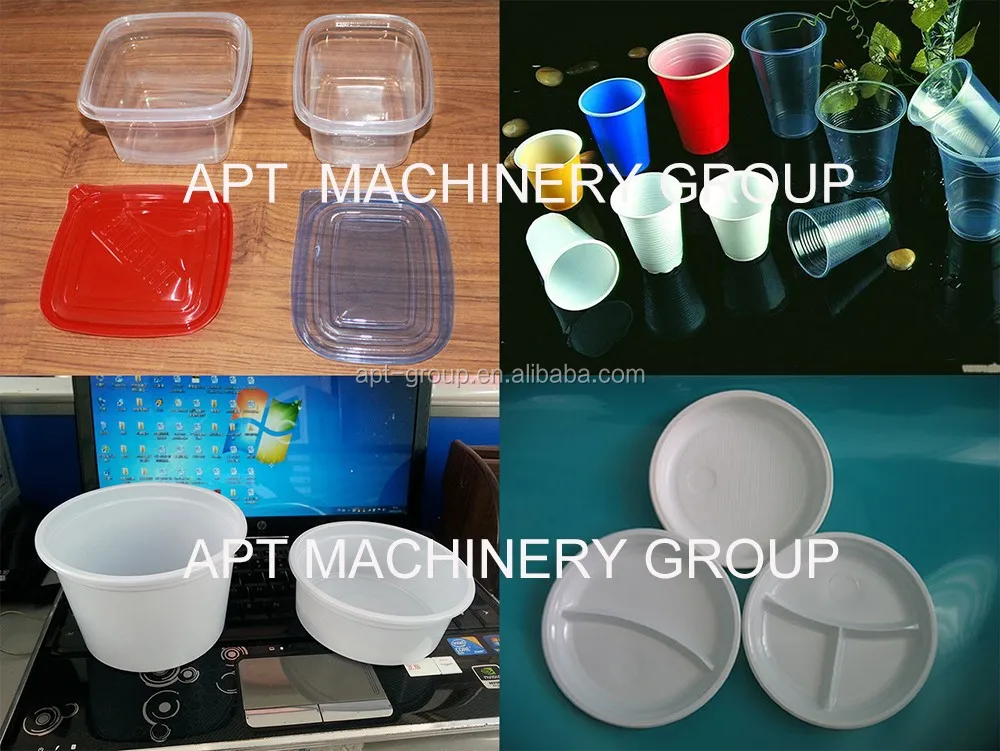

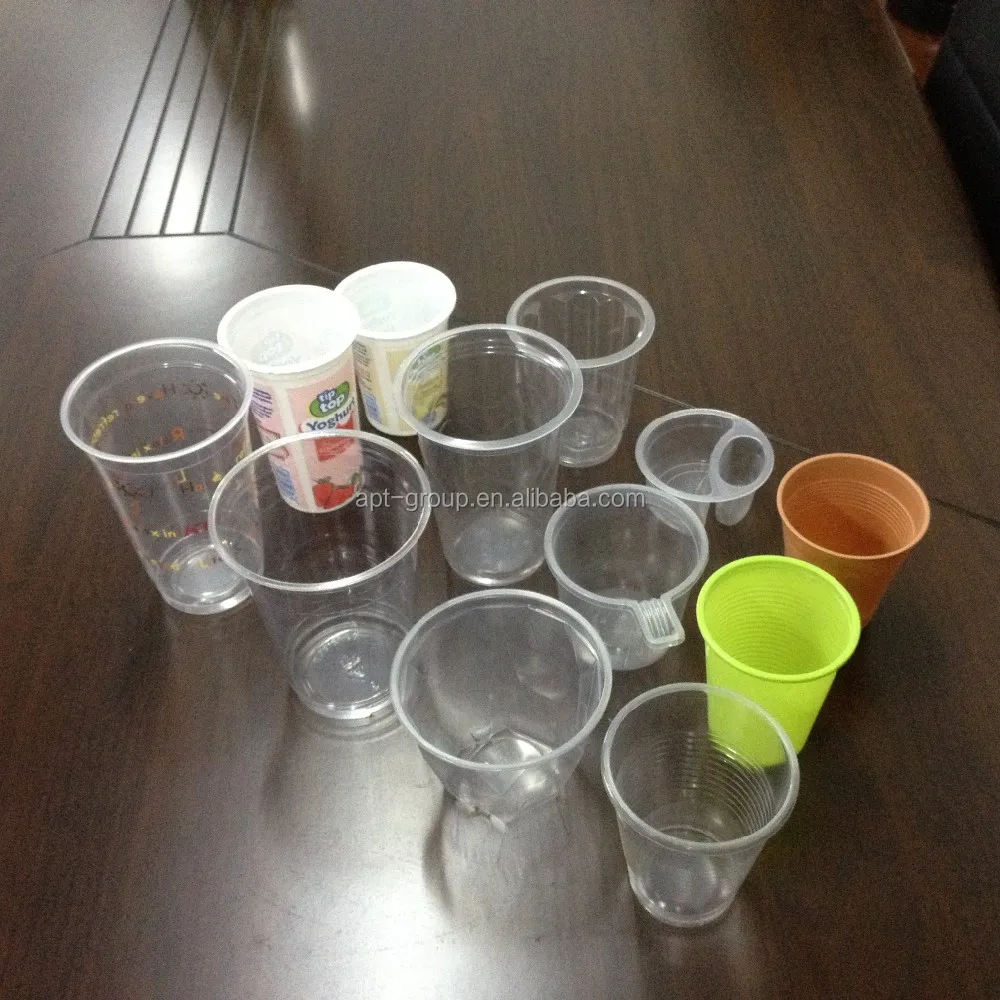

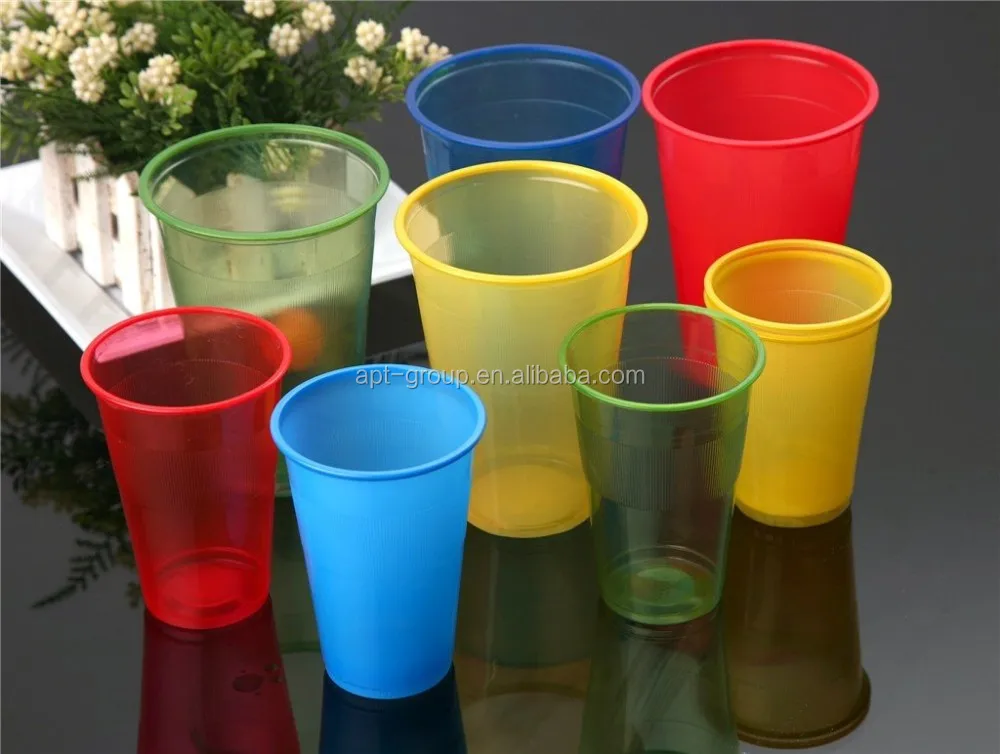

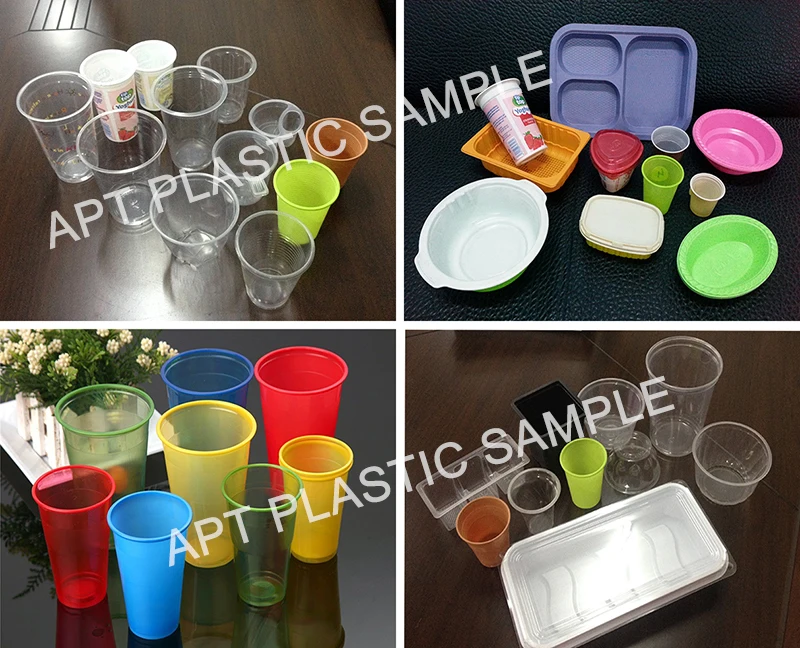

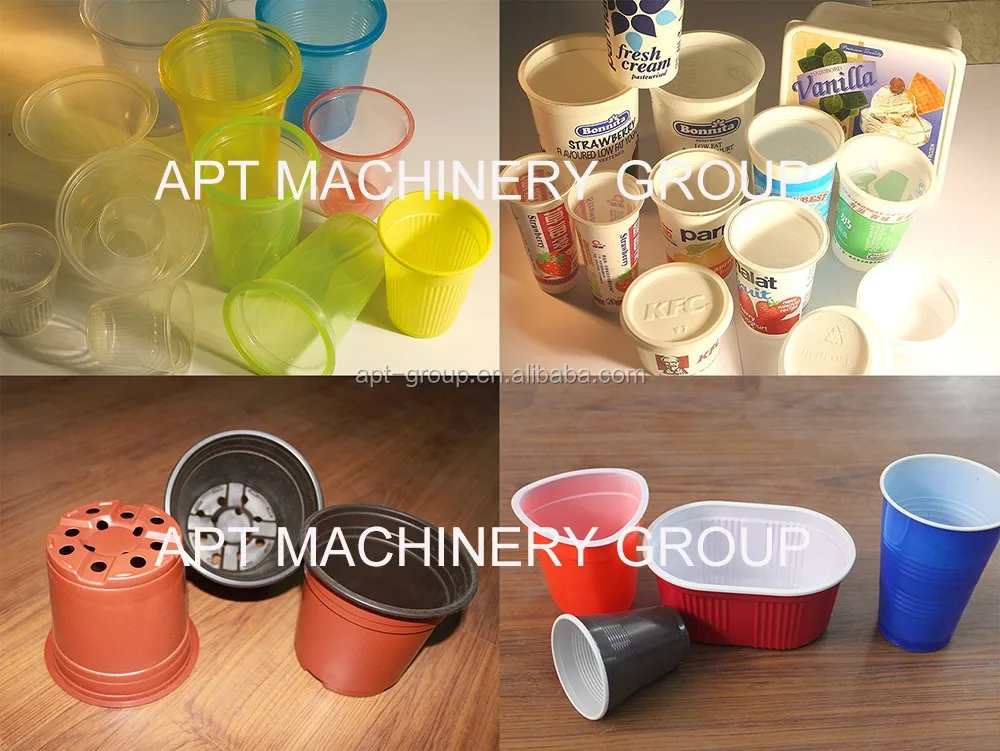

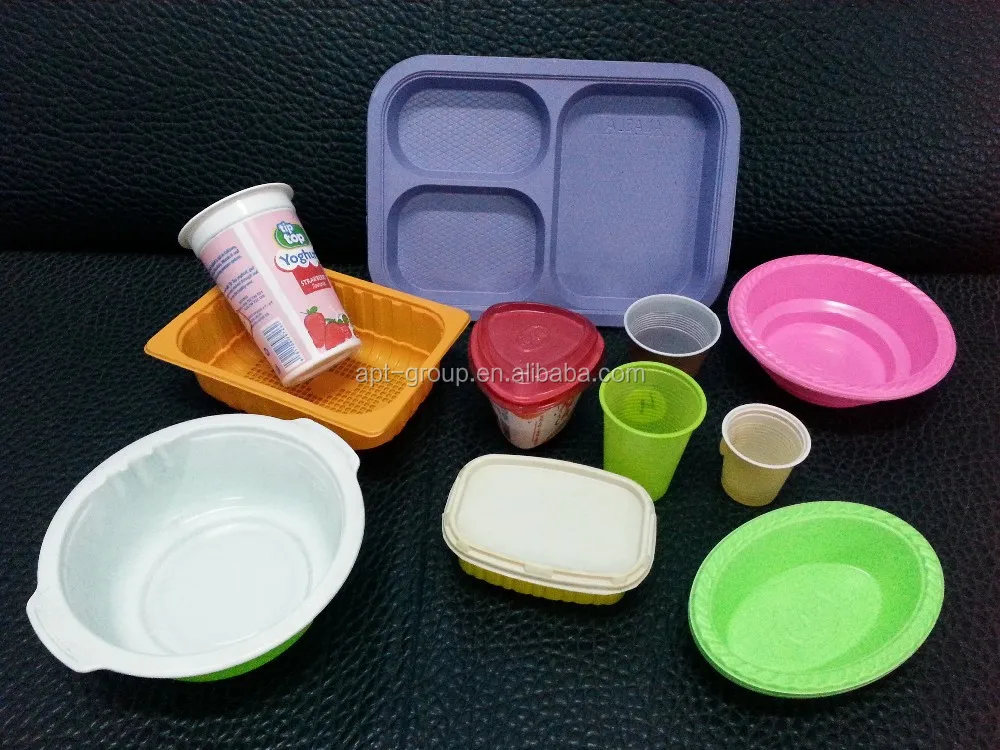

IV. Samples can be made by Thermoforming Machine:

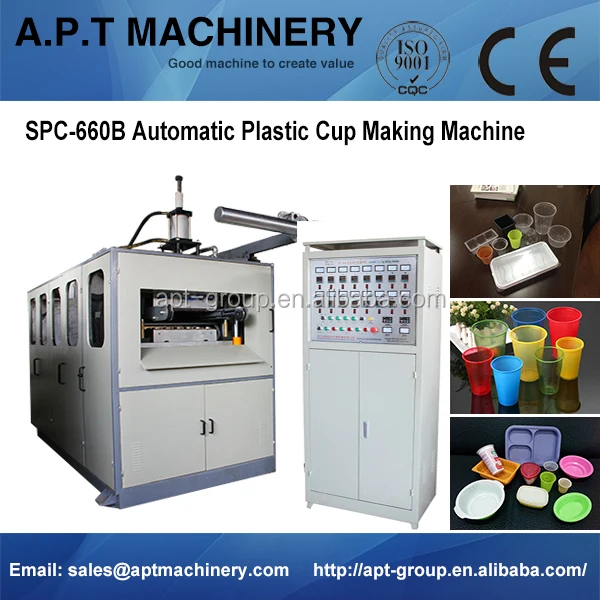

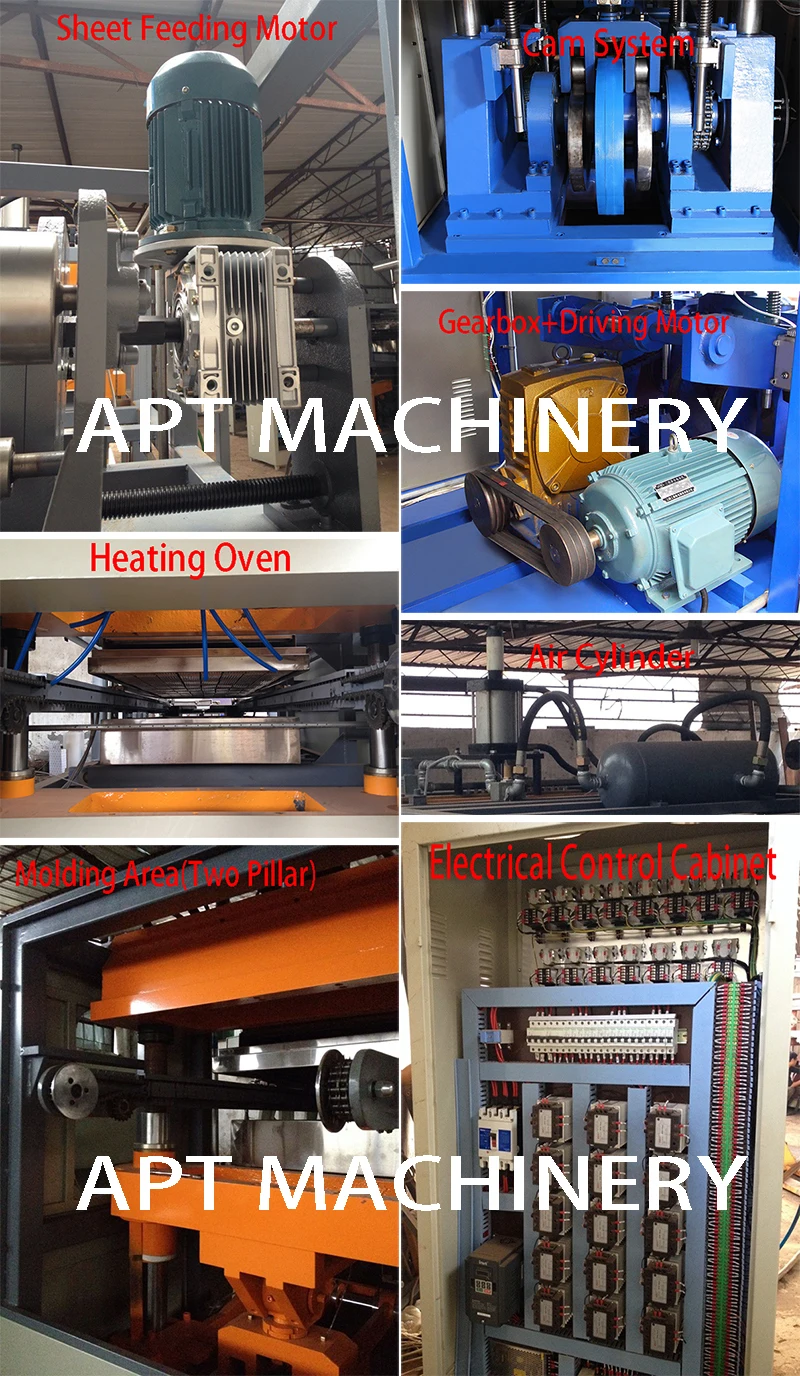

V. Machine Photos:

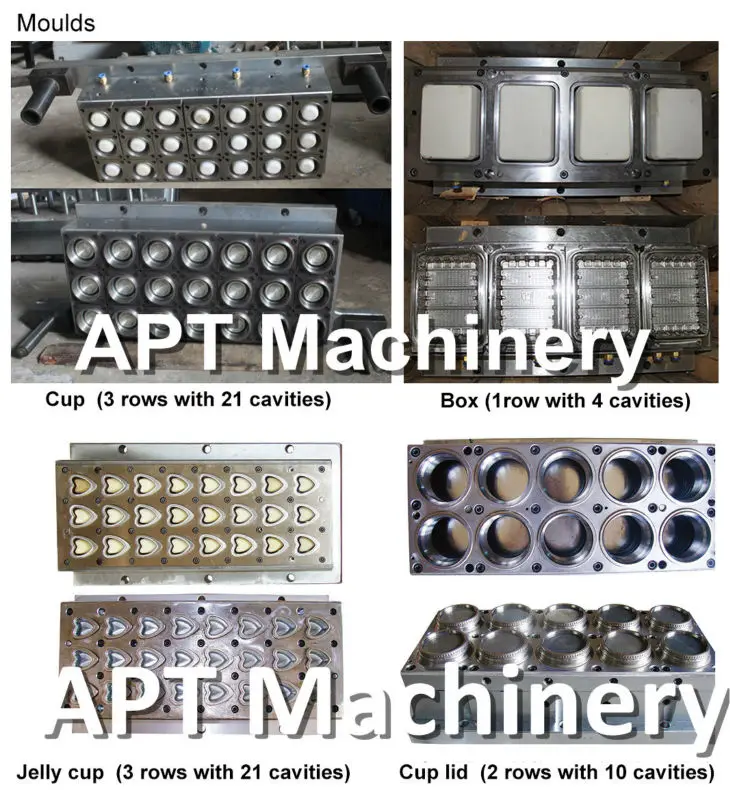

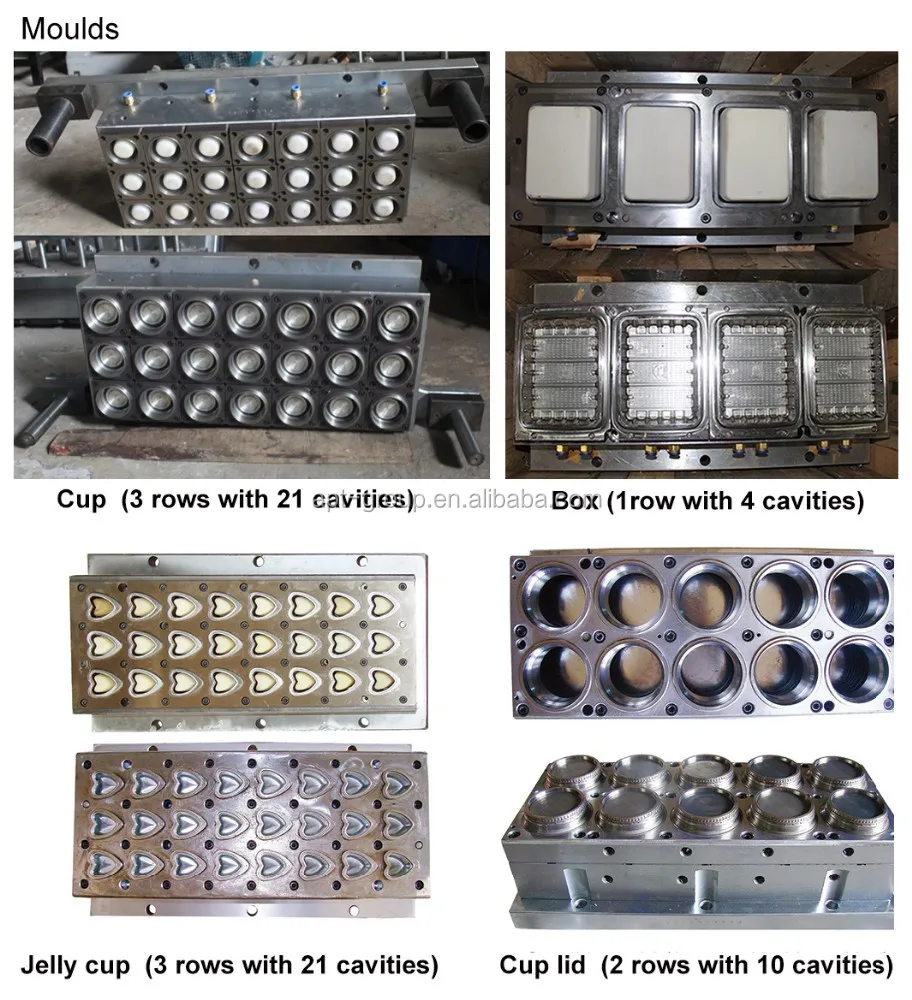

VI. Moulds For Thermoforming Machine:
VI. Auxiliary Machines For Cup Making Machine:

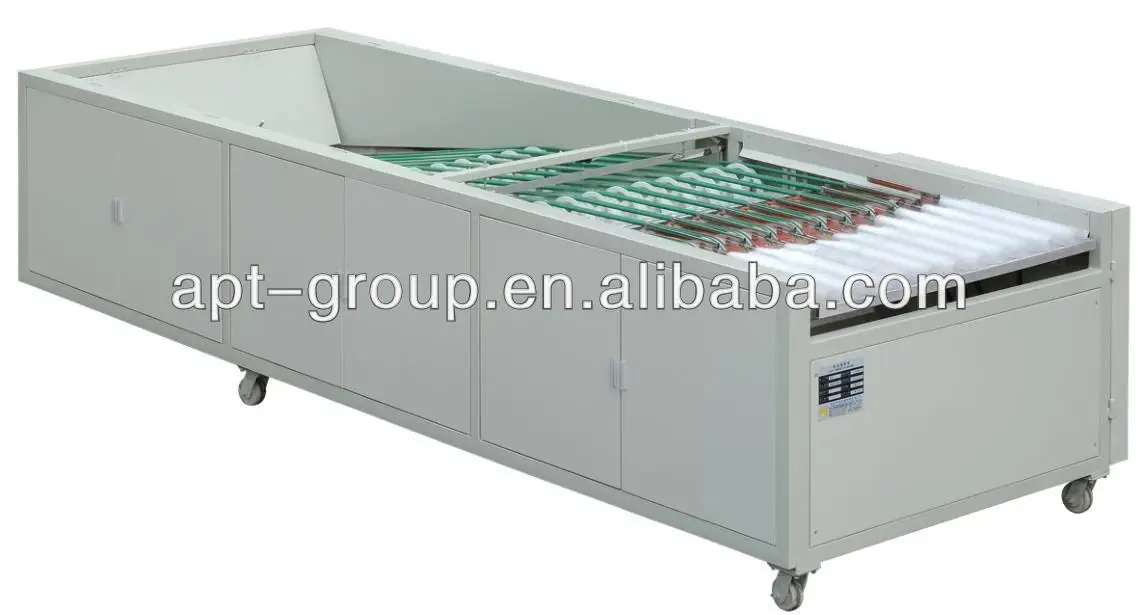

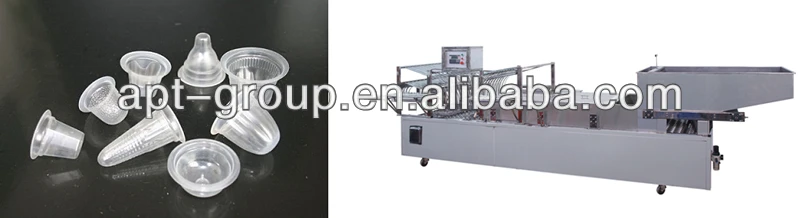

1- Automatic Plastic Cup Stacker:
If customer produce jelly cups, we will recommend following Cup Stacker for customers!

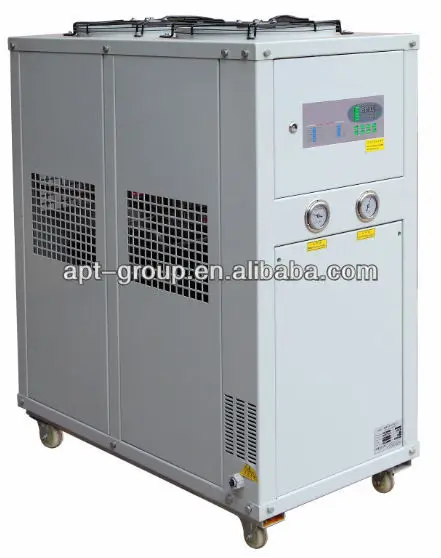

2- 5HP Air Cooling Chiller: 1 Set

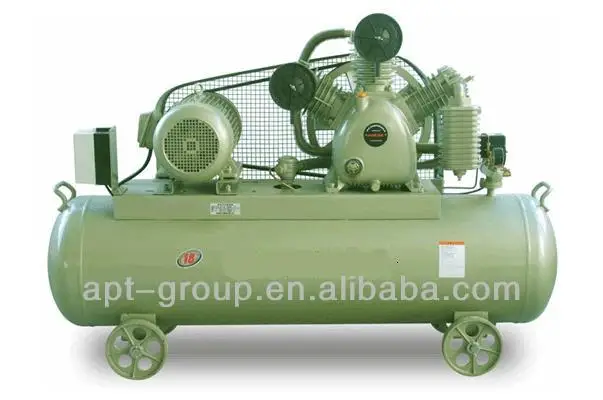

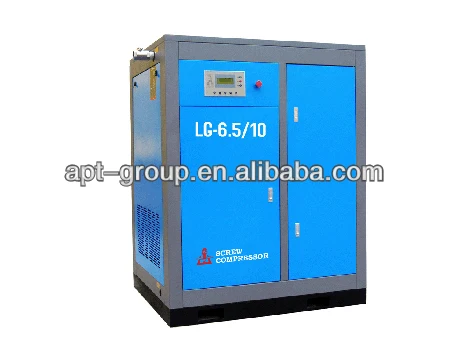

3- 3m³ Screw Type Air Compressor or Piston Type Air Compressor: 1 Set

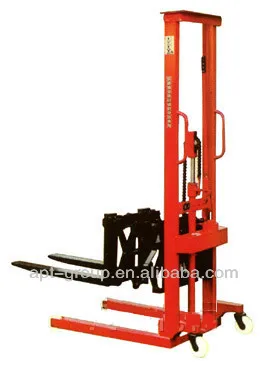

4- Hydraulic Lifter: 1 Set

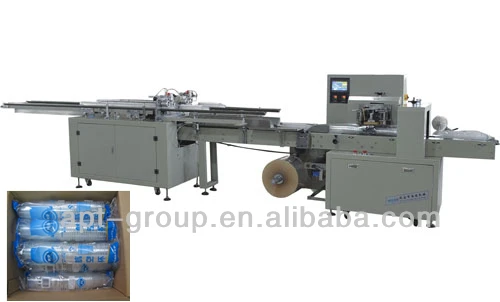

5- Automatic Plastic Cup Counting & Packing Machine (optional): 1 Set

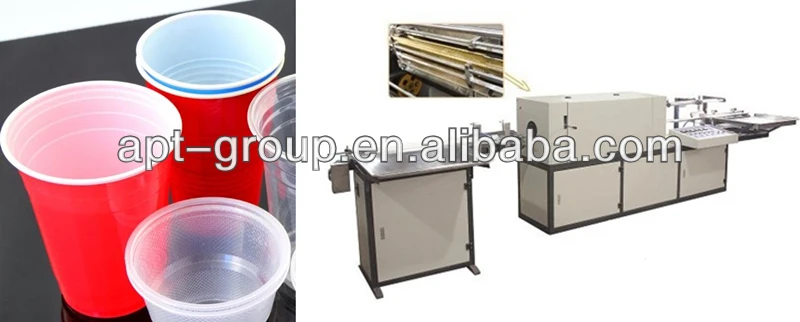

6- Automatic Cup Rim/Lip Curling Machine (optional): 1 Set
Packaging & Shipping
Our Services
1. Installation Service
* Installation Services are available with all new machine purchases. * We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2. After Sales Service
* We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. * Guaranty: One Year * During warranty period and after warranty period, We will come for regular checks on machine and make records to ensure the normal operation of equipment. * Any question, you can mail/call us at any time. Fast Response to Customers' Feedbacks in 4 hours. * Our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad. * After warranty period, we provide lifetime maintenance service, spare parts cost is charged based on actual cost.
3. Training Service
*We can train your staff to use our machine properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
