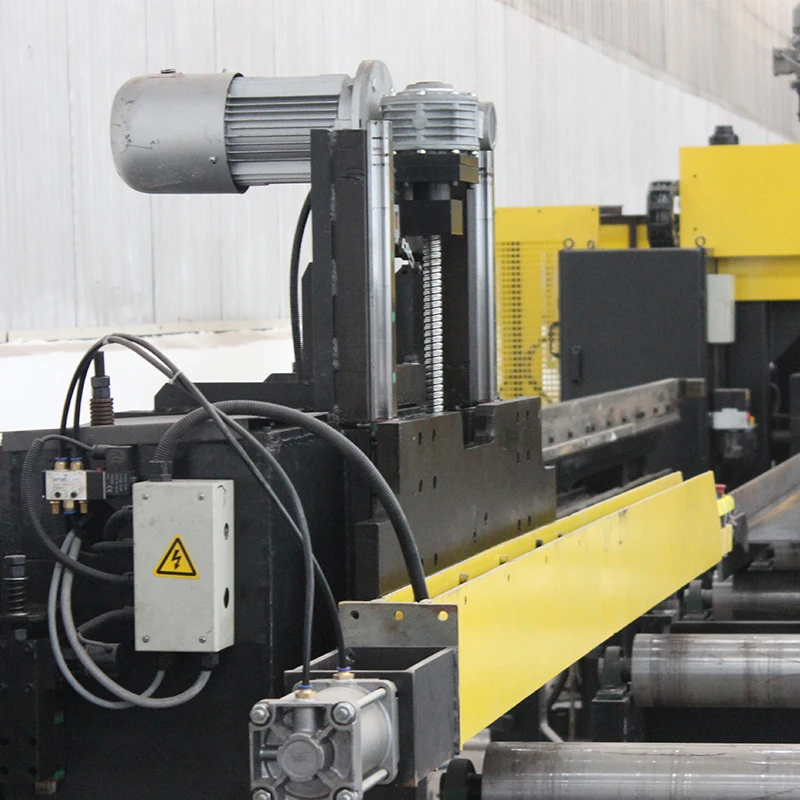

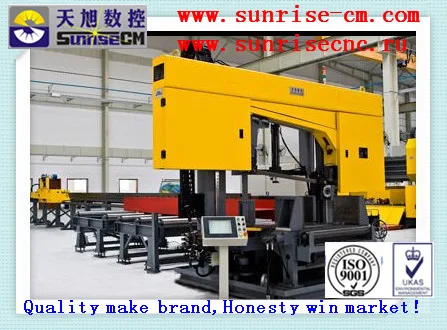

CNC Beams Drilling machine for H steel

Product Overview

Description

  High Efficient Operation CNC BEAMS DRILLING LINE



1, About  Our Company- We always do the best !



JINAN SUNRISE CNC MACHINE CO., LTD. is a specialist company dedicated to developing, studying, designing, manufacturing, and selling CNC machines, for example, drilling machine, punching machine, band sawing machine, shearing machine, bending, beveling, chamfering, milling, welding machines and other optical-electro-mechanical integration equipments, which mainly used for processing angle steel, metal plate, H-beam, channel steel, box steel, round steel, flange plate and etc in power tower, transmission tower, telecom tower, steel structure, central air-conditioner, automobile, household appliance, petrochemical, construction industries.







2. PRODUCT FEATURE:



1. Equipped with three drilling head, the drilling procedure finished after the work piece going through

    the equipment.

2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.

3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid

    feeding and work feeding, and with high efficiency.

4. CNC & PLC systems, CRT display, programming Microsoft based on WINDOWS platform, fast and

    convenient programming, and visual previewing.

5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry

    out programming off-site, direct copy or network transmission to the equipment to realize.

6. Each drilling head, equipped with professional main shaft speed-reducing- motor from famous products abroad.

7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.



3, Details of products:



Specifications:







Model				TSWZ1000	TSWZ1250
Workpiece size	H-beams Max. (web height×flange width) (mm)		Max.	1000x500	1250x600
			Min.	150x75
	(mm) Length	Auto feeding		≥3000
		Manual feeding		≥690
	Max. workpiece weight (kg)			5000	10000
	Thickness of web & flange (mm)			80
	Drilling dia.  (mm)	Vertical drilling		Φ12~Φ33.5
		Horizontal drilling		Φ12~Φ26.5
Spindles	No. of spindle			One spindle on each of three sides (top,left,right) Total: 3 spindles
	Rotation speed (stepless speed adjustment)(rpm)			180~650
	Max. feeding stroke (mm)			Left/right:140           up/down:240 or 325
	Feeding speed (mm/min)			20~300
	Movement of left/right spindle (mm)			Workpiece length direction:520
				Above vertical base-level:30~470	Above vertical base-level:30~570
	Movement of top spindle(mm)			In the direction of workpiece length:520
				Beyond horiizontal base-level:45~910	Beyond horiizontal base-level:45~1160
Overall dimensions (L×W×H)(mm)				4450x3050x3550	4850x3050x3550
Total power (kW)				28
Machine weight (kg)				Appr.7000	Appr.8500

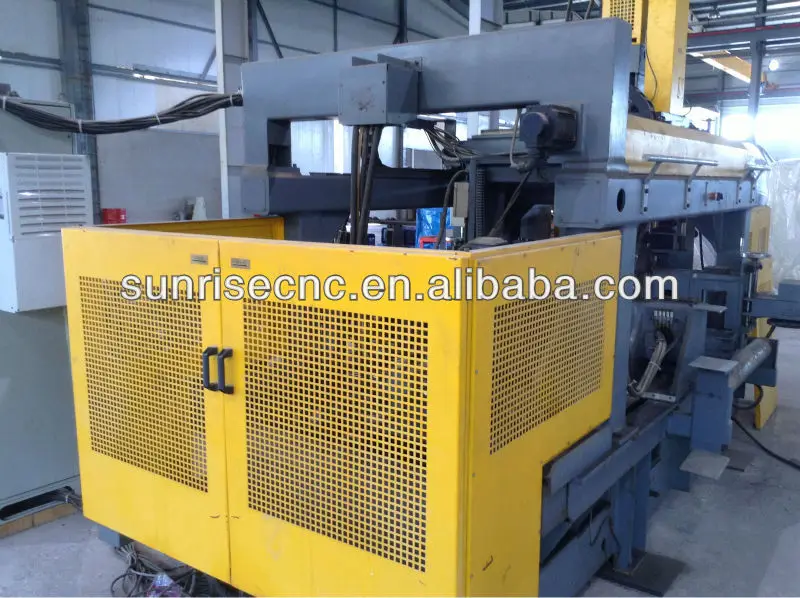

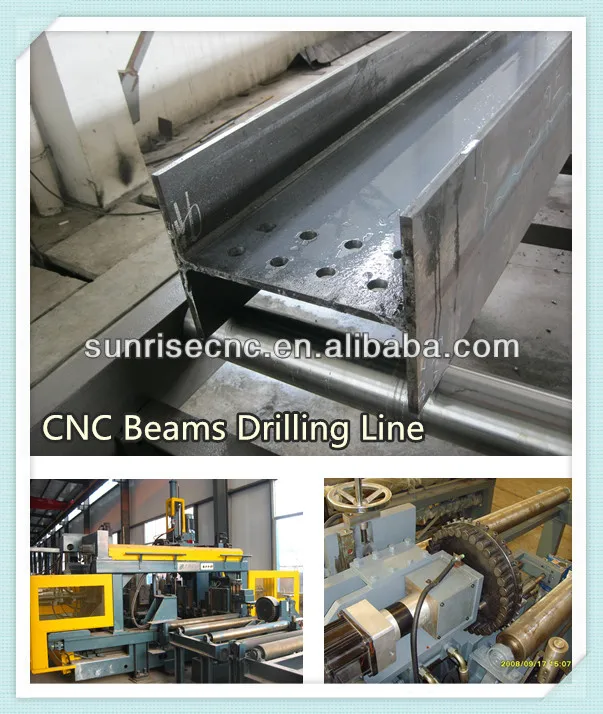

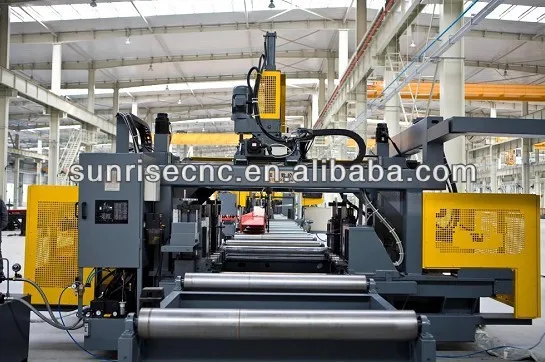

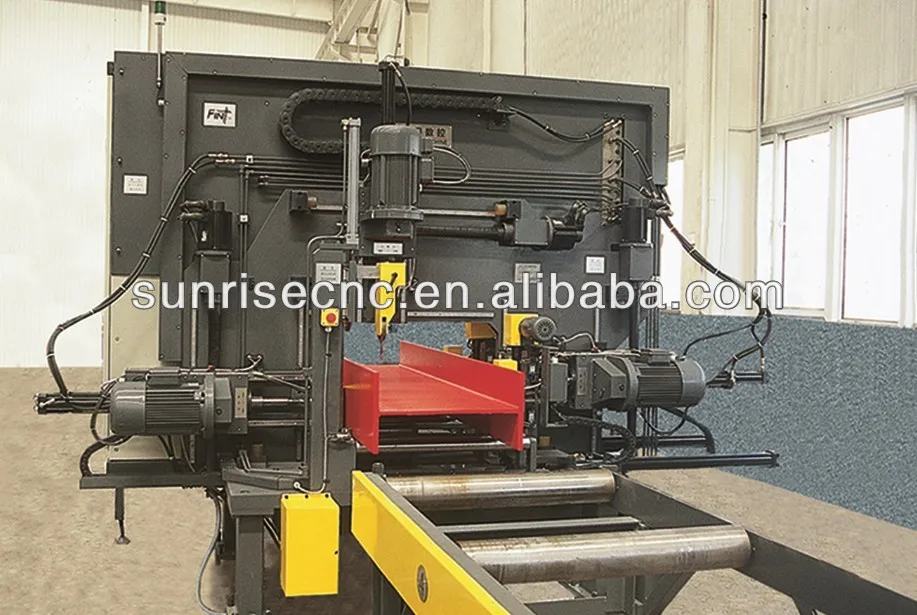

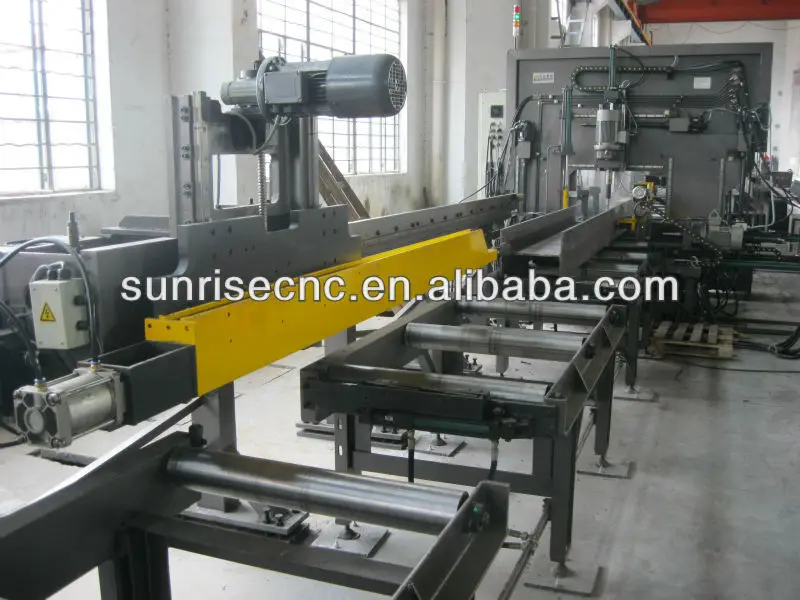

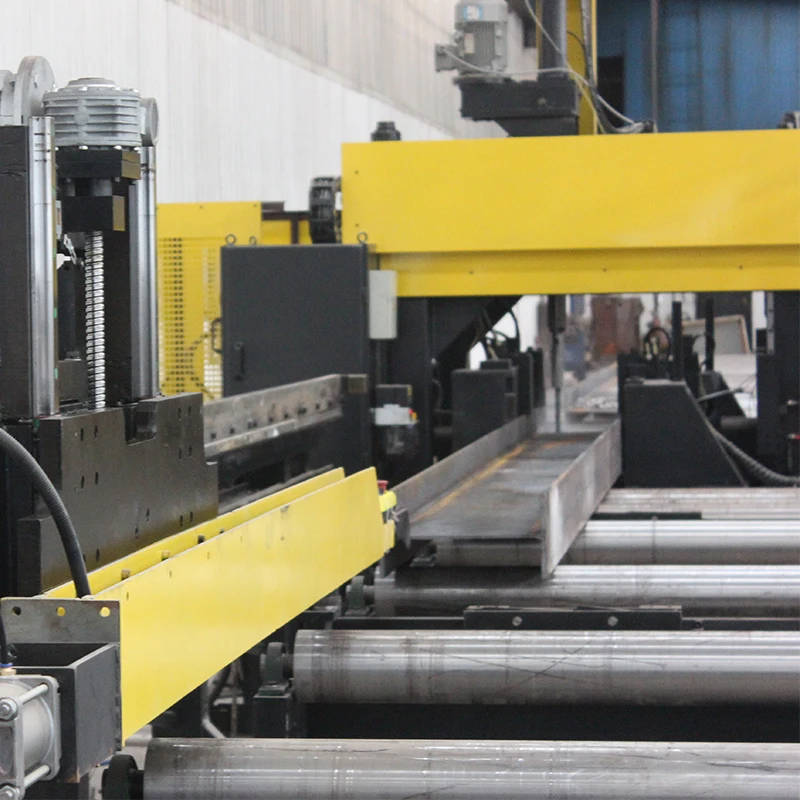

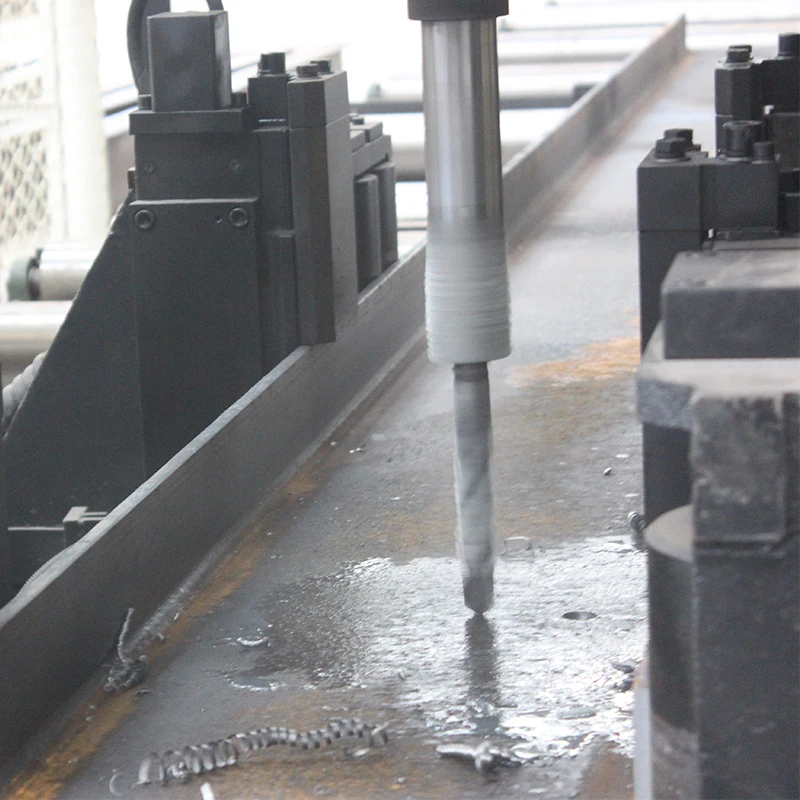

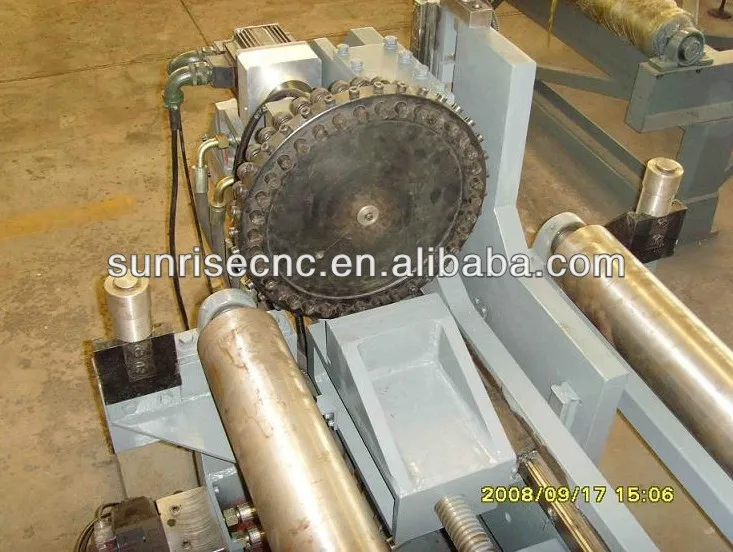

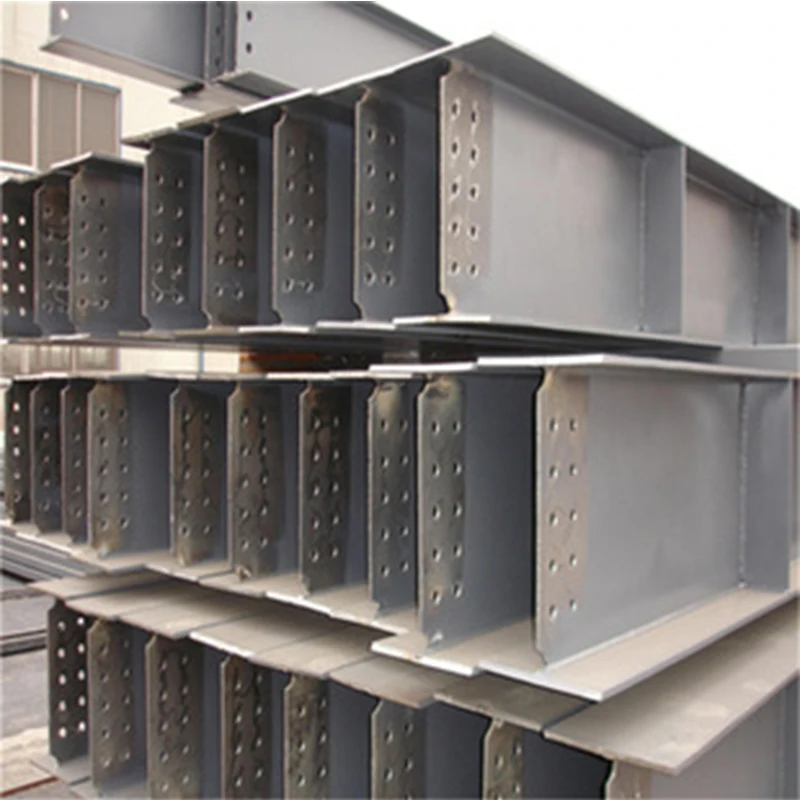

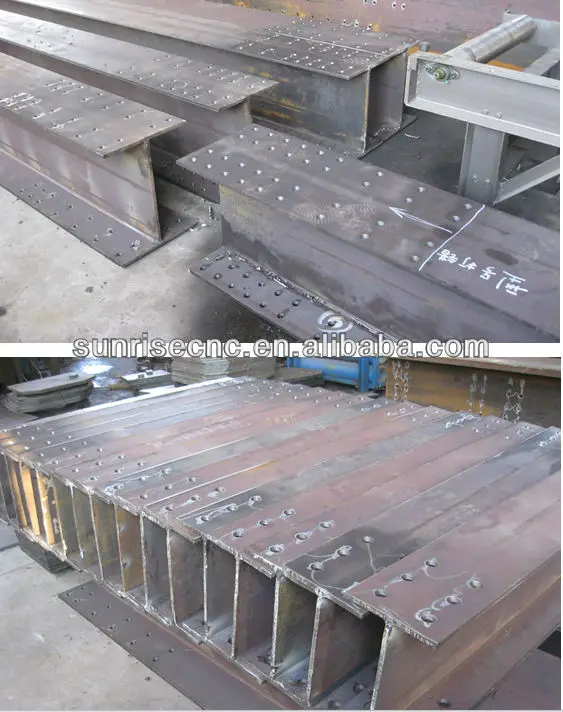

4,Pictures  Of  Products:

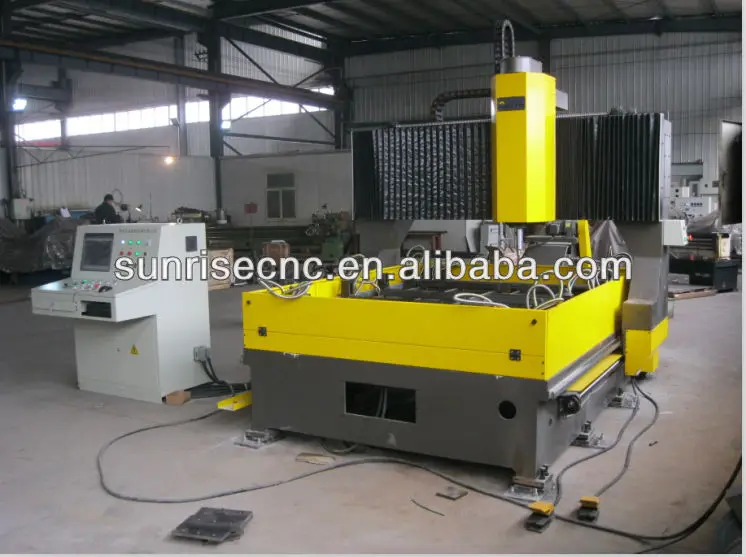

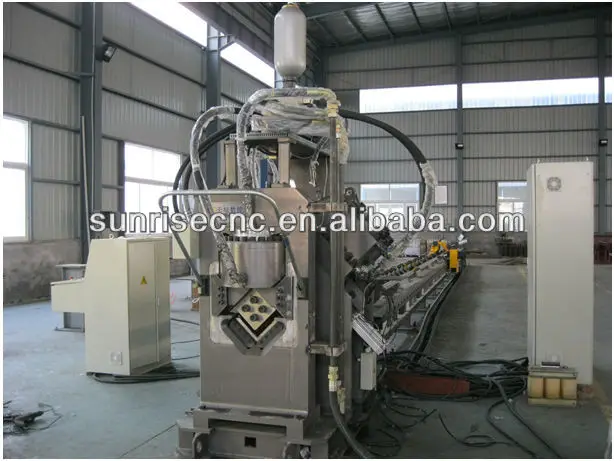

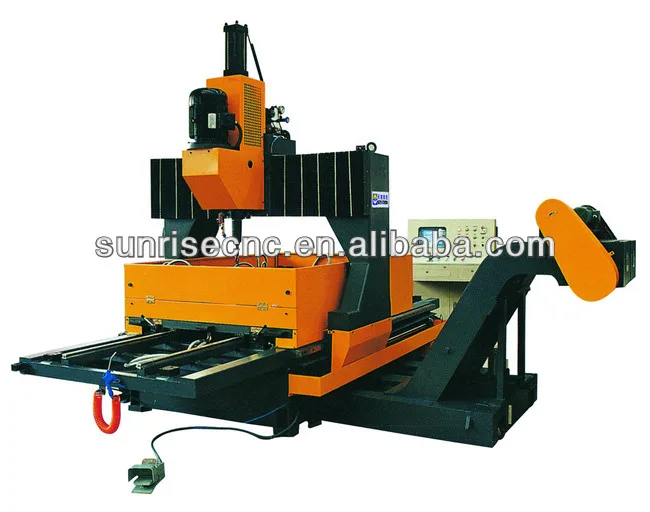

Others Products Of Our Company:
