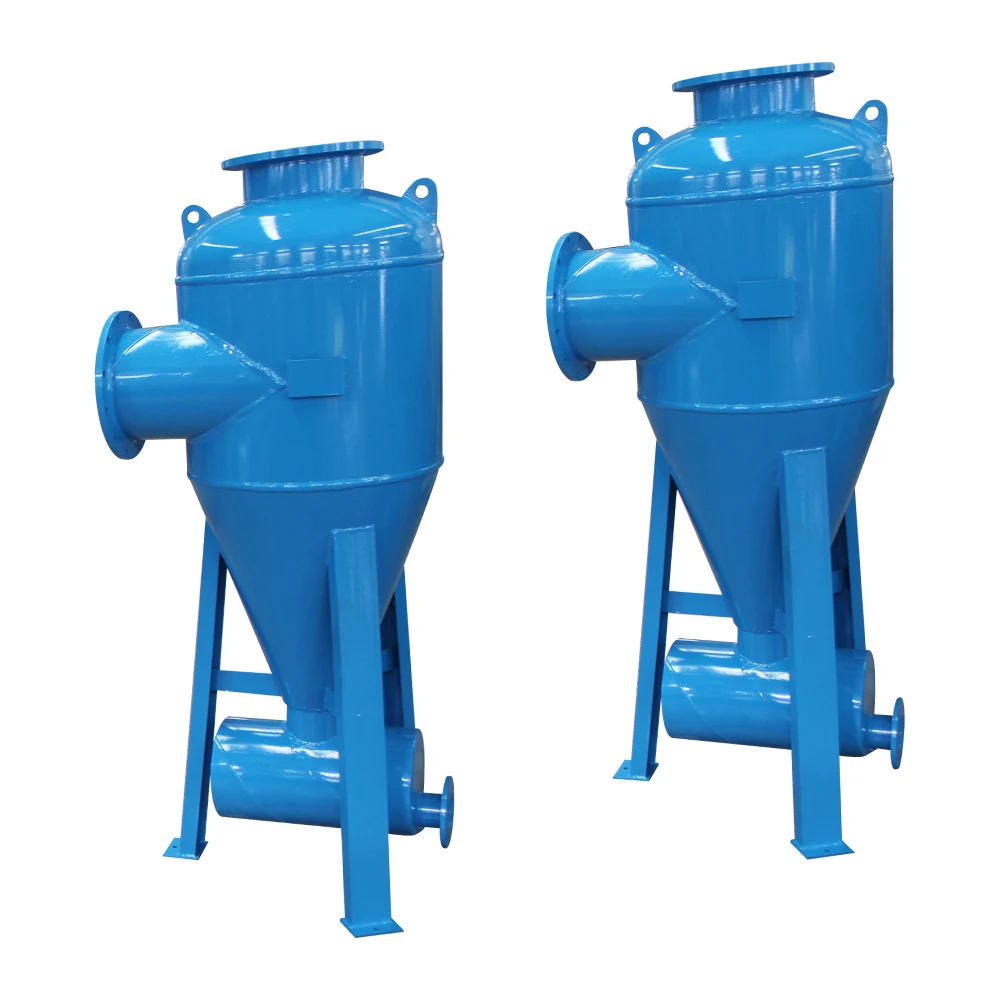

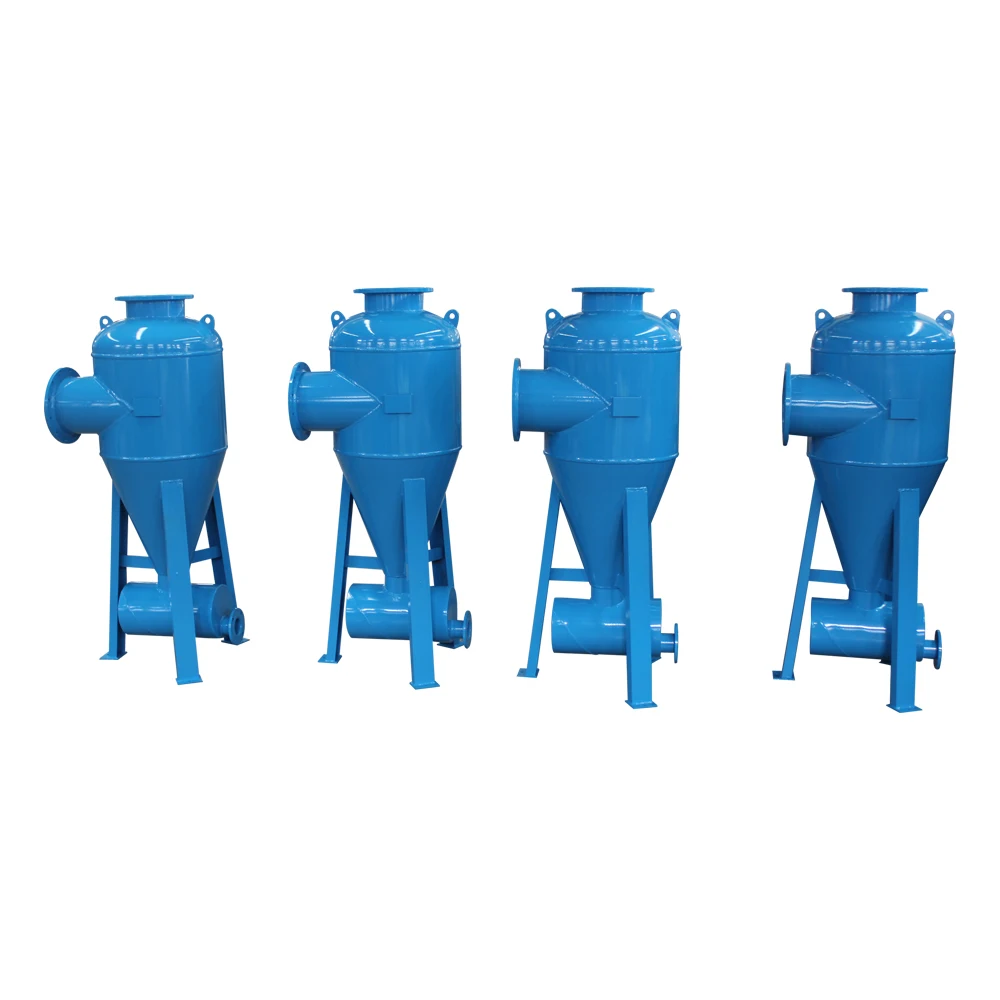

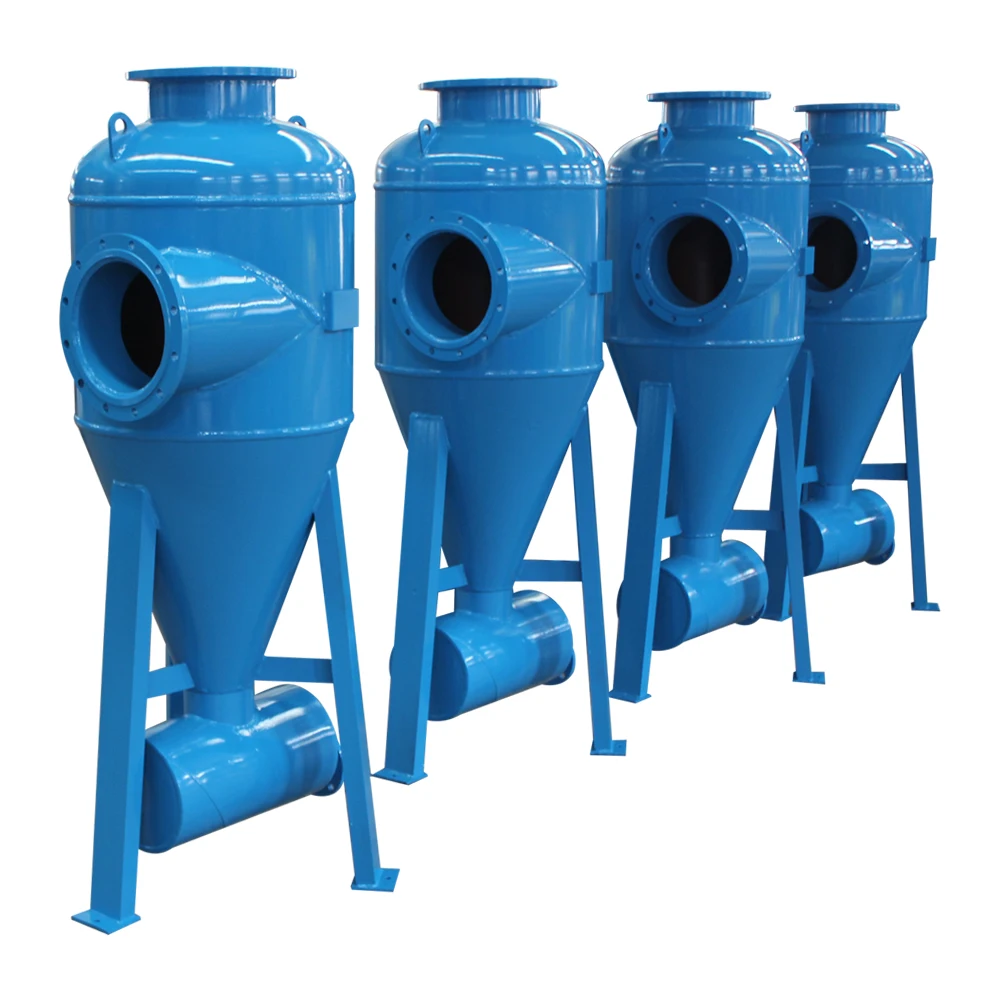

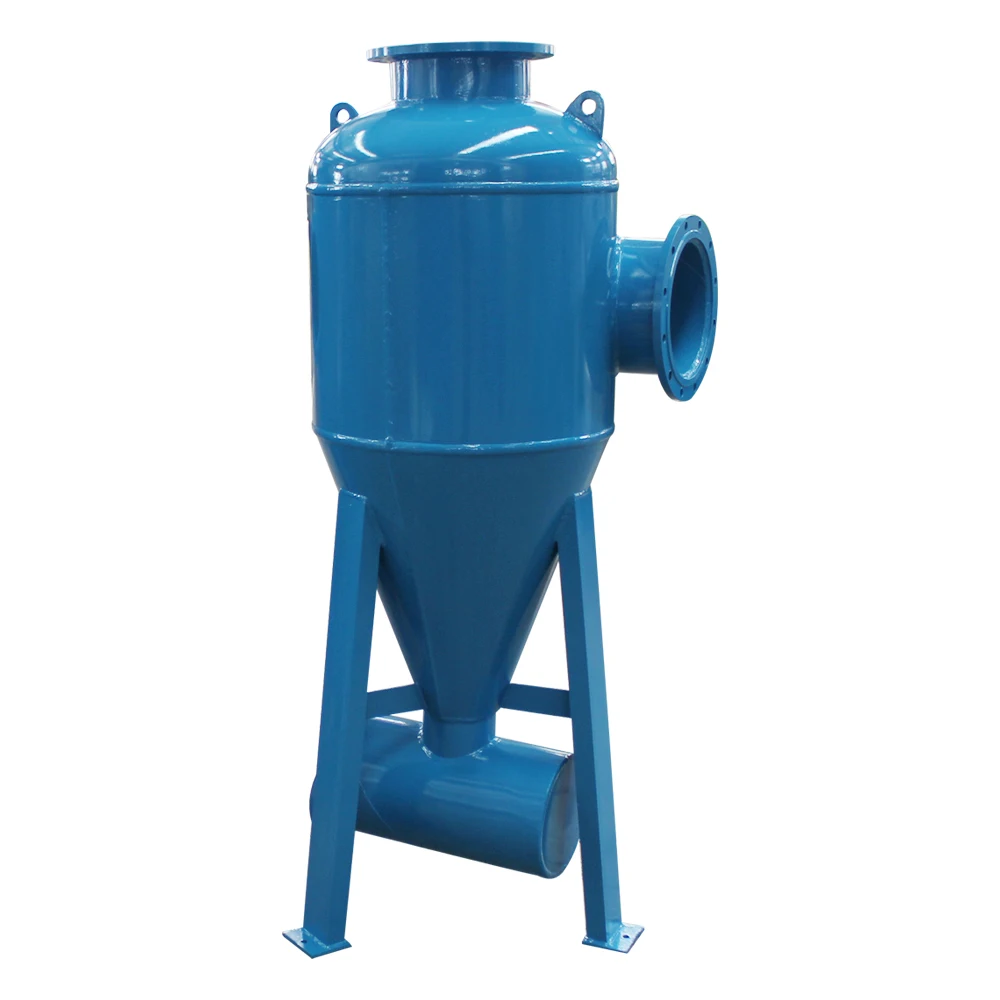

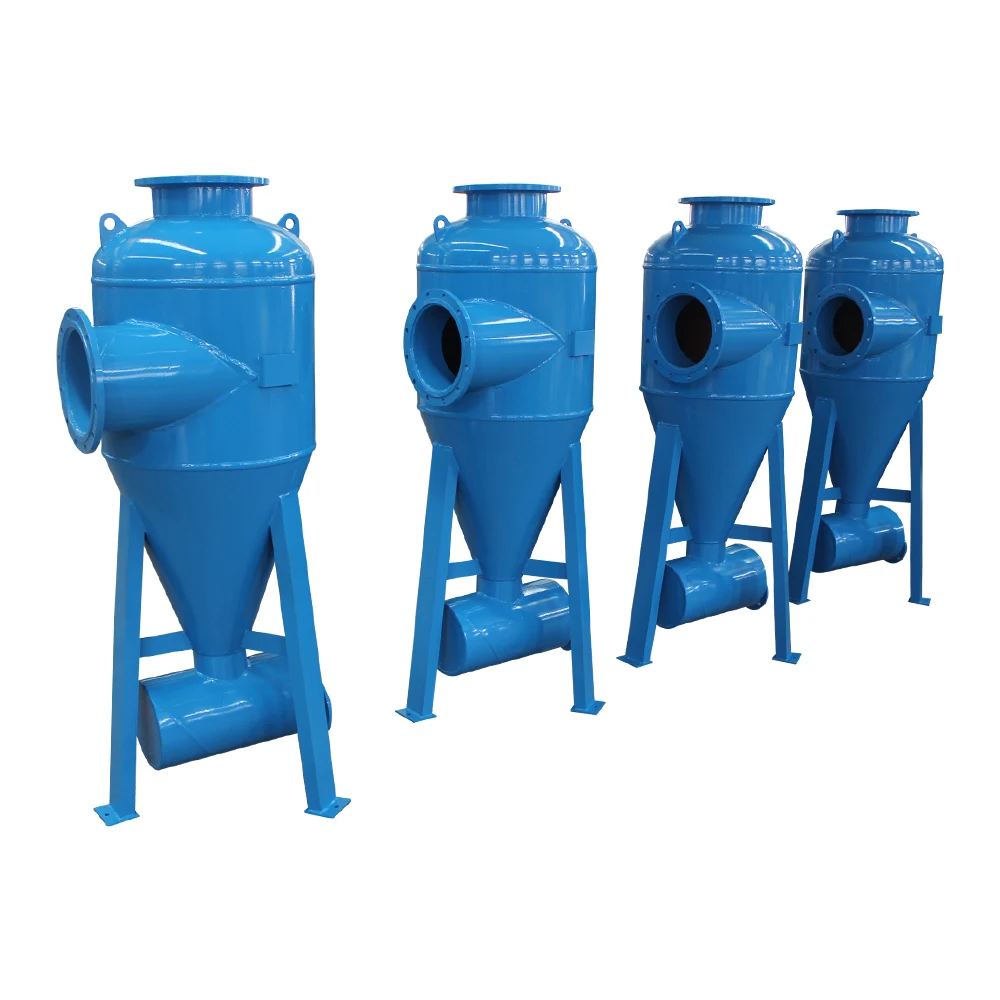

6 inch Hydro cyclone sand separator /centrifugal sand separator to separate sand from river water

Product Overview

Description

Cyclone Desander

Hydro cyclone Separators are effective in removing suspended particles from any flow stream of water where the specific gravity(density) of the particle(s) is heavier than the water it is in; the more significant the difference in the gravity between the water and the particle, the greater the efficiency of the removal process.  Depending on the specific gravity of the particle and the viscosity of the flow stream, very small and denser particles can be removed.

NOTE: Particulate removal can be enhanced if multiple passes of the stream can be achieved.

Consider a separator's use where any source of water contains contaminants with a weight of 2.6 specific gravity or higher, such as well water to remove sand.  Separators are also excellent for use as a pre-removal device for filters with river or ditch water that contain high levels of sand or other large organic debris.

Applications would include, but not be limited to, wells, industrial processes, water recycling and reuse, river and ditch water intake systems, food processing nozzle systems and irrigation water.

An automatic purge controller and valve can be used on all applications.  This eliminates the need for manual flushing, turning the separator into an automatic system.

Small separators can be wall mounted, hung on the main piping, or placed on legs if desired.



How it Works

Liquids and solids enter the unit and begin traveling in a circular flow.  This centrifugal action forces heavier particles downward in a spiral motion to the separation chamber. The particles collect in this separation chamber and are purged from the system. The filtered water is drawn to the separator’s vortex and up through the outlet.









YLXC type cyclone sand filter integrates cyclone and filtration.

it mainly used to remove the groundwater and underground water and other solid particles in water,

and are suitable for water source heating pump system,central air conditioning cooling water,

chilled water system,winter heating circulating water systems and industrial cooling water system.

It also widely used in chemical industry, environmental protection, food industry, medicine and many

other industrial areas,and it shows remarkable effect in the field of water treatment for sand removal,

turbidity and solid-liquid separation.

 working principle



YLXC type cyclone sand filter designed according to the principle of centrifugal sedimentation and

density difference,When the water flow is under certain pressure ,it will flow the sand filter and make

a tangential entry into the device and produce violent swirl, because of the different density in sand

and water ,under the action of centrifugal force, centripetal buoyancy,and flu
