Product Overview
Description
NO. | ITEM | DETAILS | REMARKS |
1 | Steel structure | Hot-galvanized steel pipe | 275g/m2 |
2 | Roof cover | Plastic Film/PC Sheet/Glass | According to clients' requirement |
3 | Wall | According to clients' requirement | Built by clients/our side |
4 | Outer shading system | Sunshade net with different light transmission | Optional |
5 | Inner shading system | Sunshade net with different light transmission | Optional |
6 | Inner warming system | Install a thin film inside the greenhouse. it can keep warm | According to clients' requirement |
7 | Cooling system | Cooling fans and cooling pad | According to clients' requirement |
8 | Ventilation system | Top & side window | According to clients' requirement |
9 | Heating system | 1.Boiler warming: boiler and water warming blower. The boiler type has gas boiler, coal boiler, oil boiler and bio fuel boiler, and gas/oil boiler. 2. Electric warming: only has electric warming blower | Optional |
10 | Irrigation and fertilization system | Drip irrigation or spray irrigation system based on different crops growing. | According to clients' requirement |
11 | Light compensating system | High - pressure sodium lamp, or LED lamp | According to clients' requirement |
12 | Seedling bed System | Using for seedling | According to clients' requirement |
13 | Soilless culture | Hydroponics system | NFT types, DFT type and Dutch bucket type,etc |
14 | Power distribution system | control cabinet | Optional |
15 | Other equipment | According to clients' requirement | Optional |
Details Images

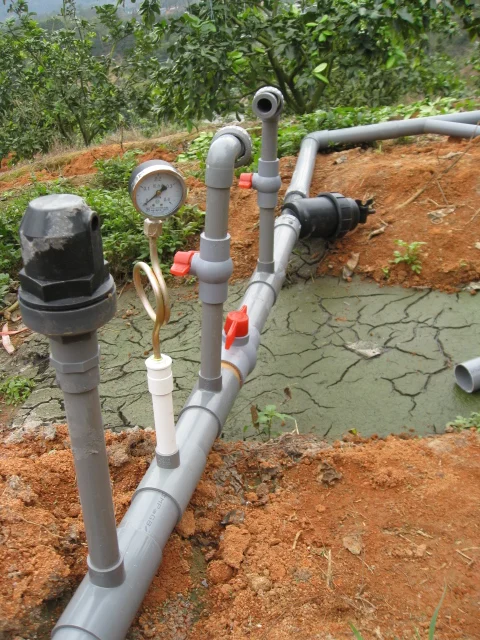

Head System

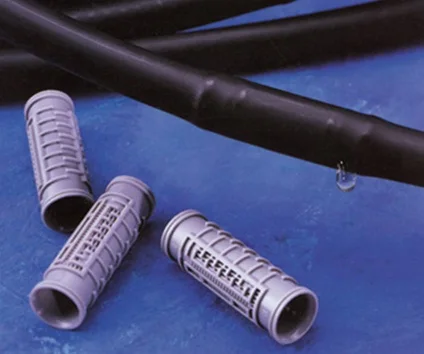

Irrigation system, including the water pipe, PE tape, normal filter
Irrigation Types-----3 Options | ||||||||
1-Misting Irrigation System | ||||||||
2-Sprinkler Irrigation System | ||||||||
3-Dripping Irrigation System | ||||||||

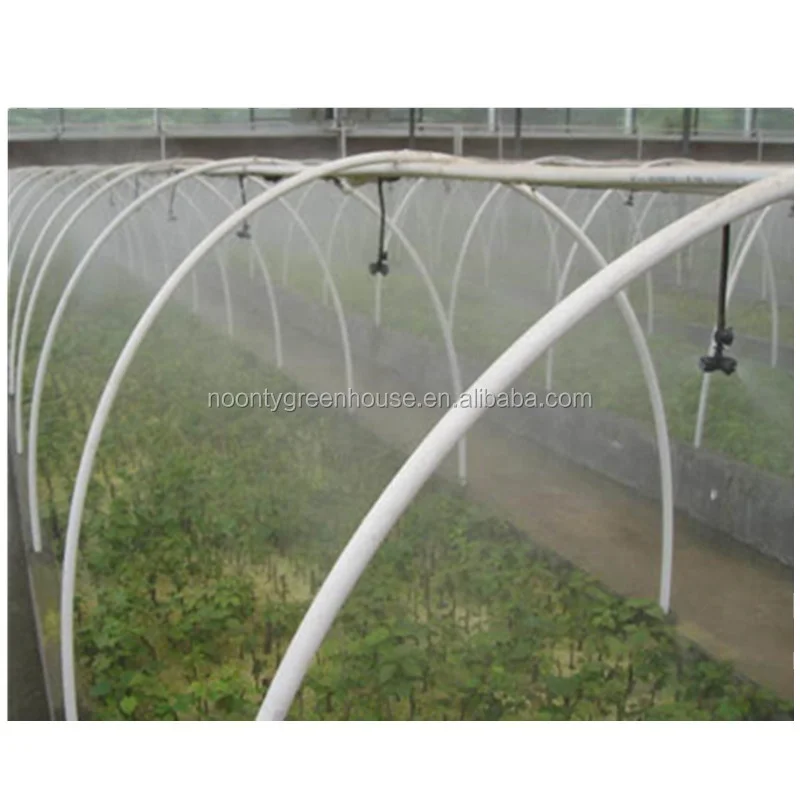

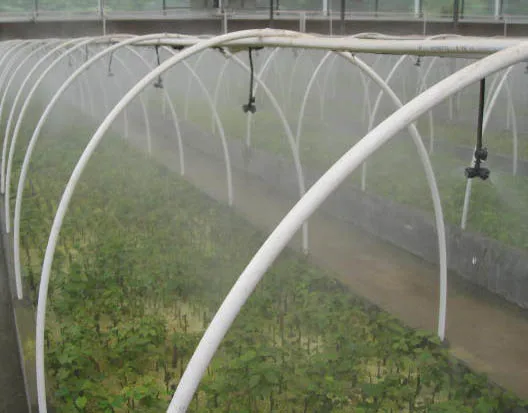

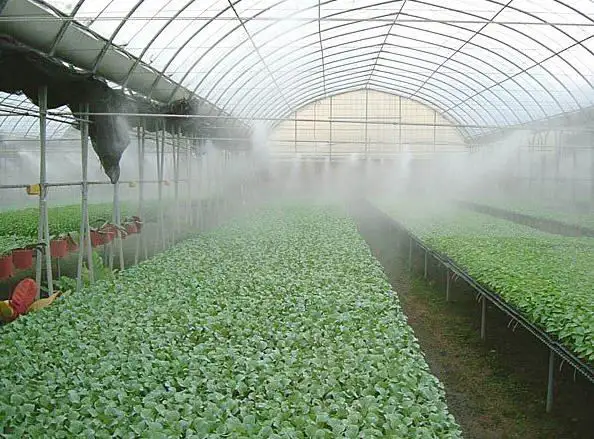

Misting Irrigation System
Sprinkler Irrigation System

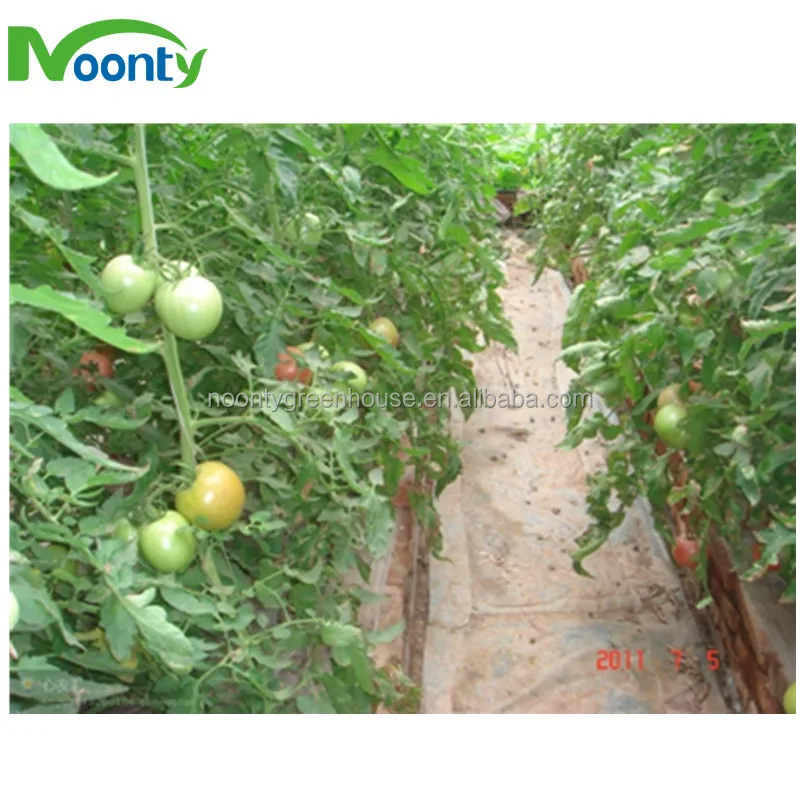

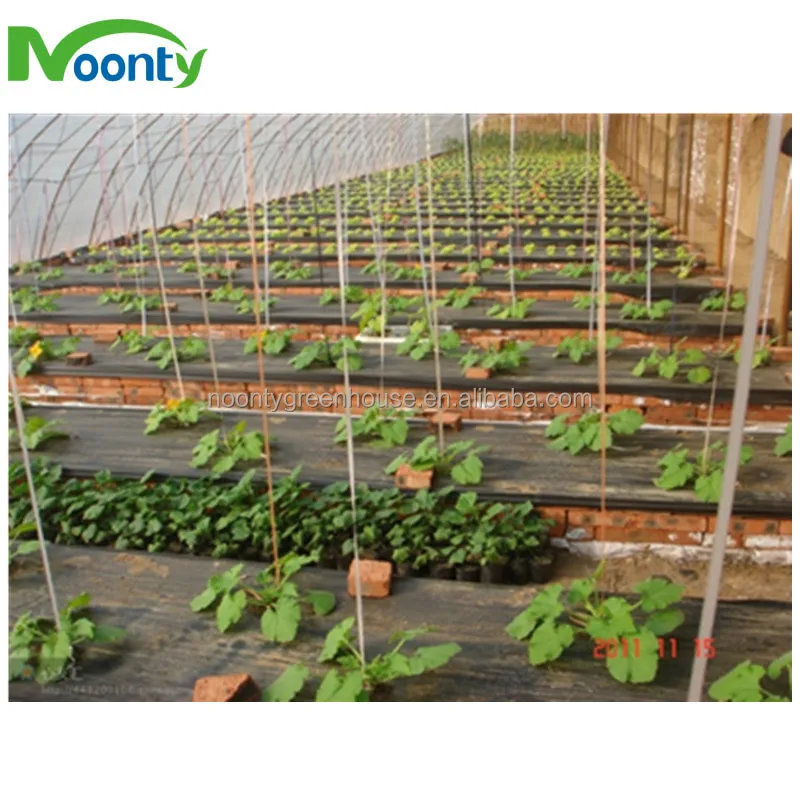

Dripping Irrigation System

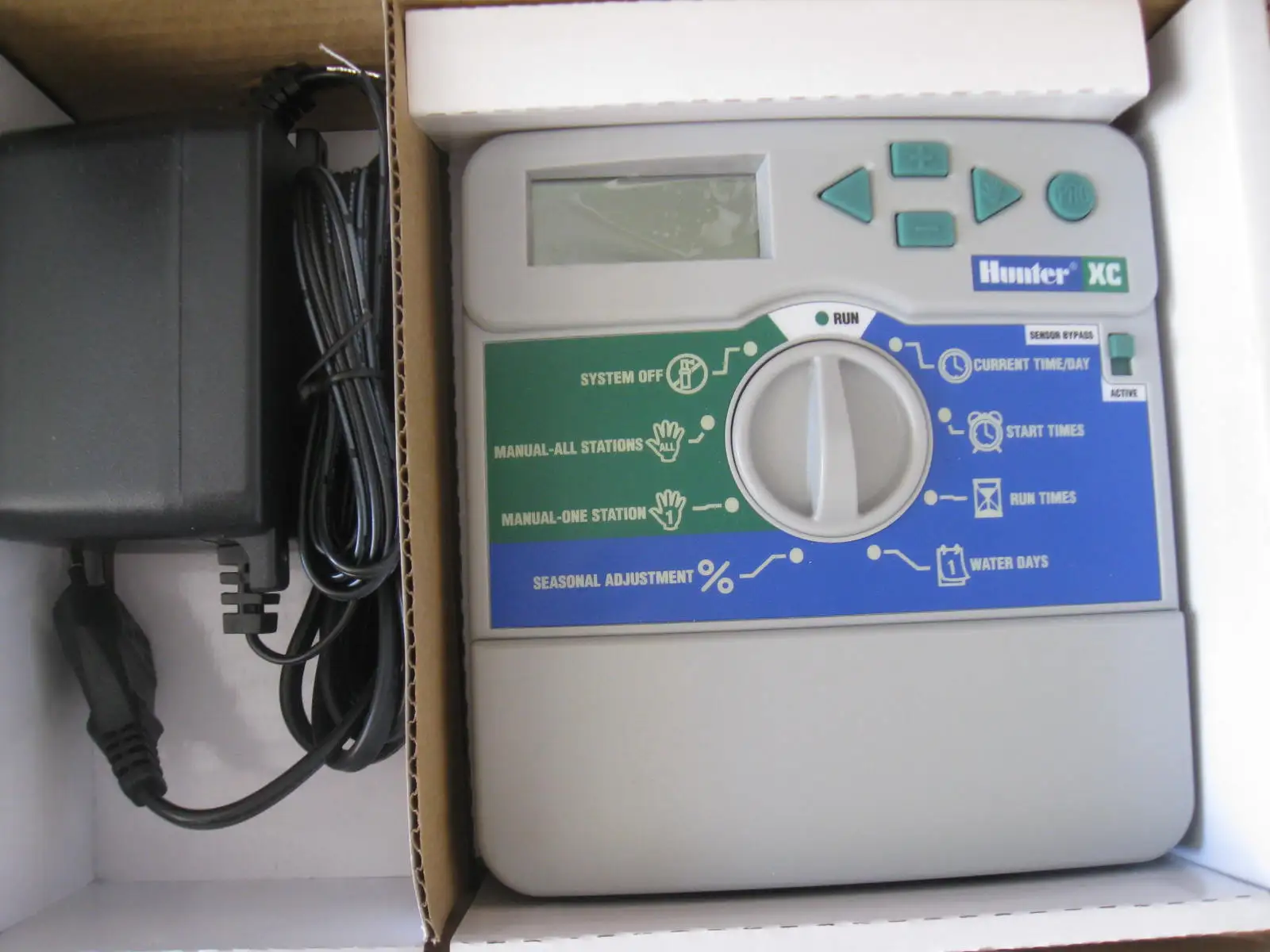

Auto Timing
Fertilization System----Simple Type

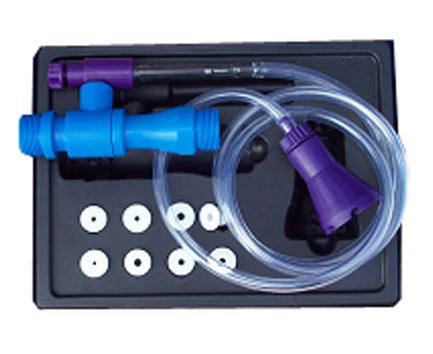

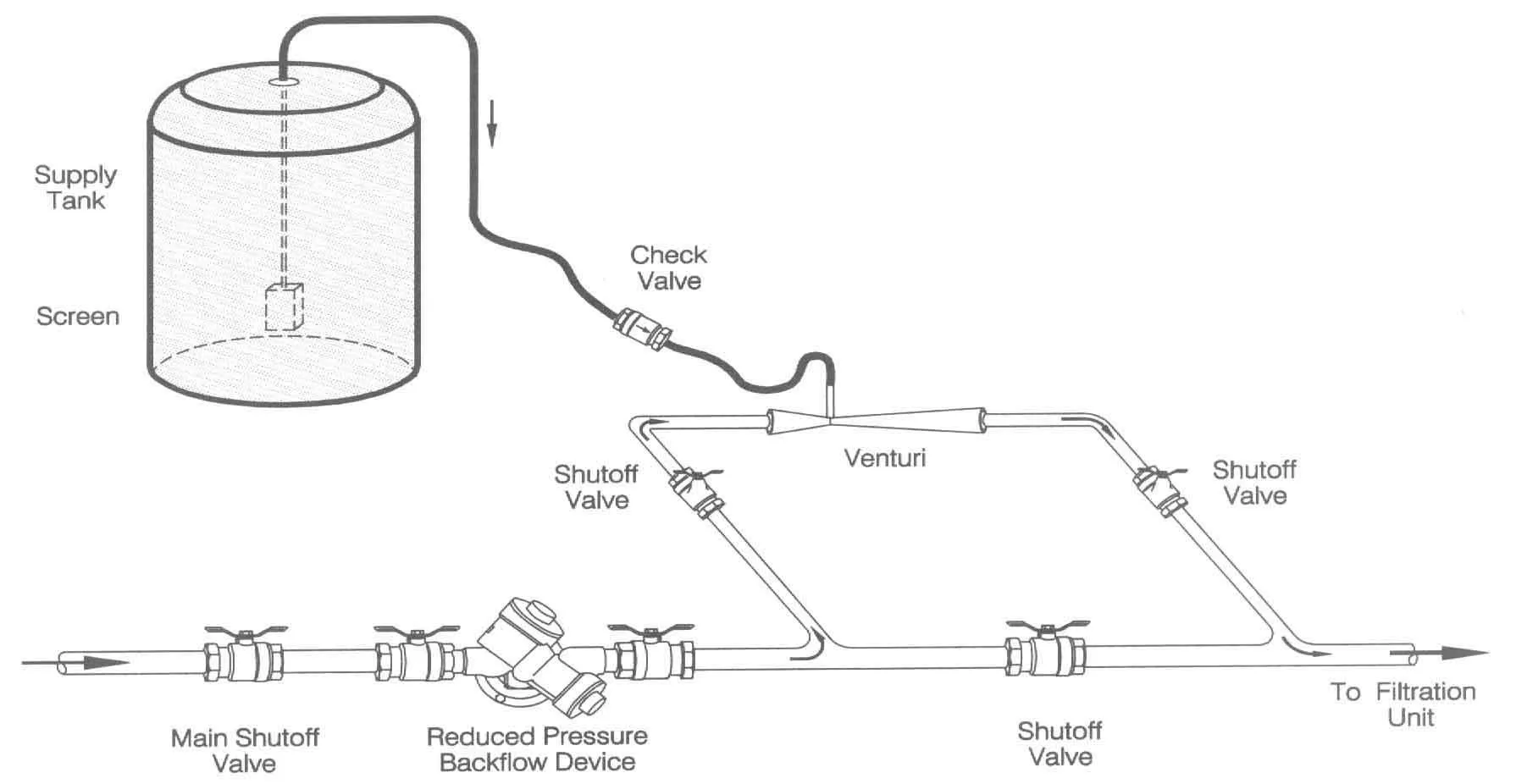

Venturi Fertilization Machine offered
Conncetor: 1”
Working Pressure:1-4bar
S(L/H):6-156L/H
Working Pressure:1-4bar
S(L/H):6-156L/H
Fertilization Pumps
Order Model Connector Size Flow （L/H） Pressure（bar） Proportion
1 2502B 3/4’’ 20-2500 0.2-5.0 0.3%-2%
2 2504B 3/4’’ 30-2500 0.2-5.0 0.4%-4%
3 2502P 3/4’’ 20-2500 0.2-8.0 0.3%-2%
4 2504P 3/4’’ 30-2500 0.2-8.0 0.4%-4%

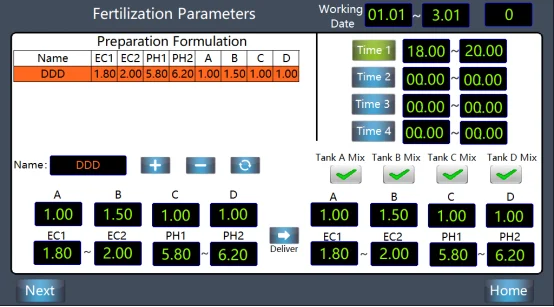

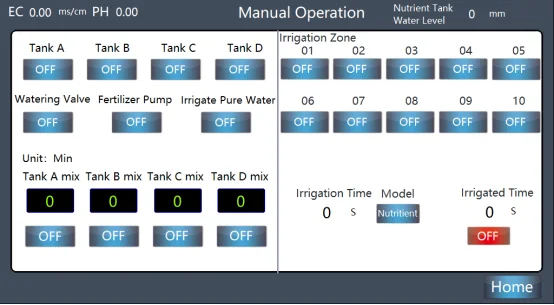

Depending on the water recycle system, we offer automatic and manual for options. EC and pH are controlled automatically. Key Features 10’ HD touch screen 90 planting categories & 540 nutrient formulas With filtration system and high sensitively sensors Data can be exported Alarm setting for water level, Auto-refill Auto adjustment for EC & pH Emergency stop.

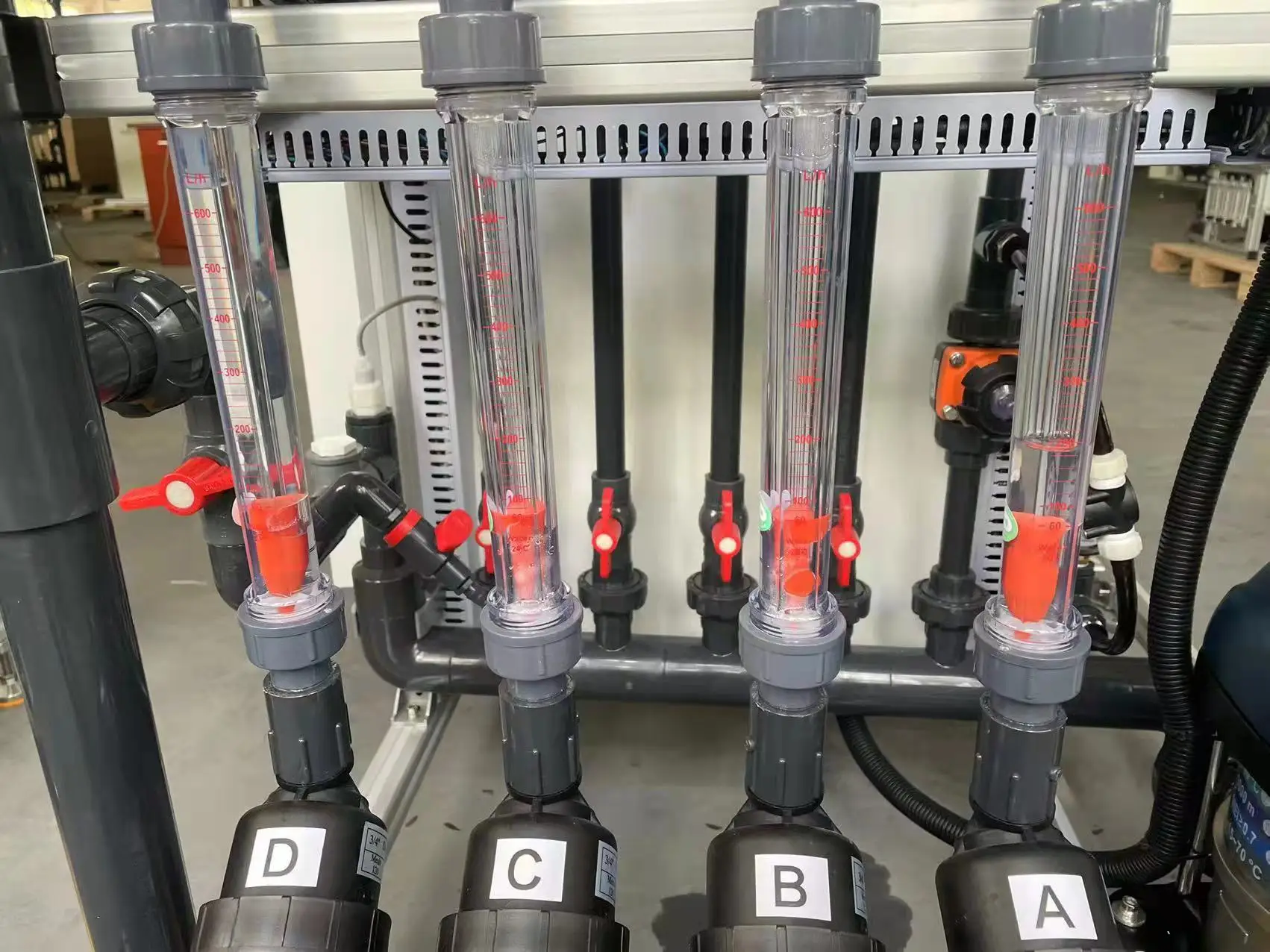

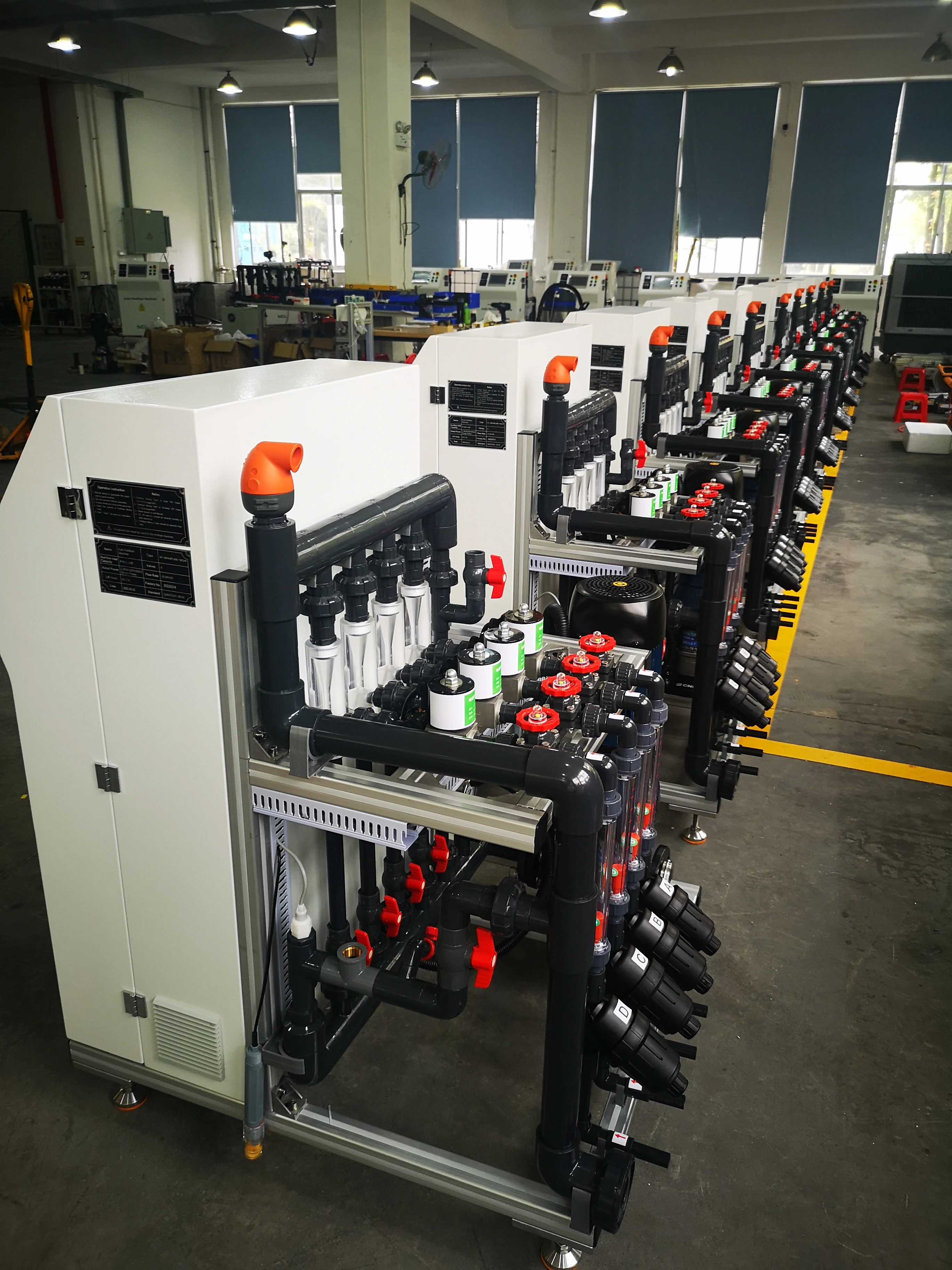

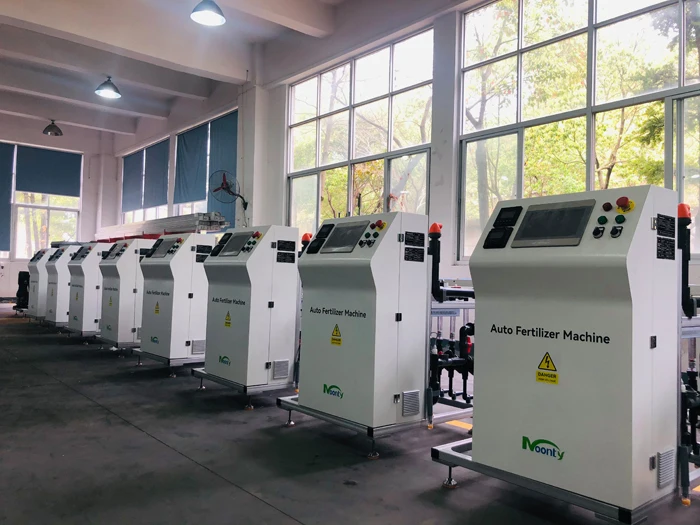

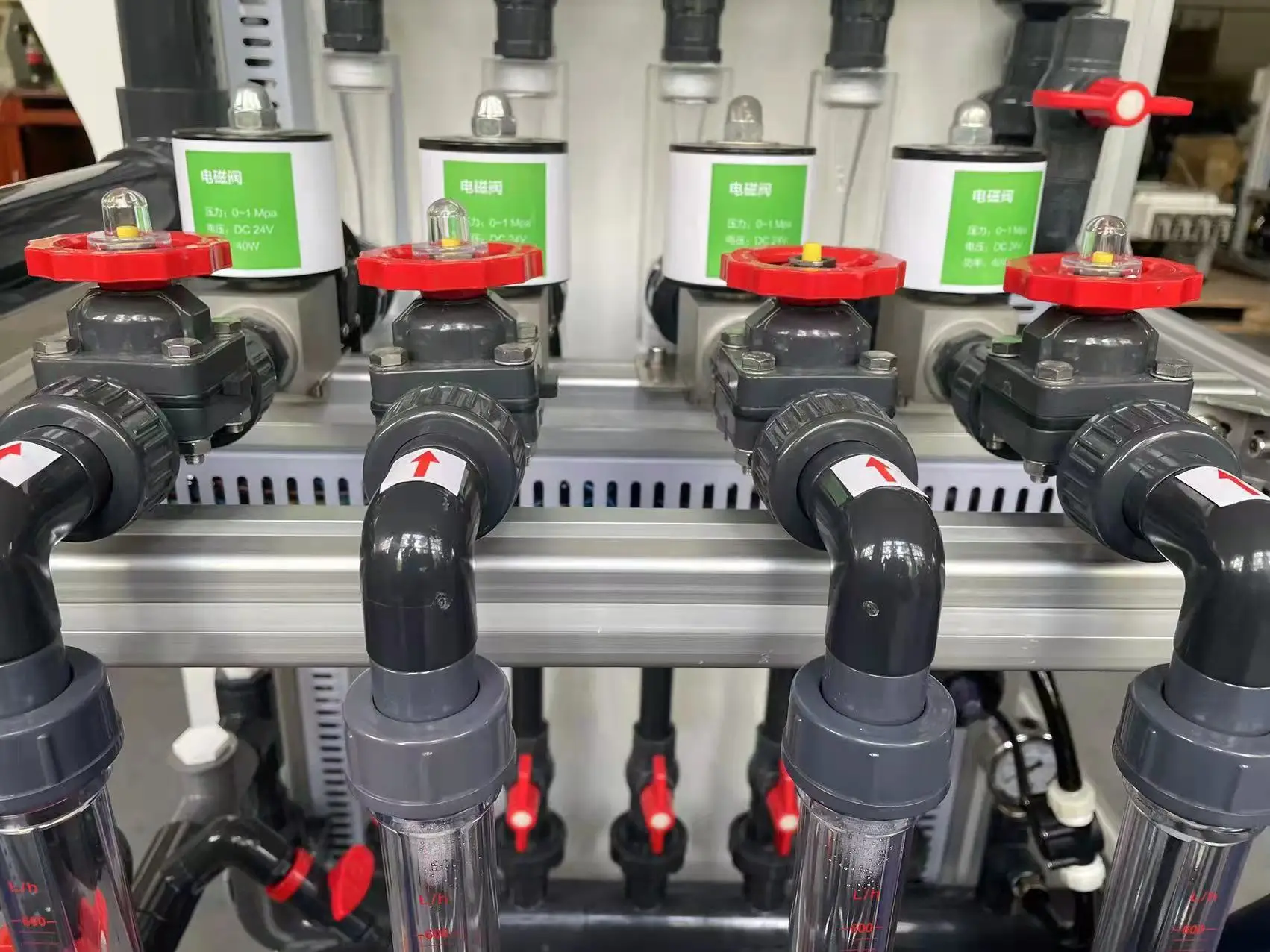

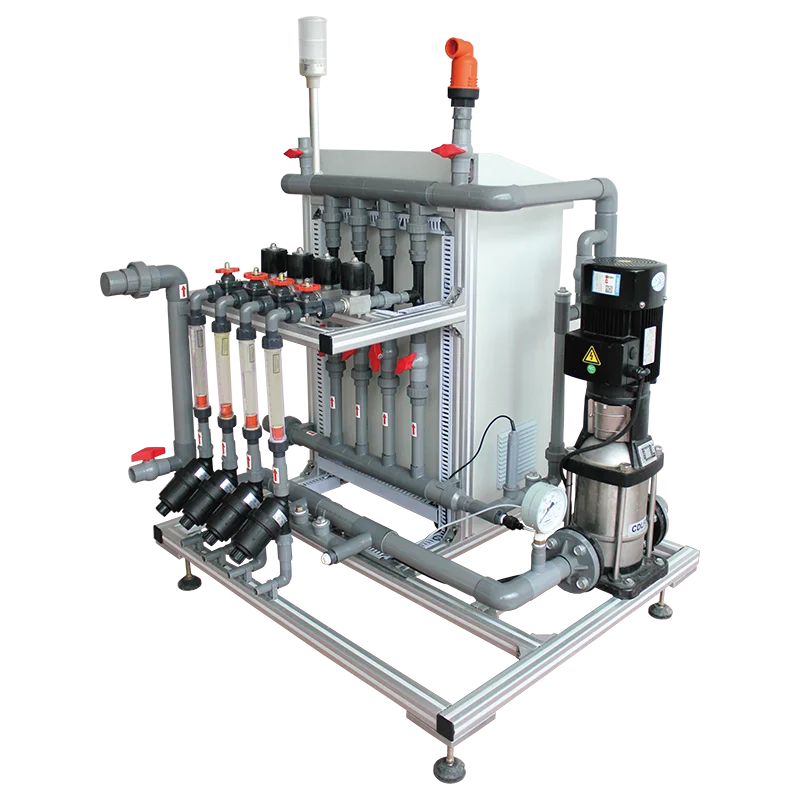

Fertilizer Irrigation System-01
Fertilizer Channels: 5* 600 L/h; Channel *9
Irrigation Valve: AC24*28
Working Voltage: 380 50HZ
Control: App; PC and loT
Rated power: 2.2 kW
Mixing Pump: 10/15/20 m3/h
Inlet and outlet: DN40 PVC
Size: 1200*1100*1300mm
Fertilizer Irrigation System-02
Fertilizer Channels: 4*400 l/h; 4*1.1 l/min
Irrigation Valve: AC24*12/8Working Voltage: 380V/220V 50HZ
Control: App; PC and loT
Rated power: 2.2 kW/0.55kW
Inlet and outlet: DN40 PVC/DN25 PVC
Size: 1120*1100*1500mm/400*600*1200mm
Company Profile
Is the Mother Company of Noonty Greenhouse Company Limited, which is specialized in greenhouse and hydroponics industry.
Greenhouse types we offer include Single Tunnels, Gothic Multi-span Plastic Film Greenhouses, Double-layer Warm-keeping Greenhouses, Saw-tooth greenhouse, Venlo Polycarbonate,Venlo Glass Greenhouse, Light Deprivation Greenhouse, etc.
Our Advantages
Team Appearance
Customer Photos
Product packaging
FAQ
Q: How could we get the quotation?
A: Agriculture Greenhouse is customized based on detailed climate condition, land area prepared for the greenhouse,etc.
Q: How could we assemble the greenhouse?
A: Greenhouse is prefabricated and no welding is required. Detailed drawing and assembly manual will be offered for each order.
Q: Is engineer supervision available for greenhouse assembly?
A: Yes,engineer supervision is available to send to the project within customers requirement.Two-way tickets,local accommodation and salary is arranged by customer.
Q: What is the delivery time?
A:Usually about 25days to 60days based on greenhouse design and size.
