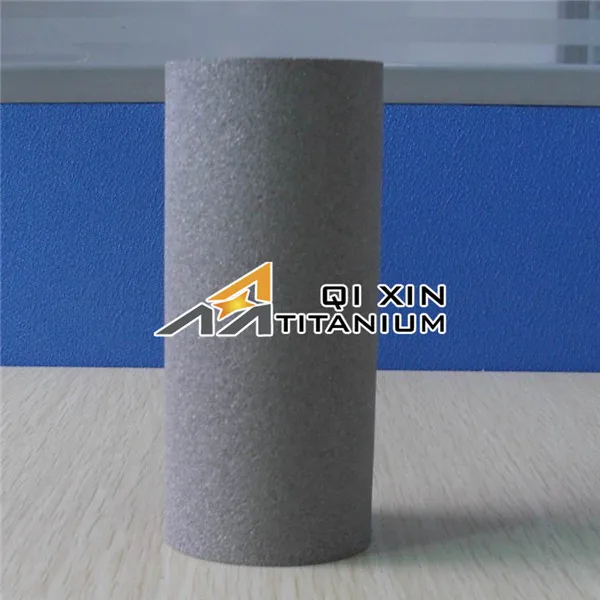

Pool Filter Cartridge Porous Sintered Stainless Steel Filtration SUS316L Mesh Pleated 0.2um 80um Anti acid 316,316L Cylinder SGS
- Category: >>>
- Supplier: Baoji Qixin Titanium Co. Ltd.
Share on (1786242782):
Product Overview
Description
Product Description
Item Name | Porous Sintered Stainless Steel Pool Filter Cartridge | |
Porosity | 28%-50% | |
Material | 304L,316,316L,317L,410L,430L,434L | |
Aperture | 2.5-160μm | |
Filtration precision | 0.2μm-80μm | |
Filtration Efficiency | 98% filtration accuracy under: 0.1 - 80 μm | |
Compressive Strength | 3.0Mpa/cm2 | |
Shape | Tubular, Plate, Bar, Disc, Strip and so on. | |
Specification(mm) | Thickness | 0.5-20 |
Width | Less than 250 | |
Work environment | Nitric acid, sulfuric acid, acetic acid, oxalic acid,etc. | |
Specification | ||||||
Filtration class | Filter rating (µm) | The max diameter of hole (µm) | Permeability (m3/h.m2.kpa) | Pressure- resistance (Mpa) | Temperature-resistance (°C) | |
Volume tube welding | Seamless tube | |||||
S1 | 65 | 160 | 1300 |
| 3.0 | 600 |
S2 | 40 | 100 | 800 | 0.3 | 3.0 | 600 |
S3 | 28 | 60 | 350 | 0.3 | 3.0 | 600 |
S4 | 10 | 30 | 160 | 0.3 | 3.0 | 600 |
S5 | 5 | 15 | 40 | 0.3 | 3.0 | 600 |
S6 | 2.5 | 10 | 10 |
| 3.0 | 600 |
S7 | 1.5 | 6 | 5 |
| 3.0 | 600 |
S8 | 0.5 | 4 | 3 |
| 3.0 | 600 |

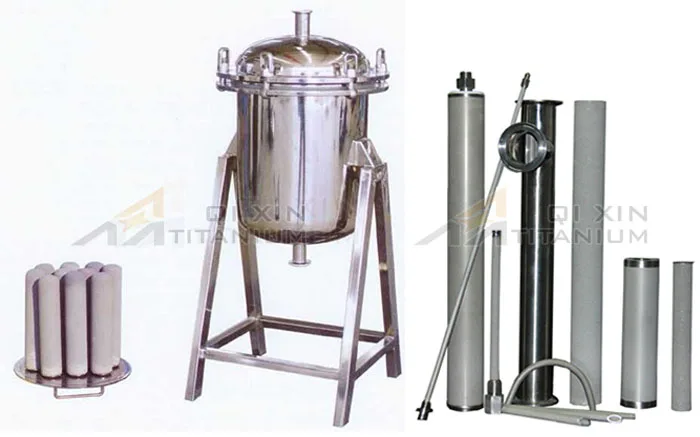

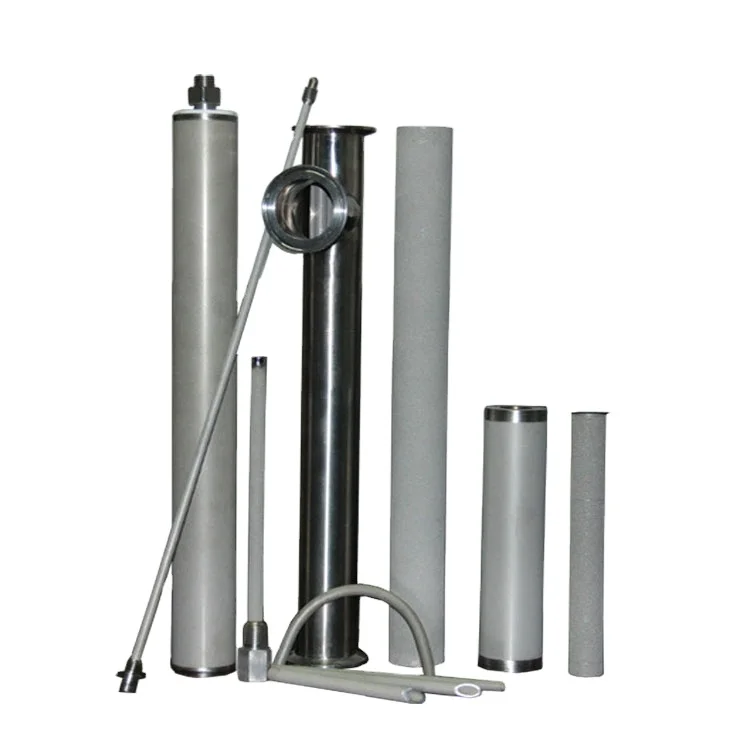

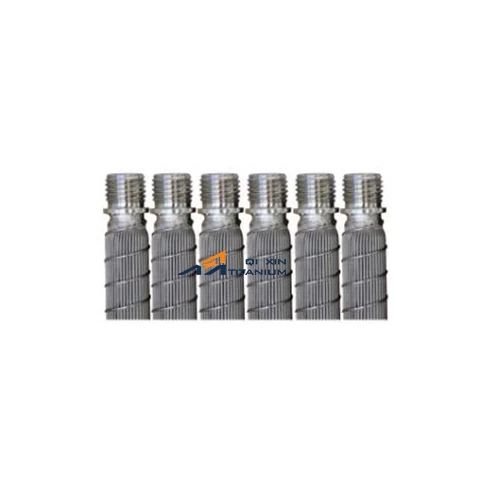

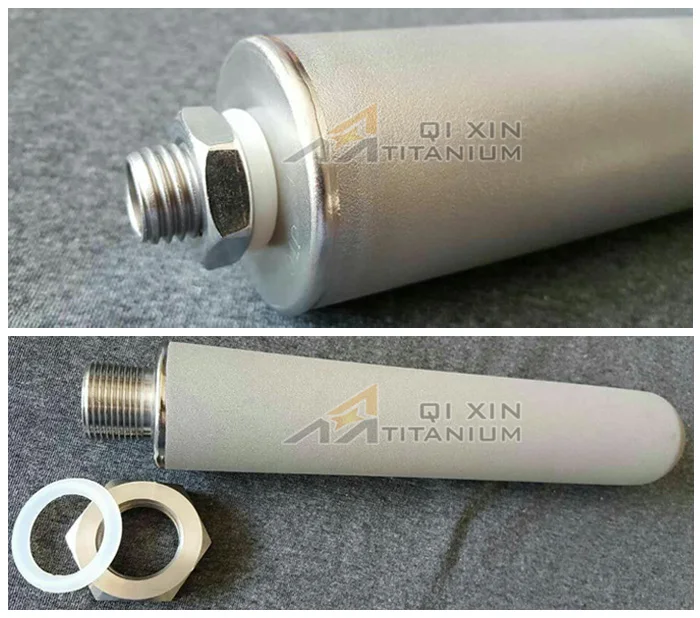

Product Show
Advantages |
1). High mechanical strength: thus can support high working pressure. |
2). Filter rating from 0.5µm to 80µm. |
3). Heat & corrosion resistant: working temperature from -200°C to 600°C, resistant to chemical corrosion. |
4). High dirt capacity, stable flow rate, which provides higher working efficiency. |
5). Washable & reusable, provides u longer service life, and saves operating costs. |
6). Easy process, can be machined into different shapes and sizes, thus can satisfy with customers’ different needs |
The size range (1)The disc:3*300mm(max) (2)The plate:3*300*1000mm(max) (3)The tube:OD:<=150mm ; WL:2-3mm/5mm/10mm ; L:depend on OD, max.=1000mm |
Packing & Shipment
Packaging: plastic or paper inside, carton or plywood box as outside, or as clients' requirements. |
Company Information
| Our Advantage |
| 1. Main quality indicators: Titanium substrate, precious metal ratio, accelerated life, coating binding force to the titanium substrate (coating adhesion) |
| 2. Technical Standard Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Flaring test and so on. |
| 3. Certification: ISO9001, SGS, PED. |
| 4. Advanced technology and equipment, abundant experiences and skilled workers, during the production , each process must be strictly supervised and tested. |
| 5. Own R&D, production and sales department, we always struggling to supply the product with the most excellent quality and the most favorable price and supply the most favorable price and supply the most efficient service. |
6. Each production process are looked at to make sure the specifications and performance are qualified. |
7. The original Mill Test Certificate is available to be attached to the delivery. |
8. We can accept the third party certificate if the custom need. |
Please send the Inquiry to us.
