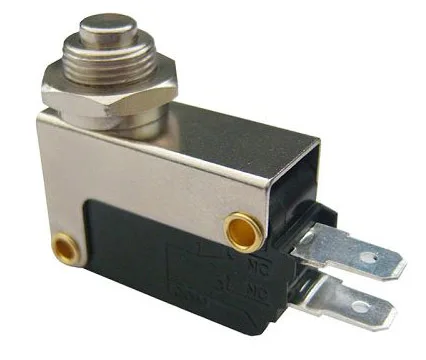

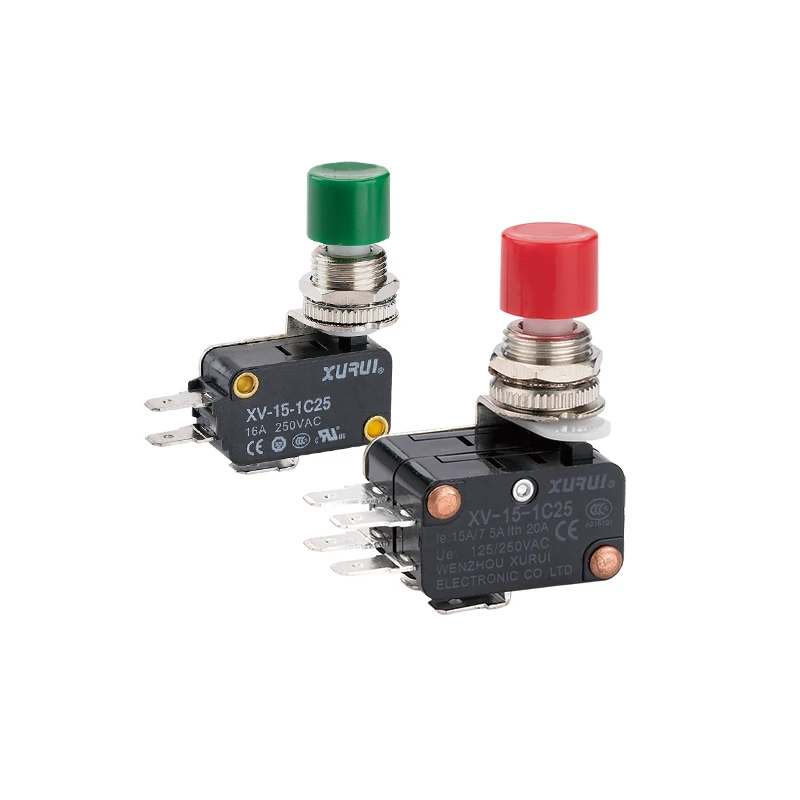

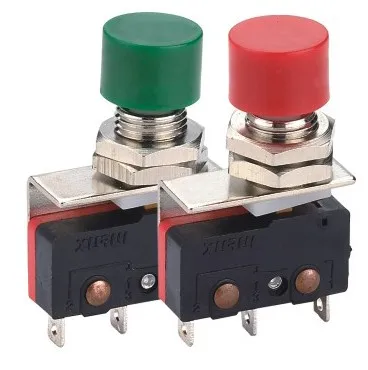

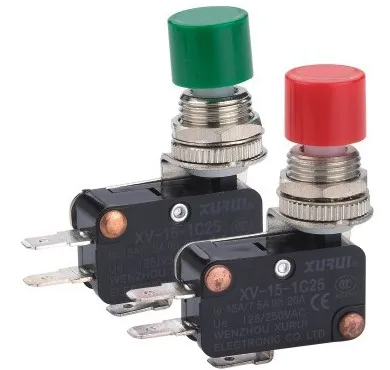

Spdt push button micro switch
- Category: Micro Switches >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (1786581353):
Product Overview
Description
Characteristics and Using:
• Adopt thermosetting plastic or thermoplastic;
• Small contact gap, snap action, high sensitivity and small operating travel;
• Variety of levers;
•Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.
Specification:
Item | Data | |
Operating speed | 0.1mm-1m/s | |
Operating frequency | Mechanical | 600times/min |
Electrical | 30times/min | |
Insulation resistance |
| 100MΩAbove DC500V |
Contact resistance |
| 25mΩ initial value |
Withstand voltage | Non-connection wire | 1000VAC |
Every terminal | 1500VAC | |
Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
Impact | Durable | 1000m/s² |
Misoperation | 300m/s² | |
Life | Electrical | 100,000 above |
Mechanical | 1,000,000 above | |
Protection degree | IP40 | |
Operating temperature | -25~+80℃ | |
Operating humidity | <85% | |

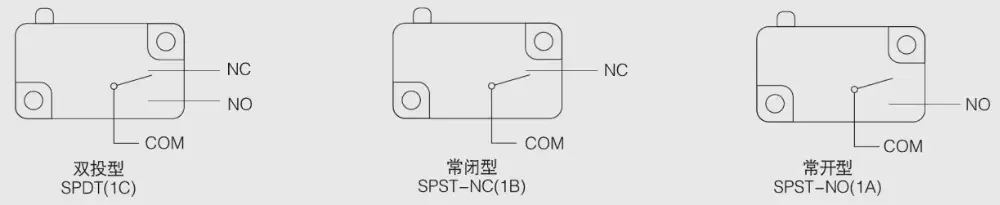

Contact Forms:
Product Description
Our Certifications
Main Products
About Us
| XURUI Electronics Co., Ltd was established in 2002, which is mainly engaged in the research, production and marketing of micro switch, limit switch,solid state relay , foot switch, toggle switch, proximity switch etc. |
| XURUI products have made their way to countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Blegium and Egypt. The company also established sales agents as well as customer service centers in the United States, Italy, South Korea, and Egypt. |
| The company was approved by ISO9001, and a number of the products are also certified by other certification authorities such as CCC(China), CE(European Union), TUV(Germany),UL(US), KC(South Korea), and RoHS etc. Currently, the company boasts over fifty national patents, four patented products, and fifteen provincial-level new products etc. |
