ABBA linear guide bearing data
| Assembly (mm) | Carriage (mm) | Rail(mm) | Weight(kg) | |||||||||
| Part number | H | W | W2 | E | L | B x J | W1 | H1 | F | d x D x h | Carriage | Rail |
| BRH15B | 28 | 34 | 9.5 | 4.6 | 66 | 26 x 26 | 15 | 14 | 60 | 4.5 x 7.5 x 5.3 | 0.19 | 1.4 |
| BRH20B | 30 | 44 | 12 | 5 | 77.8 | 32 x 36 | 20 | 18 | 60 | 6 x 9.5 x 8.5 | 0.31 | 2.6 |
| BRH20BL | 30 | 44 | 12 | 5 | 92.4 | 32 x 50 | 20 | 18 | 60 | 6 x 9.5 x 8.5 | 0.47 | 2.6 |
| BRH25B | 40 | 48 | 12.5 | 7 | 88 | 35 x 35 | 23 | 22 | 60 | 7 x 11 x 9 | 0.45 | 3.6 |
| BRH25BL | 40 | 48 | 12.5 | 7 | 110.1 | 35 x 50 | 23 | 22 | 60 | 7 x 11 x 9 | 0.56 | 3.6 |
| BRH30B | 45 | 60 | 16 | 9 | 109 | 40 x 40 | 28 | 26 | 80 | 9 x 14 x 12 | 0.91 | 5.2 |
| BRH30BL | 45 | 60 | 16 | 9 | 131.3 | 40 x 60 | 28 | 26 | 80 | 9 x 14 x 12 | 1.2 | 5.2 |
| BRH35B | 55 | 70 | 18 | 9.5 | 109 | 50 x 50 | 34 | 29 | 80 | 9 x 14 x 12 | 1.5 | 7.2 |
| BRH35BL | 55 | 70 | 18 | 9.5 | 134.8 | 50 x 72 | 34 | 29 | 80 | 9 x 14 x 12 | 1.9 | 7.2 |
| BRH45B | 70 | 86 | 20.5 | 14 | 138.2 | 60 x 60 | 45 | 38 | 105 | 14 x 20 x 17 | 2.3 | 12.3 |
| BRH45BL | 70 | 86 | 20.5 | 14 | 163 | 60 x 80 | 45 | 38 | 105 | 14 x 20 x 17 | 2.8 | 12.3 |

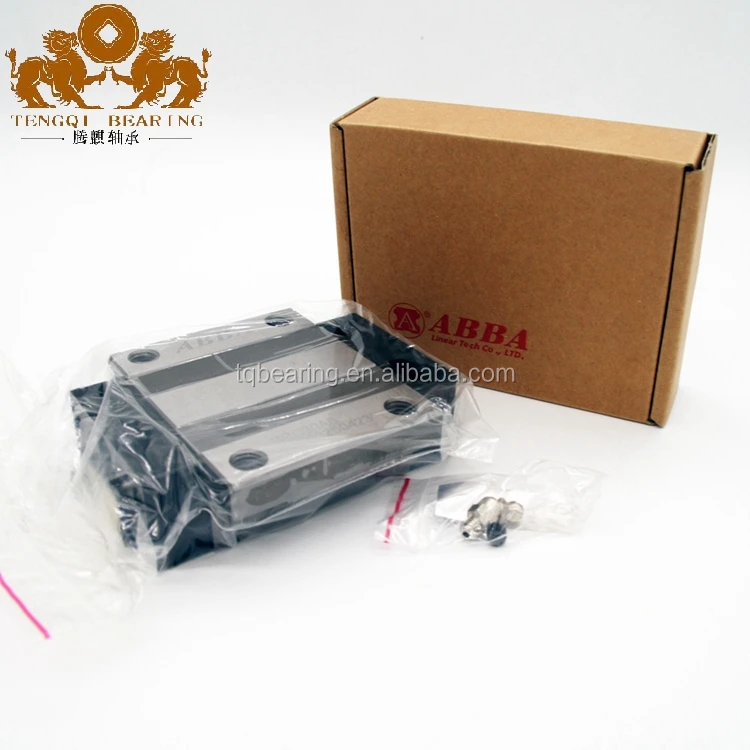

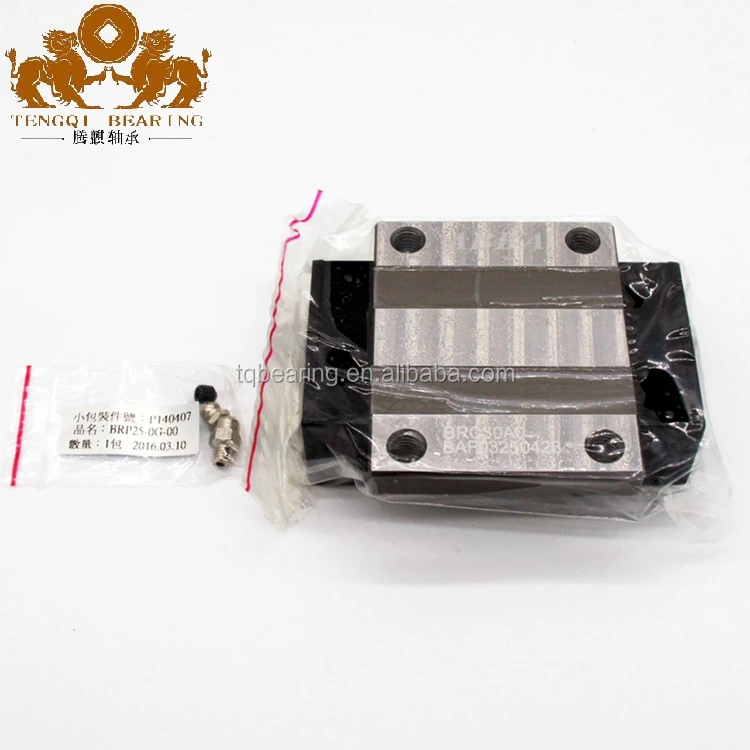

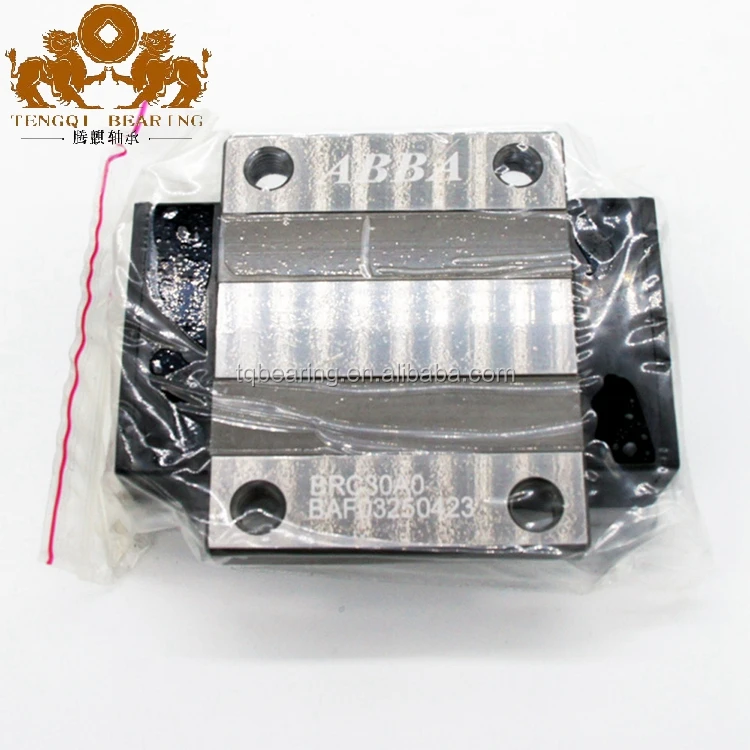

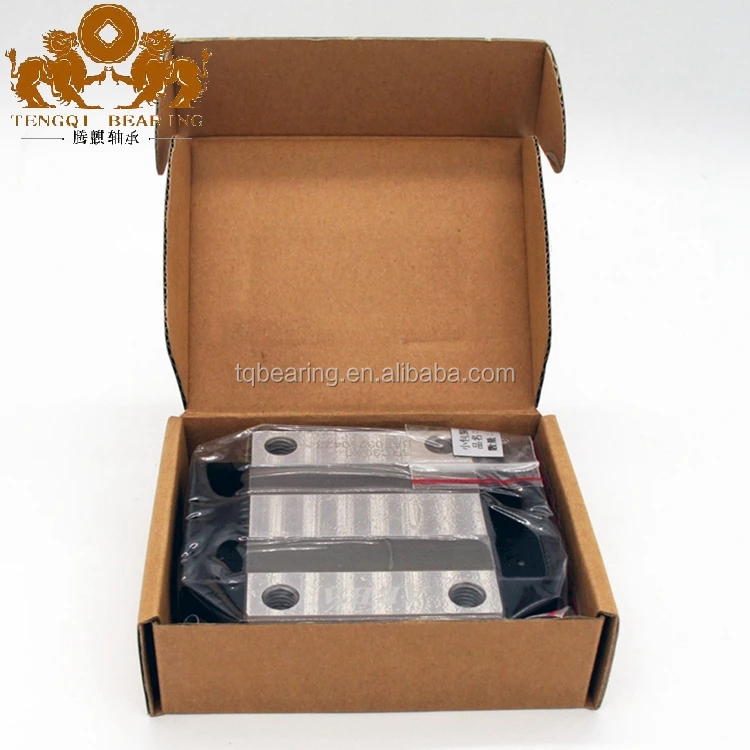

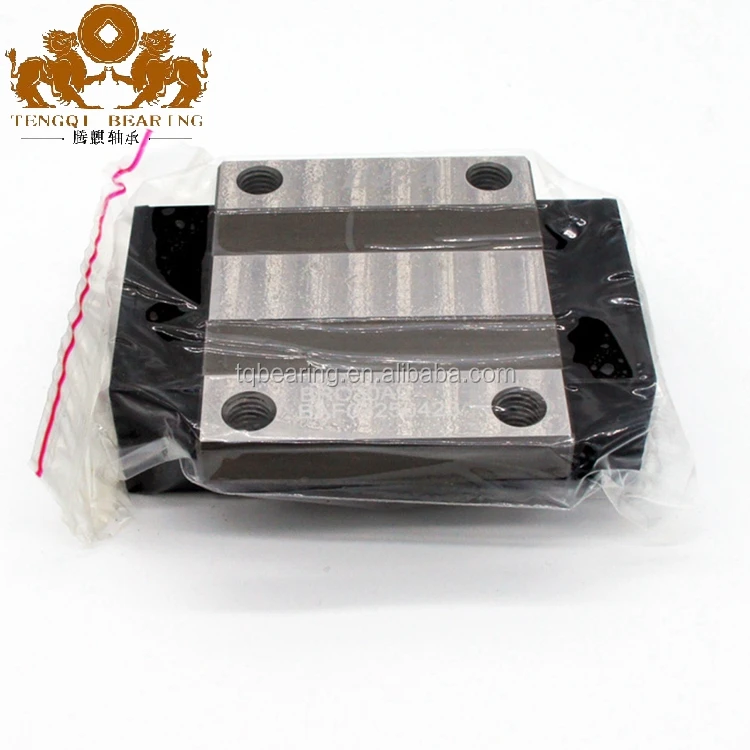

ABBA linear guide bearing pictures


Our payment terms
1.100% Western Union or Paypal in advance ,specially for small amount
2.100% T/T or western union in advance for small quantity order
3.30%-50% T/T in advance, balance before shipment for large order or long delivery time orders
4.100% irrevocable L/C at sight
Our package and warehouse
1.individual poly bag +box packing
2.poly bag + individual box +carton+ woven bag
3.poly bag + box +wooden case
4.plastic package +wooden case
5.as your requirement

Our shipping terms
1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.
2.large quantity, can delivery by air, by sea, this is port to port.

Our bearing type
· Deep groove ball bearing:60,62,63,64,67,68,69,160 series
· Angular contact ball bearing:single row, double row,high precision
· Self-aligning ball bearing:12,13,14,22,23 series
· Thrust ball bearing:511,512,513,514 series
· Spherical roller bearing:213,223,222,223,230,240,231series
· Cylindrical roller bearing: N,NH,NF,NJ,NUH,EG,NN,NNU series
· Taper roller bearing:30,31,32,33,LM,HM series
· Needle roller bearing:K,K-TN,K-ZW series
· Linear guide rail block bearing:LR,SHS,SSR,SHW,SRS,HSR HRW series
· Linear bush bearing:LM,LME,LMF,LMK,LMH,SC,SL,SK series
· Eccentric bearing:15UZ,22UZ,25UZ,60UZ,65UZ,607,610 series
· Adapter sleeve:H,AH series
· Slewing bearing:01,02,11,13 series
