Feetech/Fitec FS90R Micro 360 Degree Continuous Rotation Servo robot servo

Product Overview

Description





FS90R Micro 1.3kg.cm 360 Degree Continuous Rotation rc Servo



Feature

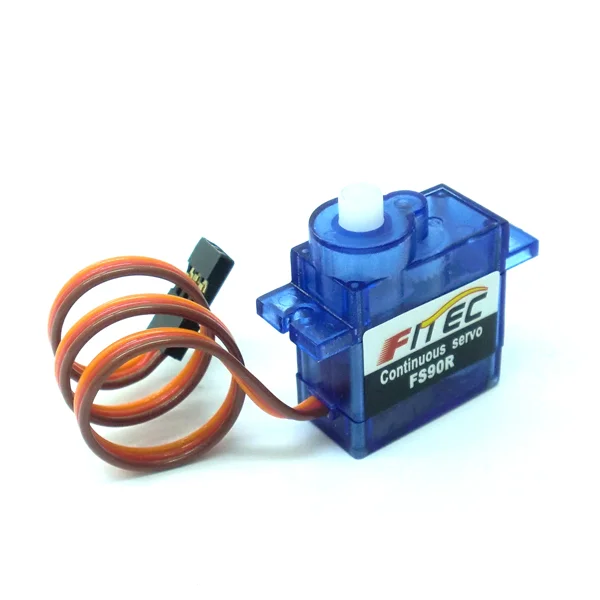

The FS90R is a micro-sized servo that has been built by FEETECH (formerly known as Fitec) specifically for continuous rotation. At 6V, it has a maximum rotation speed of around 130 RPM (no-load) and can produce up to 1.5 kg-cm of torque. The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great miniature actuator for beginner robotics projects.







FITEC MODEL	SIZE (mm)	WEIGHT		SPEED	Stall Torque
SKU	(LxWxH)	g	oz	sec/60°	kg.cm	oz.in
FS90R	23.2x12.5x22	9	0.32	0.12(4.8V) 0.10(6V)	1.3(4.8V) 1.5(6V)	18.09(4.8V) 20.86(6V)

Micro Analog Servo 9g
Stall Torque:1.3kg.cm/18.09oz.in(4.8V)

Dimensions:23.2 × 12.5 × 22 mm

Weight:9 g

 Connector Wire Length :20 cm

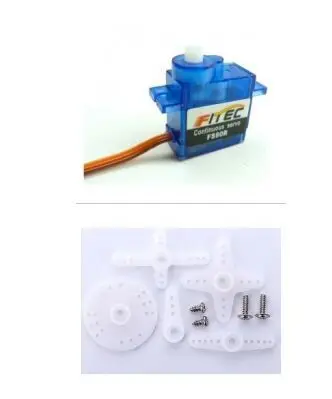

Full Packaged

-Servo×1PCS

-Servo arm×1 bag

-GW:9g







Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.



We also specialized in ODM and OEM



Payment
We adopt T/T,west union,paypal payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.

   There are 5 outstanding advantages of our servos, as follows,
1. The quality: our material has very good quality especially our 4 beginning servos----titanium gear, aluminum middle hull, dual ball bearing and so on. All our servos start producing after our servos get very good marks in testing. Recently, our company is producing an full metal case titanium gear digital servos with high spead which
which can be up to 0.06 sec/60.
2. The price: Our price are quite competitive whatever in China or in the world. If you have any interest in our servos, I will give you the price list.
3. The service: if there is wrong with the quality of servos, we will offer the replace defective items or replace a new one.
4. The appearance and package: they looks high-grade.
5. We have our own brand Feetech, but we can also do OEM and print your logo on servos as you need. Of course, the quantity must be a little higher! Which model do you interested to test on first time?

Service:
1."Reasonable price,delivery on time,good services" is our business principle
2.We have own factory,specialized in this field many years, warmly welcome your design
3.Small order and mixed items are available
4.Fast delivery as most of products we have in stock
5.Competetive price and good quality.
6.samples and products according to customers' requirement









FAQ

The 9g Continuous Rotation Micro Servo is the least expensive continuous rotation servo on the market and includes three types of servo horns. Use it to make a mini 2WD robot without the need for a motor controller!

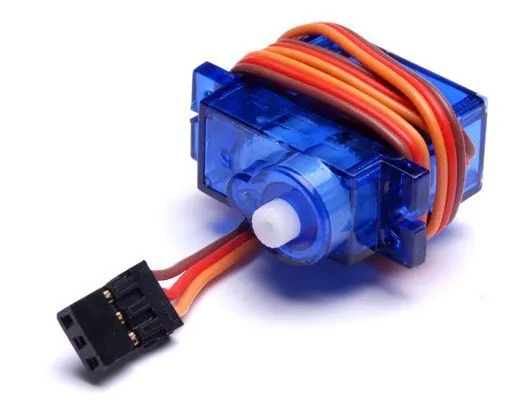

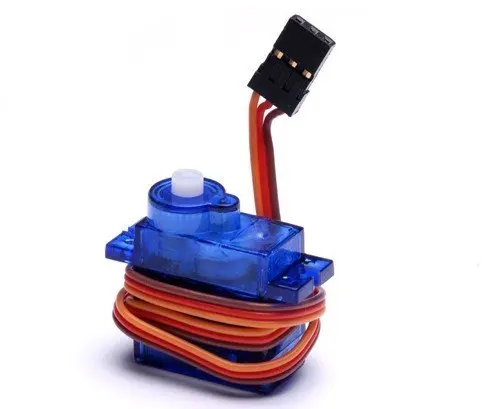

 Need a tiny servo for a tiny task? Try the FS90 Micro Plastic Gear Servo! This servo is great for scanning type sensors, tiny robots, and more! Each servo comes with a variety of horns.

These servos use a standard PWM signal to control them. The Arduino does a great job of controlling PWM Servos, making it ideal for a variety of robotic projects. But sometimes powering these servos can be problematic. Powering servos from the Arduino's 5v regulator leads to underpowered servos, limited by both voltage and current. With other sensor systems, connecting a servo to an external power supply requires multiple cables or boards, defeating the purpose of a sensor shield. The RobotGeek Sensor Shield solves this problem with 2 jumpers to control the output voltage of the 6 PWM channels on the Arduino. Just move the jumper from '5V' to 'Vin' ans your servo will start to draw power from your Arduino's input voltage supply. Just plug in a 6v power supply into your Arduino, and you'll be able to power and control 6 RobotGeek Servos with no problem!
