Vibrating feeder price made in China certified by CE ISO9001:2008 GOST
- Category: >>>
- Supplier: Shanghai Dongmeng Road & Bridge Machinery Co. Ltd.
Share on (1789693125):
Product Overview
Description

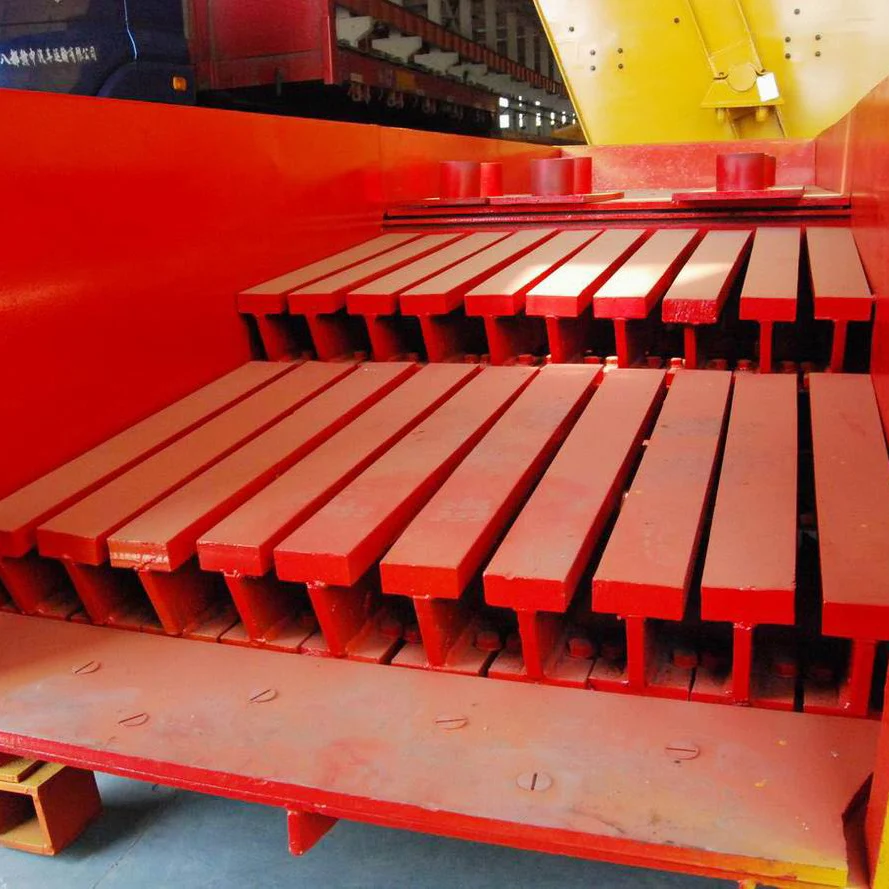

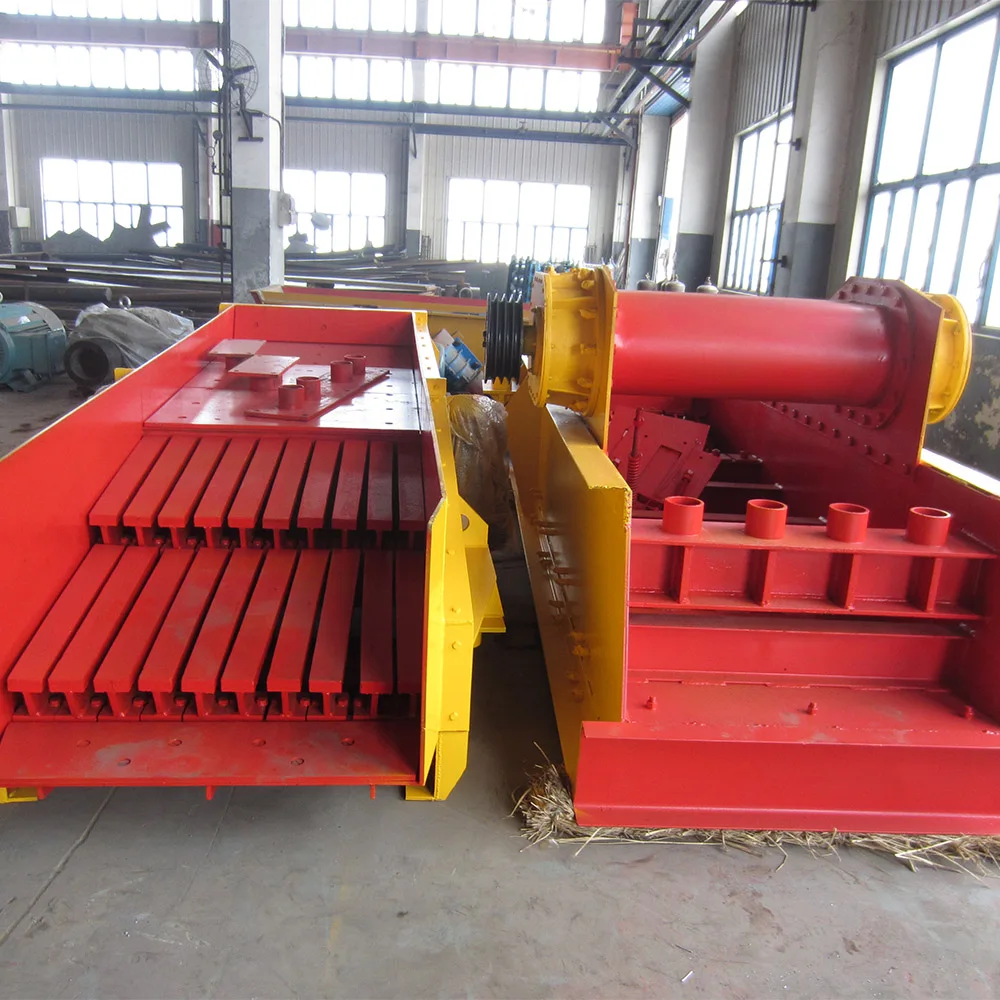

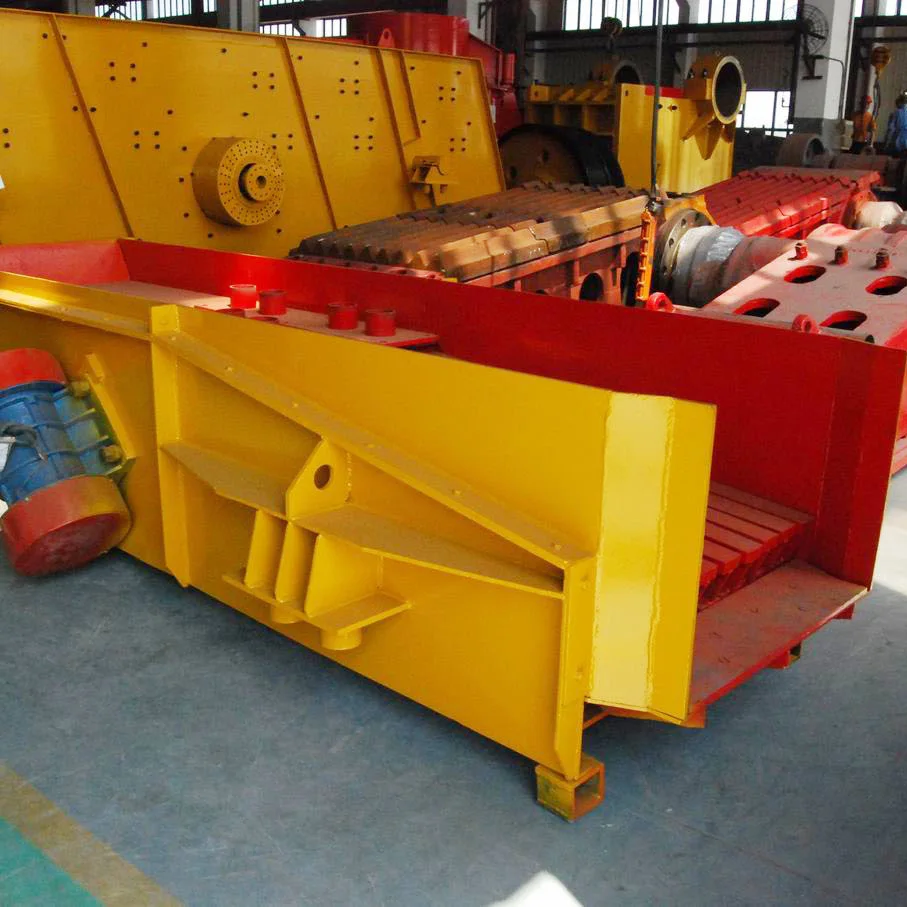

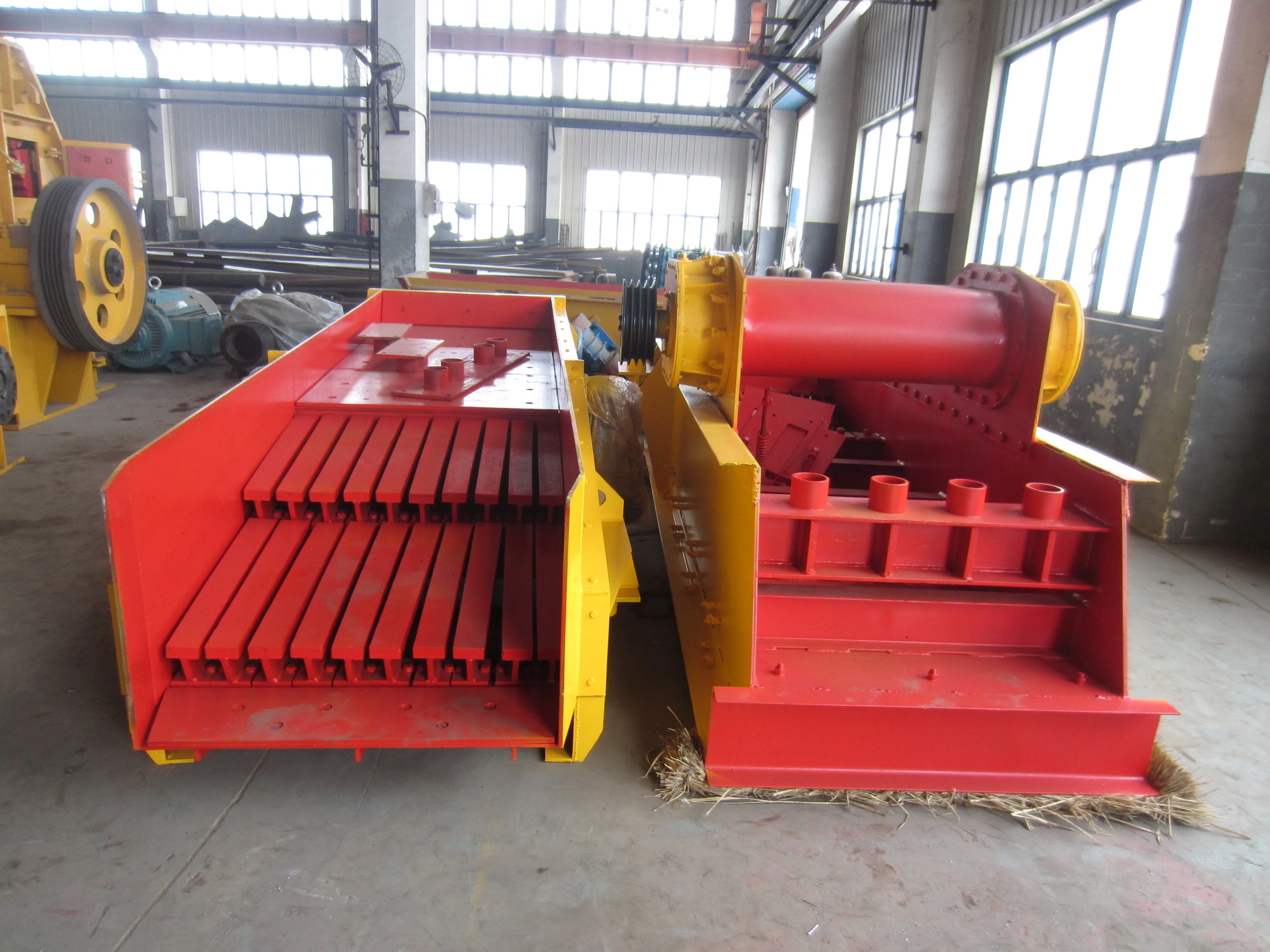

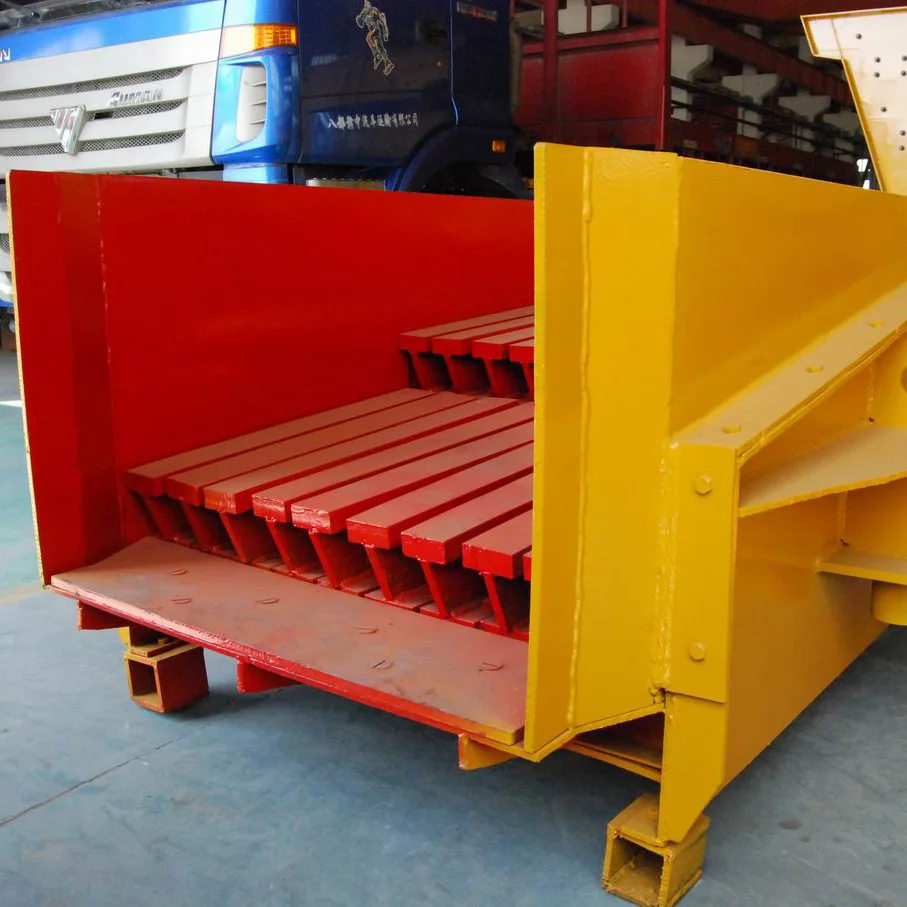

Vibrating Feeder
Brief Description of vibrating feeder Widely used in Crushing Plants in the Quarrying and Mining industries, Vibrating Feeders are used in applications ranging from the feeding of raw quarry material to a Primary Crushing section, or the feeding of smaller material to a Secondary or Tertiary crushing section. Smaller suspended Vibrating Feeders are commomly used for feeding product material from bin compartments onto conveyors or in surge pile applications.
Feature of GZD / ZSW Vibrating Feeder

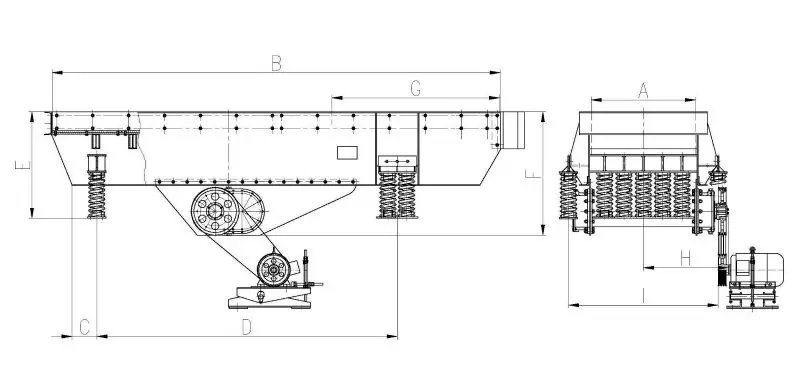

ZSW Series Structural Drawing

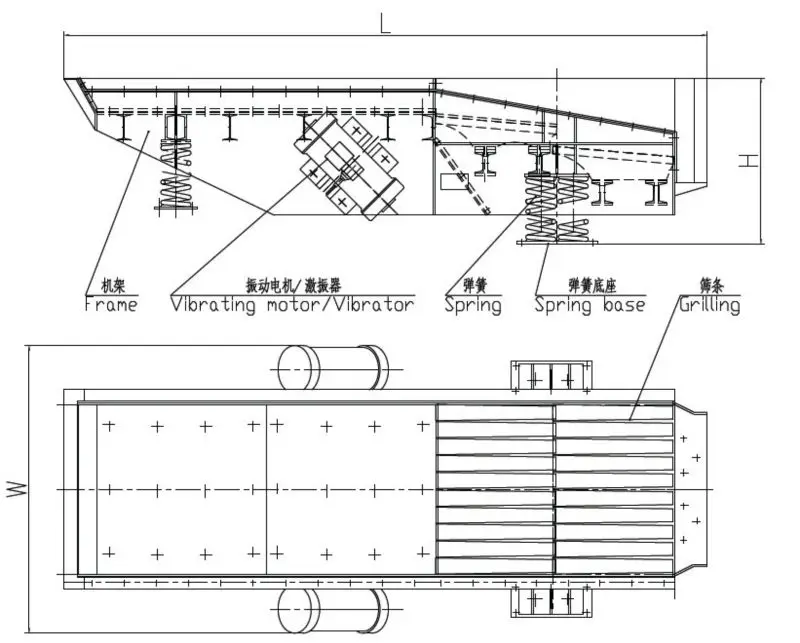

GZD Series Structural Drawing
Feature of GZD / ZSW Vibrating Feeder
1. It has strong adaptability to all kinds of ore and rock, especially viscous ore and rock materials, and can work in dusty or water containing environment.
2. The closed structure fuselage can be adopted to prevent dust pollution.
3. This product uses double eccentric shaft as excitation source, with stable amplitude to ensure the stable fluidity of vibrated ore and rock.
4. This product has less vulnerable parts, less vibration power consumption and significant energy saving.
2. The closed structure fuselage can be adopted to prevent dust pollution.
3. This product uses double eccentric shaft as excitation source, with stable amplitude to ensure the stable fluidity of vibrated ore and rock.
4. This product has less vulnerable parts, less vibration power consumption and significant energy saving.
Technical Parameters of GZD / ZSW Vibrating Feeder
| Model | Hopper Size (mm) | Max. Feed Size (mm) | Production Capacity (t/h) | Eccentric Shaft Rotation Speed (r/min) | Motor Power (t) | Weight (t) | Overall Dimension (mm) |
| GZD2575 | 2500×750 | 300 | 50-80 | 1.5×2 | 1.3 | 2580×1430×600 | |
| GZD3070 | 3000×700 | 350 | 60-90 | 3×2 | 2.7 | 3260×1200×850 | |
| GZD3090 | 3000×900 | 450 | 80-140 | 3×2 | 3 | 3260×1400×850 | |
| GZG8012 | 1200×800 | 200 | 80-160 | 1.1×2 | 0.5 | 1580×1430×600 | |
| GZG1014 | 1400×1000 | 300 | 160-300 | 1.5×2 | 0.9 | 1800×1100×990 | |
| GZG1218 | 1800×1200 | 350 | 300-500 | 2.2×2 | 1.5 | 2400×1600×1100 | |
| GZG1420 | 2000×1400 | 400 | 400-700 | 3.7×2 | 2.1 | 2700×1800×1250 | |
| ZSW3896 | 3800×960 | 500 | 100-160 | 500-720 | 11 | 4.3 | 3882×1700×1350 |
| ZSW4911 | 4900×1100 | 580 | 120-280 | 500-800 | 15 | 5.5 | 4957×1850×1350 |
| ZSW6013 | 6000×1300 | 600 | 400-560 | 500-800 | 22 | 7.5 | 6082×2000×1450 |
| ZSW6015 | 6000×1500 | 800 | 460-575 | 500-800 | 30 | 8.7 | 6086×2200×2099 |
| ZSW6018 | 6000×1800 | 1000 | 600-800 | 500-800 | 37 | 11.8 | 6310×2523×2510 |
| ZSW6021 | 6000×2100 | 1200 | 800-1000 | 500-800 | 45 | 15 | 6310×3262×2630 |

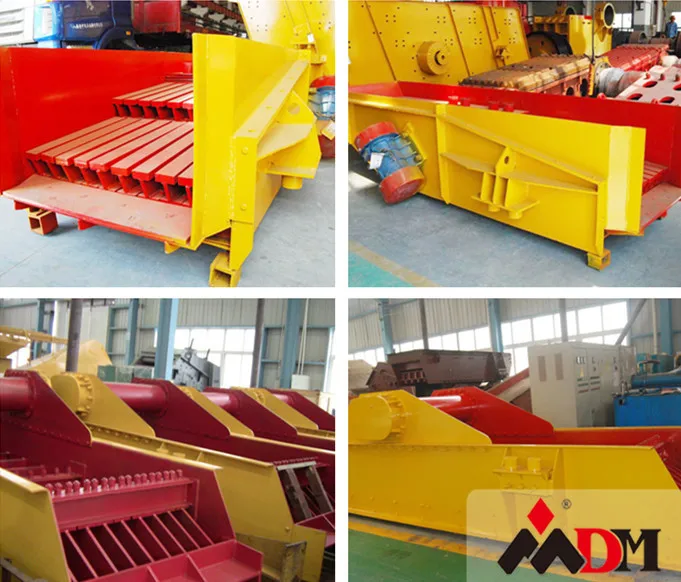

Vibrating Feeder on working
Our Services
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and
detailed process, and complete process of export.
3) After-sales service:
We sent engineer to the scene to guide installation, debugging and training operators.
4) Service supervision:
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff , please feel free to contact us by
dialing 24 hours hot line:0086-21-68911957.
Company Information

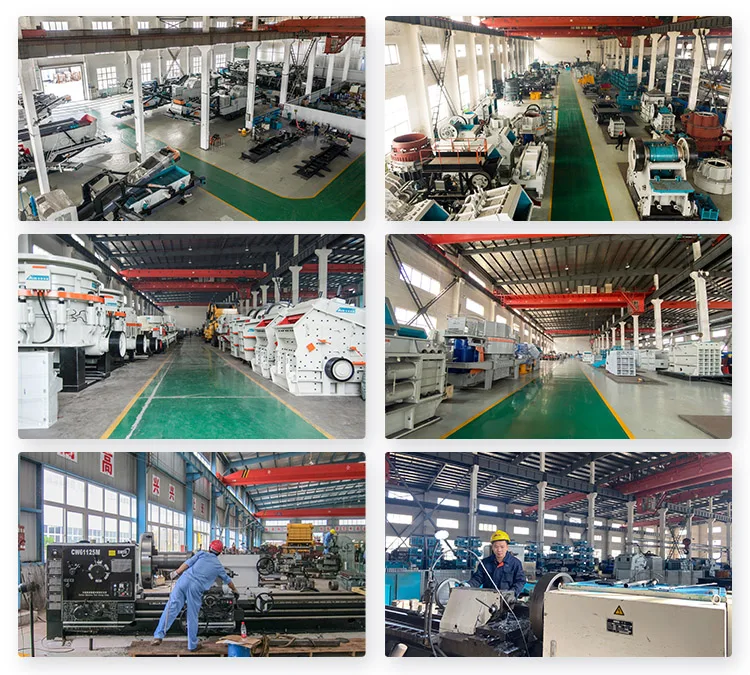

Shanghai DM Factory
Shanghai DongMeng Road&Bridge Machinery Co., Ltd. Is a leading professional manufacturer of crushing &screening
machinery in China. Shanghai Dongmeng set machinery design, development, production, sales, after-sales service as one.
We have more than 200 workers, 30 senior technical staff, with factory area of more than 20,000 square meters.
Certificate of Shanghai DM
Exhibition
FAQ
Q:Instalation?
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all
electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any
mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of
notice by the client.
Q:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
