PE/PP/HDPE/LDPE plastic bottles injection blow molding machine
- Category: >>>
- Supplier: Zhangjiagang Jiuwei Machinery Co. Ltd.
Share on (1789783508):
Product Overview
Description
Product name: PE/PP/HDPE/LDPE plastic bottles injection blow molding machine JWM300

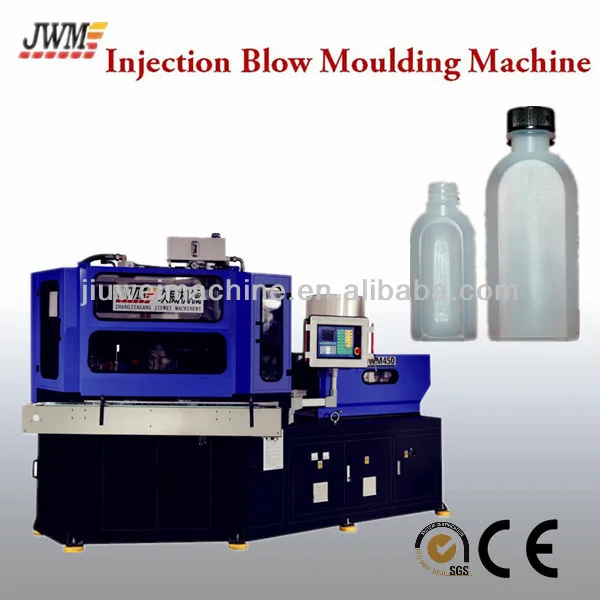

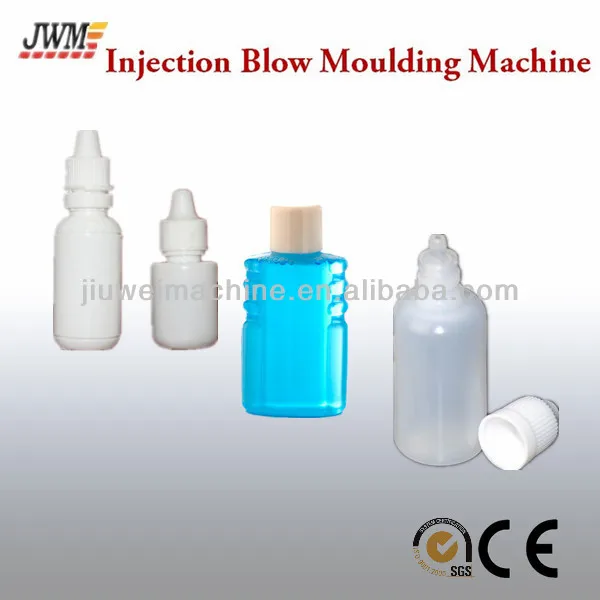

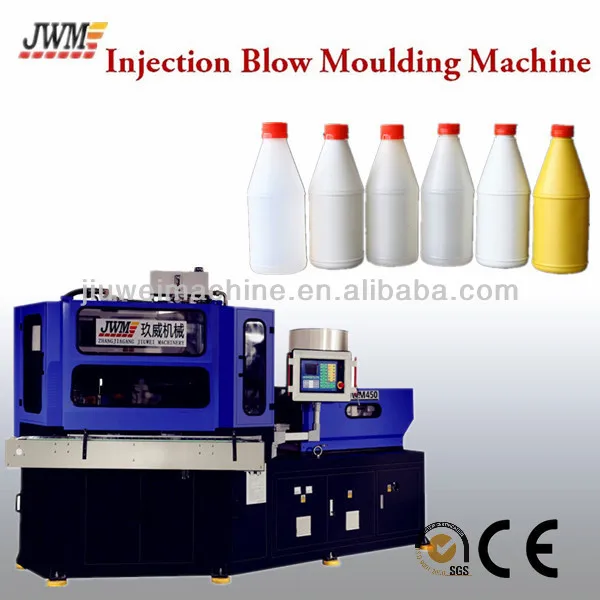

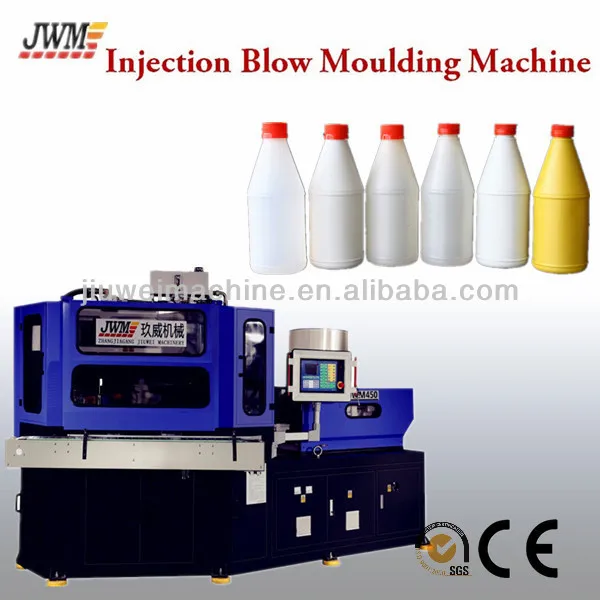

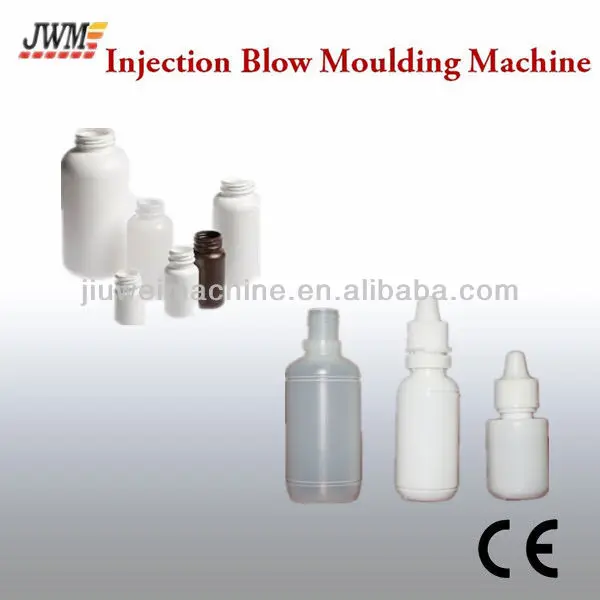

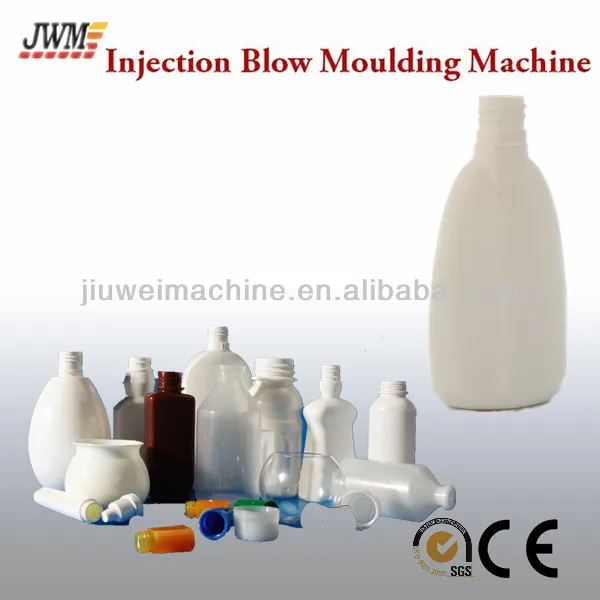

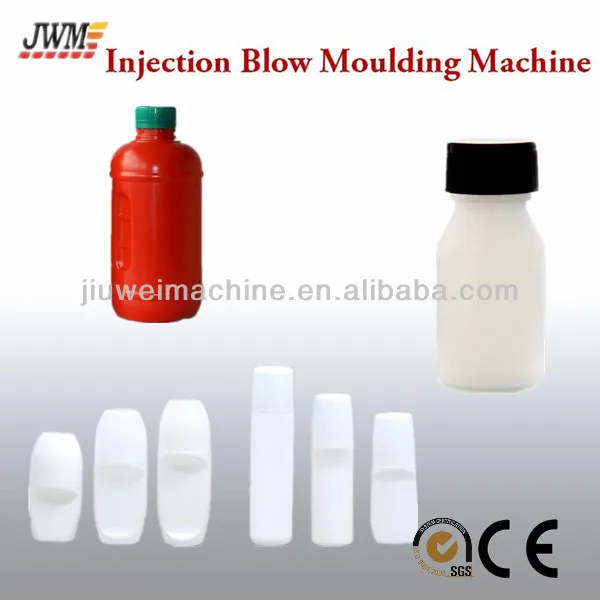

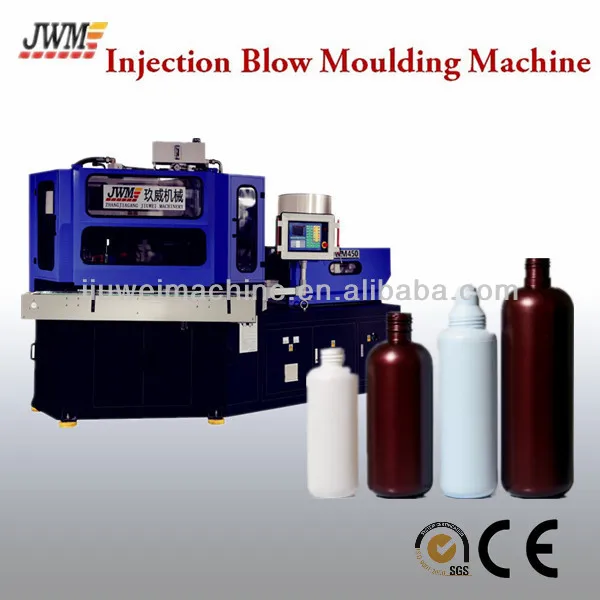

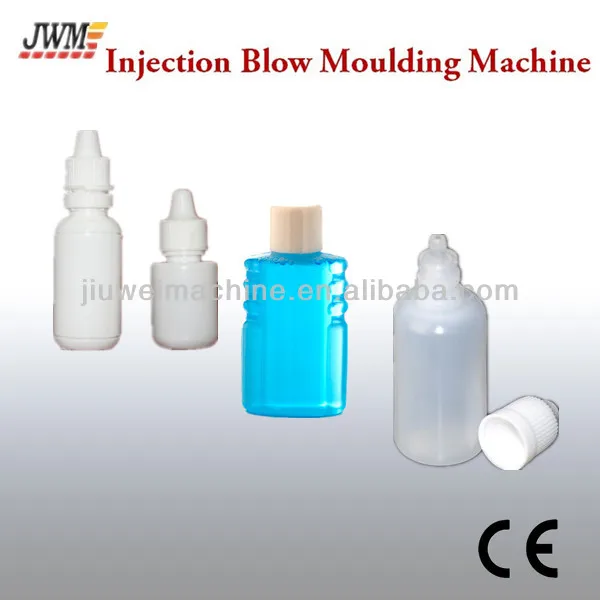

Injection blow molding machine and products photos:
Injection blow molding machine parameters:
Model | JWM300 | |
Injection system | ||
Screw diameter | mm | 40 |
Screw L/D |
| 22:1 |
Injection weight | cm3 | 200 |
Clamping system | ||
Clamping force of injection | KN | 300 |
Clamping force of blowing | KN | 46 |
Table lift height | mm | 65 |
Dry cycles | s | 3.2 |
Mould | ||
Max. Platen size(L*W) | mm | 400*270 |
Mold thickness | mm | 180 |
Suitable bottle dimension | ml | 5-800 |
Bottle height | mm | ≤200 |
Dia. Of bottle | mm | ≤100 |
Stripping stroke | mm | ≤220 |
Driving system | ||
Hydraulic pressure | Mpa | 15 |
Total power | kW | 25 |
Motor power | kW | 15 |
Heating capacity | kW | 8.3 |
Others | ||
Min. Air pressure | Mpa | 1 |
Air volume | m3/min | ≥0.6 |
Water consumption | m3/h | 3 |
Dimension(L*W*H) | M | 3.4*1.2*2 |
Net weight | T | 4 |

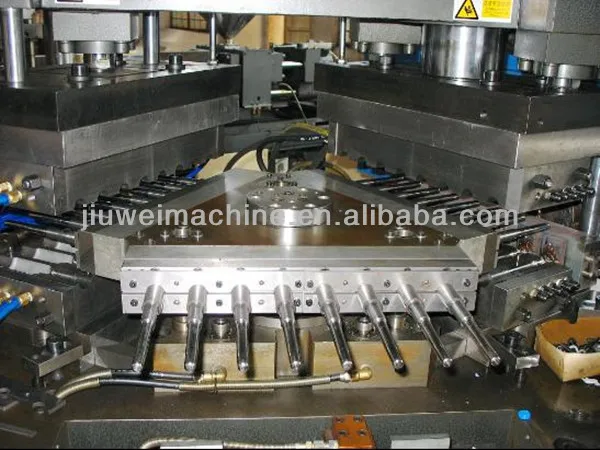

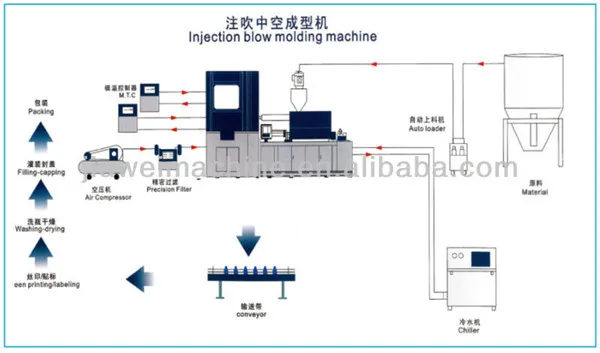

Injection blow molding machine processing and production line components:

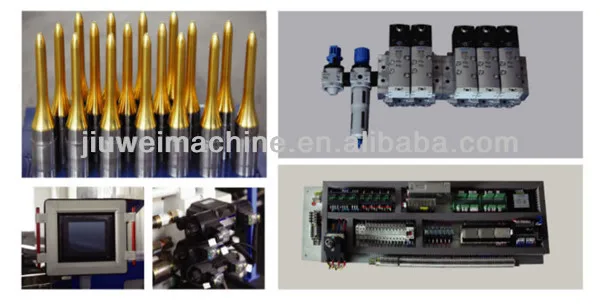

Injection blow molding machine components of main parts:
No. | Main parts | Supplier | |
1 | HYDRAULIC VLAVE | YUKEN, TAIWAN | |
2 | HYDRULIC MOTOR | INTERMOT, ITALY | |
3 | PNEUMATIC VALVE | FESTO, GERMANY | |
4 | HYDRAULIC PIPE | ISR, CHINA | |
5 | SEAL RING | DZ, TAIWAN | |
6 | AC CONTACTOR | SCHNEIDER, CHINA | |
7 | HYDRAULIC PUMP | Piston Pump | YUKEN, JAPAN |
8 | Control system and hand screen(supply options) | JINHUA, TAIWAN | |

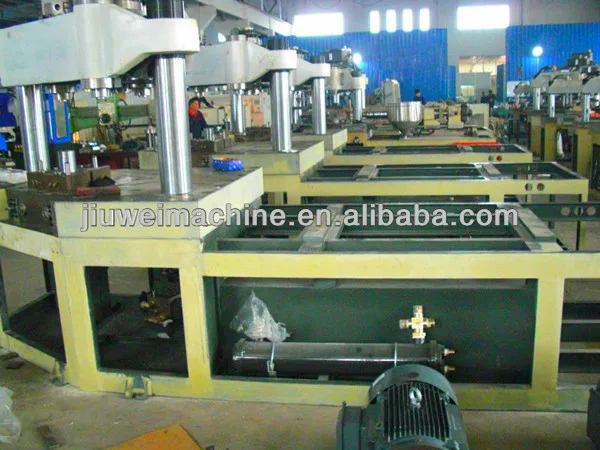

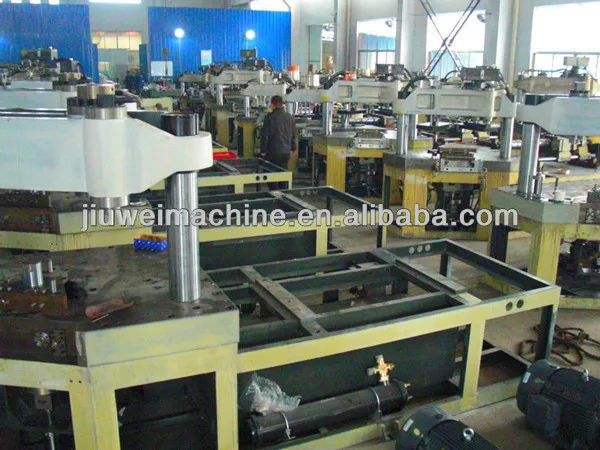

Injection blow molding machine workshop:
Injection blow molding machine features:
1) High pressure& speed injection system
2) V.D pump control for more energy saving
3) Jinhua control system for high speed information communication and high precision temperature control

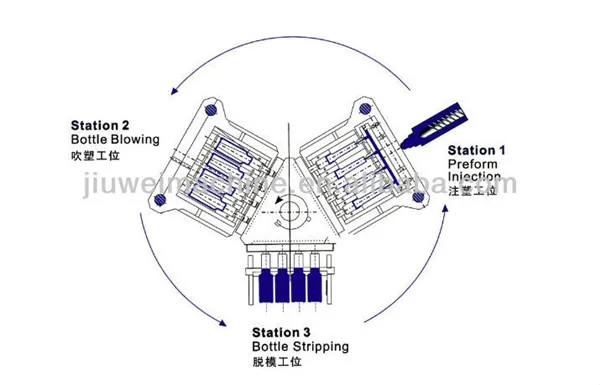

4) Hot-runner injection-blow mold with horizontal three positions for continuous production with no leftovers or waste material
5) Top brand electric parts and hydraulic parts for long service life
6) High speed: cycle time only 10.5sec for 40ml bottle mould in 14 cavities which is suitable for high quantity production.
7) Bottle size: 3 to 1000mL .
8) 10mL, Cav-9, 100mL, Cav-4.
9) Materials: PP, PE, PS, SAN. EVA.
Injection blow molding machine installation, commissioning and training:
The seller will send one or two technical men to install the machine for customer, and all accommodation, visa application & air ticket will be born by the buyer. The buyer also need to pay US$80 per day for the technician as salary.
