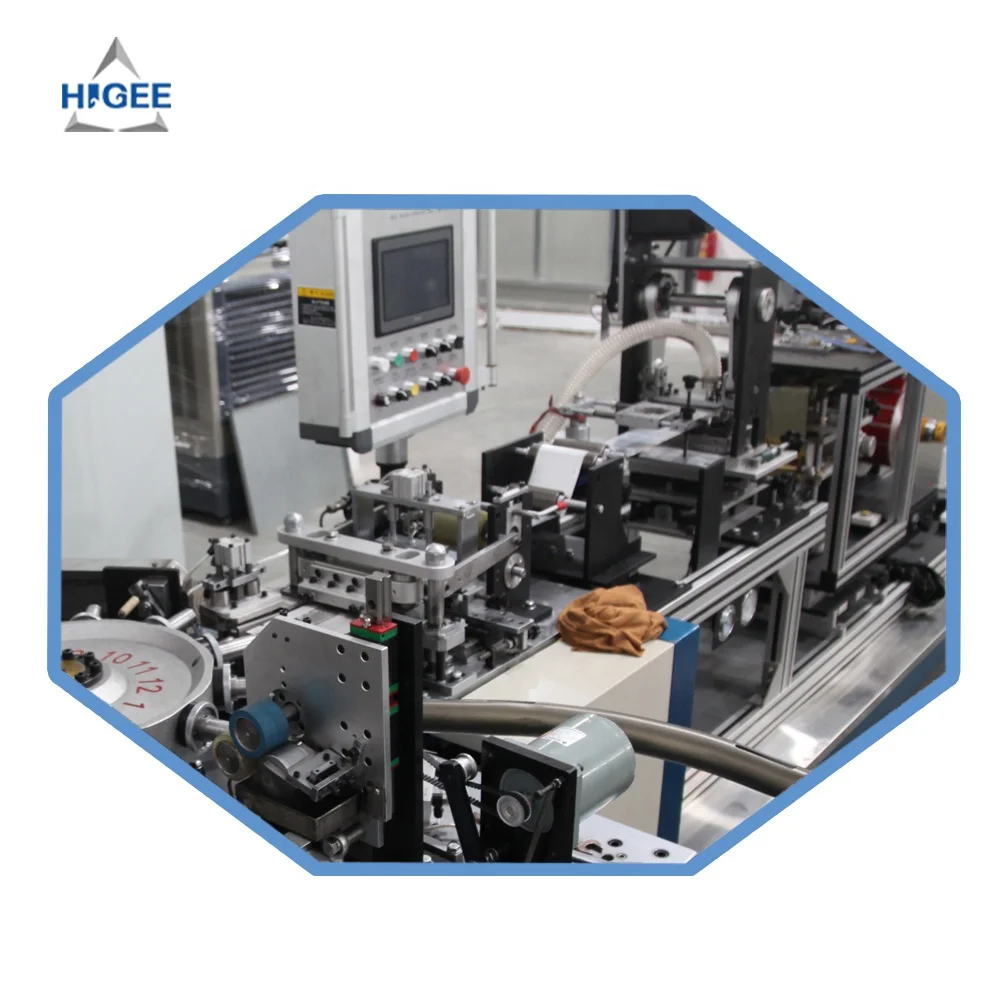

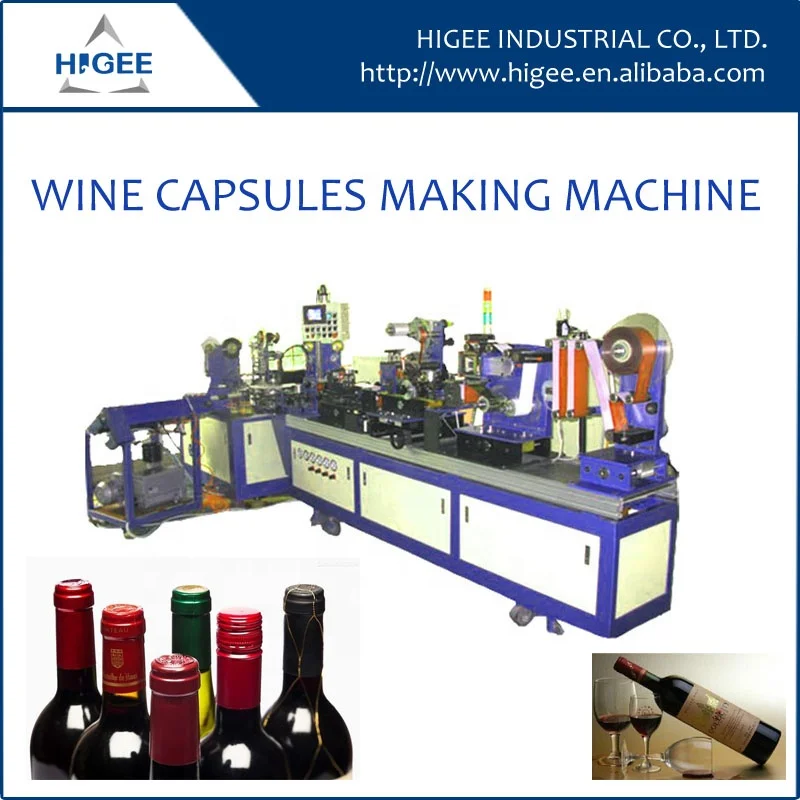

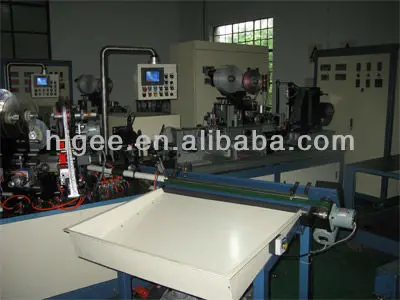

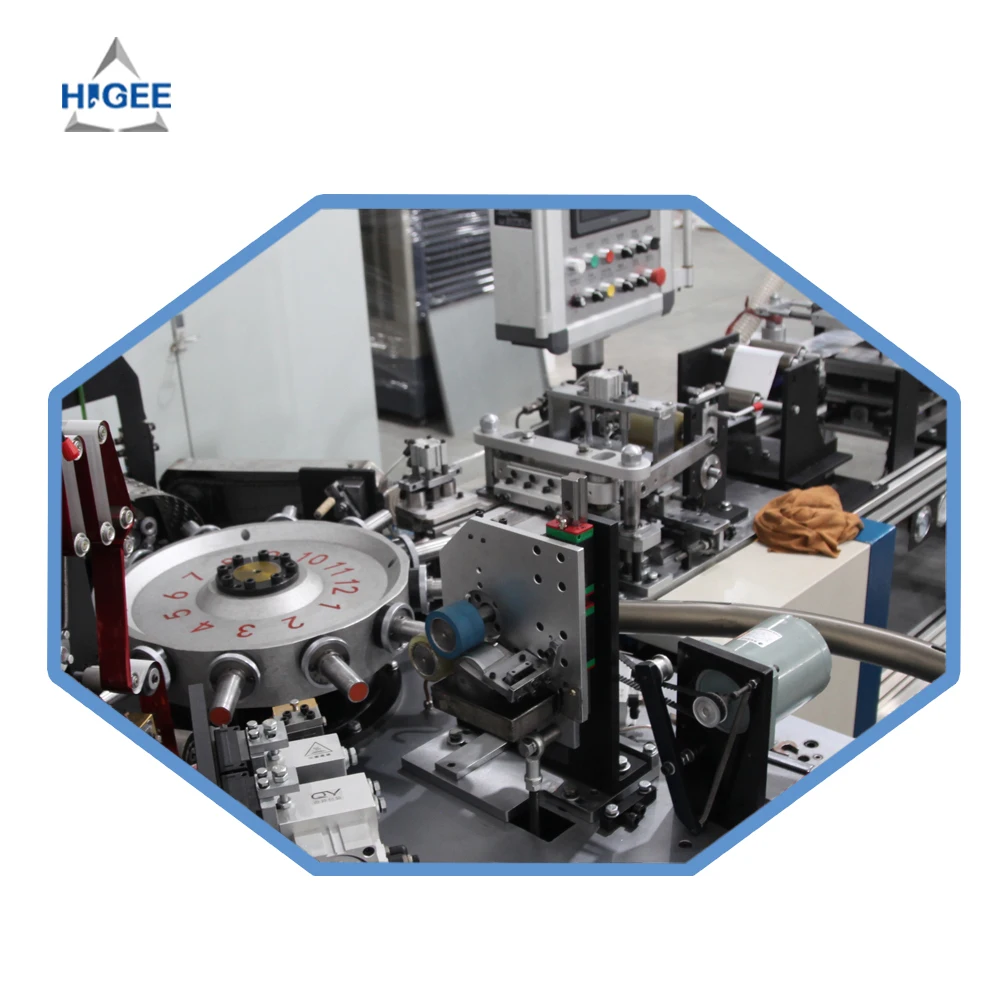

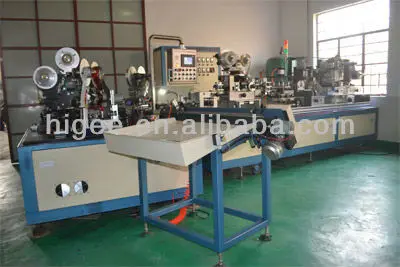

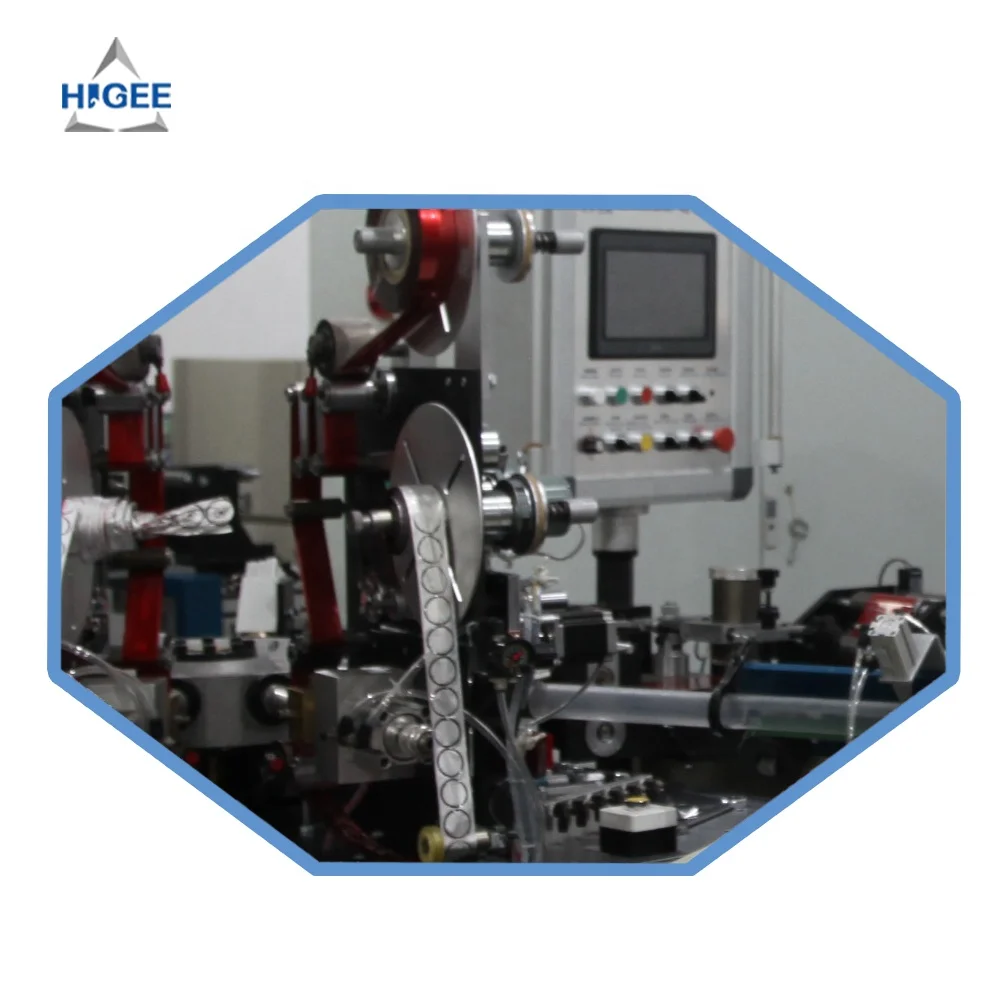

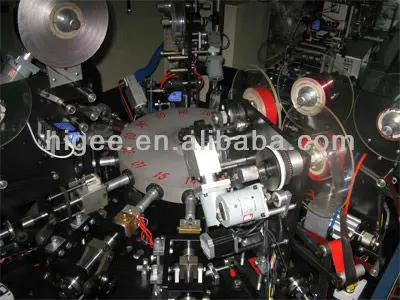

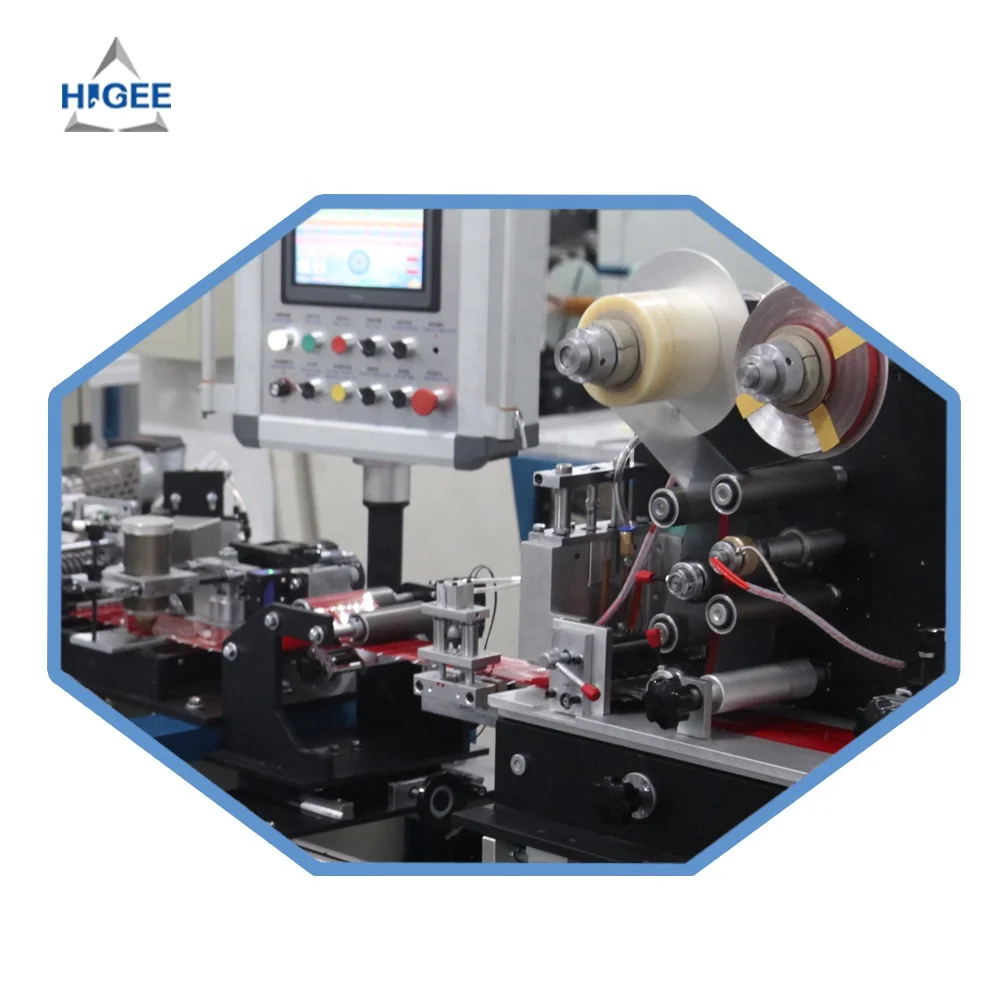

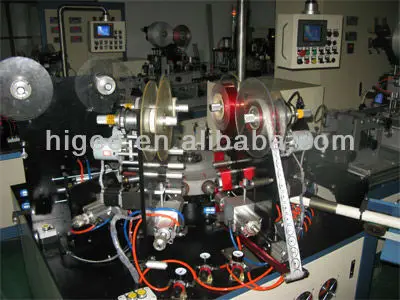

Full automatic 120 capsules per minute high speed soft drinker Glass Bottle capsules making machine QY120 3A

1 Output (depends on design of capsule and quality of material)

1-1 Design production capacity of the machine           120 PCS/min

1-2 Fitted wire drawing system                          90 PCS/min

1-3 Pneumatic gilding system fitted with skirt section       100 PCS/min

1-4 Gilding system fitted with top cap                    100 PCS/min

1-5 Pneumatic washer system fitted with cap             100 PCS/min

1-6 Aluminum plastic compound                         90 PCS/min

2 Specification of Capsule

2-1 Top diameter              27mm~33mm

2-2 Bottom diameter           Maximum 35mm

2-3 Height                    45mm ~70mm

2-4 Taper                     1.5°~5°

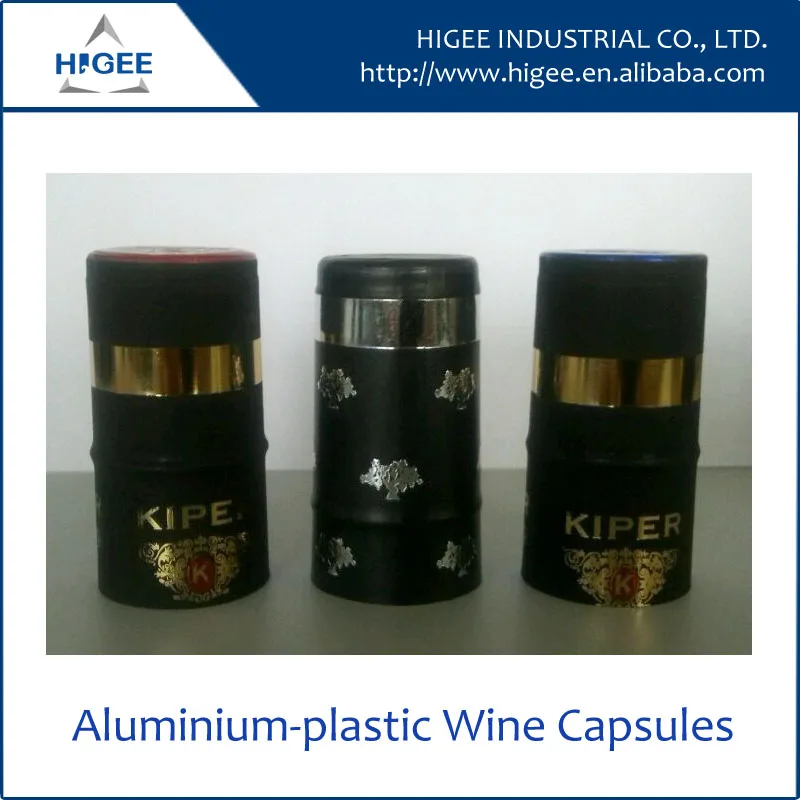

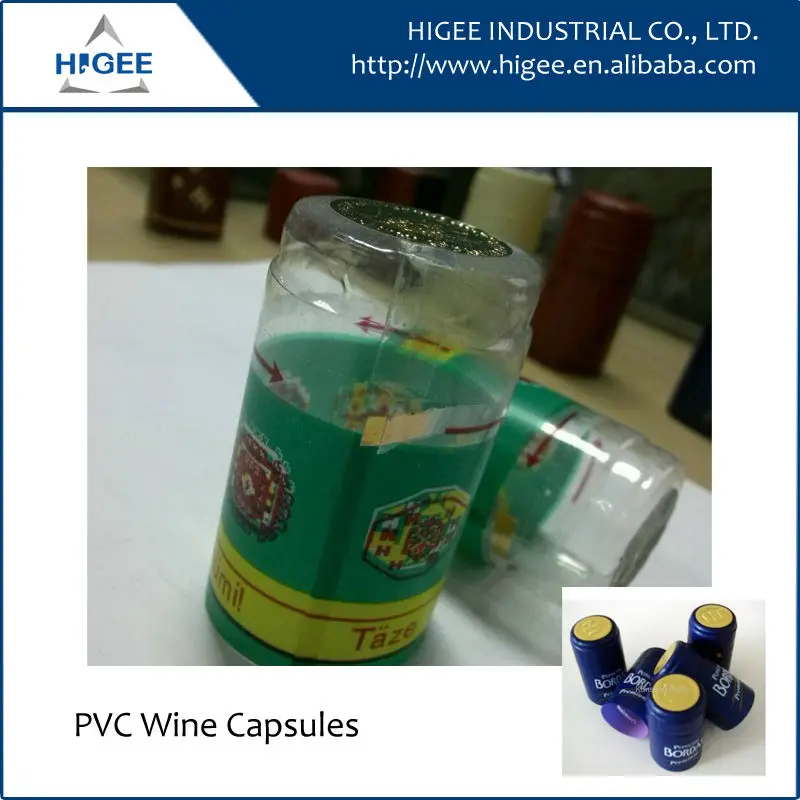

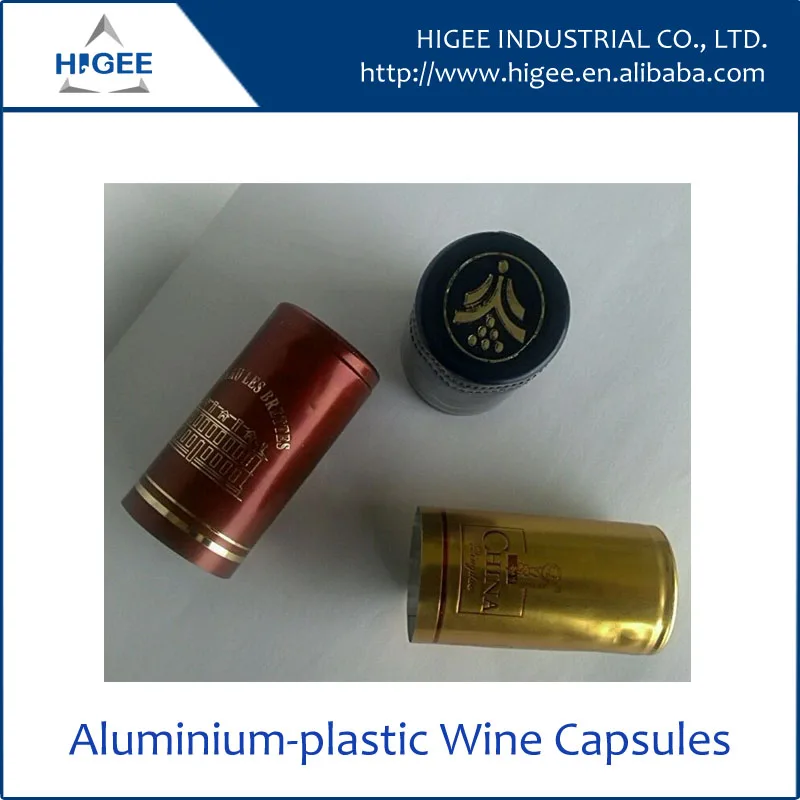

3 Material of Capsule body ( PVC Thermal Shrink Film and Aluminum-Plastic Composite Material )

3-1 Diameter of coil center                             3" (76mm)

3-2 Outer diameter of coiled material                    Maximum 400mm
3-3 Width of coiled material                            Maximum 120mm

3-4 Thickness of PVC coiled material                    0.06 mm ~0.08mm

3-5 Thickness of aluminum plastic compound material     0.06mm~0.1mm

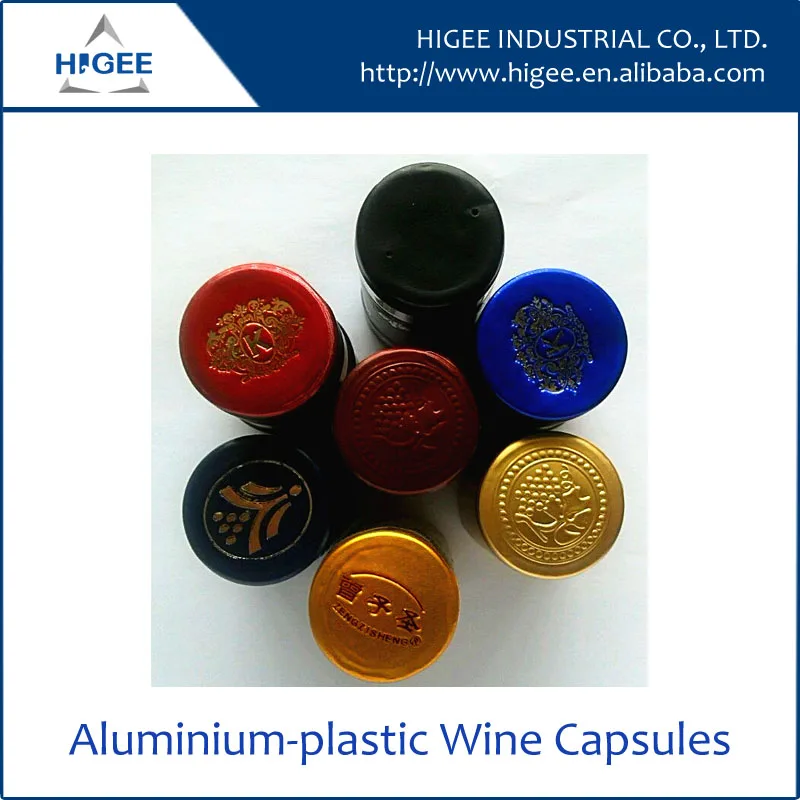

4 Material of Capsule Top ( Aluminum Foil or PVC)

4-1 Diameter of coil center                             3" (76mm)

4-2 Outer diameter of coiled material Maximum           280mm

4-3 Width of coiled material Maximum                    40mm

4-4 Thickness of coiled material                         0.05mm~0.06mm

5 Material of Washer (PVC Hard-blank Plastic Film)

5-1 Diameter of coil center                             3" (76mm)

5-2 Outer diameter of coiled material Maximum           280mm

5-3 Width of coiled material Maximum                   40mm

5-4 Thickness of coiled material                         0.10mm~0.15mm

6 Wire Drawing Material (PVC Thermal Shrink Film)

6-1 Diameter of coil center                               3" (76mm)

6-2 Outer diameter of coiled material Maximum              350mm

6-3 Width of coiled material Maximum                      140mm

7 Wire Drawing Compound Material (Aluminum Foil)

7-1 Diameter of coil center                              3" (76mm)

7-2 Outer diameter of coiled material Maximum            250mm

7-3 Width of coiled material Maximum                    15mm

7-4 Thickness of coiled material                          0.08mm

8 Size of Machine:      5660mmX1585mmX1500mm

9 Weight of Machine:   3990Kg

10 Power:   three-phase380v, 14kw
