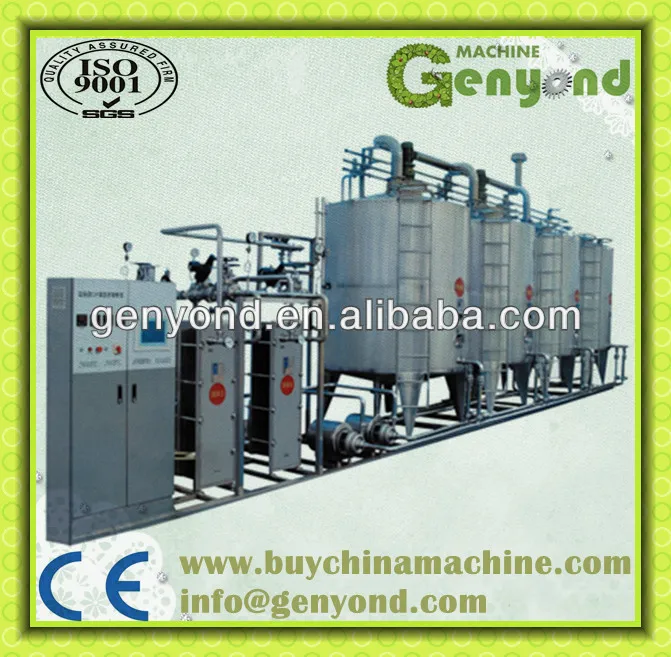

Automatic CIP Cleaning System whirlston automatic split type CIP cleaning system

Product Overview

Description

Details about Centrifugal CIP cleaning system:

Usage:

1. Centrifugal CIP Cleaning System is being used widely in beverage,dairy,liquor,pharmacy,food processing industries,etc;


2. Centrifugal CIP Cleaning System can be used as a non-resolved production equipment,as well as the simple operated and full-automatic cleaning system.It not only can wash on the spot,but also can restrain the development of microbe;


3. A centrifugal pump is used in centrifugal CIP cleaning system to convey cleansing liquid into mateial pipe and equipment recipients and to force the cleansing liquid to circulate to make cleaning without taking apart pipes or equipment.Improving the availability of equipment and reducing labour intensity.



 Advantage:

1. It can rationalize production planning,enhance production capacity;


2. Comparing with manual washing,it will not influence the cleaning effect due to the difference of operators,and it can improve the quality of product;


3. Energy-saving,it can save cleansing liquid,steam,water and production cost;


4. Three types can be chose by customers---manual,semi-automatic,automatic.



Main technical parameters:

Model	GYCIP-1	GYCIP-2
Acid tan	1000L circular pipe heating	2000L circular pipe heating
Alkali tank	1000L circular pipe heating	2000L circular pipe heating
Water tank	800L circular pipe heating	1600L circular pipe heating
Pump flow (m3/h)	10	10
Pump lift (m)	36	36
Pump power (kw)	3	3
External size (length×width×height(mm)	3000×1200×1850	3200×1400×2000
Weight (kg)	420	480
