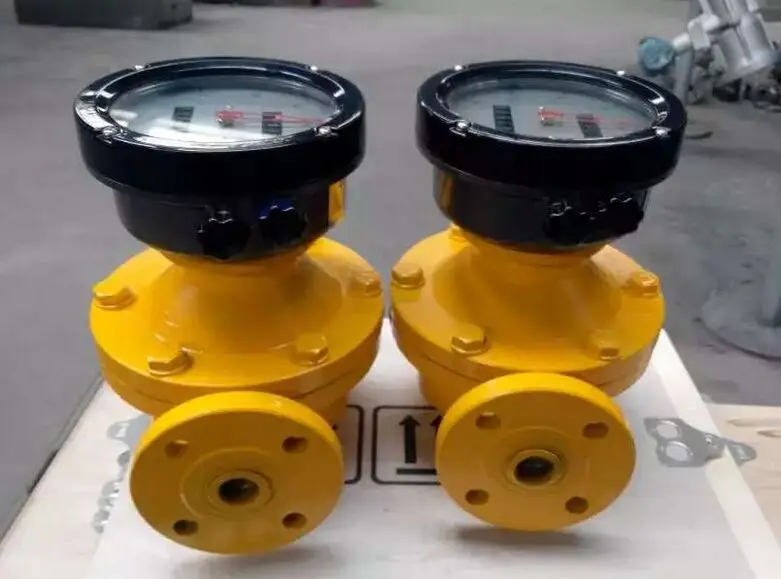

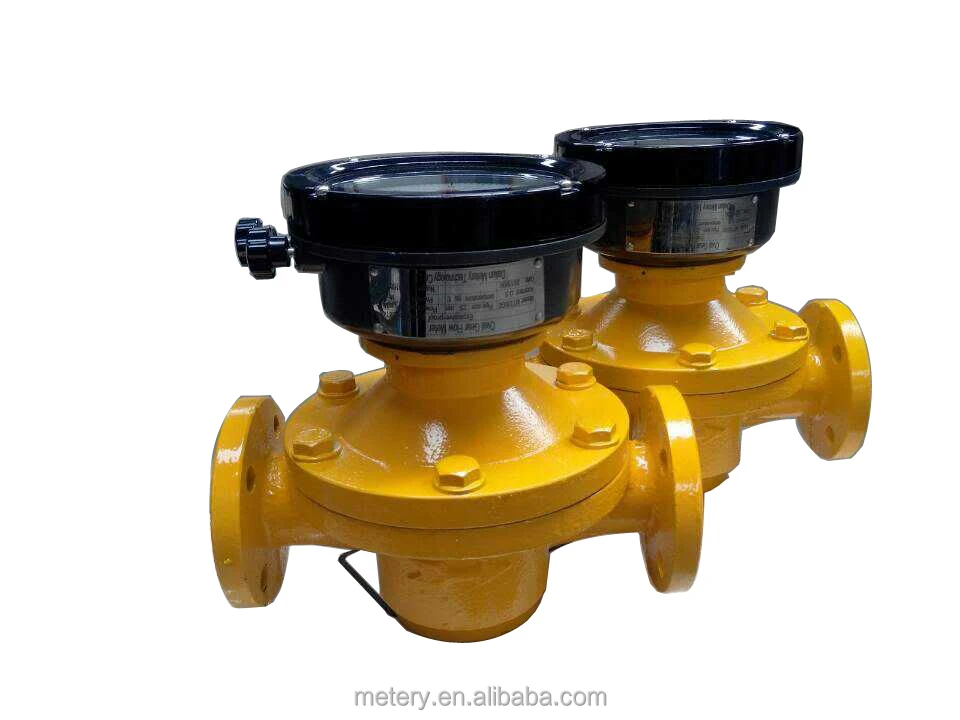

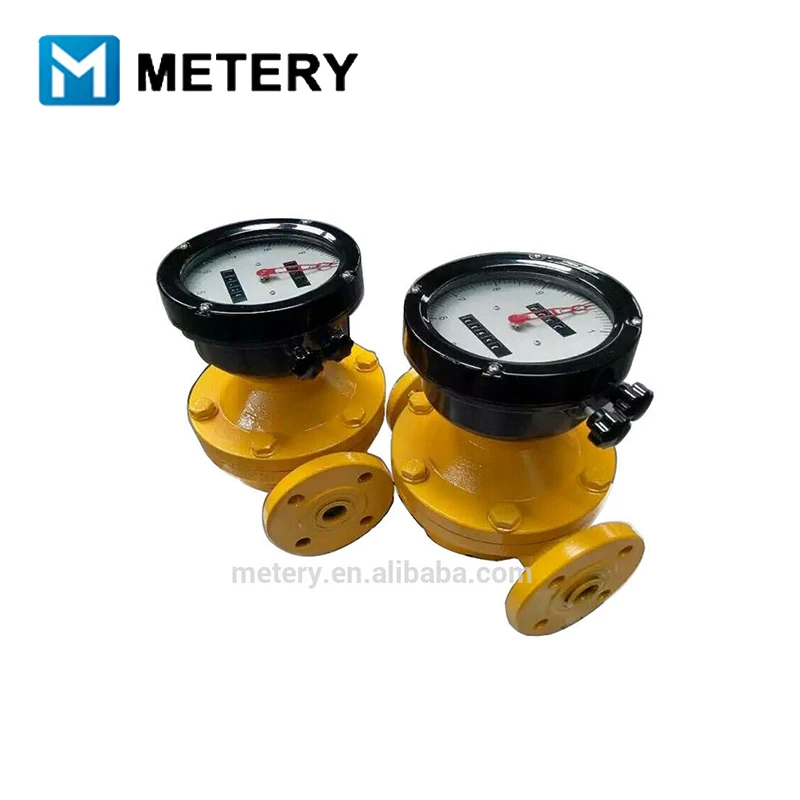

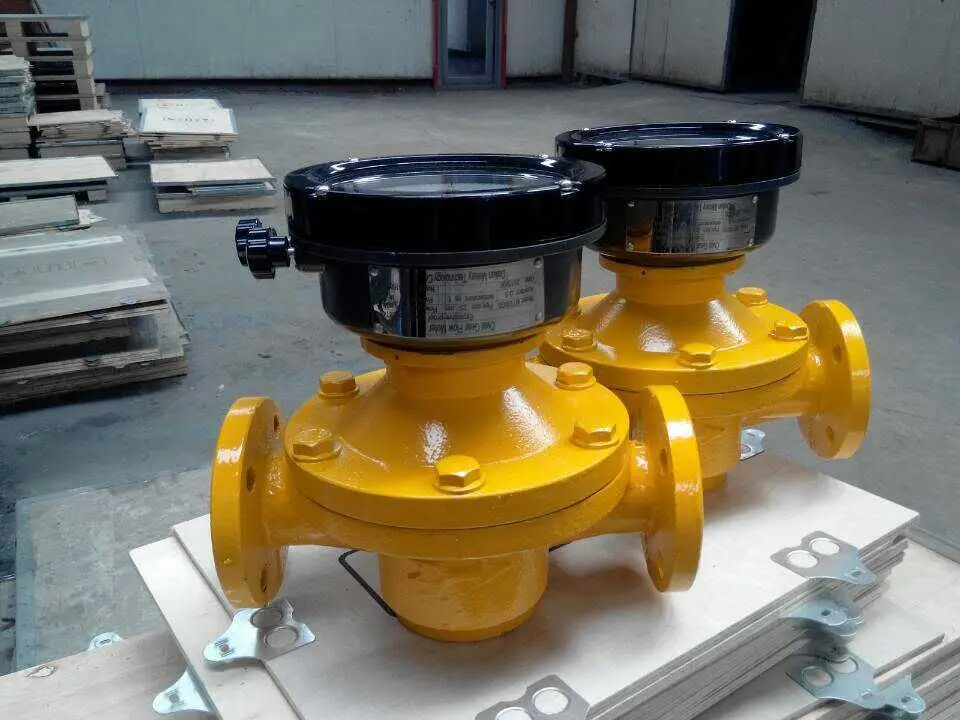

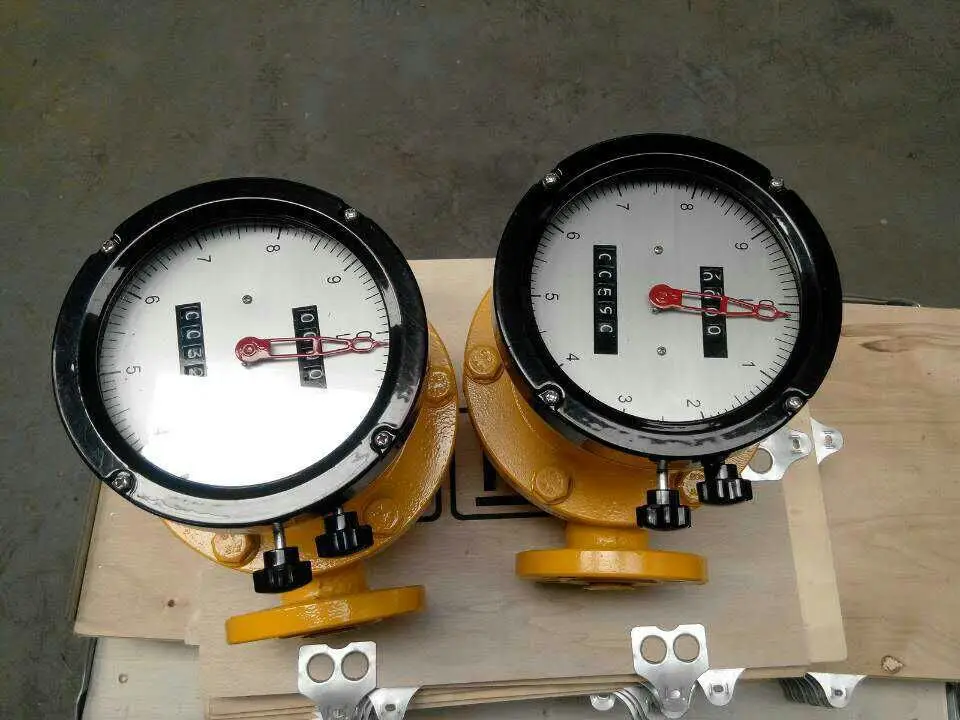

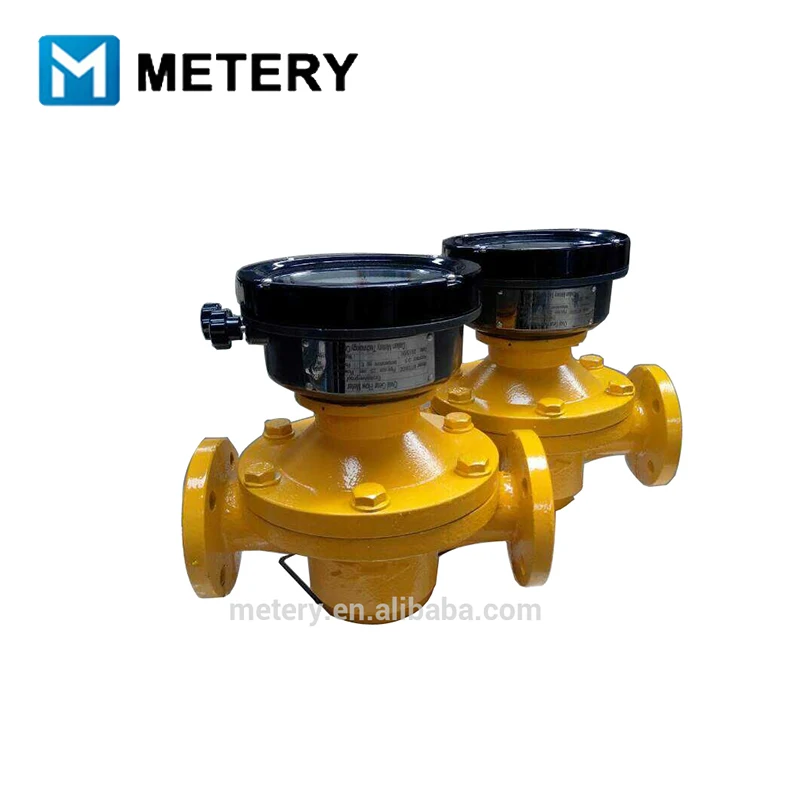

METERY TECH. Digital diesel oval gear flowmeter

Product Overview

Description





Email:  info(at)metery-tech.com   sales(at)meterytech.com





Technical parameters of our  digital diesel oval gear flowmeter MT100OG series

Inside nominal diameter (mm)	8~250
Accuracy	0.2%,0.5%
Pressure loss	0~1000Mpas<80kpa
Wirking pressure	1.6,2.5,4.0,6.3,10,16,25,42MPa
Temperature range	-20°C~+300°C
Dielectric viscosity	0.1~1000Mpas
Environment condition	The temperature of -20 °C ~ +50 °C moisture ≤ 85%, pressure 86kpa ~ 106kpa
Connection flange	GB, the other can according to user specified flange standard
Anti-hazard classification	Intrinsic safety type laII CT4, explosion suppression dII BT4





Flow range

Inside nominal diameter (mm)	Flow range  m3/h
	Accuracy class 0.5	Accuracy class 0.2
8	0.05~0.5	0.1~0.3
10	0.1~0.6	0.2~0.6
15	0.16~1.6	0.5~1.5
20	0.25~2.5	0.8~2.4
25	0.6~6.0	2~6
40	1.6~16	5~15
50	2.5~20	6~18
80	6~48	12~48
100	8~80	20~60
150	25~200	60~180
200	45~360	100~300
250	80~500	150~450

Note: Can be custom-made non-standard flow meter



Overall dimensions for installation

Type and nominal  diameter(mm)	Flange spacing-L	Total height- H	Center height- M	Material quality	Pressure rating -MPA	Installation
MT 8	180	260	35	carbon steel 304 316	1.6 2.5 4.0 6.3 10 26 42	horizontal type
MT 10	180	260	50
MT 15	180	260	60
MT 20	240	300	100
MT 25	240	300	100
MT 40	280	350	150
MT 50	280	350	150
MT 80	400	500	250
MT 100	400(560)	600	300
MT 150	650(700)	700	350		1.6 2.5 4.0 6.3
MT 200	1000(800)	700	350
MT 250	1000	800	400



Structure and working diagram

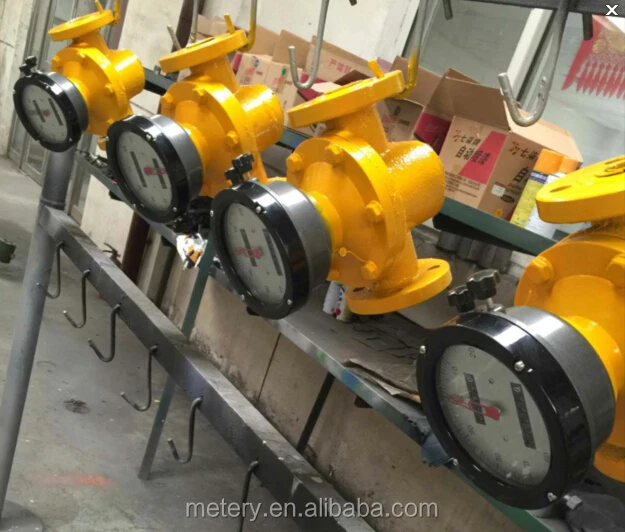

Workshop and parts

  We have our own factories and workshop to ensure the quanlity and delivery, so as the reputation related to our

long run development. Q&C team will make our product enough warranty and credit for our domestic and aboard users
