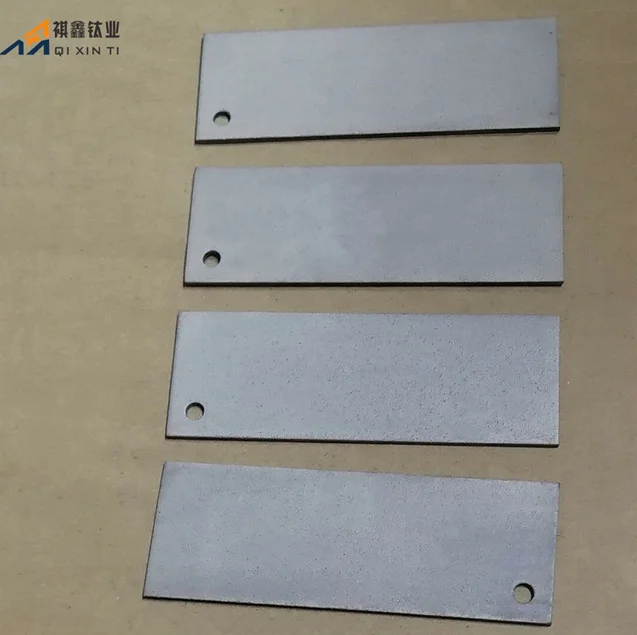

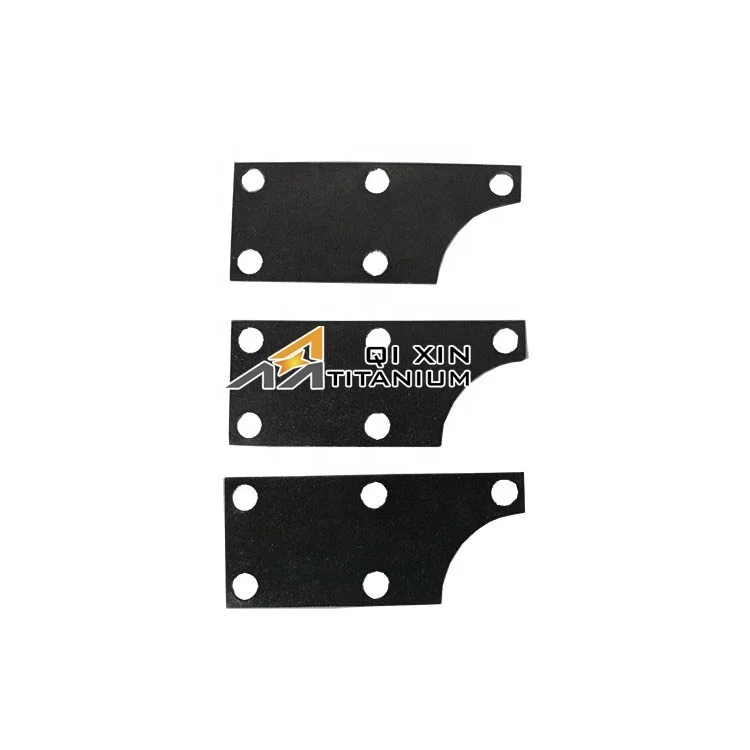

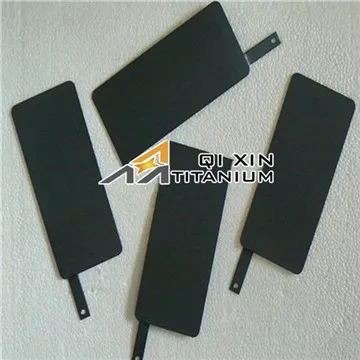

HHO Generator for Car Using Ir Ta Coated Titanium Electrodes

Product Overview

Description



HHO Generator for Car Using Ir-Ta Coated Titanium Electrodes







The Performance of  HHO Generator for Car Using Titanium Electrodes



MMO Coated Titanium Anode is customized product and we processing as customer's design.



HHO Generator for Car Using Titanium Electrodes
Material	Gr1 Titanium as substrate,mixed Iridium-Tantalum oxide or Platinum as coating
Technology	Sand blasting,acid washing and Brush coating
Coating Thickness	Iridium-Tantalum oxide as coating	Platinum as coating
	8-12 micron	0.5-4 micron
Dimension & Shape	Different dimension and shape is available, make according to customized design/drawing
Working Principle	Water electrolysis
	The reaction on the anode and cathode of water electrolysis
	H2O=H2↑+1/2O2
	Cathode:2H2O+2e=H2↑+2OH-
	Anode:2OH-—2e=1/2O2+H2O
Working Parameter	1)    Current density max 2000A/M2
	2)    Temperature≤60°C
Features	1)    High anti-corrosion property
	2)    Lasting working life
	3)    Keep the operating voltage stably
	4)    High current efficiency
	5)    High catalytic property
Remarks	1)    Titanium anode also be called MMO anode, DSA & Insoluble anode
	2)    Cathode can be porivded
Packing	Plastic or paper as inside, carton or plywood case as outside, or according to client's demand

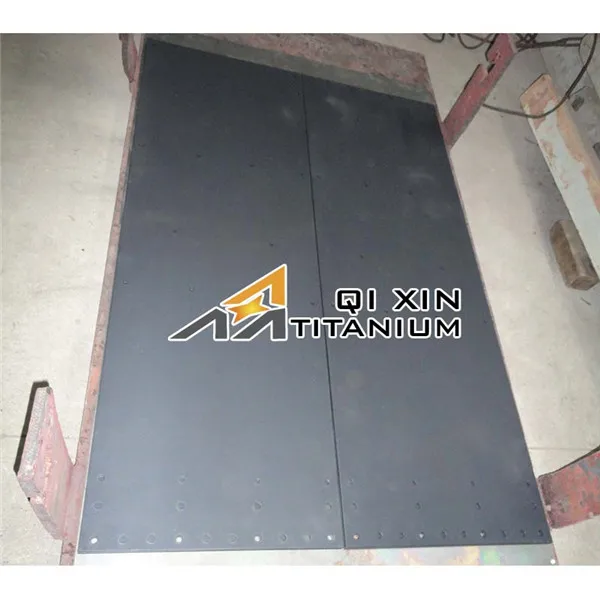

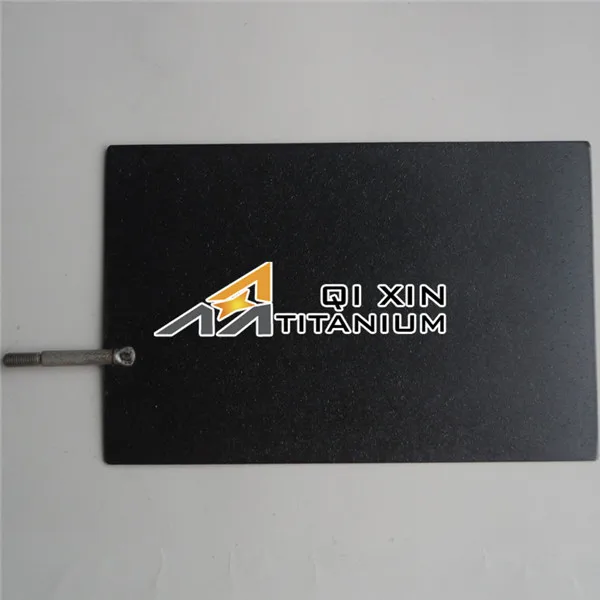

Product show

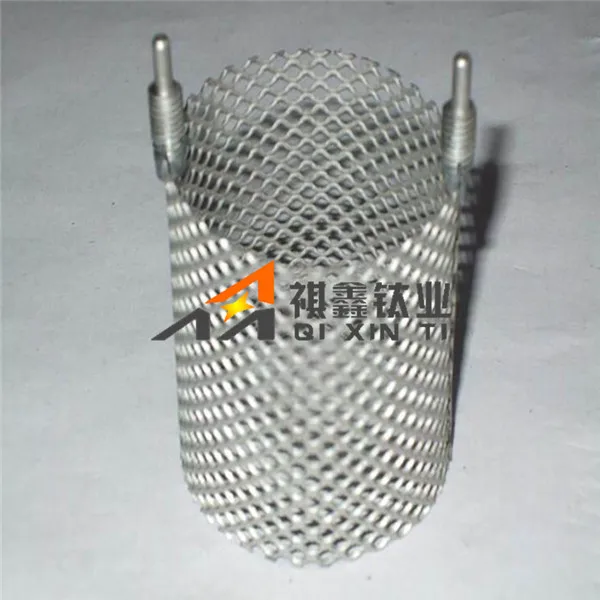

Other Related Products

Professing technology









TIPS:

Brush coating. Specific operation as follows:

Firstly,making the coating solution according to the type and the area of the platinum electrode; secondly ,put the solution on the surface evenly, then put them into the drying furance for drying; thirdly,we need to oxidate in the high temperature oxidation furance;Lastly, dry it to room temperature. Then,repeat these steps until you run out the configuration solution.

     We do the welding according to the customer demands.



Packaging and shipping







Quality assurance and after-sales service



  (1)  We promise that our substrate is high quality,acceleratd life test.The coating solution is configured according to the certain proportion.

  (2)  With the high technology and equipment,All of our tecnical personnel have abundant experience,and our workers are very skilled.During the production of the Titanium anode, each process must carry on the strict examination,Such as the detection of surface rougghness,The quality of coating solution,coating evenness and so on.

  (3) We have our own production,sales and after-service department.We are usually dedicated to provide customers with high quality and reasonable price product.Most importantly ,we can provide the efficient service.

  (4) Each procedure will be carefully detected in the technical staff to compelete.accomplish the order in time and delivery on time.

  (5) During our cooperation,if you have any problem ,you can contact us at anytime,we will do our umost to help you.
