Industrial Furnace Curtains Ceramic Fiber Cloth Heat Insulation

Share on (1793635494):


Price:$6.00

Quantity:


Product Overview

Description


Industrial Furnace Curtains Ceramic Fiber Cloth Heat Insulation

cloth and tape

 07_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

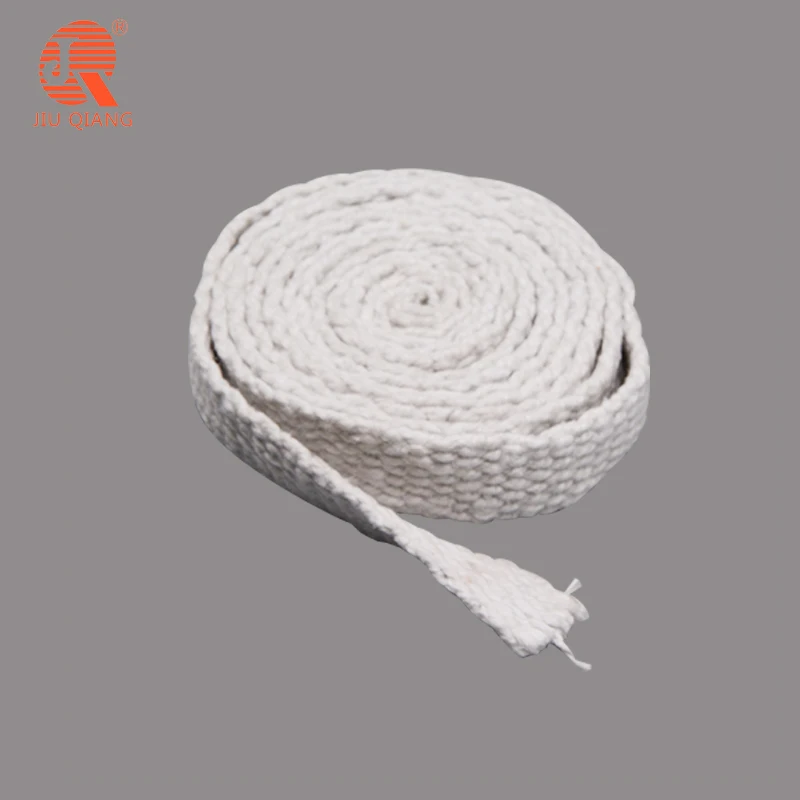

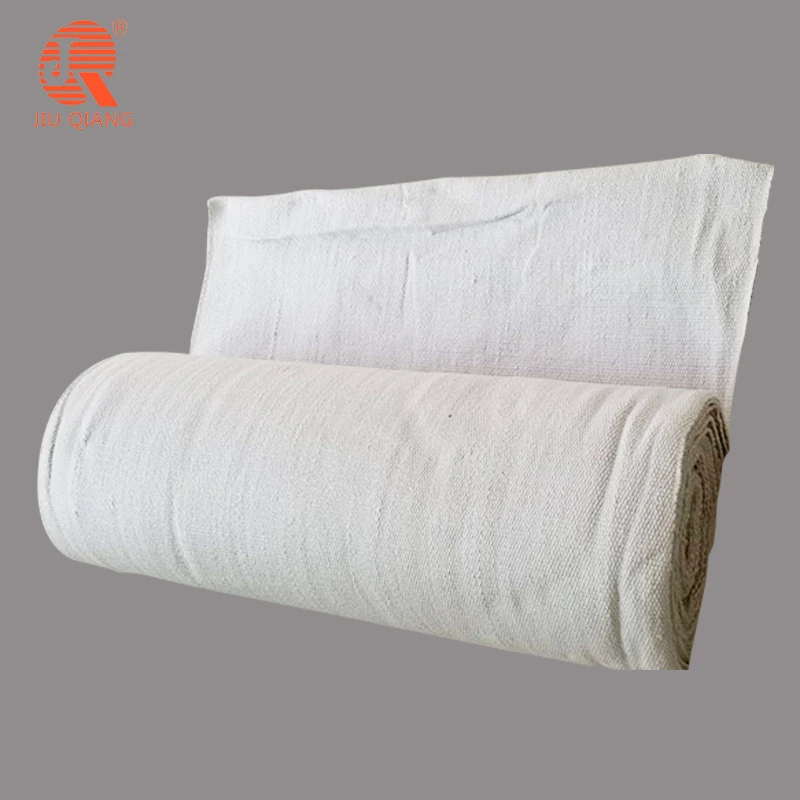

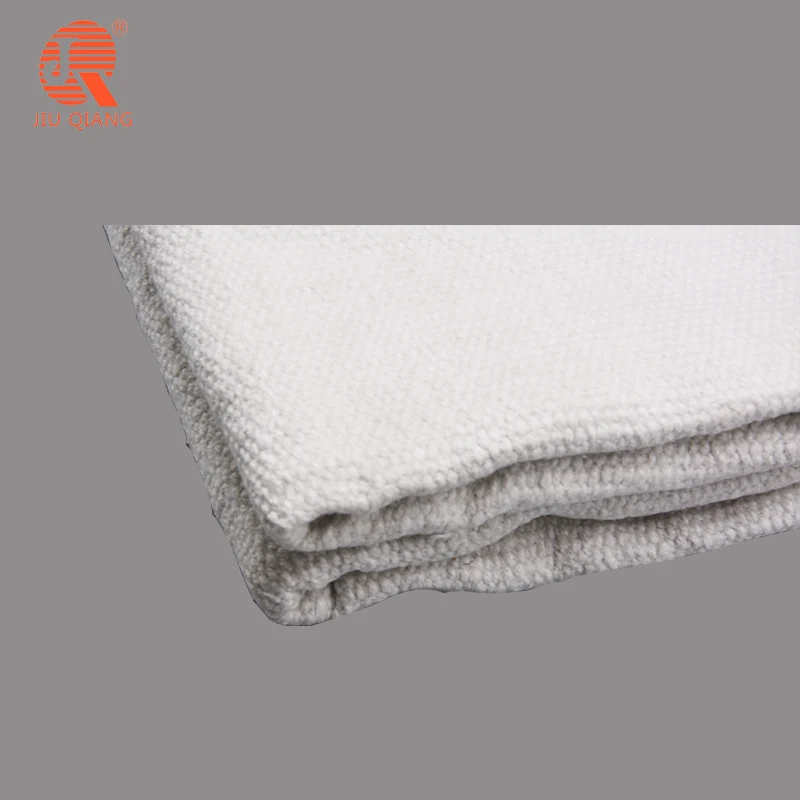

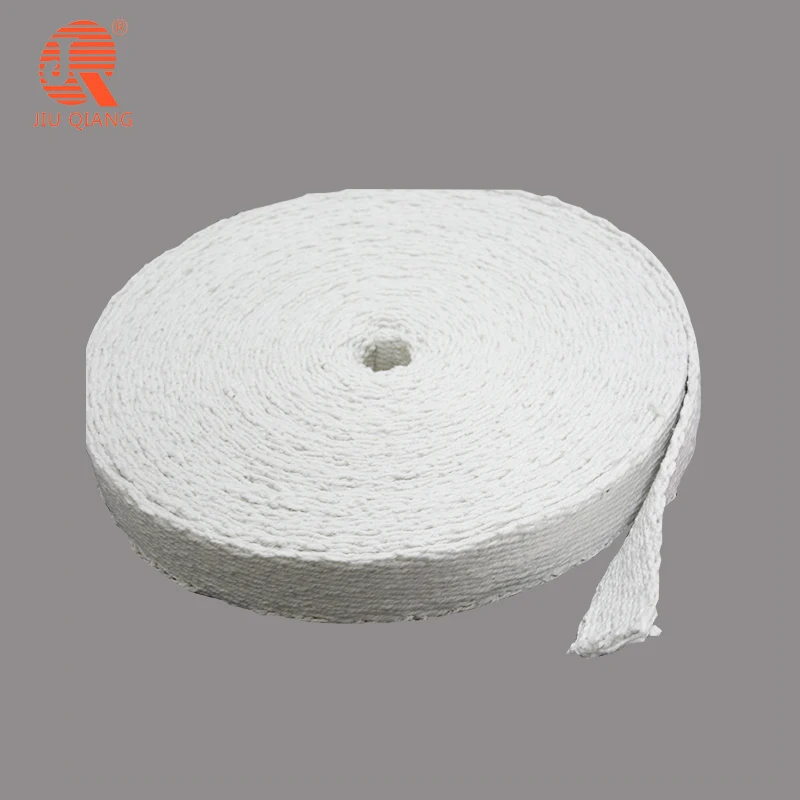

Jiuqiang heat resistant cloth/tape  is a woven fabric made from our high quality ceramic fiber

woven yarn. The cloth is reinforced with fiberglass filament, Ceramic fiber textiles (cloth, tape and rope) contain a certain amount  of binder material which is normally burnedat lower temperature and does not affect the insulation property.

It is featured with heat insulation and high temperature protective materials in all kind of thermal installations and heat-conducting systems, widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal,  power plants and chemical plants.



08_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation





-Lightweight and low thermal conductivity.

-Resists corrosive chemicals, commonly used acid and alkali.



-Strong and abrasive. It can be used in tough environment.



-Good substitute of asbestos products in many insulation and sealing applications.



-Reinforcing material: glass fiber wire, stainless steel wire, glass fiber and stainless steel wire

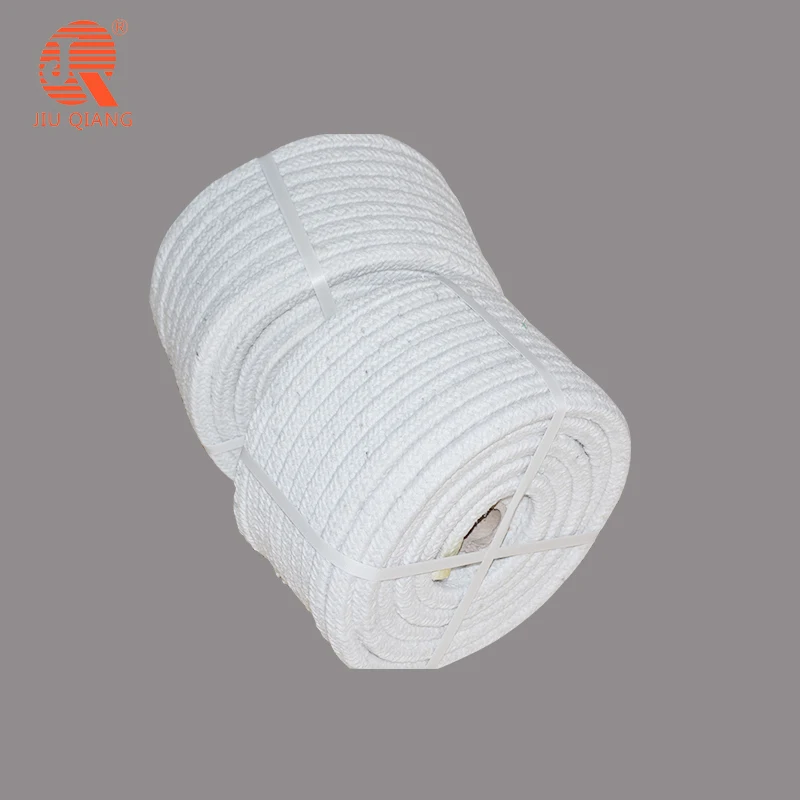

Close Rope and Tape

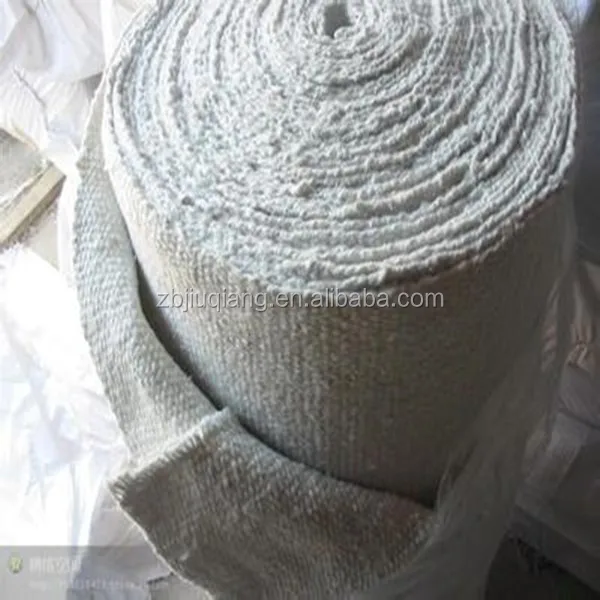

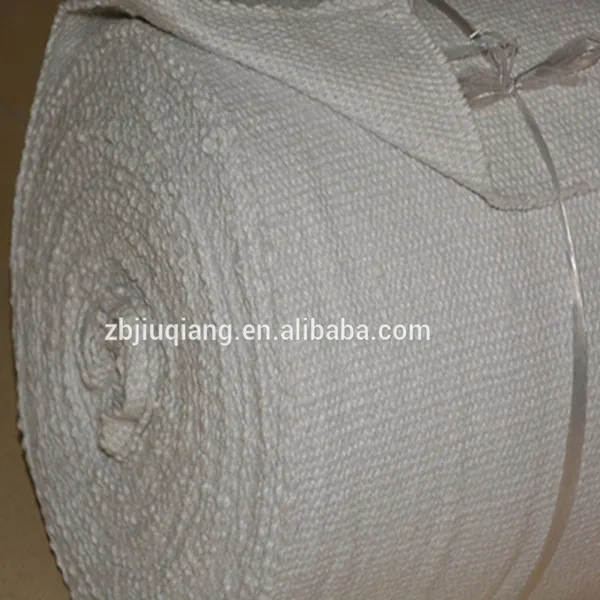

010_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation09_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation



011_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

012_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

-Heat insulation furnace curtain, large area thermal insulation.



-Radiant heat shielding, flexible fabric expansion joints for high temperature piping.



-Safety blankets, welding blankets, protective and insulating covers, gaskets, cable or pipe wrapping, etc.



013_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation



 Item

Ceramic Fiber Cloth

Ceramic Fiber Tape

Product Code

JQCFC01

JQCFC02

JQCFT01

JQCFT02

Classification Temperature

1260C

1260C

1260C

1260C

Work Temperature

450C

1000C

450C

1000C

Basic Material

Fiberglass Reinforced

Stainless Steel Reinforced

Fiberglass Reinforced

Stainless Steel Reinforced

Theoretical Density ( kg/ m3)

500±15

500±30

Moisture Content (%)

≤2

Warp Density

48~60 Piece/10cm

Weft Density

21~30 Piece/10cm

Organic Content (%)

≤15

Specification (mm)

L:30,000mm / W:1,000mm / T:2~3mm

L:30,000mm / W:75mm / T:2~3mm

Packing

Plastic bag inside, Carton box outside

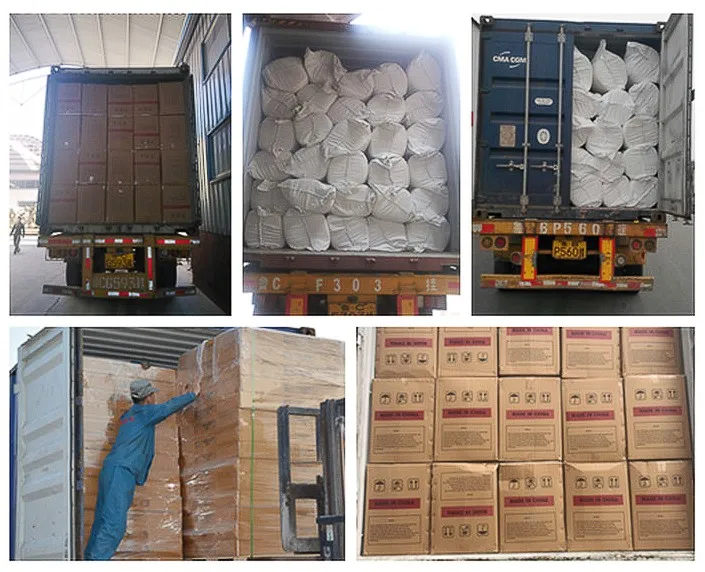

Packaging & Shipping

 Package Arrangment

 plastic bag inside and carton box outside

014_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

 Shipping Arrangment



first loading port :Qingdao

According  the goods,we send by sea,by air ,or by express



 015_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

Company Information

016_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

 Zibo Jiuqiang Refractory Co.,Ltd is a professional ceramic fiber paper,board,blanket,textitles

(cloth,tape,rope) manufacture,the ceramic fiber paper (cotten fiber paper) we produced has been

exported to all over the world and won a very good reputation.Ceramic fiber paper,ceramic fiber

board,ceramic fiber blankets and felts,ceramic fiber bulk,ceramic fiber modules ,with kinds of

mecihanical anchor fixings,ceramic fiber textiles(cramic fiber yarn,cloth,tape,twisted rope&briaded

rope),special shaped ceramic fiber products/vacuum formed ceramic fiber products.

018_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

017_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation



019_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

020_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation

021_Industrial_furnace_curtains_ceramic_fiber_cloth_heat_insulation





                   Why Choose US ?



1.Zibo Jiuqiang Refractory Co., Ltd is a professional manufacture and
   exporter of the heat insulation material.


2.Senior R&D team and quality managers guarantee the product quality.



3. Large-scale production lines ensure the fast delivery time.



Welcome your  kind  inquiry  on  our High quility products,



happy  to  set  a  good  coopration  with  you
