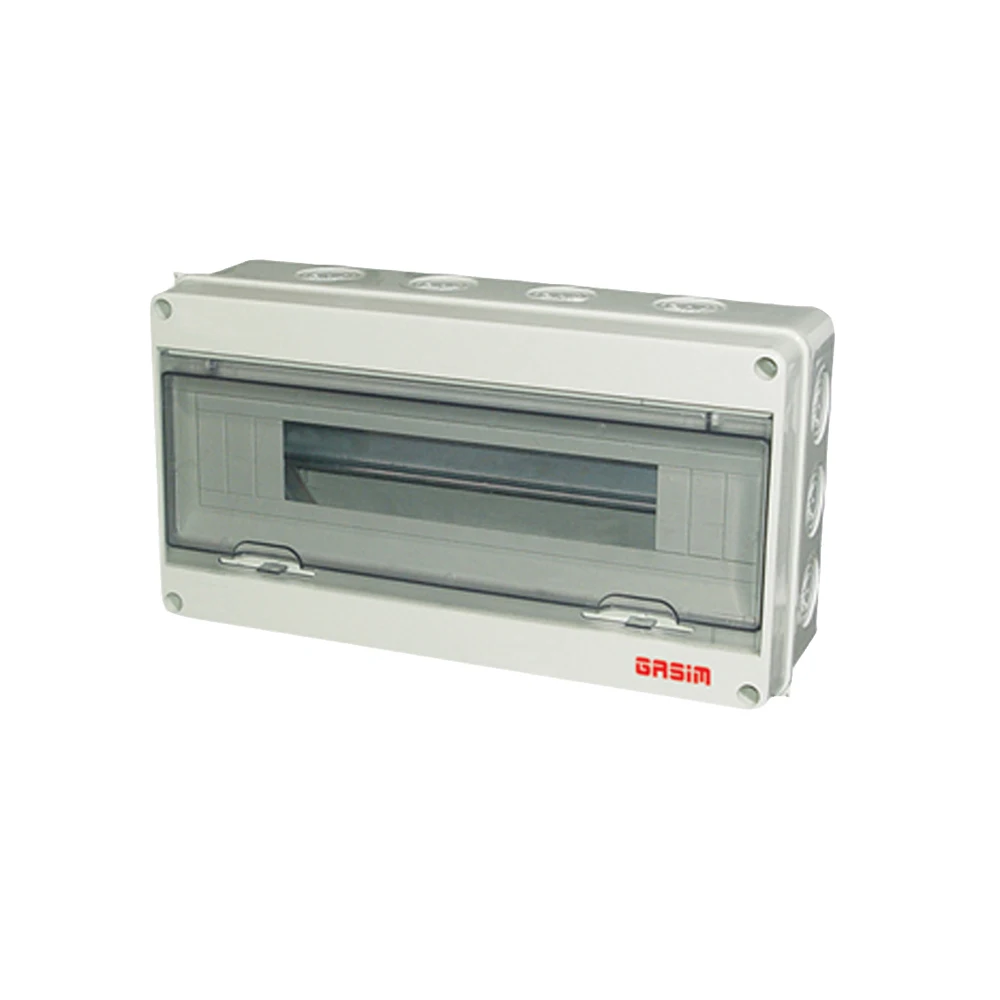

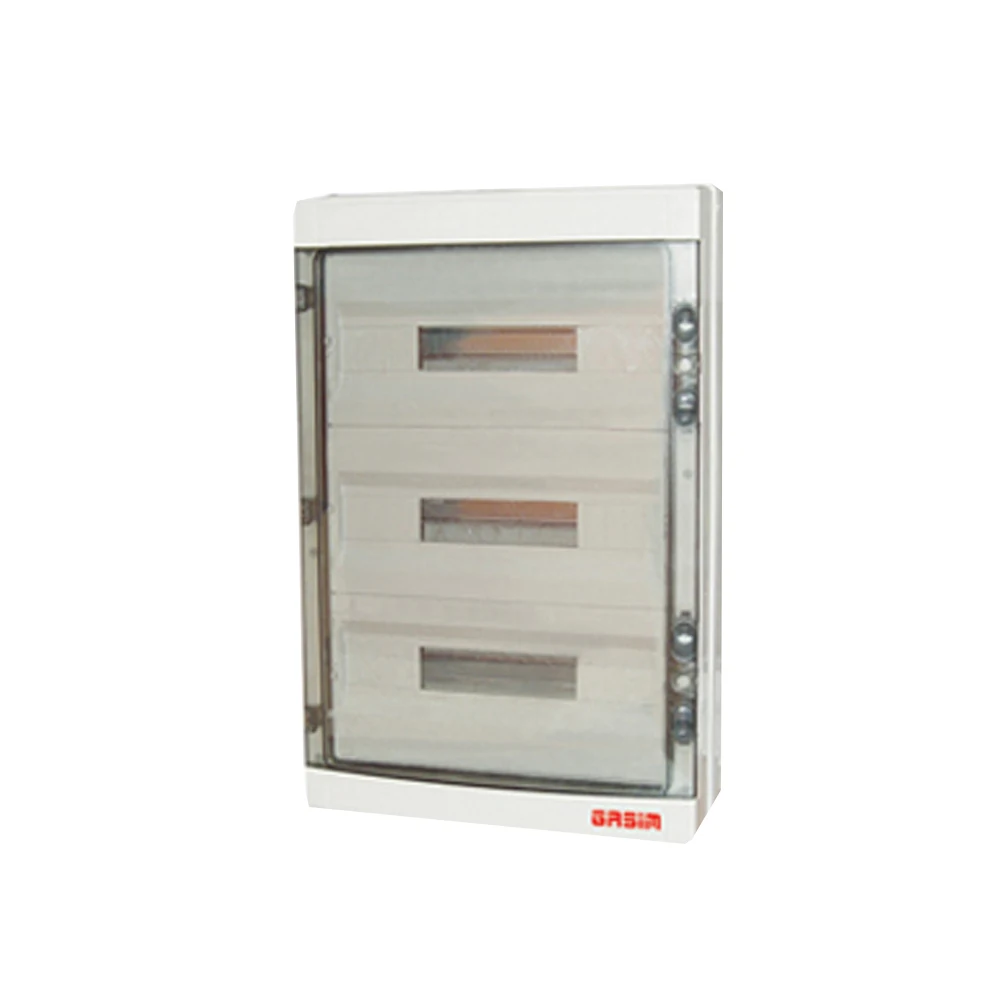

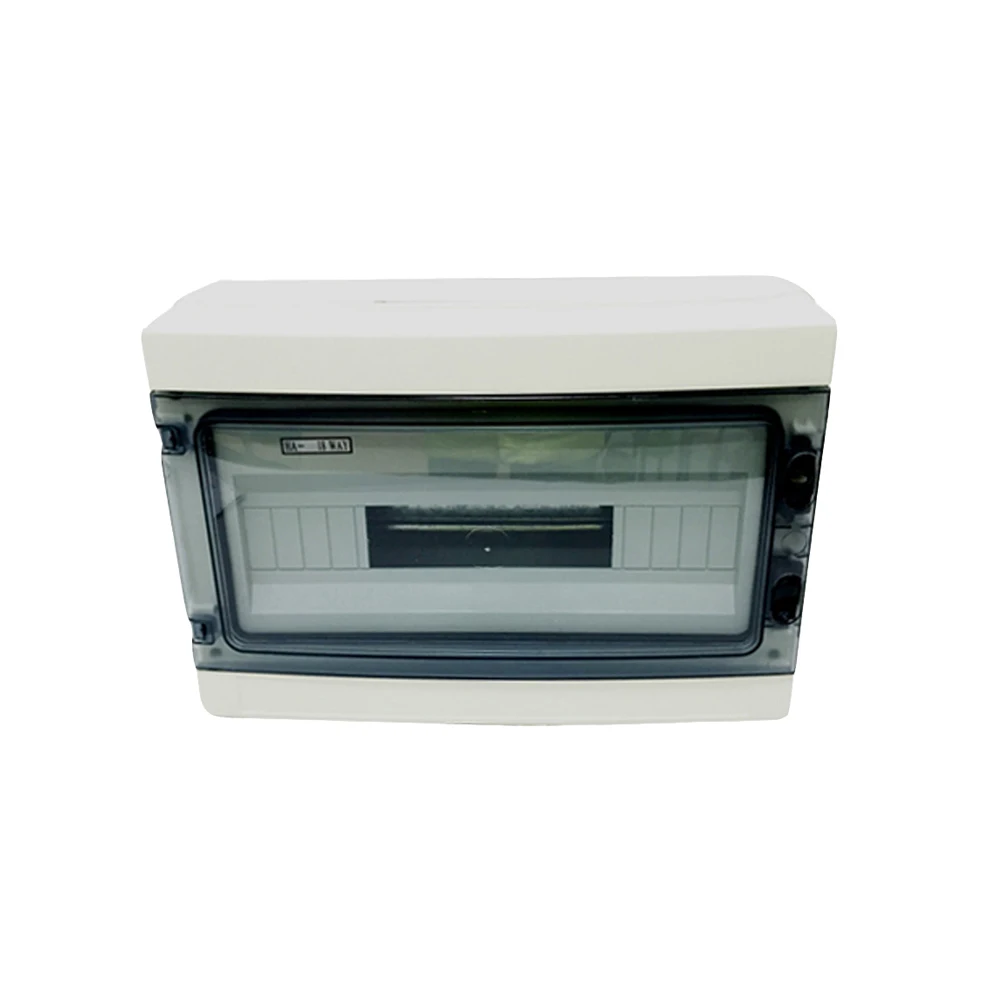

all types of electric distribution panel board db box IP65 HA HT 12WAY 24way
- Category: >>>
- Supplier: Shanghai Gasim Industry Co. Ltd.
Share on (1794249074):
Product Overview
Description
Product Description
types of electric distribution board
1,Exd Explosion proof distribution panel distribution boards
2,Main current: 60A to 250A
3,Branch current:1 A to 60A
BXM(D) Explosion Proof Illumination ( Power) Distribution Boards distribution box , distribution panel,
Application
Designed for
Explosive atmosphere Zone 1, Zone 2
Combustible dust Zone 20, Zone 21, Zone 22
Designed for
Groups IIA,IIB,IIC
Temperature classes T1~T6
Design for sites with explosive atmosphere such as petroleum exploitation, refinery, storage, chemistry, medicine, textile, printing, factory and factory facilities ,etc.
Used for power distribution in illumination or power circuit.
Features
Compound structure, main compartment is of flameproof type connection compartment is of increased safety type.
Modular design, each circuit can be combined freely.
Built-in high breaking mini circuit breaker or molded case circuit breaker, can be controlled on-off via handle on enclosure.
With on indicating lamp.
With overload, short circuit protection, and leakage protection function can be made as per request.
Can be used for on-off in illumination circuit or power circuit or combination of illumination circuit and power circuit breaker.
Can be specially made as per request.
Steel pipe and cable wiring.
Technical Specification
Compliance with: GB 3836.1,GB 3836.2,GB 3836.3,IEC60079-0,
IEC60079-1, IEC60079-7, EC61241-1-1
Explosion protection: ExdeIIBT6, DIPA20TA, T6
Rated voltage: AC 220/380V
Rated current of main circuit: 60A~250A
Branch circuit number: 4,6,8,10,12
Rated current of branch:1A,3A,5A,10A,15A,20A,25A,32A,40A,50A,60A
Ingress protection: IP65
Corrosion resistance: WF1
Cable entries Specification: G1/2"~G3"
Cable’s outer diameter:Φ6mm~Φ55mm
Cable entries direction: downwards inlet and downwards outlet or upwards outlet,
normal type is downwards inlet and outlet, other requirements please indicate.
Mounting type: pendant type, vertical type.

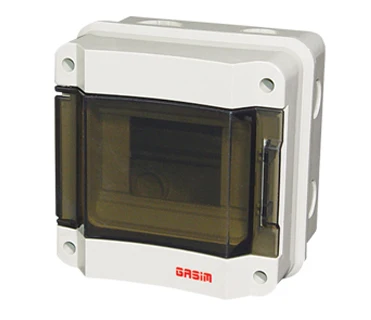

| V8 series distribution box(PC plastic cover, MEATL BASEBOX PLASTIC COATING) | |||||
| Product summary | packaage (pcs/ctn) | Dimention (mm) | Gross Weight (kg/box) | color of cover | Installation method |
| 4-6 unit combined distribution box | 10 | 540x460x310 | 20 | Gray, Yellow, Cream | Inside/Outside |
| 4-6 unit distribution box | 10 | 540x460x240 | 18 | ||
| 7-9 unit distribution box | 10 | 540x460x305 | 20 | ||
| 10-12 unit distribution box | 5 | 530x350x240 | 10.5 | ||
| 14-16 unit distribution box | 5 | 523x413x240 | 13.5 | ||
| 17-19 unit distribution box | 5 | 535x465x240 | 15 | ||

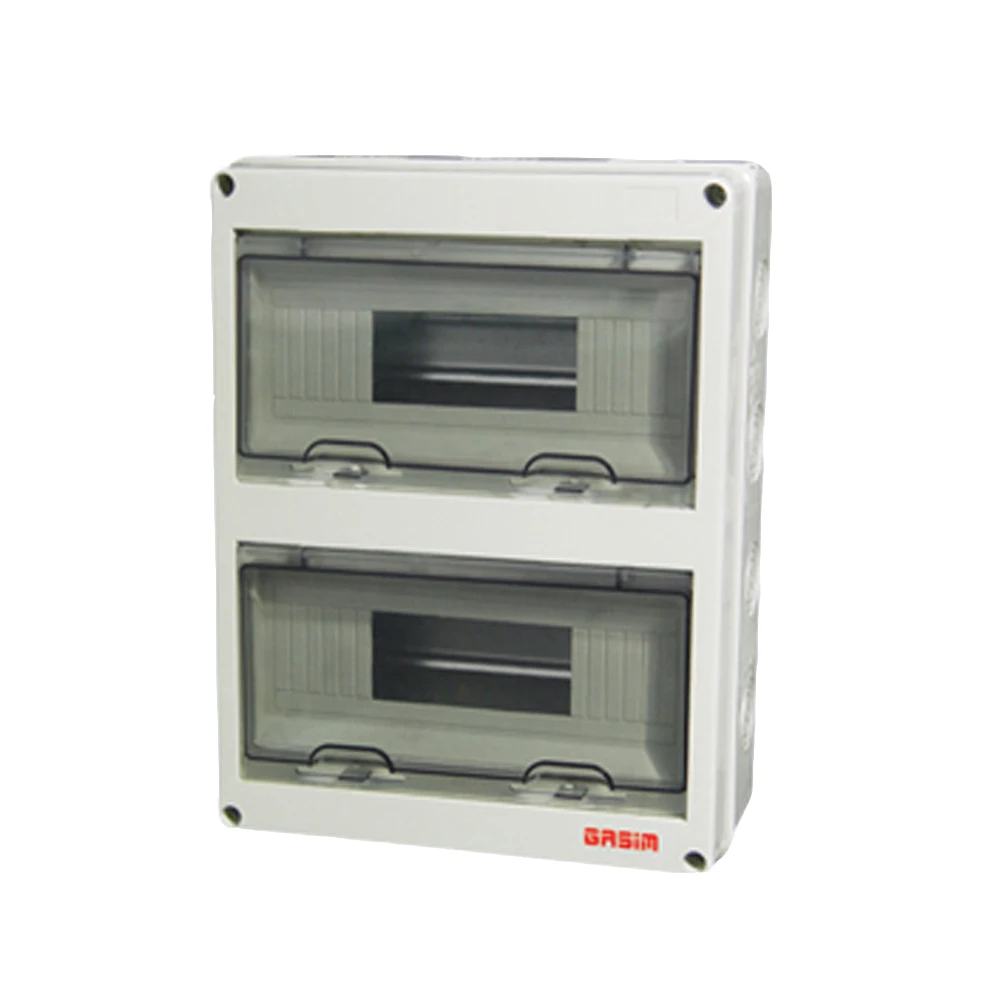

| 20-24 unit distribution box(two rows) | 5 | 535x380x355 | 19 | ||
| 28-32 unit distribution box(two rows) | 1 | 435x402x100 | 4.8 | ||
| 34-38 unit distribution box(two rows) | 1 | 435x455x100 | 5.2 | ||
| V8 series inside distribution box (PC plastic cover, FIREPOOF BASEBOX PLASTIC COATING) | ||
| Product summary | package(pcs/ctn) | color of cover |
| 2-3 unit distribution box | 50 | |
| 2-4 unit distribution box | 20 | Gray, Yellow, Cream |
| 4-6 unit distribution box | 10 | |
| 7-9 unit distribution box | 10 | |
| 10-12 unit distribution box | 5 | |
| 14-16 unit distribution box | 5 | |
| 17-19 unit distribution box | 5 | |
Packaging & Shipping
export packing for types of electric distribution board
Our Services
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China.

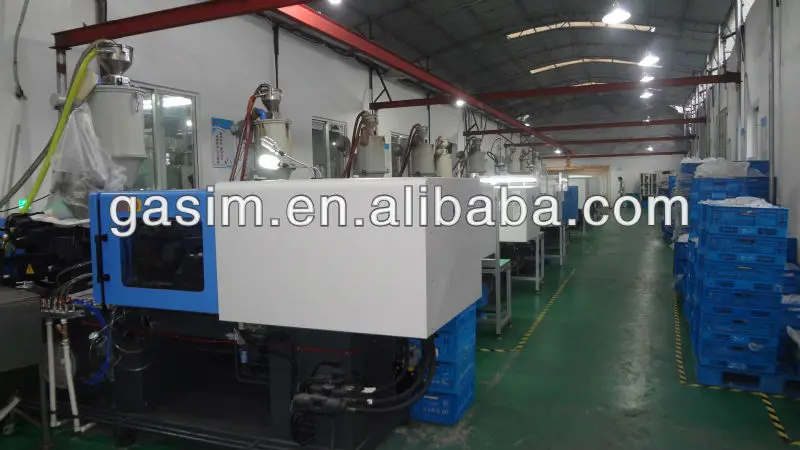

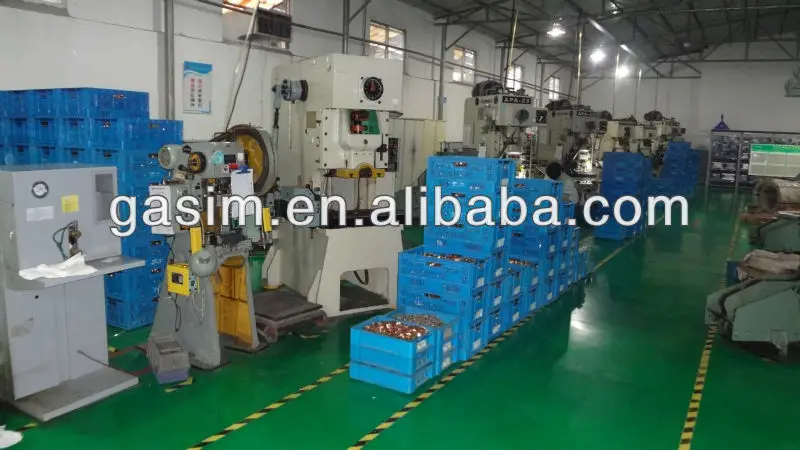

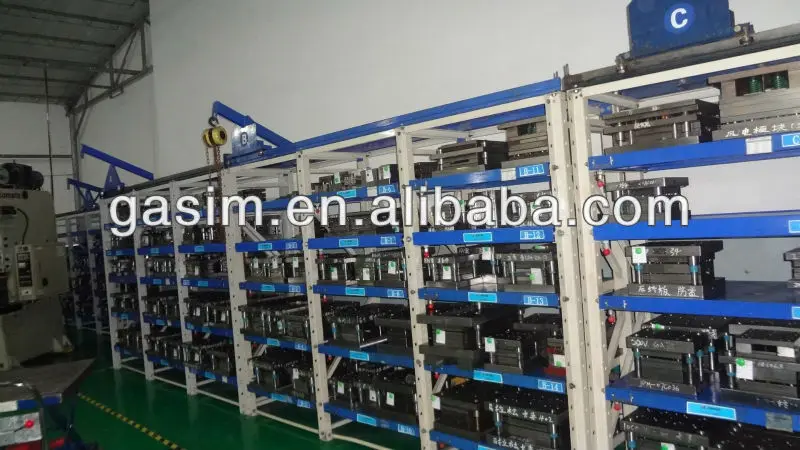

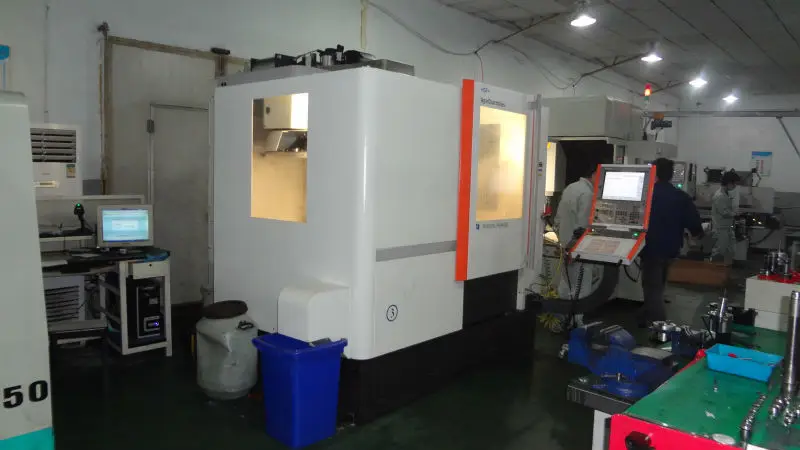

Company Information
we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive .
FAQ
Q1;WHY CHOOSE US?
1.with 20 years experience
2.high quality with fast delivery and good price
3.Rohs approval
4. samples PROVIDED
