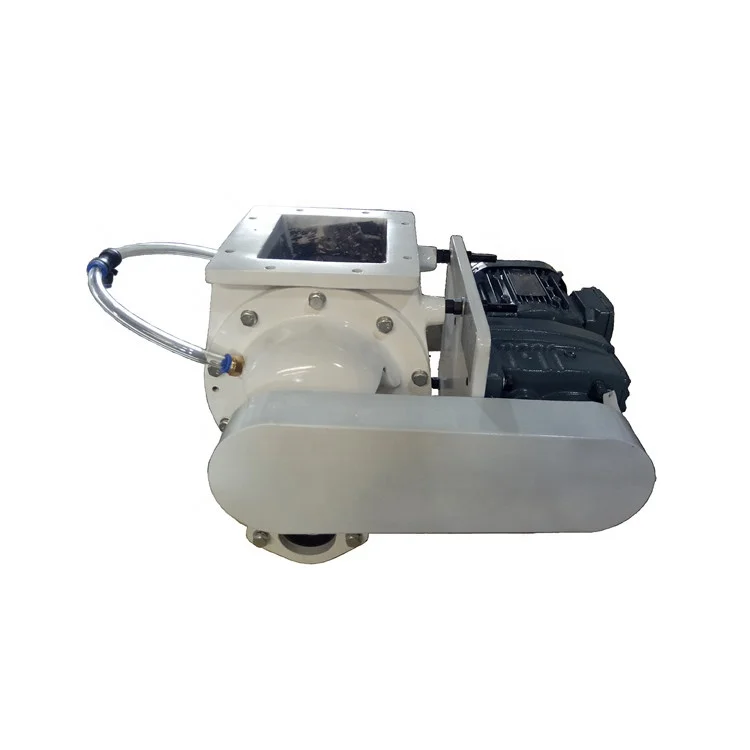

Airlock feeder cement plant spare parts stainless steel rotary valve

Product Overview

Description







                     Applications:Roots blower,silo emptying, cyclone discharging, dust collection systems, etc.



 Our Rotary airlock valve can be used as the discharger, material will go through the valve without stopping machine and discharge  material from cyclone or silo . Rotary airlock is an important device for pneumatic conveying and dust removal. The main usage of rotary airlock is to timely and constantly unload the material from discharger or dust collector, and to prevent the outside air from entering the discharger or dust collector.

Product Description:

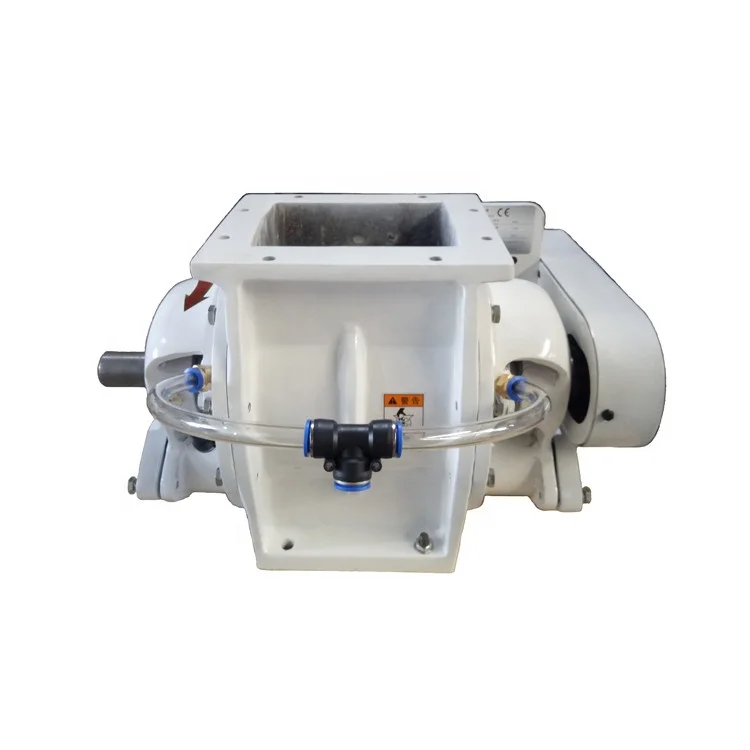

The Blow Through Rotary Airlock Valve is used in dilute phase pneumatic conveying system, The conveying line pipe connects directly into the rotating pocket. The inlet and outlet of flow located bottom of endplate of housing, The pressurization airflow into the valve ,directly connect into the V-type pocket of impeller, enter conveying line from outlet port after the materials mixed. By this legend design can efficiently clean up powdery material adhered to V-type pocket .In-place mounted benefit by compact shape design.(This device is not ideal for high hardend and abrasive particle material. relevant device please click our drop-thru rotary airlock valve)
1,Order different welding insert can meet the requirement of different conveying pipe.
2,Select oil-water separator can prevent excess vapour into the rotary valve in the area ,where exist temperature differential and high humidity.









 Product Drawing









Type	Inlet and out let			size
	F0	F0	Dg	A	B	C	C1	D	F	F1	F2	F	F1	F2	G	H	H0	L	Diameter
BFCP-2.5	130	130	45	80	180	225	245	180	210	180	80	210	180	100	470	280	140	455	30h7
BFCP-5.5	200	170	65	150	220	328	300	220	280	250	150	250	220	120	628	340	170	580	40h7
BFCP-8.5	250	250	70	200	300	395	375	250	330	300	/	250	330	/	770	400	200	630	40h7
BFCP-13.5	270	240	100	220	300	395	365	280	360	330	200	330	300	180	770	435	230	660	40h7
BFCP-28	350	250	110	330	315	402	480	360	450	415	300	350	315	180	882	550	305	800	55h7
BFCP-56	410	310	120	390	480	402	545	450	510	475	360	410	375	200	947	640	345	870	55h7
BFCP-145	560	400	180	540	660	460	730	600	680	635	510	520	475	340	1190	840	440	1240	70h7

 ( for more models,please contact me!)



 Product Application:



Rotary airlock can handle materials in Powder, Pellet, Flake shapes and also fiber materials. Like Flour ,Wooden chips ,Plastic ,Animal feed ,Sugar ,Cement ,Dust , Etc
