300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor

300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor

Share on (1794834107):


Price:

Quantity:


Product Overview

Description


300Mbps 802.11n Wireless Ceiling Mount Range Extender, PoE Wireless AP In The Home, Office, Cafe or Even A Hotel or Airpor
G20CAP-W4

G20CAP-5

G20CAP-4

G20CAP-6

G20CAP-7

G20CAP-9

G20CAP-8

G20CAP-10

G20CAP-1

G20CAP-2

G20CAP-3

Related Products
G6PE
Power over Ethernet Extender(24V DC)

G20CAP-W9



Product Description:

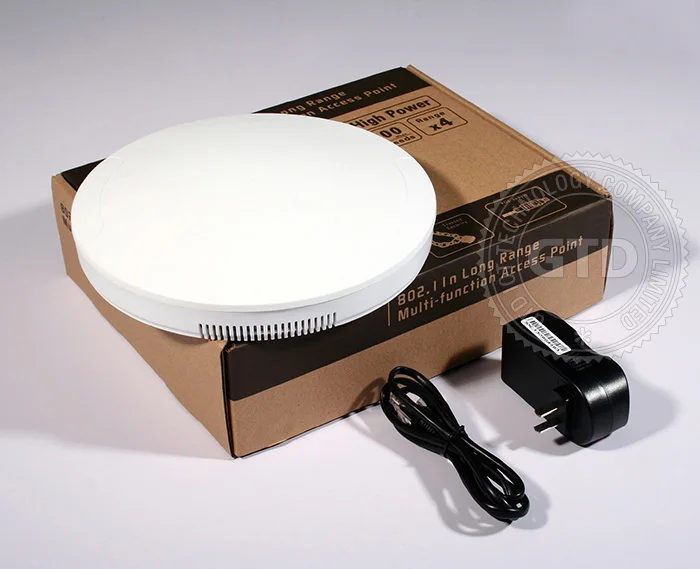

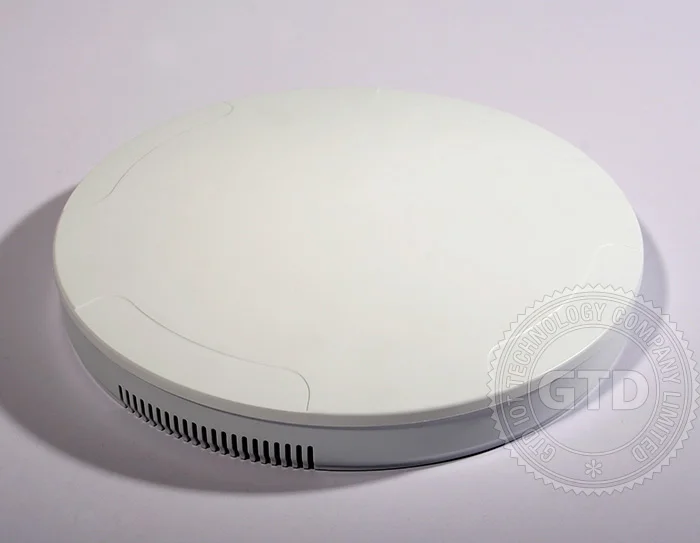

G20CAP 802.11n Wireless Access Point combines stylish design with blazing speeds and flexible install

options to create the best, most reliable network solution for today’s homeowners. With connection speeds of

up to 300Mbps, the G20CAP flawlessly supports even the most bandwidth intensive wireless applications such

as streaming video services and online gaming without the slightest loss of performance. The G20CAP ships

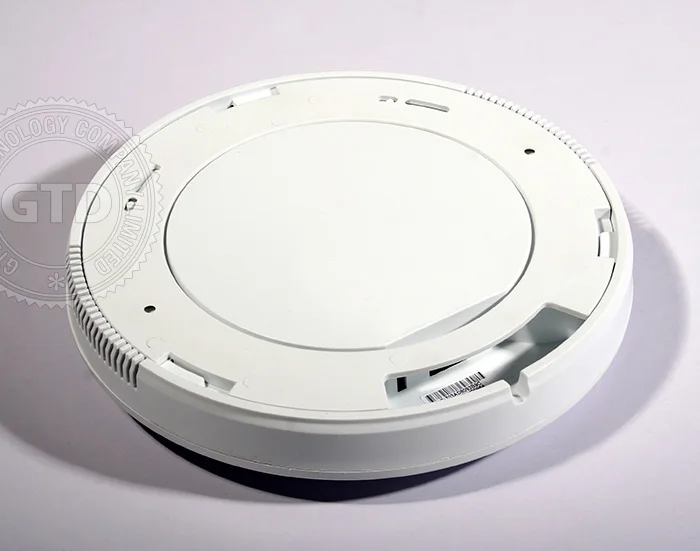

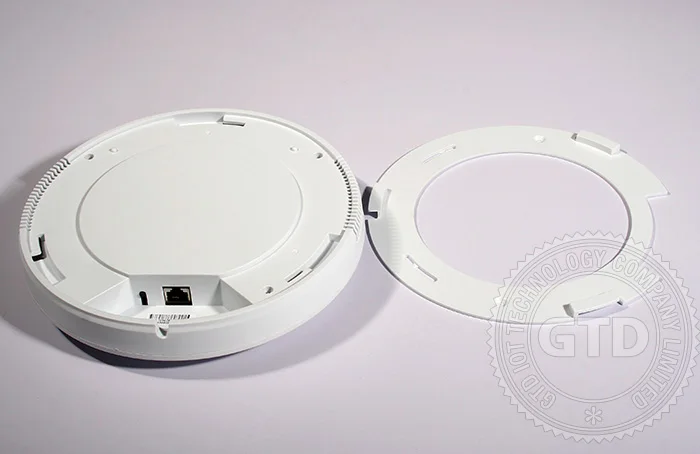

with both in-ceiling and in-wall mounting brackets and covers included for maximum install versatility, as well as

a 24-volt power supply and Power over Ethernet (PoE) injector.

AP Specification

Standards Compliance

IEEE 802.11n/b/g, IEEE 802.3, IEEE 802.3u, IEEE 802.3p, IEEE 802.3x
IEEE 802.3af

SDRAM

16 M Byte

Flash

2 M Byte

Radio Frequency Type

DSSS / OFDM

Modulation

OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK

Frequency Band

America/FCC: 2.412~2.462 GHz (11 channels)
Europe CE/ETSI: 2.412~2.472 GHz (13 channels)

Transmission Power

Up to 20dBm

Transmission Rate

IEEE 802.11b: 1/ 2/ 5.5/ 11Mbps
IEEE 802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps
IEEE 802.11n: See Below Chart

Access Point Interfaces

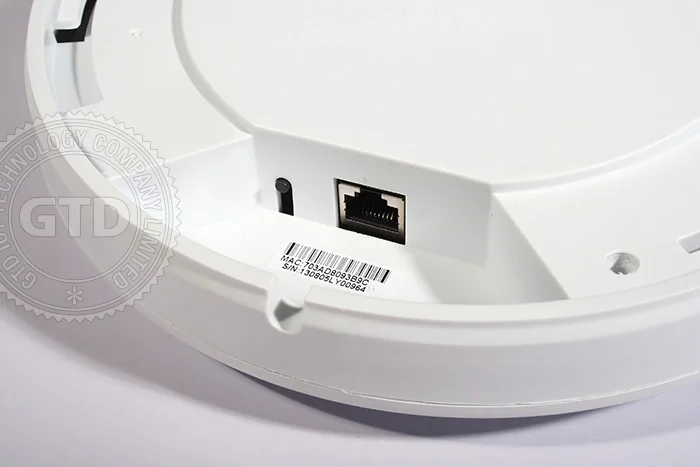

Auto MDI/MDI-X Ethernet 10/100/1000 Base-TX: RJ-45

Sensitivity

IEEE 802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8%
IEEE 802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10%
IEEE 802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%

Antenna Type

2 printed antennas

Security Systems

64-bit / 128-bit WEP encryption; Wi-Fi Protected Access (WPA) / WPA2

Wireless Setting

Operation Mode – AP / Repeater / WDS PtP and PtMP

Software/Firmware

DHCP Server / Client
Suppressed SSID
Station Separation
Wireless access control by MAC address filter (up to 50)
Web-based configuration via popular browser (MS IE, Netscape…)
Firmware upgrade and configuration backup via Web Browser
Reset to default by WebUI or by Reset button
VPN pass-through (PPTP, L2TP, IPSEC)
Traffic Measurement: Per Interface
Bandwidth Measurement: IP Range & Bandwidth Management
Backup & Restore: Settings Through Web
SysLog
SNMP v1/v2c
MIB support: MIB I, MIB II (RFC-1213) and Private MIB
Support QoS(WMM)
Support Time settings

Operating Environment

Operating Temperature: 0 ~ +40°C; Storage Temperature:-40 ~ +70°C;
Operating Humidity: 10% ~ 90% RH non-condensing;
Storage Humidity: 5% ~ 90% RH non-condensing

Power

DC 12 Volt ± 5%; 2A (Max.); AC adapter AC 100V ~ 240V
or DC 48 Volt ± 5%; 0.4A (Max.); AC adapter AC 100V ~ 240V

Power Consumption

6W

Regulatory Approval

CE; RoHS

Network Management
System Browser Support

IE / Safari / Chrome / Firefox / Opera

Warranty

One year limited
