knurning and facing holder for america type quick change tool post
- Category: Tool Holder >>>
- Supplier: Dezhou Zhongyi Industry And Commerce Co. Ltd.
Share on (1794955895):
Product Overview
Description

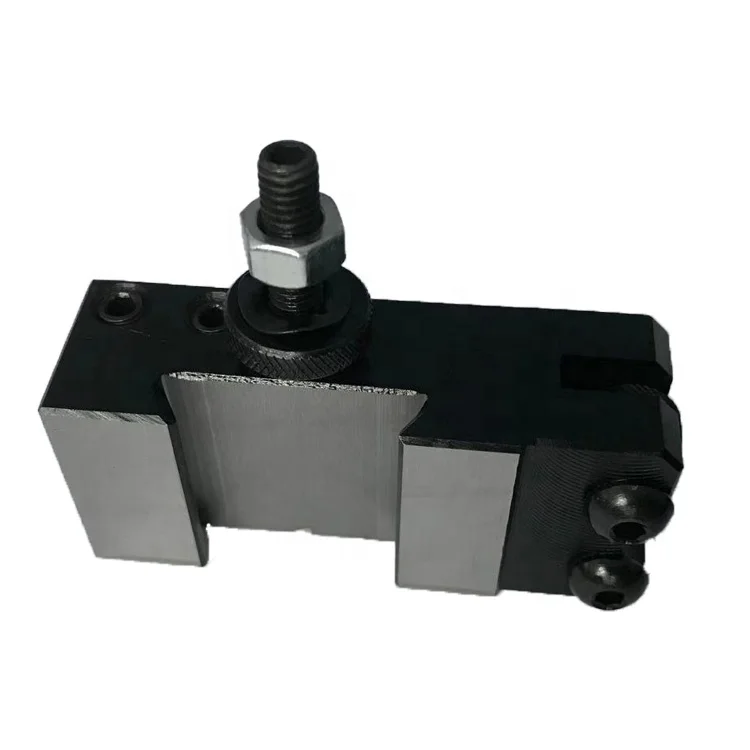

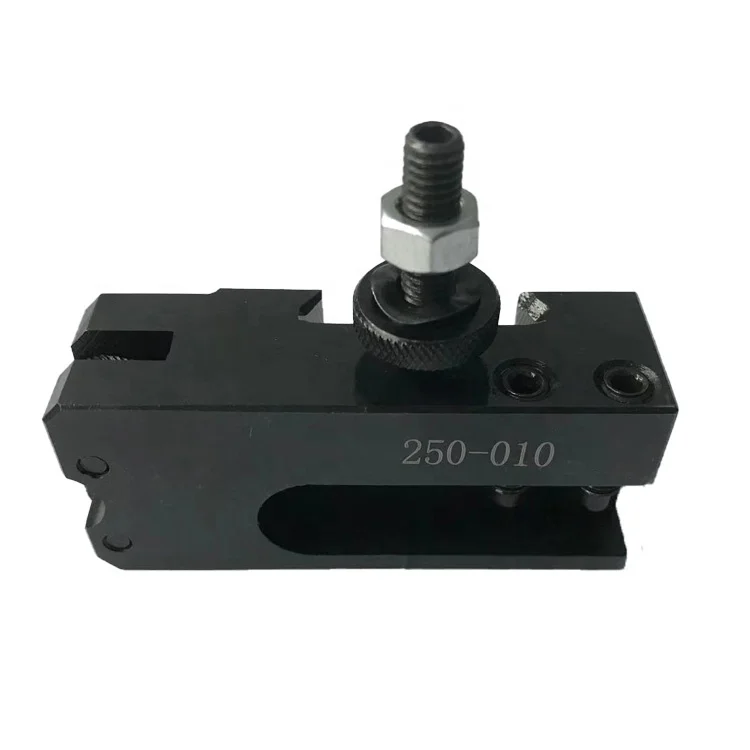

knurning and facing holder for america type quick change tool post:
1)it is main parts of normal lathe,work with tool post
2)change cutter quickly
3)high accuracy for fix-postion

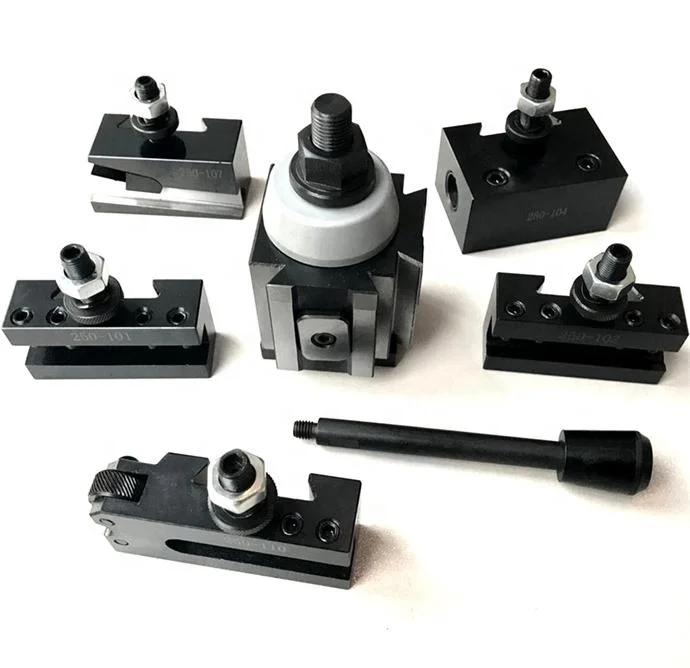

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.

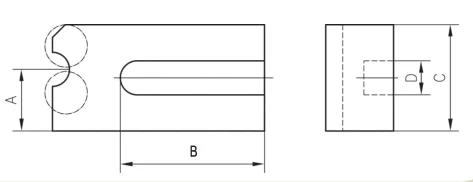

4)Below is sizes specification of knurning and facing holder:
| model no. | A(in) | B(in) | C(in) | clamping range(in) | Tool bit range(in) | Weight(Kg) |
| 250-110 | 7/8 | 2-1/2 | 1-9/16 | 3/16-1/2 | 3/4x3/8x1/4 | 0.48 |
| 250-210 | 1 | 2-5/8 | 1-3/4 | 1/4-5/8 | 0.85 | |
| 250-310 | 1-3/16 | 3-1/8 | 2 | 1/2-3/4 | 1.15 | |
| 250-410 | 1-7/16 | 3-3/4 | 2-1/2 | 1/2-1 | 1.95 |
Remarks:It may be used for knurning,if square tool is used,it can process end face,boring etc.

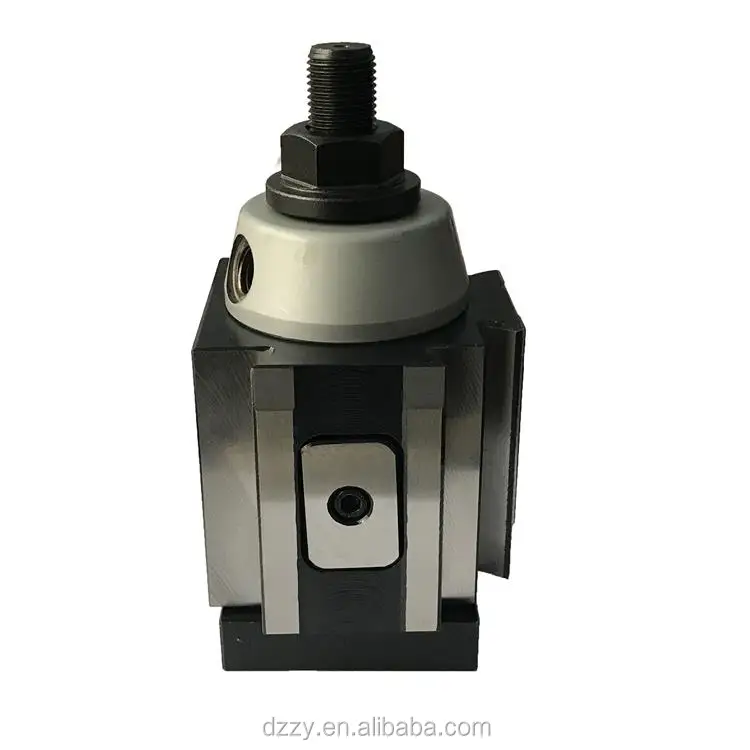

5)the pistion type quick change tool post size specification is below:
| order no. | A(in) | B(in) | C(in) | D(in) | Swing dia(in) | Wt(kg) |
| 250-100 | 2-1/2 | 3-7/8 | 2-1/4 | 9/16 | 12 | 2.23 |
| 250-200 | 3 | 4-5/8 | 2-3/4 | 5/8 | 10-15 | 4.00 |
| 250-300 | 3-3/8 | 5-1/8 | 3 | 3/4 | 13-18 | 5.72 |
| 250-400 | 4 | 6-1/4 | 3-5/8 | 7/8 | 14-20 | 10.00 |
