System Smoke Alarm Sensor 4 wired Conventional Photoelectric 12V Smoke Detector

Product Overview

Description

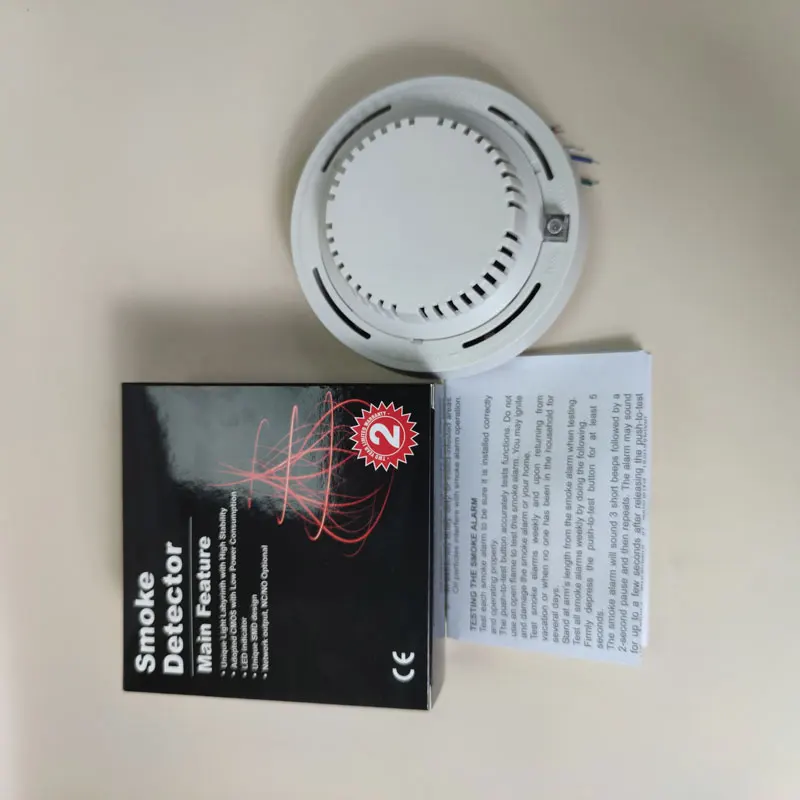

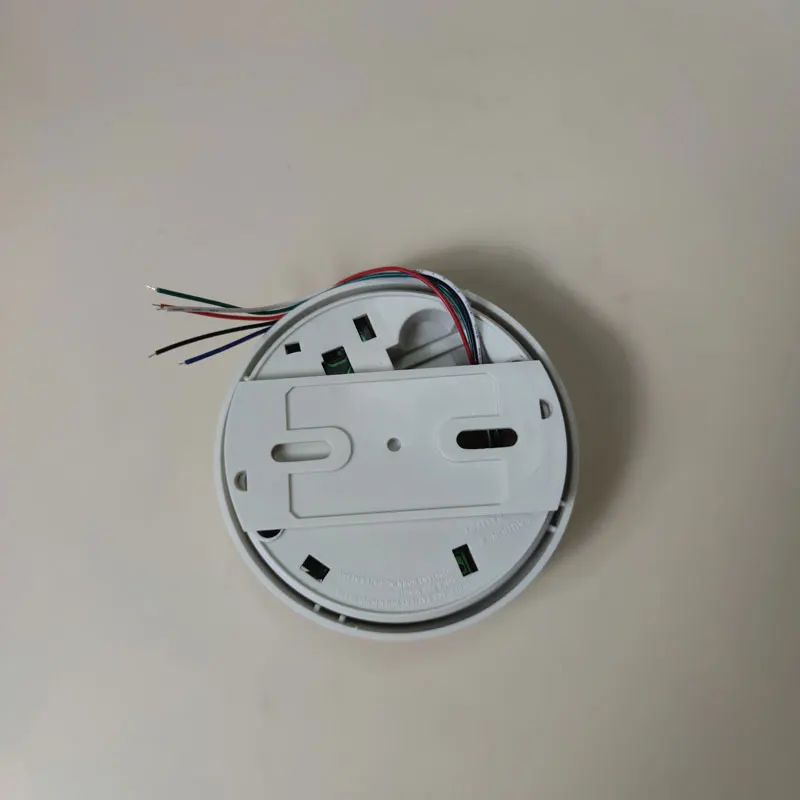

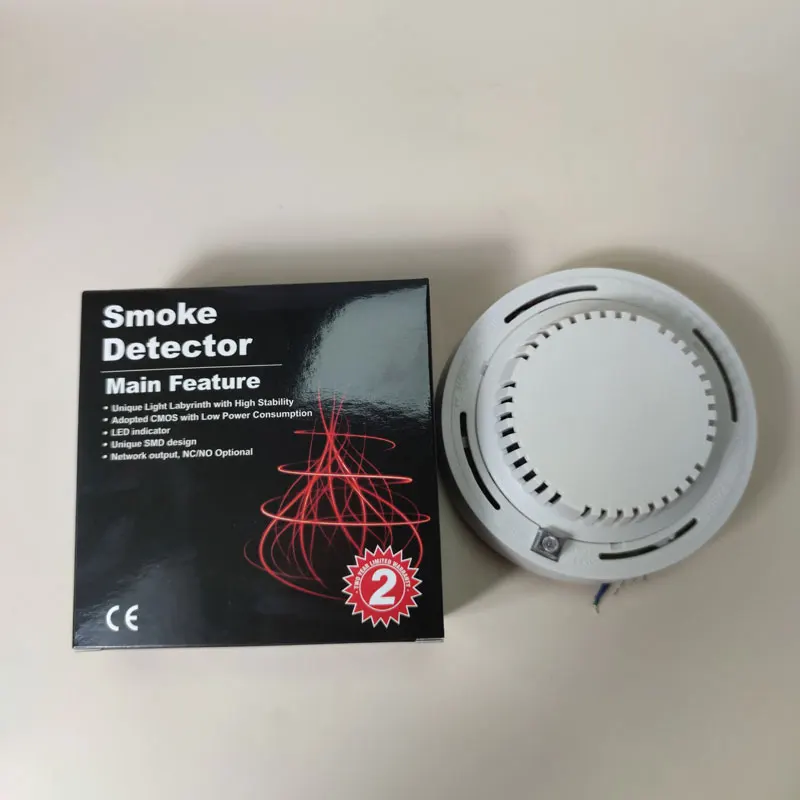

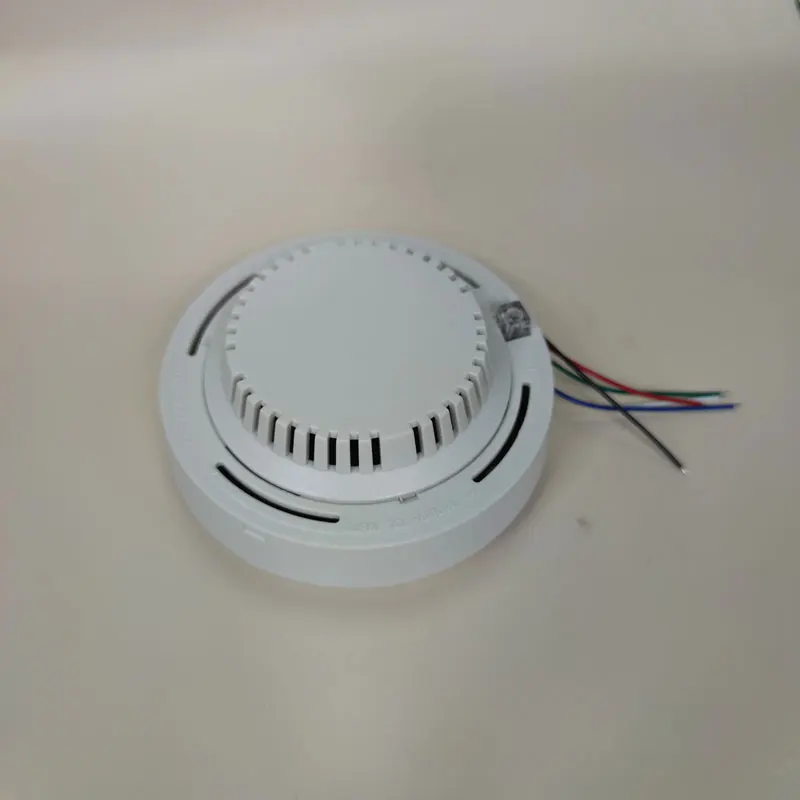

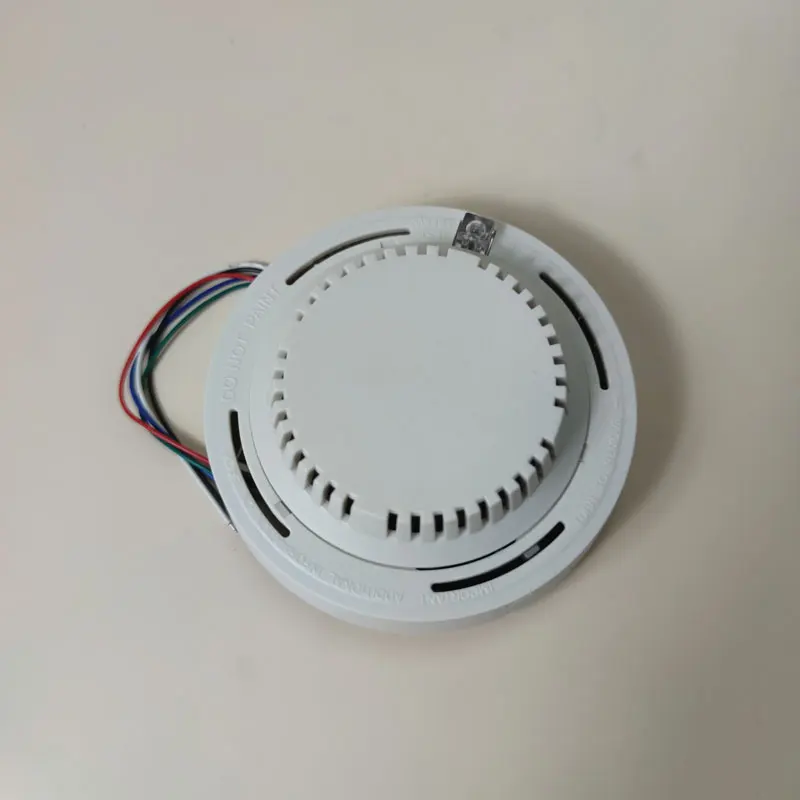

YH-1098 System Smoke Alarm Sensor 4-wired Conventional Photoelectric 12V Smoke Detector





Features:



• MCU technical, 12V wired smoke detector


• Apply optical smoke test room


• Insect-resistant design


• LED light display


• Using ABS material


• Standalone surface mounted, easy operate


• Built-in IC card, stable performance, high sensitivity


• Apply optical smoke test room


• With buzzer,


• 9V battery option



Technical Parameter:



Model	YH-1098 wired smoke detector
sensor	photoelectric detector
alarm current	≤10mA
static current	≤10uA
working voltage	12V DC
working environment	temperature :-10°C~+50°C,humidity:≤95%RH
alarm output	NC/NO option
buzzer	85dB/m
detector scale	20 square meters
sensitivity level	grade 1
dimension	107*107*40mm
Usage	Smoke fire alarm
installation	ceiling mounted
guarantee	one year





















Q: 1. How about the quality of the products?

       A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don't worry for it, as we wanna long-term business cooperation with customers.



Q: 2. Can I have a sample order?

       A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q: 3. What is the lead time?

        A:Small qty order needs 3~7 working days, mass production time needs 7~25 working days depends on order qty.



Q: 4. How to proceed the order if I have logo to print?

        A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make

  sampling first and take picture for your second confirmation before mass production.



Q: 5. How do you ship the goods ?

        A: We usually ship by DHL, UPS, FedEx or TNT, or by Air, or by Sea at your request



Q: 6. Do you offer guarantee for the products?

        A: Yes sure, we offer one year warranty for the products
